Tutorial on Image Regression Using Dino-v3

Setup and Imports

import os
import random
import pandas as pd
import numpy as np
import torch
import torch.nn as nn
from torch.utils.data import Dataset, DataLoader, Subset
from torchvision import transforms
from PIL import Image
import timm
import matplotlib.pyplot as plt
from tqdm import tqdm

from google.colab import drive
drive.mount('/content/drive')

Mounted at /content/drive

BATCH_SIZE = 32
VAL_SUBSET_SIZE = 500 # subset size for quick evaluation
EPOCHS = 5
LEARNING_RATE = 1e-3
NUM_WORKERS = 2
RANDOM_SEED = 42
IMAGE_SIZE = 224 # 224 is typical for vit / dinov3
BACKBONE_NAME = 'vit_base_patch16_dinov3'

Accessing Local Dataset

IMAGE_DIR = "/content/drive/MyDrive/Dinov3Data/Images"
CSV_PATH = "/content/drive/MyDrive/Dinov3Data/human_count_rgb.csv"
OUTPUT_DIR = "/content/drive/MyDrive/DinoV3Data/Results"

os.makedirs(OUTPUT_DIR, exist_ok=True)

def set_seed(seed=RANDOM_SEED):
  random.seed(seed)
  np.random.seed(seed)
  torch.manual_seed(seed)
  if torch.cuda.is_available():
    torch.cuda.manual_seed_all(seed)

set_seed()

Preprocessing Dataset

class ImageRegressionDataset(Dataset):
  def __init__(self, csv_path, image_dir, transform=None):
    self.df = pd.read_csv(csv_path)
    assert 'filename' in self.df.columns and 'num_humans' in self.df.columns, \
    "CSV must have 'filename' and 'num_humans' columns"
    self.image_dir = image_dir
    self.transform = transform


  def __len__(self):
    return len(self.df)


  def __getitem__(self, idx):
    row = self.df.iloc[idx]
    img_path = os.path.join(self.image_dir, str(row['filename']).strip())
    if not os.path.exists(img_path):
      # try with extension if missing
      for ext in ('.jpg','.jpeg','.png'):
        alt = img_path + ext
        if os.path.exists(alt):
          img_path = alt
          break
    img = Image.open(img_path).convert('RGB')
    if self.transform:
      img = self.transform(img)
    target = torch.tensor(float(row['num_humans']), dtype=torch.float32)
    return img, target

transform = transforms.Compose([
  transforms.Resize(IMAGE_SIZE),
  transforms.CenterCrop(IMAGE_SIZE),
  transforms.ToTensor(),
  transforms.Normalize(mean=[0.485, 0.456, 0.406],
  std=[0.229, 0.224, 0.225])
])


# load dataset
dataset = ImageRegressionDataset(CSV_PATH, IMAGE_DIR, transform=transform)


# Split into train and val (80/20)
n = len(dataset)
indices = list(range(n))
random.shuffle(indices)
split = int(0.8 * n)
train_indices, val_indices = indices[:split], indices[split:]
train_ds = Subset(dataset, train_indices)
val_ds = Subset(dataset, val_indices)


train_loader = DataLoader(train_ds, batch_size=BATCH_SIZE, shuffle=True, num_workers=NUM_WORKERS)
val_loader = DataLoader(val_ds, batch_size=BATCH_SIZE, shuffle=False, num_workers=NUM_WORKERS)

val_subset_size = min(VAL_SUBSET_SIZE, len(val_ds))
val_subset_indices = np.random.choice(len(val_ds), val_subset_size, replace=False)
val_subset = Subset(val_ds, val_subset_indices)
val_subset_loader = DataLoader(val_subset, batch_size=BATCH_SIZE, shuffle=False, num_workers=NUM_WORKERS)

def show_samples(dataset, num=5):
  fig, axes = plt.subplots(1, num, figsize=(3*num, 3))
  chosen = np.random.choice(len(dataset), num, replace=False)
  for ax, i in zip(axes, chosen):
    img, target = dataset[i]
    # unnormalize for display
    img_np = img.permute(1,2,0).numpy()
    img_np = np.clip((img_np * np.array([0.229, 0.224, 0.225])) + np.array([0.485, 0.456, 0.406]), 0, 1)
    ax.imshow(img_np)
    ax.set_title(f"{int(target.item()):}")
    ax.axis('off')
  plt.show()

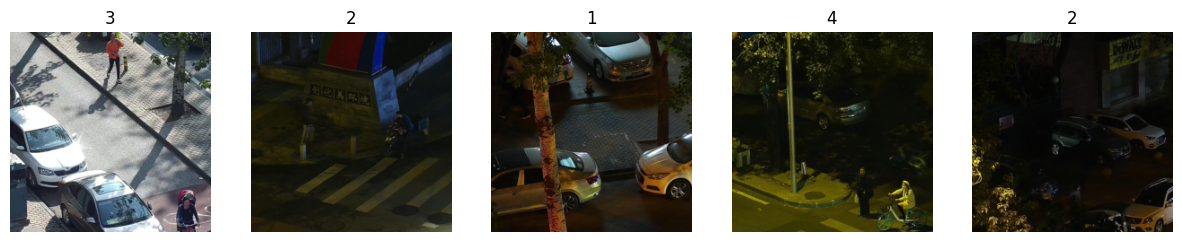

print('Showing sample images from training set:')
show_samples(train_ds, num=5)

Showing sample images from training set:

Fine-tuning & Evaluation

class DinoRegressor(nn.Module):
  def __init__(self, backbone_name=BACKBONE_NAME, pretrained=True, freeze_backbone=True):
    super().__init__()
    self.backbone = timm.create_model(backbone_name, pretrained=pretrained, num_classes=0, global_pool='avg')
    feat_dim = self.backbone.num_features
    self.head = nn.Sequential(
      nn.Linear(feat_dim, 256),
      nn.ReLU(inplace=True),
      nn.Linear(256, 1)
      )
    if freeze_backbone:
      for p in self.backbone.parameters():
        p.requires_grad = False


  def forward(self, x):
    feats = self.backbone(x)
    out = self.head(feats)
    return out.squeeze(1)

device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
model = DinoRegressor(freeze_backbone=True).to(device)

print('Model created. Trainable params:')
trainable = sum(p.numel() for p in model.parameters() if p.requires_grad)
total = sum(p.numel() for p in model.parameters())
print(f"{trainable} / {total} parameters are trainable")

Model created. Trainable params:
197121 / 85838337 parameters are trainable

from sklearn.metrics import mean_squared_error, r2_score


def predict_on_loader(model, loader):
  model.eval()
  preds, targets = [], []
  with torch.no_grad():
    for imgs, t in loader:
      imgs = imgs.to(device)
      out = model(imgs)
      preds.extend(out.cpu().numpy())
      targets.extend(t.numpy())
  return np.array(preds), np.array(targets)

criterion = nn.MSELoss()
optimizer = torch.optim.AdamW(filter(lambda p: p.requires_grad, model.parameters()), lr=LEARNING_RATE)


for epoch in range(EPOCHS):
  model.train()
  running_loss = 0.0
  progress_bar = tqdm(train_loader, desc=f"Epoch [{epoch+1}/{EPOCHS}]", leave=False, mininterval=1.0)
  for imgs, t in progress_bar:
    imgs = imgs.to(device)
    t = t.to(device)
    optimizer.zero_grad()
    out = model(imgs)
    loss = criterion(out, t)
    loss.backward()
    optimizer.step()
    running_loss += loss.item()
    progress_bar.set_postfix({'loss': f'{loss.item():.4f}'})
  avg_loss = running_loss / len(train_loader)
  print(f"Epoch [{epoch+1}/{EPOCHS}] - Avg Loss: {avg_loss:.4f}")


  preds_val, targets_val = predict_on_loader(model, val_subset_loader)
  mse = mean_squared_error(targets_val, preds_val)
  r2 = r2_score(targets_val, preds_val)
  print(f" Val MSE: {mse:.4f}, R2: {r2:.4f}")

Epoch [1/5] - Avg Loss: 9.8588

 Val MSE: 6.4090, R2: 0.2306

Epoch [2/5] - Avg Loss: 6.3135

 Val MSE: 5.3002, R2: 0.3637

Epoch [3/5] - Avg Loss: 5.4489

 Val MSE: 4.7774, R2: 0.4265

Epoch [4/5] - Avg Loss: 4.6809

 Val MSE: 4.2804, R2: 0.4862

Epoch [5/5] - Avg Loss: 4.0253

 Val MSE: 4.0472, R2: 0.5142

preds_after, targets_after = predict_on_loader(model, val_subset_loader)
print(f"Final MSE on val subset: {mean_squared_error(targets_after, preds_after):.4f}")

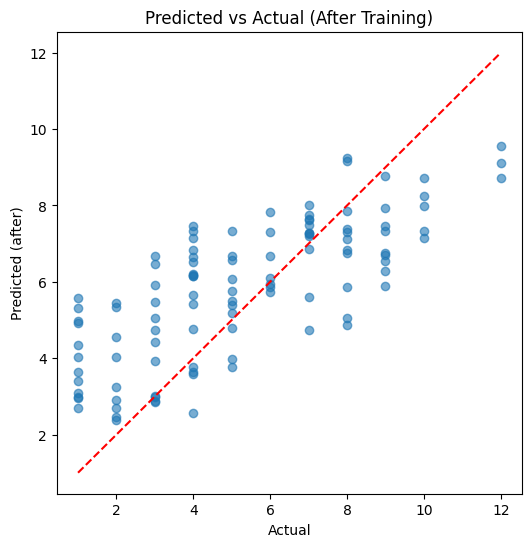

plt.figure(figsize=(6,6))
plt.scatter(targets_after, preds_after, alpha=0.6)
plt.plot([targets_after.min(), targets_after.max()], [targets_after.min(), targets_after.max()], 'r--')
plt.xlabel('Actual')
plt.ylabel('Predicted (after)')
plt.title('Predicted vs Actual (After Training)')
plt.show()

Final MSE on val subset: 4.0472

def show_predictions(dataset_subset, model, num=5):
  model.eval()
  chosen = np.random.choice(len(dataset_subset), num, replace=False)
  fig, axes = plt.subplots(1, num, figsize=(3*num, 3))
  with torch.no_grad():
    for ax, idx in zip(axes, chosen):
      img, t = dataset_subset[idx]
      inp = img.unsqueeze(0).to(device)
      pred = model(inp).cpu().item()
      img_np = img.permute(1,2,0).numpy()
      img_np = np.clip((img_np * np.array([0.229, 0.224, 0.225])) + np.array([0.485, 0.456, 0.406]), 0, 1)
      ax.imshow(img_np)
      ax.set_title(f"GT: {t.item():.3f}\nPred: {pred:.3f}")
      ax.axis('off')
  plt.show()

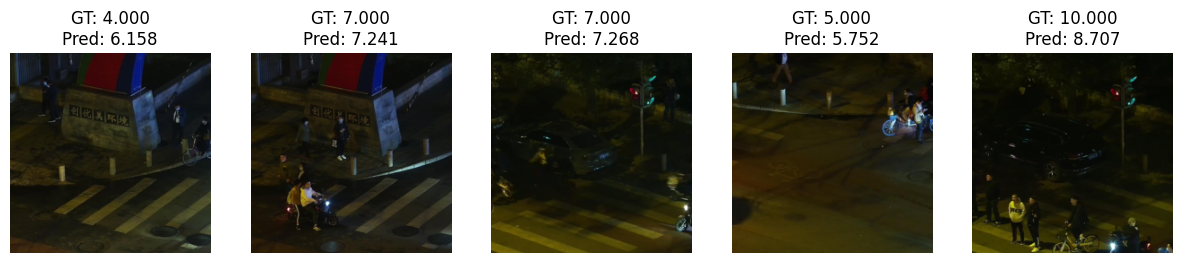

print('Sample predictions after training:')
show_predictions(val_subset, model, num=5)

print('Regression demo complete.')

Sample predictions after training:

Regression demo complete.
