Gradient Descent

Interactive tutorial on gradient descent with practical implementations and visualizations

Open In Colab

import seaborn as sns
import matplotlib.pyplot as plt
import numpy as np

sns.despine()

<Figure size 432x288 with 0 Axes>

init_x = 2
init_y = 5

%matplotlib notebook

import numpy as np
from mpl_toolkits.mplot3d import Axes3D
# Axes3D import has side effects, it enables using projection='3d' in add_subplot
import matplotlib.pyplot as plt
import random

def fun(x, y):
    x = np.array(x)
    y = np.array(y)
    return 14+3*(x**2) + 14*(y**2) - 12*x- 28*y + 12*x*y


lst_x = []
lst_y = []
x_ = init_x
y_ = init_y
alpha = 0.005

lst_x.append(x_)
lst_y.append(y_)

for i in range(10):

    fig = plt.figure(figsize=(10,10))
    ax = fig.add_subplot(111, projection='3d')
    x = y = np.arange(-4.0, 4.0, 0.05)
    X, Y = np.meshgrid(x, y)
    zs = np.array(fun(np.ravel(X), np.ravel(Y)))
    Z = zs.reshape(X.shape)
    x_ = lst_x[-1]
    y_ = lst_y[-1]
#     ax.scatter3D(xdata, ydata, zdata, c=zdata, cmap='Greens')
#     print (lst_x,lst_y,fun(lst_x,lst_y))
    ax.scatter3D(lst_x,lst_y,fun(lst_x,lst_y),lw=10,alpha=1,cmap='hsv')
    ax.plot_surface(X, Y, Z,color='orange',cmap='hsv')

    ax.set_xlabel('X Label')
    ax.set_ylabel('Y Label')
    ax.set_zlabel('Z Label')
    plt.title("Iteration "+str(i+1))
    lst_x.append(x_ - alpha * (3*x_ - 12 + 12*y_))
    lst_y.append(y_  - alpha *(14*y_ -28 + 12*x_))


    plt.show()

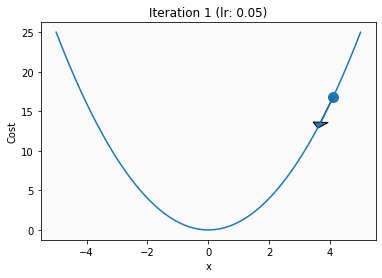

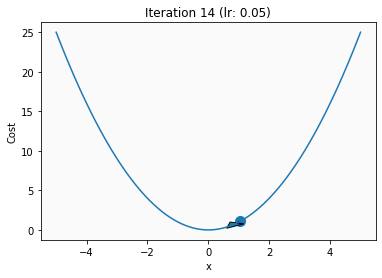

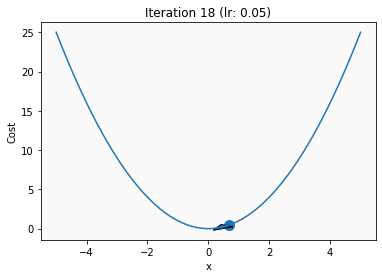

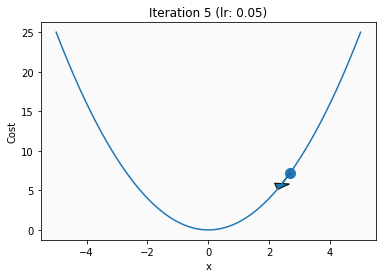

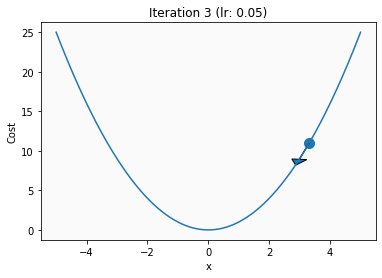

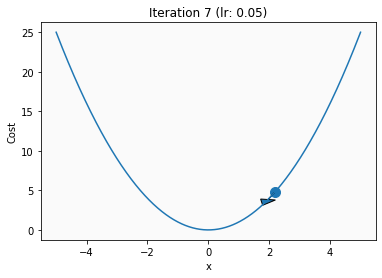

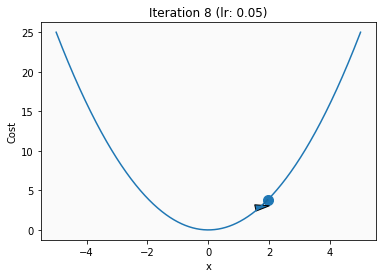

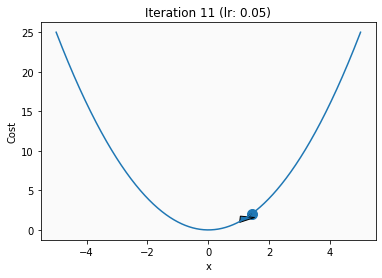

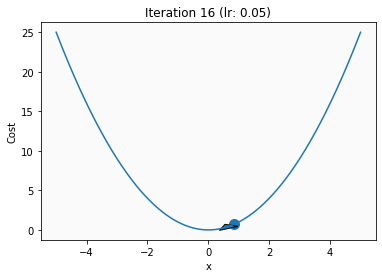

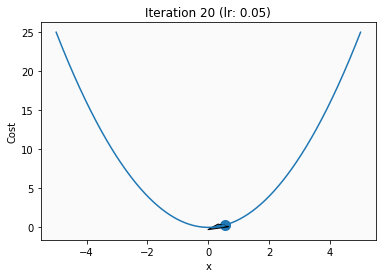

x = np.linspace(-5,5,1000) y = x**2 plt.plot(x,y) plt.title(“Cost Function”)

plt.rcParams['axes.facecolor'] = '#fafafa'

p = 4.1
alpha = 0.05
iterations = 20

# for i in range(10):

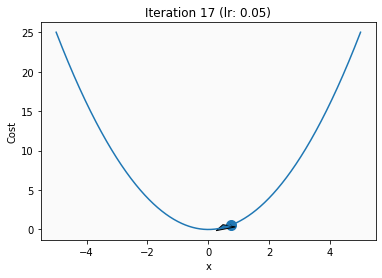

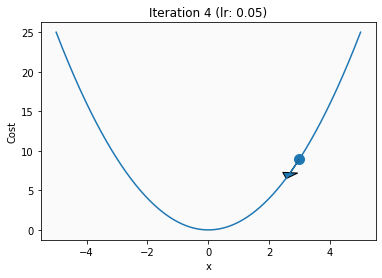

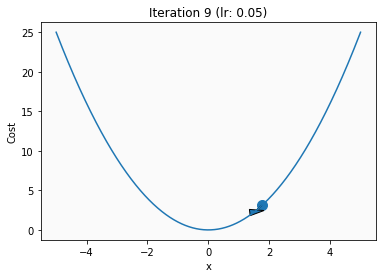

for i in range(iterations):
    plt.figure()
    plt.plot(x,y)
    prev = p
    p = p - (alpha*2*p)
    plt.arrow(prev,prev**2,p-prev,p**2-prev**2,head_width=0.5)
    plt.scatter([prev],[prev**2],s=100)
    plt.xlabel("x")
    plt.ylabel("Cost")
    plt.title("Iteration "+str(i+1)+" (lr: "+str(alpha)+")")
    plt.savefig("iteration-"+str(i+1)+".eps", format='eps',transparent=True)

    plt.show()

s = ""
for i in range(iterations):
    s+="\\begin{frame}{Gradient Descent}\n"
    s+="  \\begin{center}\n"
    s+="       \includegraphics[totalheight=6cm]{gradient-descent/iteration-"+str(i+1)+".eps}\n"
    s+="   \end{center}\n"
    s+="\end{frame}\n\n"

print (s)

\begin{frame}{Gradient Descent}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/iteration-1.eps}
   \end{center}
\end{frame}

\begin{frame}{Gradient Descent}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/iteration-2.eps}
   \end{center}
\end{frame}

\begin{frame}{Gradient Descent}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/iteration-3.eps}
   \end{center}
\end{frame}

\begin{frame}{Gradient Descent}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/iteration-4.eps}
   \end{center}
\end{frame}

\begin{frame}{Gradient Descent}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/iteration-5.eps}
   \end{center}
\end{frame}

\begin{frame}{Gradient Descent}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/iteration-6.eps}
   \end{center}
\end{frame}

\begin{frame}{Gradient Descent}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/iteration-7.eps}
   \end{center}
\end{frame}

\begin{frame}{Gradient Descent}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/iteration-8.eps}
   \end{center}
\end{frame}

\begin{frame}{Gradient Descent}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/iteration-9.eps}
   \end{center}
\end{frame}

\begin{frame}{Gradient Descent}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/iteration-10.eps}
   \end{center}
\end{frame}

\begin{frame}{Gradient Descent}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/iteration-11.eps}
   \end{center}
\end{frame}

\begin{frame}{Gradient Descent}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/iteration-12.eps}
   \end{center}
\end{frame}

\begin{frame}{Gradient Descent}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/iteration-13.eps}
   \end{center}
\end{frame}

\begin{frame}{Gradient Descent}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/iteration-14.eps}
   \end{center}
\end{frame}

\begin{frame}{Gradient Descent}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/iteration-15.eps}
   \end{center}
\end{frame}

\begin{frame}{Gradient Descent}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/iteration-16.eps}
   \end{center}
\end{frame}

\begin{frame}{Gradient Descent}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/iteration-17.eps}
   \end{center}
\end{frame}

\begin{frame}{Gradient Descent}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/iteration-18.eps}
   \end{center}
\end{frame}

\begin{frame}{Gradient Descent}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/iteration-19.eps}
   \end{center}
\end{frame}

\begin{frame}{Gradient Descent}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/iteration-20.eps}
   \end{center}
\end{frame}

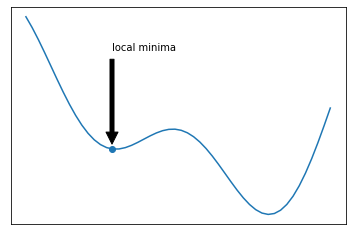

def func(x):
    return np.sin(x) + np.sin(x/2) + np.sin(x/3)

fig, ax = plt.subplots()
x = np.linspace(-10,10,100)
x = x[x<=0]
y = func(x)


val = -7.2

plt.scatter([val],func(np.array([val])))
ax.annotate('local minima', xy=(val, func(val)), xytext=(val, 1),
            arrowprops=dict(facecolor='black', shrink=0.05))
plt.xticks([])
plt.yticks([])
plt.plot(x,y)
plt.savefig("local-minima.eps", format='eps',transparent=True)

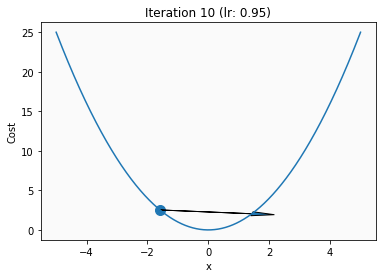

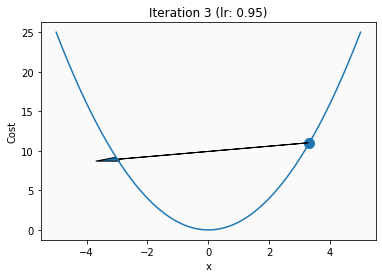

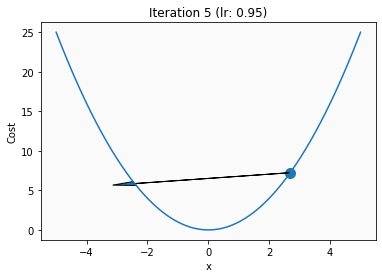

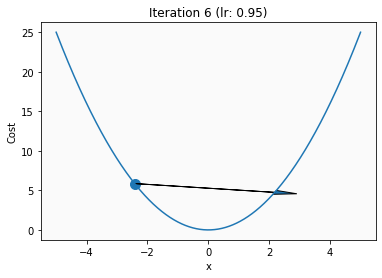

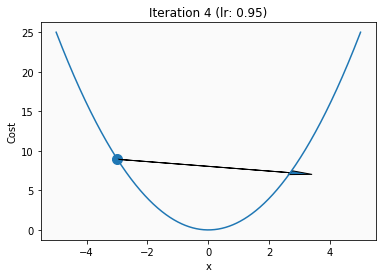

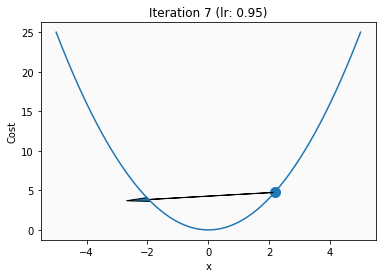

x = np.linspace(-5,5,1000)
y = x**2

p = 4.1
alpha = .95
iterations = 10

# for i in range(10):

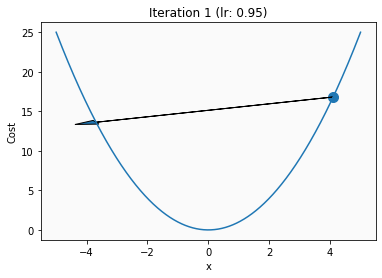

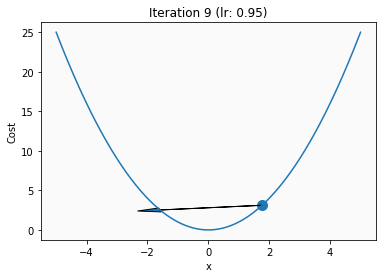

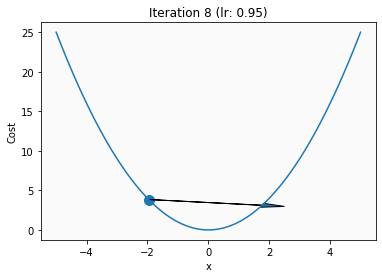

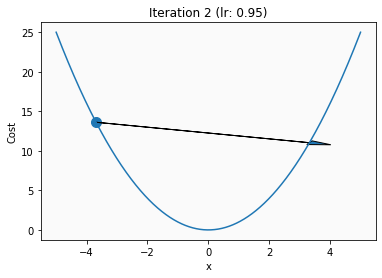

for i in range(iterations):
    plt.figure()
    plt.plot(x,y)
    prev = p
    p = p - (alpha*2*p)
    plt.arrow(prev,prev**2,p-prev,p**2-prev**2,head_width=0.5)
    plt.scatter([prev],[prev**2],s=100)
    plt.xlabel("x")
    plt.ylabel("Cost")
    plt.title("Iteration "+str(i+1)+" (lr: "+str(alpha)+")")
    plt.savefig("overshooting-"+str(i+1)+".eps", format='eps',transparent=True)
    plt.show()

s = ""
for i in range(iterations):
    s+="\\begin{frame}{Overshooting}\n"
    s+="  \\begin{center}\n"
    s+="       \includegraphics[totalheight=6cm]{gradient-descent/overshooting-"+str(i+1)+".eps}\n"
    s+="   \end{center}\n"
    s+="\end{frame}\n\n"

print (s)

\begin{frame}{Overshooting}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/overshooting-1.eps}
   \end{center}
\end{frame}

\begin{frame}{Overshooting}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/overshooting-2.eps}
   \end{center}
\end{frame}

\begin{frame}{Overshooting}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/overshooting-3.eps}
   \end{center}
\end{frame}

\begin{frame}{Overshooting}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/overshooting-4.eps}
   \end{center}
\end{frame}

\begin{frame}{Overshooting}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/overshooting-5.eps}
   \end{center}
\end{frame}

\begin{frame}{Overshooting}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/overshooting-6.eps}
   \end{center}
\end{frame}

\begin{frame}{Overshooting}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/overshooting-7.eps}
   \end{center}
\end{frame}

\begin{frame}{Overshooting}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/overshooting-8.eps}
   \end{center}
\end{frame}

\begin{frame}{Overshooting}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/overshooting-9.eps}
   \end{center}
\end{frame}

\begin{frame}{Overshooting}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/overshooting-10.eps}
   \end{center}
\end{frame}

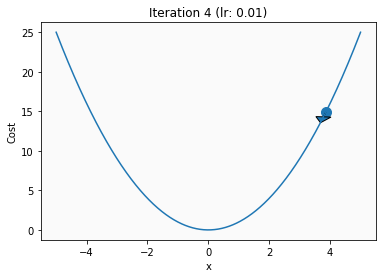

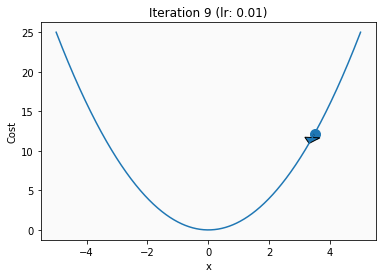

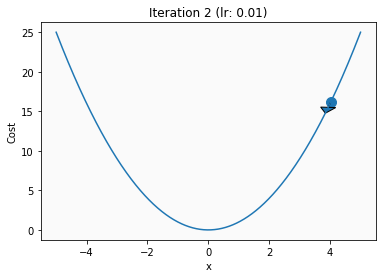

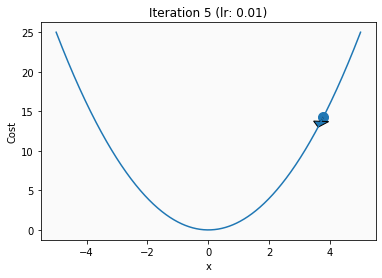

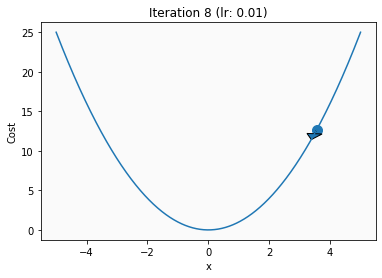

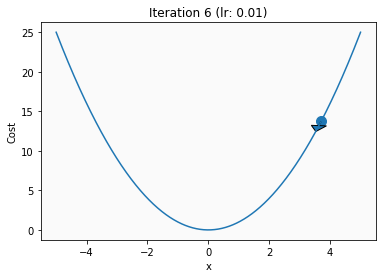

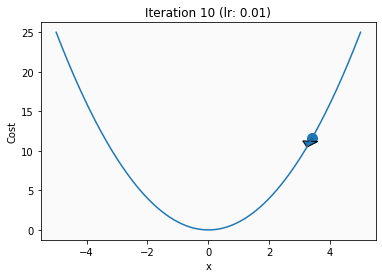

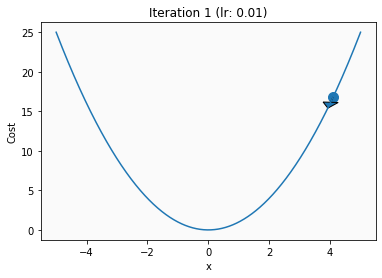

x = np.linspace(-5,5,1000)
y = x**2

p = 4.1
alpha = .01
iterations = 10

# for i in range(10):

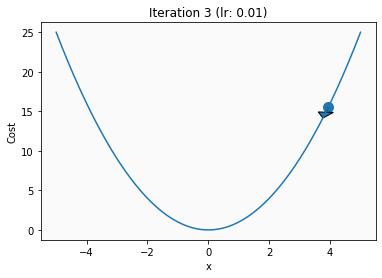

for i in range(iterations):
    plt.figure()
    plt.plot(x,y)
    prev = p
    p = p - (alpha*2*p)
    plt.arrow(prev,prev**2,p-prev,p**2-prev**2,head_width=0.5)
    plt.scatter([prev],[prev**2],s=100)
    plt.xlabel("x")
    plt.ylabel("Cost")
    plt.title("Iteration "+str(i+1)+" (lr: "+str(alpha)+")")
    plt.savefig("undershooting-"+str(i+1)+".eps", format='eps',transparent=True)
    plt.show()

s = ""
for i in range(iterations):
    s+="\\begin{frame}{Slow Convergence}\n"
    s+="  \\begin{center}\n"
    s+="       \includegraphics[totalheight=6cm]{gradient-descent/undershooting-"+str(i+1)+".eps}\n"
    s+="   \end{center}\n"
    s+="\end{frame}\n\n"

print (s)

\begin{frame}{Slow Convergence}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/undershooting-1.eps}
   \end{center}
\end{frame}

\begin{frame}{Slow Convergence}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/undershooting-2.eps}
   \end{center}
\end{frame}

\begin{frame}{Slow Convergence}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/undershooting-3.eps}
   \end{center}
\end{frame}

\begin{frame}{Slow Convergence}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/undershooting-4.eps}
   \end{center}
\end{frame}

\begin{frame}{Slow Convergence}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/undershooting-5.eps}
   \end{center}
\end{frame}

\begin{frame}{Slow Convergence}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/undershooting-6.eps}
   \end{center}
\end{frame}

\begin{frame}{Slow Convergence}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/undershooting-7.eps}
   \end{center}
\end{frame}

\begin{frame}{Slow Convergence}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/undershooting-8.eps}
   \end{center}
\end{frame}

\begin{frame}{Slow Convergence}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/undershooting-9.eps}
   \end{center}
\end{frame}

\begin{frame}{Slow Convergence}
  \begin{center}
       \includegraphics[totalheight=6cm]{gradient-descent/undershooting-10.eps}
   \end{center}
\end{frame}

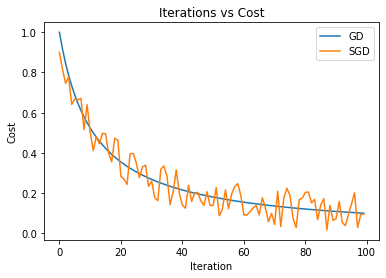

x = np.linspace(1,10,100)
y = 1/x
plt.plot(y,label="GD")
noise = np.random.random((len(x)))
noise[0] = 0
noise[1] = 0
noise[2] = 0
plt.plot(y+0.2*(noise-0.5),label="SGD")
plt.legend()
plt.title("Iterations vs Cost")
plt.xlabel("Iteration")
plt.ylabel("Cost")
plt.savefig("gd-sgd.eps", format='eps',transparent=True)

val = 4.1
alpha = 0.05

for i in range(10):
    val = val - alpha * 2* val
    print (val)

3.6899999999999995
3.3209999999999997
2.9888999999999997
2.6900099999999996
2.4210089999999997
2.1789080999999997
1.9610172899999996
1.7649155609999996
1.5884240048999996
1.4295816044099996
