import torch
import torch.nn as nn
import torch.optim as optim
import torch.nn.functional as F
from torchvision import datasets, transforms
from torch.utils.data import DataLoader
from sklearn.decomposition import PCA
from sklearn.metrics import mean_squared_error
import matplotlib.pyplot as plt
import numpy as np
batch_size = 128
latent_dim = 64
num_epochs = 3
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
transform = transforms.Compose([transforms.ToTensor()])
train_data = datasets.MNIST(root="./data", train=True, download=True, transform=transform)
loader = DataLoader(train_data, batch_size=batch_size, shuffle=True)
images, _ = next(iter(loader))
images = images.to(device)
images_flat = images.view(images.size(0), -1).cpu().numpy()
# PCA Reconstruction
pca = PCA(n_components=latent_dim)
imgs_pca = pca.inverse_transform(pca.fit_transform(images_flat))
# MLP Autoencoder
class MLP_Autoencoder(nn.Module):
def __init__(self, latent_dim):
super().__init__()
self.encoder = nn.Sequential(
nn.Linear(28*28, 256),
nn.ReLU(),
nn.Linear(256, latent_dim)
)
self.decoder = nn.Sequential(
nn.Linear(latent_dim, 256),
nn.ReLU(),
nn.Linear(256, 28*28),
nn.Sigmoid()
)
def forward(self, x):
x = x.view(x.size(0), -1)
z = self.encoder(x)
out = self.decoder(z)
return out.view(-1, 1, 28, 28)
mlp_model = MLP_Autoencoder(latent_dim).to(device)
optimizer = optim.Adam(mlp_model.parameters(), lr=1e-3)
criterion = nn.MSELoss()
for epoch in range(num_epochs):
for imgs, _ in loader:
imgs = imgs.to(device)
out = mlp_model(imgs)
loss = criterion(out, imgs)
optimizer.zero_grad()
loss.backward()
optimizer.step()
mlp_out = mlp_model(images).detach().cpu()
# CNN Autoencoder
class CNN_Autoencoder(nn.Module):
def __init__(self):
super().__init__()
self.encoder = nn.Sequential(
nn.Conv2d(1, 16, 3, stride=2, padding=1),
nn.ReLU(),
nn.Conv2d(16, 32, 3, stride=2, padding=1),
nn.ReLU()
)
self.decoder = nn.Sequential(
nn.ConvTranspose2d(32, 16, 3, stride=2, padding=1, output_padding=1),
nn.ReLU(),
nn.ConvTranspose2d(16, 1, 3, stride=2, padding=1, output_padding=1),
nn.Sigmoid()
)
def forward(self, x):
z = self.encoder(x)
out = self.decoder(z)
return out
cnn_model = CNN_Autoencoder().to(device)
optimizer = optim.Adam(cnn_model.parameters(), lr=1e-3)
for epoch in range(num_epochs):
for imgs, _ in loader:
imgs = imgs.to(device)
out = cnn_model(imgs)
loss = criterion(out, imgs)
optimizer.zero_grad()
loss.backward()
optimizer.step()
cnn_out = cnn_model(images).detach().cpu()
# Reconstruction Error Comparison
pca_error = mean_squared_error(images_flat, imgs_pca)
mlp_error = mean_squared_error(images_flat, mlp_out.view(images.size(0), -1).numpy())
cnn_error = F.mse_loss(cnn_out, images.cpu()).item()
print(f"\nReconstruction Error Comparison:")
print(f"PCA Reconstruction Error: {pca_error:.6f}")
print(f"MLP Autoencoder Error: {mlp_error:.6f}")
print(f"CNN Autoencoder Error: {cnn_error:.6f}")

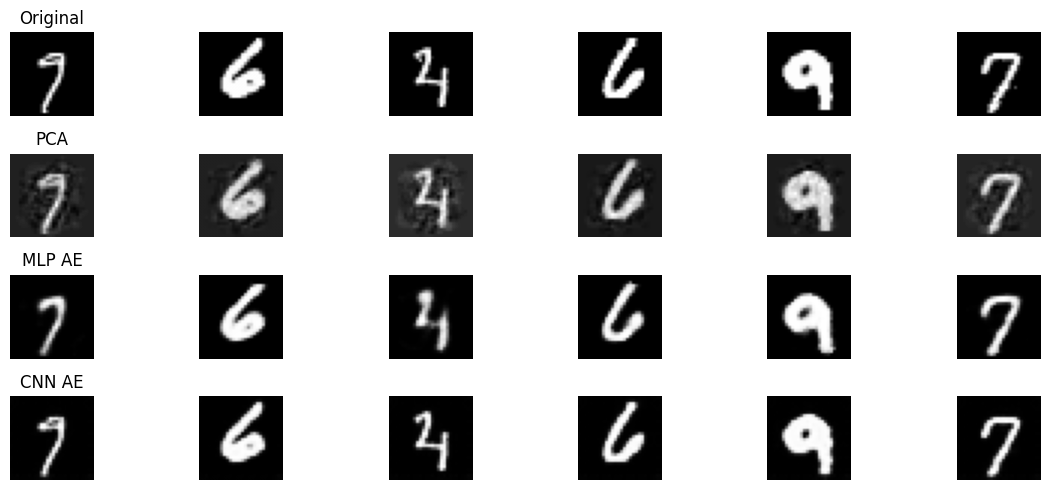

# Visualization
def show_reconstructions(original, pca, mlp, cnn, n=6):
plt.figure(figsize=(12, 5))
for i in range(n):
# Original
ax = plt.subplot(4, n, i + 1)
plt.imshow(original[i][0], cmap="gray")
ax.axis("off")
if i == 0:
ax.set_title("Original")
# PCA
ax = plt.subplot(4, n, i + 1 + n)
plt.imshow(pca[i].reshape(28, 28), cmap="gray")
ax.axis("off")
if i == 0:
ax.set_title("PCA")
# MLP
ax = plt.subplot(4, n, i + 1 + 2*n)
plt.imshow(mlp[i][0], cmap="gray")
ax.axis("off")
if i == 0:
ax.set_title("MLP AE")
# CNN
ax = plt.subplot(4, n, i + 1 + 3*n)
plt.imshow(cnn[i][0], cmap="gray")
ax.axis("off")
if i == 0:
ax.set_title("CNN AE")
plt.tight_layout()
plt.show()
show_reconstructions(images.cpu(), imgs_pca, mlp_out, cnn_out)
