Vgg Minst

Interactive tutorial on vgg minst with practical implementations and visualizations

Author

Nipun Batra

Published

July 24, 2025

Open In Colab

import tensorflow.keras as keras
import tensorflow.keras.layers as layers

from tensorflow.keras.applications.vgg16 import VGG16
model = VGG16()

Downloading data from https://github.com/fchollet/deep-learning-models/releases/download/v0.1/vgg16_weights_tf_dim_ordering_tf_kernels.h5
553467904/553467096 [==============================] - 362s 1us/step

model.summary()

Model: "vgg16"
_________________________________________________________________
Layer (type)                 Output Shape              Param #
=================================================================
input_1 (InputLayer)         [(None, 224, 224, 3)]     0
_________________________________________________________________
block1_conv1 (Conv2D)        (None, 224, 224, 64)      1792
_________________________________________________________________
block1_conv2 (Conv2D)        (None, 224, 224, 64)      36928
_________________________________________________________________
block1_pool (MaxPooling2D)   (None, 112, 112, 64)      0
_________________________________________________________________
block2_conv1 (Conv2D)        (None, 112, 112, 128)     73856
_________________________________________________________________
block2_conv2 (Conv2D)        (None, 112, 112, 128)     147584
_________________________________________________________________
block2_pool (MaxPooling2D)   (None, 56, 56, 128)       0
_________________________________________________________________
block3_conv1 (Conv2D)        (None, 56, 56, 256)       295168
_________________________________________________________________
block3_conv2 (Conv2D)        (None, 56, 56, 256)       590080
_________________________________________________________________
block3_conv3 (Conv2D)        (None, 56, 56, 256)       590080
_________________________________________________________________
block3_pool (MaxPooling2D)   (None, 28, 28, 256)       0
_________________________________________________________________
block4_conv1 (Conv2D)        (None, 28, 28, 512)       1180160
_________________________________________________________________
block4_conv2 (Conv2D)        (None, 28, 28, 512)       2359808
_________________________________________________________________
block4_conv3 (Conv2D)        (None, 28, 28, 512)       2359808
_________________________________________________________________
block4_pool (MaxPooling2D)   (None, 14, 14, 512)       0
_________________________________________________________________
block5_conv1 (Conv2D)        (None, 14, 14, 512)       2359808
_________________________________________________________________
block5_conv2 (Conv2D)        (None, 14, 14, 512)       2359808
_________________________________________________________________
block5_conv3 (Conv2D)        (None, 14, 14, 512)       2359808
_________________________________________________________________
block5_pool (MaxPooling2D)   (None, 7, 7, 512)         0
_________________________________________________________________
flatten (Flatten)            (None, 25088)             0
_________________________________________________________________
fc1 (Dense)                  (None, 4096)              102764544
_________________________________________________________________
fc2 (Dense)                  (None, 4096)              16781312
_________________________________________________________________
predictions (Dense)          (None, 1000)              4097000
=================================================================
Total params: 138,357,544
Trainable params: 138,357,544
Non-trainable params: 0
_________________________________________________________________

Model: "sequential_3"
_________________________________________________________________
Layer (type)                 Output Shape              Param #
=================================================================
conv2d_3 (Conv2D)            (None, 26, 26, 6)         60
_________________________________________________________________
average_pooling2d_2 (Average (None, 13, 13, 6)         0
_________________________________________________________________
conv2d_4 (Conv2D)            (None, 11, 11, 16)        880
_________________________________________________________________
average_pooling2d_3 (Average (None, 5, 5, 16)          0
_________________________________________________________________
flatten_1 (Flatten)          (None, 400)               0
_________________________________________________________________
dense_3 (Dense)              (None, 120)               48120
_________________________________________________________________
dense_4 (Dense)              (None, 84)                10164
_________________________________________________________________
dense_5 (Dense)              (None, 10)                850
=================================================================
Total params: 60,074
Trainable params: 60,074
Non-trainable params: 0
_________________________________________________________________

from keras.datasets import mnist
from keras import backend as K

batch_size = 128
num_classes = 10
epochs = 12

# input image dimensions
img_rows, img_cols = 28, 28

# the data, split between train and test sets
(x_train, y_train), (x_test, y_test) = mnist.load_data()

if K.image_data_format() == 'channels_first':
    x_train = x_train.reshape(x_train.shape[0], 1, img_rows, img_cols)
    x_test = x_test.reshape(x_test.shape[0], 1, img_rows, img_cols)
    input_shape = (1, img_rows, img_cols)
else:
    x_train = x_train.reshape(x_train.shape[0], img_rows, img_cols, 1)
    x_test = x_test.reshape(x_test.shape[0], img_rows, img_cols, 1)
    input_shape = (img_rows, img_cols, 1)

x_train.shape

(60000, 28, 28, 1)

y_train.shape

(60000,)

import matplotlib.pyplot as plt
import matplotlib.cm as cm
%matplotlib inline
plt.imshow(x_train[0][:, :, 0], cmap=cm.get_cmap("Greys"))
plt.title(y_train[0])

Text(0.5, 1.0, '5')

model.compile(loss=keras.losses.categorical_crossentropy, optimizer=keras.optimizers.Adam(), metrics=['accuracy'])

EPOCHS = 10
BATCH_SIZE = 128

x_train = x_train.astype('float32')
x_test = x_test.astype('float32')
x_train /= 255
x_test /= 255

num_classes = 10
y_train = keras.utils.to_categorical(y_train, num_classes)
y_test = keras.utils.to_categorical(y_test, num_classes)

y_train[0]

array([0., 0., 0., 0., 0., 1., 0., 0., 0., 0.], dtype=float32)

model.fit(x_train, y_train,
          batch_size=batch_size,
          epochs=epochs,
          verbose=1,
          validation_data=(x_test, y_test))
score = model.evaluate(x_test, y_test, verbose=0)
print('Test loss:', score[0])
print('Test accuracy:', score[1])

Train on 60000 samples, validate on 10000 samples
Epoch 1/12
60000/60000 [==============================] - 8s 138us/sample - loss: 0.3959 - accuracy: 0.8896 - val_loss: 0.1322 - val_accuracy: 0.9593
Epoch 2/12
60000/60000 [==============================] - 6s 93us/sample - loss: 0.1192 - accuracy: 0.9637 - val_loss: 0.0776 - val_accuracy: 0.9744
Epoch 3/12
60000/60000 [==============================] - 6s 93us/sample - loss: 0.0831 - accuracy: 0.9751 - val_loss: 0.0646 - val_accuracy: 0.9789
Epoch 4/12
60000/60000 [==============================] - 6s 94us/sample - loss: 0.0668 - accuracy: 0.9804 - val_loss: 0.0557 - val_accuracy: 0.9822
Epoch 5/12
60000/60000 [==============================] - 6s 93us/sample - loss: 0.0575 - accuracy: 0.9826 - val_loss: 0.0455 - val_accuracy: 0.9853
Epoch 6/12
60000/60000 [==============================] - 6s 94us/sample - loss: 0.0501 - accuracy: 0.9849 - val_loss: 0.0484 - val_accuracy: 0.9846
Epoch 7/12
60000/60000 [==============================] - 6s 93us/sample - loss: 0.0423 - accuracy: 0.9870 - val_loss: 0.0431 - val_accuracy: 0.9854
Epoch 8/12
60000/60000 [==============================] - 6s 94us/sample - loss: 0.0371 - accuracy: 0.9886 - val_loss: 0.0365 - val_accuracy: 0.9876
Epoch 9/12
60000/60000 [==============================] - 6s 94us/sample - loss: 0.0339 - accuracy: 0.9894 - val_loss: 0.0430 - val_accuracy: 0.9868
Epoch 10/12
60000/60000 [==============================] - 6s 94us/sample - loss: 0.0320 - accuracy: 0.9902 - val_loss: 0.0406 - val_accuracy: 0.9870
Epoch 11/12
60000/60000 [==============================] - 6s 94us/sample - loss: 0.0271 - accuracy: 0.9915 - val_loss: 0.0360 - val_accuracy: 0.9891
Epoch 12/12
60000/60000 [==============================] - 6s 94us/sample - loss: 0.0252 - accuracy: 0.9920 - val_loss: 0.0367 - val_accuracy: 0.9881
Test loss: 0.03666715431667981
Test accuracy: 0.9881

plt.imshow(model.get_weights()[0][:, :, 0, 0])

plt.imshow(model.get_weights()[0][:, :, 0, 1])

len(model.get_weights())

e = model.layers[0]

e.get_weights()[0]

(3, 3, 1, 6)

e.name

'conv2d_3'

w, b = model.get_layer("conv2d_3").get_weights()

import pandas as pd

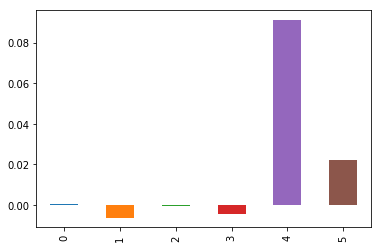

pd.Series(b).plot(kind='bar')

import seaborn as sns
fig, ax = plt.subplots(ncols=6)
for i in range(6):

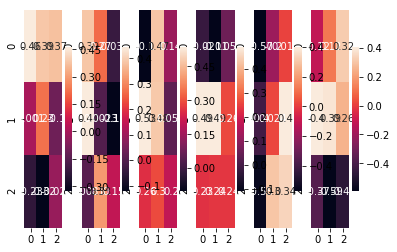

    sns.heatmap(w[:, :, 0, i], ax=ax[i], annot=True)

import numpy as np
np.argmax(model.predict(x_test[0:1]))

test_sample = 5
plt.imshow(x_test[test_sample][:, :, 0], cmap=cm.get_cmap("Greys"))
pred = np.argmax(model.predict(x_test[test_sample:test_sample+1])[0])
plt.title("Predicted = {}, GT = {}".format(pred, np.argmax(y_test[test_sample])))

Text(0.5, 1.0, 'Predicted = 1, GT = 1')

np.argmax(model.predict(x_test[0:1])[0])

Figure out which ones we are getting wrong

pred_overall = np.argmax(model.predict(x_test), axis=1)

gt_overall = np.argmax(y_test, axis=1)

np.where(np.not_equal(pred_overall, gt_overall))[0]

array([ 247,  259,  321,  359,  445,  448,  449,  495,  582,  583,  625,
        659,  684,  924,  947,  965, 1014, 1039, 1045, 1062, 1181, 1182,
       1226, 1232, 1247, 1260, 1299, 1319, 1393, 1414, 1530, 1549, 1554,
       1621, 1681, 1901, 1955, 1987, 2035, 2044, 2070, 2098, 2109, 2130,
       2135, 2189, 2293, 2369, 2387, 2406, 2414, 2488, 2597, 2654, 2720,
       2760, 2863, 2896, 2939, 2953, 2995, 3073, 3225, 3422, 3503, 3520,
       3534, 3558, 3559, 3597, 3762, 3767, 3808, 3869, 3985, 4007, 4065,
       4075, 4193, 4207, 4248, 4306, 4405, 4500, 4571, 4639, 4699, 4723,
       4740, 4761, 4807, 4823, 5228, 5265, 5937, 5955, 5973, 6555, 6560,
       6597, 6614, 6625, 6651, 6755, 6847, 7259, 7851, 7921, 8059, 8069,
       8311, 8325, 8408, 9009, 9587, 9629, 9634, 9679, 9729])

pred_overall

array([7, 2, 1, ..., 4, 5, 6])

def plot_prediction(test_sample):
    plt.imshow(x_test[test_sample][:, :, 0], cmap=cm.get_cmap("Greys"))
    pred = np.argmax(model.predict(x_test[test_sample:test_sample+1])[0])
    plt.title("Predicted = {}, GT = {}".format(pred, np.argmax(y_test[test_sample])))

plot_prediction(359)

plot_prediction(9729)

plot_prediction(9634)

### Feature map

fm_model = keras.Model(inputs=model.inputs, outputs=model.layers[2].output)

model.summary()

Model: "sequential_3"
_________________________________________________________________
Layer (type)                 Output Shape              Param #
=================================================================
conv2d_3 (Conv2D)            (None, 26, 26, 6)         60
_________________________________________________________________
average_pooling2d_2 (Average (None, 13, 13, 6)         0
_________________________________________________________________
conv2d_4 (Conv2D)            (None, 11, 11, 16)        880
_________________________________________________________________
average_pooling2d_3 (Average (None, 5, 5, 16)          0
_________________________________________________________________
flatten_1 (Flatten)          (None, 400)               0
_________________________________________________________________
dense_3 (Dense)              (None, 120)               48120
_________________________________________________________________
dense_4 (Dense)              (None, 84)                10164
_________________________________________________________________
dense_5 (Dense)              (None, 10)                850
=================================================================
Total params: 60,074
Trainable params: 60,074
Non-trainable params: 0
_________________________________________________________________

fm_model.summary()

Model: "model_3"
_________________________________________________________________
Layer (type)                 Output Shape              Param #
=================================================================
conv2d_3_input (InputLayer)  [(None, 28, 28, 1)]       0
_________________________________________________________________
conv2d_3 (Conv2D)            (None, 26, 26, 6)         60
_________________________________________________________________
average_pooling2d_2 (Average (None, 13, 13, 6)         0
_________________________________________________________________
conv2d_4 (Conv2D)            (None, 11, 11, 16)        880
=================================================================
Total params: 940
Trainable params: 940
Non-trainable params: 0
_________________________________________________________________

fm_model.predict(x_test[test_sample:test_sample+1]).shape

(1, 11, 11, 16)

test_sample = 88
fm_1 = fm_model.predict(x_test[test_sample:test_sample+1])[0, :, :, :]

fig, ax = plt.subplots(ncols=16, figsize=(20, 4))
for i in range(16):
    ax[i].imshow(fm_1[:, :, i], cmap="Greys")
