Learning Goals

By the end of this lecture, you will:

1. Understand how linear regression finds the best line
2. Learn how to find optimal weights (optimization!)
3. Apply logistic regression for classification
4. Connect sklearn to PyTorch for neural networks

Recap: Supervised Learning

We have:

• Features (): What we know about each example
• Labels (): What we want to predict

Goal: Learn a function where

The Simplest Prediction Problem

Scenario: You're a real estate agent. A client asks:

"I'm looking at a 1750 sqft house. What should I expect to pay?"

You have data from recent sales:

Can you see the pattern?

Visualizing the Data

When we plot the data:

• X-axis: House size
• Y-axis: Price

The points seem to follow a line!

Linear regression = finding the best line through the points

The Pattern is Clear!

Every 500 sqft adds ₹20 lakhs.

So 1750 sqft should cost... ₹70 lakhs!

You just did linear regression in your head.

The Equation of a Line

The "hat" on y means it's our prediction!

What Does the Weight Mean?

Weight w = 0.04 means:

"For every 1 sqft increase, price increases by ₹0.04 lakhs"

Or equivalently:

"For every 100 sqft increase, price increases by ₹4 lakhs"

What Does the Bias Mean?

Bias b = 0 means:

"A 0 sqft house would cost ₹0"

In reality, bias captures the baseline cost:

• Land value
• Permits and fees
• Minimum construction cost

If b = 10, then even a tiny house costs at least ₹10 lakhs.

Multiple Features: The General Form

What if price depends on more than just size?

Or in vector form (both notations are equivalent):

Note: and both mean dot product (sum of element-wise products)

Notation: Absorbing Bias into

Going forward, we combine weights and bias into one vector :

Trick: Add a column of 1s to , so (the bias)

Now contains bias + weights!

Interpreting Multiple Weights

# After training on multiple features:
# coef_ = [0.03, 5.0, 8.0]
# intercept_ = -10

But What if Data Isn't Perfect?

Real data has noise — points don't fall exactly on a line.

Three candidate lines:

Which line is "best"?
The one with the smallest total error!

The Goal: Minimize Errors

Residual = Actual - Predicted =

Goal: Find that minimizes

Why Squared Errors?

We minimize Sum of Squared Errors (SSE):

Mean Squared Error (MSE)

More commonly, we use MSE (average of squared errors):

This is also called the Loss Function or Cost Function:

Two Ways to Find the Best Weights

Let's learn both!

Quick Review: Derivatives and Gradients

Gradient Example:

At point :

Interpretation:

• Moving in direction increases at rate 2
• Moving in direction increases at rate 4
• To decrease , move in direction

Setting : Gives us — the minimum!

Can We Solve It Directly?

For simple functions like , we know the trick:

Can we do the same for linear regression?

Yes! Our loss is

Take derivative, set to 0, solve...

The Normal Equation

Setting and solving gives us:

How to read this: "The best parameters = some matrix math on X and y"

import numpy as np

X = np.array([[1, 1000], [1, 1500], [1, 2000], [1, 2500]])  # column of 1s for bias
y = np.array([42, 58, 83, 97])

theta = np.linalg.inv(X.T @ X) @ X.T @ y
print(f"bias = {theta[0]:.1f}, weight = {theta[1]:.4f}")
# bias = 1.0, weight = 0.038  → Line B from our plot!

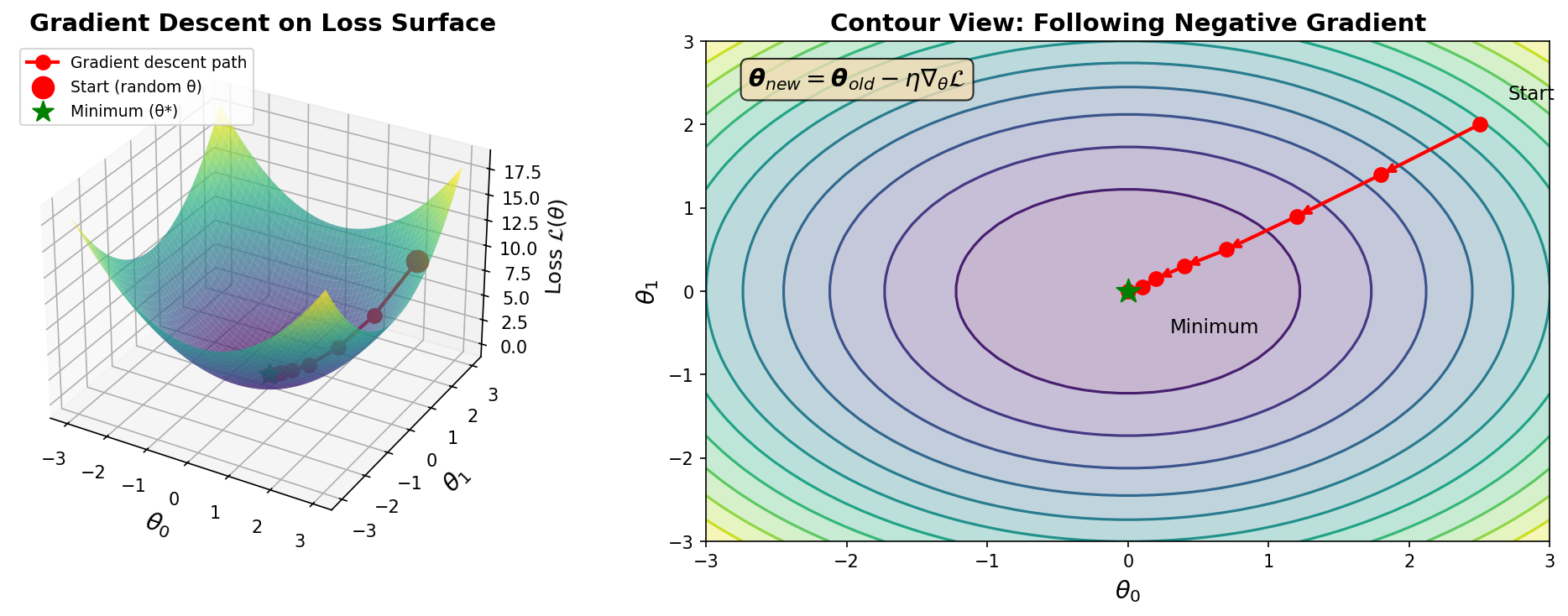

Gradient Descent

The idea: Take small steps downhill until you reach the minimum!

1. Start with random → 2. Compute gradient → 3. Step opposite → 4. Repeat!

Gradient Descent: The Algorithm

Update rule:

Gradient Descent: A Worked Example

Let's walk through ONE step:

The update:

Gradient was negative → we moved weight UP!

The Gradient for MSE: Intuition

How should we nudge to reduce the error?

Think about one data point with prediction :

The gradient captures exactly this: error feature value

Big error + big feature = big update. Zero error = no update.

Gradient Descent in NumPy

def gradient_descent(X, y, lr=0.01, epochs=1000):
    theta = np.zeros(X.shape[1])  # Start with zeros

    for epoch in range(epochs):
        y_pred = X @ theta             # Predictions
        error = y - y_pred             # Residuals
        gradient = (-2/len(y)) * (X.T @ error)
        theta = theta - lr * gradient  # Update!

    return theta

Just 8 lines of code! This is all of gradient descent.

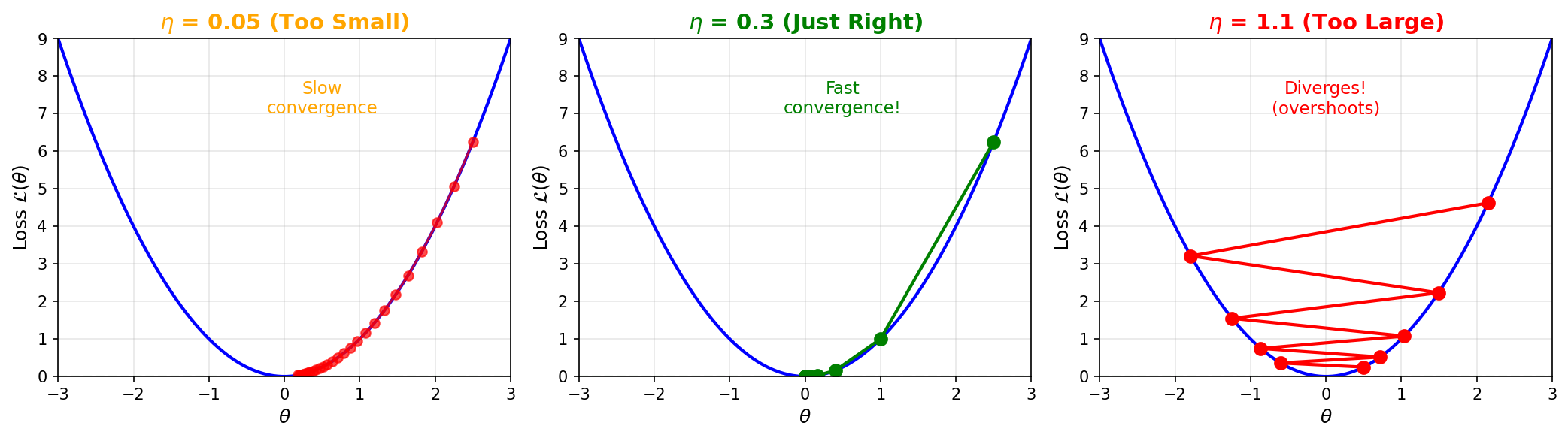

Learning Rate: The Key Hyperparameter

Learning Rate: The Hill Analogy

Imagine walking down a hill blindfolded:

How to choose?

• Start with 0.001 or 0.01
• If loss doesn't decrease → try smaller
• If loss explodes (NaN) → definitely smaller!

Why Gradient Descent Matters

The Scaling Problem

Different features have different scales:

Problem: Large-scale features dominate gradient descent!

Why Scaling Helps Gradient Descent

Without scaling:

• Size weight needs tiny updates (large values)
• Bedroom weight needs large updates (small values)
• Gradient descent zigzags inefficiently!

With scaling:

• All features contribute equally
• Gradient descent converges faster
• More stable training

Scaling: The Currency Analogy

Imagine training with mixed currencies:

Without scaling: The model thinks rupees matter MORE (bigger numbers!).

Standardization: Convert everything to "standard units"

• "This house is 2 std devs above average in price"
• "This house has 1 std dev above average rooms"

Now both features speak the same language!

Two Common Scaling Methods

from sklearn.preprocessing import StandardScaler, MinMaxScaler

# Standardization (most common)
scaler = StandardScaler()
X_scaled = scaler.fit_transform(X)

# Min-Max (when you need bounded range)
scaler = MinMaxScaler()
X_scaled = scaler.fit_transform(X)

Important: Fit on Train, Transform Both!

# CORRECT way:
scaler = StandardScaler()
X_train_scaled = scaler.fit_transform(X_train)  # Fit AND transform
X_test_scaled = scaler.transform(X_test)         # Only transform!

# WRONG (data leakage!):
X_scaled = scaler.fit_transform(X)  # Fitting on all data

When to Scale?

Linear Regression in sklearn

from sklearn.linear_model import LinearRegression
import numpy as np

# Our data
X = np.array([[1000], [1500], [2000], [2500]])
y = np.array([40, 60, 80, 100])

# Create and train model
model = LinearRegression()
model.fit(X, y)

# Now predict!
model.predict([[1750]])  # → 70.0 (₹70 lakhs)

Understanding What sklearn Learned

print(f"Weight (w): {model.coef_[0]}")      # 0.04
print(f"Intercept (b): {model.intercept_}")  # 0.0

The equation it learned:

Verify:

• 1750 sqft → 0.04 × 1750 + 0 = ₹70 lakhs

The Same Thing in PyTorch!

import torch
import torch.nn as nn

# Data as tensors
X = torch.tensor([[1000.], [1500.], [2000.], [2500.]])
y = torch.tensor([[40.], [60.], [80.], [100.]])

# Normalize for stable training
X_norm = X / 1000

# Linear model: y = wx + b
model = nn.Linear(1, 1)  # 1 input, 1 output

Training in PyTorch

criterion = nn.MSELoss()                              # Loss function
optimizer = torch.optim.SGD(model.parameters(), lr=0.1)  # Optimizer

for epoch in range(100):
    y_pred = model(X_norm)      # 1. Forward pass
    loss = criterion(y_pred, y) # 2. Compute loss
    optimizer.zero_grad()       # 3. Clear gradients
    loss.backward()             # 4. Compute gradients
    optimizer.step()            # 5. Update weights

After training: model.weight ≈ 0.04, model.bias ≈ 0 (same as sklearn!)

The PyTorch Training Loop

The 5-step training cycle (memorize this!):

Comparing sklearn vs PyTorch

Start with sklearn, move to PyTorch when you need more power!

A Different Problem

Scenario: You're building a spam filter.

The output is a category, not a number!

Why Can't We Use Linear Regression?

If we use linear regression:

Problem: This gives any number (-∞ to +∞)

We need something between 0 and 1 (a probability)!

The Sigmoid Function

Solution: Squash any number to range (0, 1)

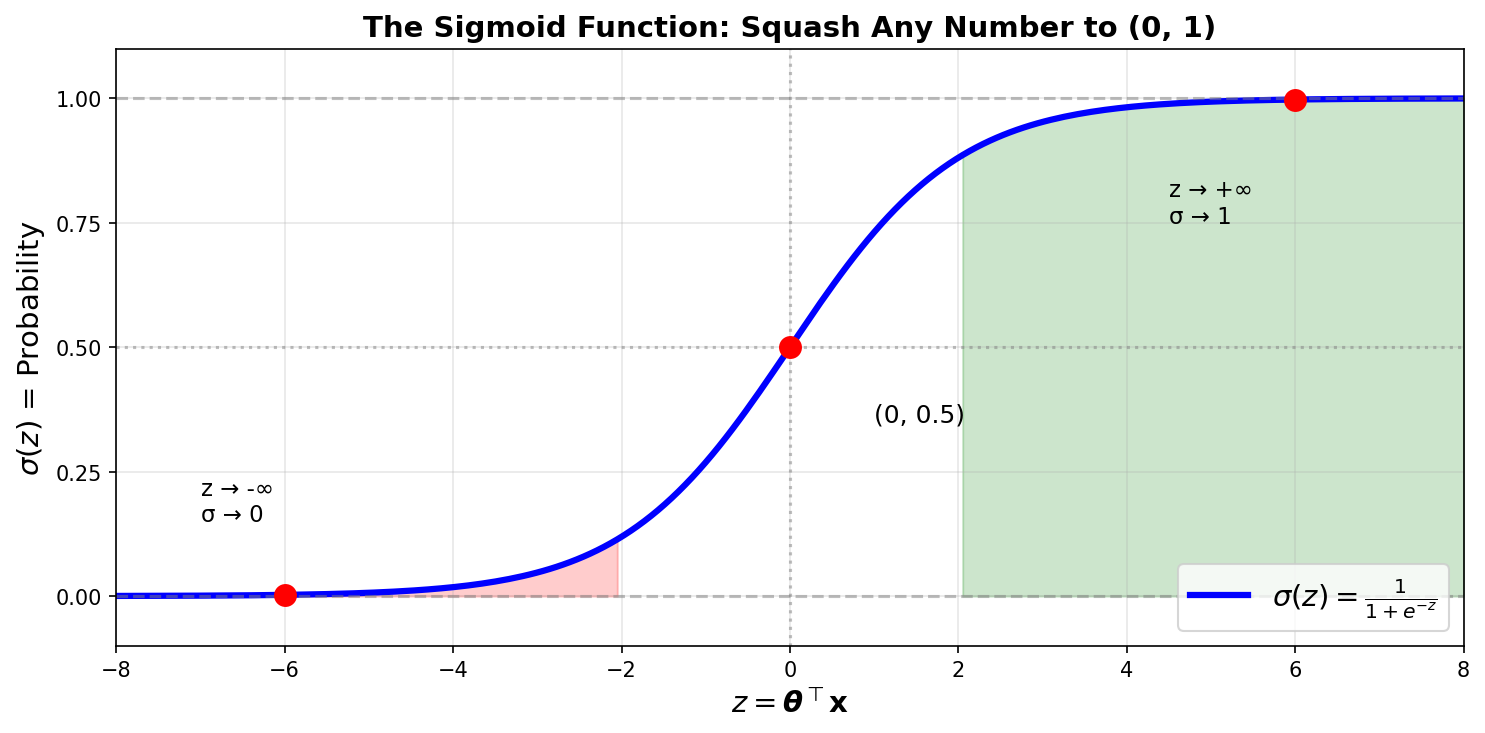

The Sigmoid Shape

The sigmoid is an S-curve:

Why Sigmoid? Let's Verify!

Plug in some numbers:

No matter what z is, output is always between 0 and 1!

Logistic Regression Model

Two steps:

1. Linear: Compute a score (same as linear regression!)

2. Sigmoid: Convert to probability

A Concrete Example

Email features: 5 exclamation marks, has "FREE" (=1)

Learned weights: , ,

Step 1: Linear score

Step 2: Sigmoid

Decision: 97% → This is spam!

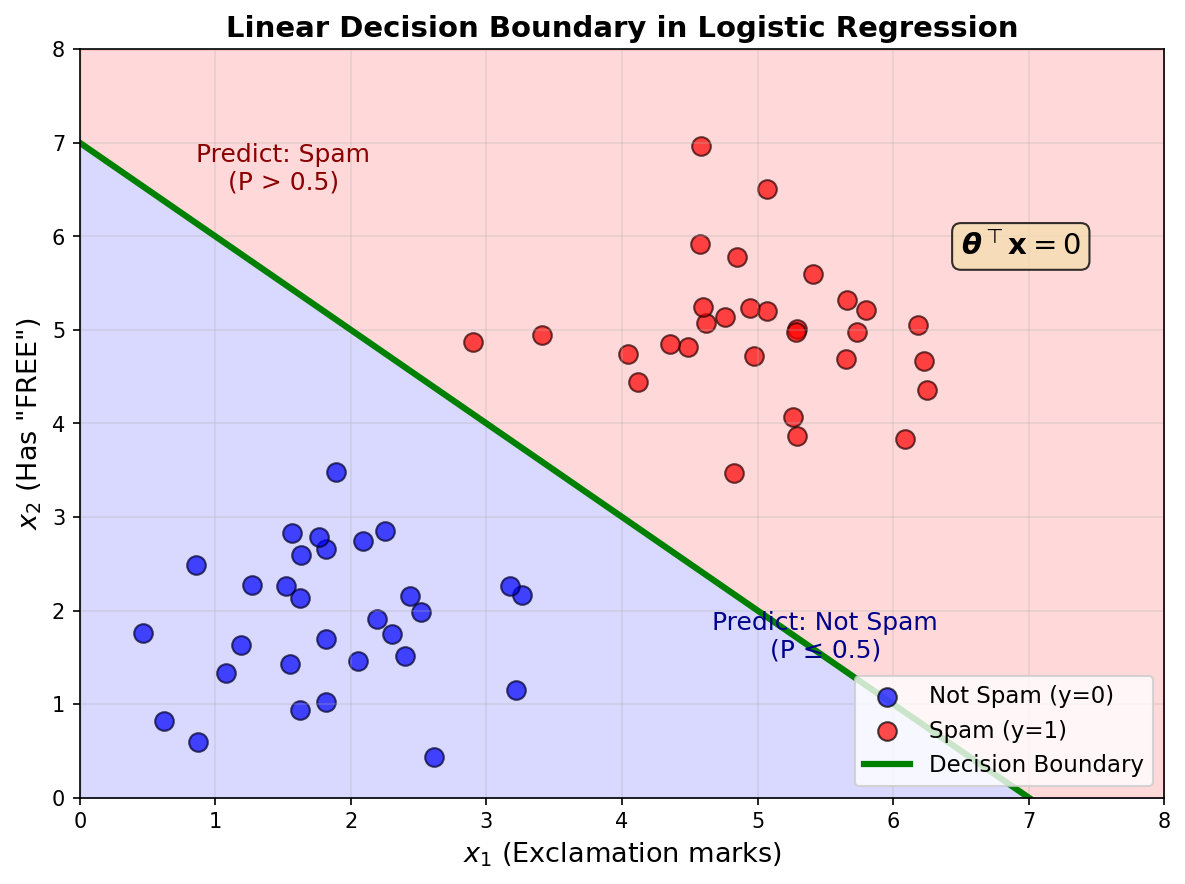

The Decision Rule

Logistic Regression in sklearn

from sklearn.linear_model import LogisticRegression

X = [[5, 1], [0, 0], [3, 1], [1, 0]]  # [exclamations, has_FREE]
y = [1, 0, 1, 0]                       # 1=spam, 0=not spam

model = LogisticRegression()
model.fit(X, y)

model.predict([[4, 1]])       # → [1] (spam)
model.predict_proba([[4, 1]]) # → [[0.12, 0.88]] = [P(not spam), P(spam)]

Logistic Regression in PyTorch

import torch
import torch.nn as nn

# Model: Linear + Sigmoid
class LogisticRegression(nn.Module):
    def __init__(self, input_dim):
        super().__init__()
        self.linear = nn.Linear(input_dim, 1)
        self.sigmoid = nn.Sigmoid()

    def forward(self, x):
        return self.sigmoid(self.linear(x))

model = LogisticRegression(input_dim=2)

Training Logistic Regression

# Binary Cross-Entropy Loss (for classification)
criterion = nn.BCELoss()
optimizer = torch.optim.SGD(model.parameters(), lr=0.1)

for epoch in range(100):
    # Forward pass
    y_pred = model(X)

    # Compute loss (cross-entropy, not MSE!)
    loss = criterion(y_pred, y)

    # Backward pass
    optimizer.zero_grad()
    loss.backward()
    optimizer.step()

Why Cross-Entropy Loss?

For classification, MSE doesn't work well — Cross-Entropy penalizes confident wrong predictions severely!

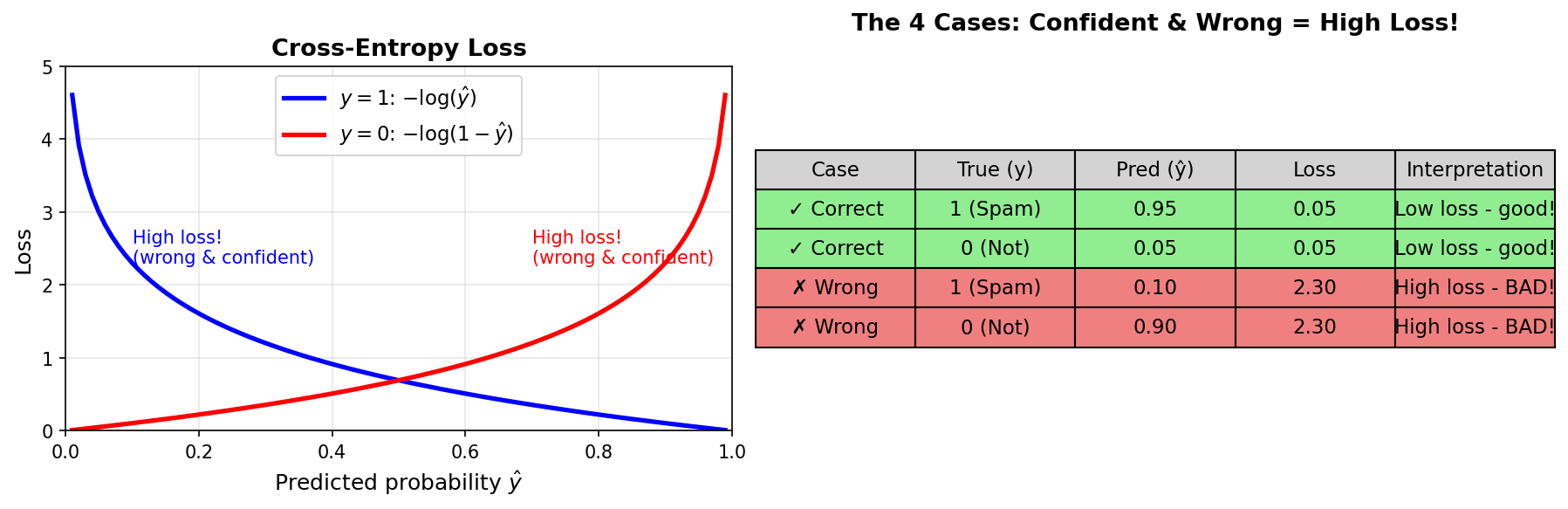

Cross-Entropy: The 4 Cases

Key insight: Being confident AND wrong = very high loss!

The Limitation of Linear Models

Problem: What if the relationship isn't linear?

Example: Ice cream sales vs temperature — clearly not a straight line!

Solution: Transform the inputs using basis functions

Basis Functions: The Key Idea

Instead of:

Use:

The model is still linear in ! (just not in )

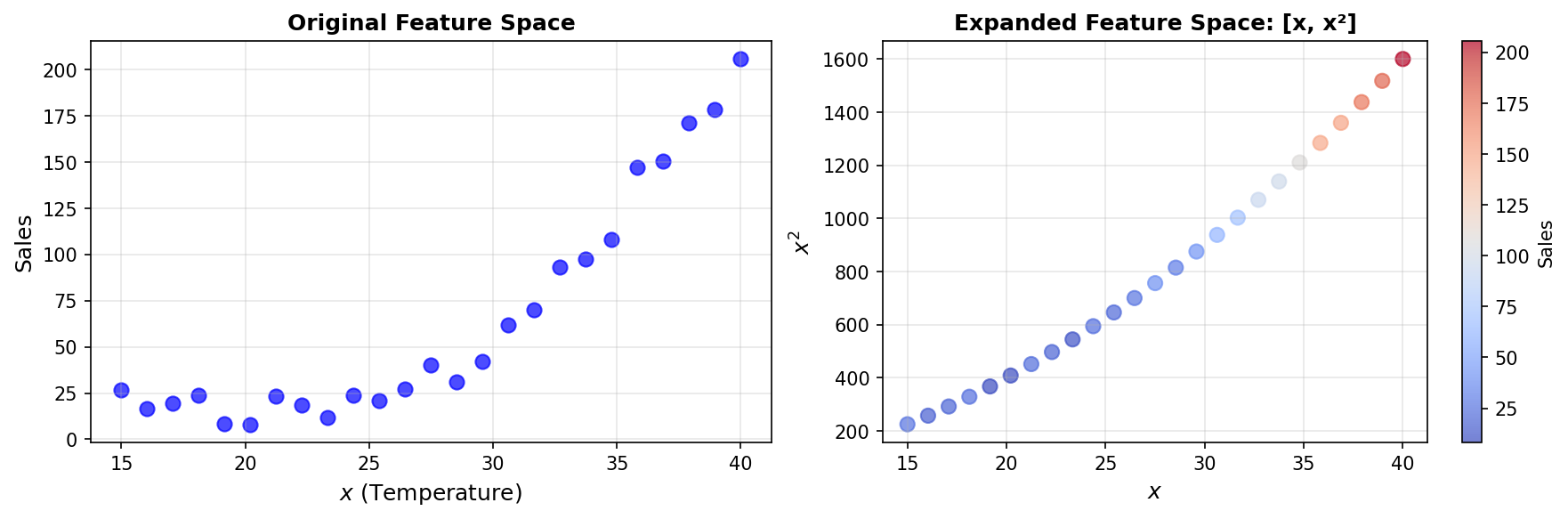

Feature Expansion Visualized

By adding as a feature, we give the model more "raw material" to work with!

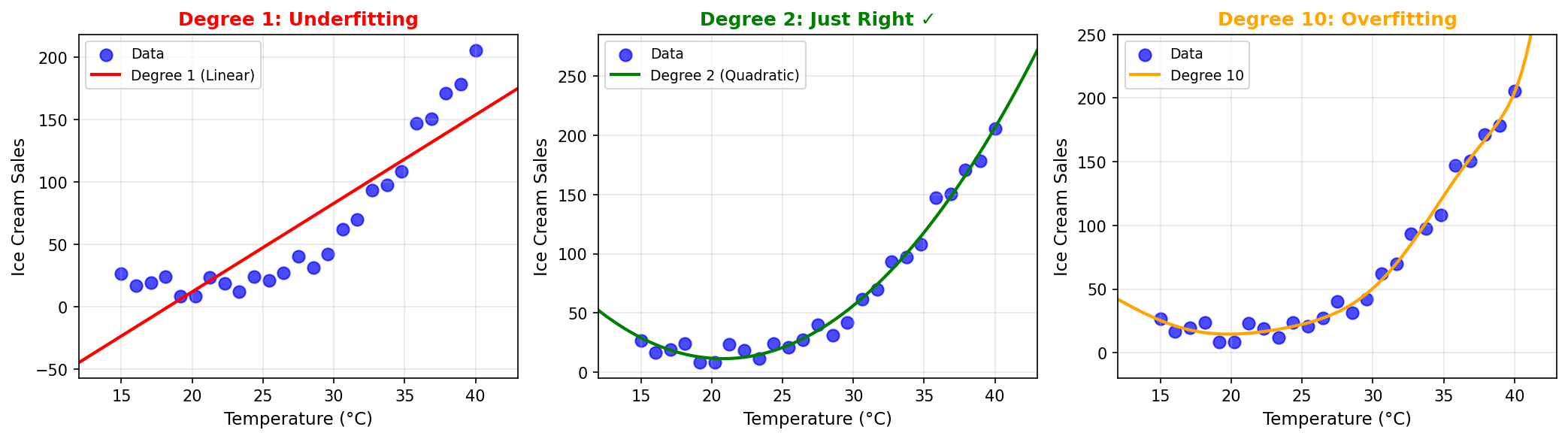

Polynomial Features in sklearn

from sklearn.preprocessing import PolynomialFeatures
from sklearn.linear_model import LinearRegression

X = np.array([[15], [20], [25], [30], [35]])  # Temperature
y = np.array([15, 10, 20, 55, 120])           # Ice cream sales

poly = PolynomialFeatures(degree=2)  # Transform x → [1, x, x²]
X_poly = poly.fit_transform(X)

model = LinearRegression()
model.fit(X_poly, y)                 # Now it can fit curves!

Works for Classification Too!

Same idea with Logistic Regression:

from sklearn.linear_model import LogisticRegression

poly = PolynomialFeatures(degree=2)
X_poly = poly.fit_transform(X)

model = LogisticRegression()
model.fit(X_poly, y)  # Now decision boundary can be curved!

Summary: The Big Picture

Key Takeaways

1. Linear Regression fits a line through data

   • Weight = sensitivity (how much output changes per input)
   • Minimize squared errors

2. Two ways to find optimal weights

   • Normal equation (direct)
   • Gradient descent (iterative) — foundation of deep learning!

3. Logistic Regression classifies using the sigmoid

   • Converts any score to probability (0-1)

4. sklearn → PyTorch uses the same concepts!
