The Story So Far

Today: How do we go from a single neuron to networks that power ChatGPT?

Where Neural Networks Are Today

State-of-the-art in almost EVERY field:

The same basic idea powers ALL of these.

Today's Roadmap

Lecture 5A (today): Building the network

1. The Paradigm Change   — why neural networks are different
2. The Perceptron         — the simplest neuron
3. Logic Gates            — what one neuron can do
4. The XOR Problem        — where one neuron FAILS
5. Multi-Layer Perceptrons — the fix!
6. Activation Functions   — why non-linearity matters
7. Forward Propagation    — how data flows through
8. Softmax                — multi-class output

Lecture 5B (next): Training the network

The Old Way: Hand-Crafted Features

Problem: Classify handwritten digits (is this a 2? a 7?)

The old approach (before deep learning):

Image → [Human designs features] → [Classifier learns] → Prediction

Step 1: Human expert designs features:

• Average pixel intensity
• Number of horizontal lines
• Number of loops
• Percentage of black pixels
• ...

Step 2: Feed these features into logistic regression / SVM

The Problem with Hand-Crafted Features

The features are HAND-CRAFTED — designed by a human expert

The classifier is TRAINABLE — learned from data

What's wrong with this?

• Features for digits ≠ features for faces ≠ features for text
• Requires domain expertise for every new problem
• Human intuition about "good features" is often wrong
• Doesn't scale to new problems

The Neural Network Way: Learn EVERYTHING

EVERYTHING is trainable!

Paradigm change: Stop hand-crafting features. Let the network learn them from data.

Why This Matters: One Architecture, Many Problems

Old way: New problem = hire new domain expert, design new features

Neural network way: Same architecture works for everything!

The only thing that changes is the data.

But How? Let's Build Up From What We Know

You already know logistic regression:

This is:

1. A weighted sum of inputs:
2. Passed through an activation function:

Key insight: This is exactly ONE neuron!

Logistic regression = a single neuron with sigmoid activation.

A neural network = MANY of these neurons, connected together.

Inspiration: The Biological Neuron

How your brain works:

1. Dendrites receive signals from other neurons
2. Cell body processes (sums) the signals
3. If signal is strong enough → fires!
4. Signal travels down the axon to next neuron

The artificial neuron mimics this!

The Perceptron (Rosenblatt, 1958)

The first artificial neuron — inspired by biological neurons

A neuron does two things:

1. Summation: Weighted sum of inputs

2. Activation: Apply a non-linear function

For the original perceptron, was the step function:

The neuron "fires" when the weighted sum exceeds the threshold!

A Neuron = Something You Already Know!

What happens if we use different activation functions?

You already know two kinds of neurons!

• Linear regression = neuron with identity activation
• Logistic regression = neuron with sigmoid activation
• Perceptron = neuron with step activation

Building Logic Gates with Perceptrons

Let's see what a single neuron can compute

Challenge: Can we find weights , , and bias for each logic gate?

The perceptron computes:

Where if , else 0.

AND Gate

Solution:

Let's verify:

• : ✓
• : ✓
• : ✓
• : ✓

OR Gate

Solution:

Let's verify:

• : ✓
• : ✓
• : ✓
• : ✓

NOT Gate

Solution:

Verify:

• : ✓
• : ✓

Intuition: A negative weight means "this input DECREASES the chance of firing."

What Does the Perceptron Actually Do?

The decision boundary is a straight line!

A single perceptron divides the input space with a straight line.

This is exactly like logistic regression's decision boundary!

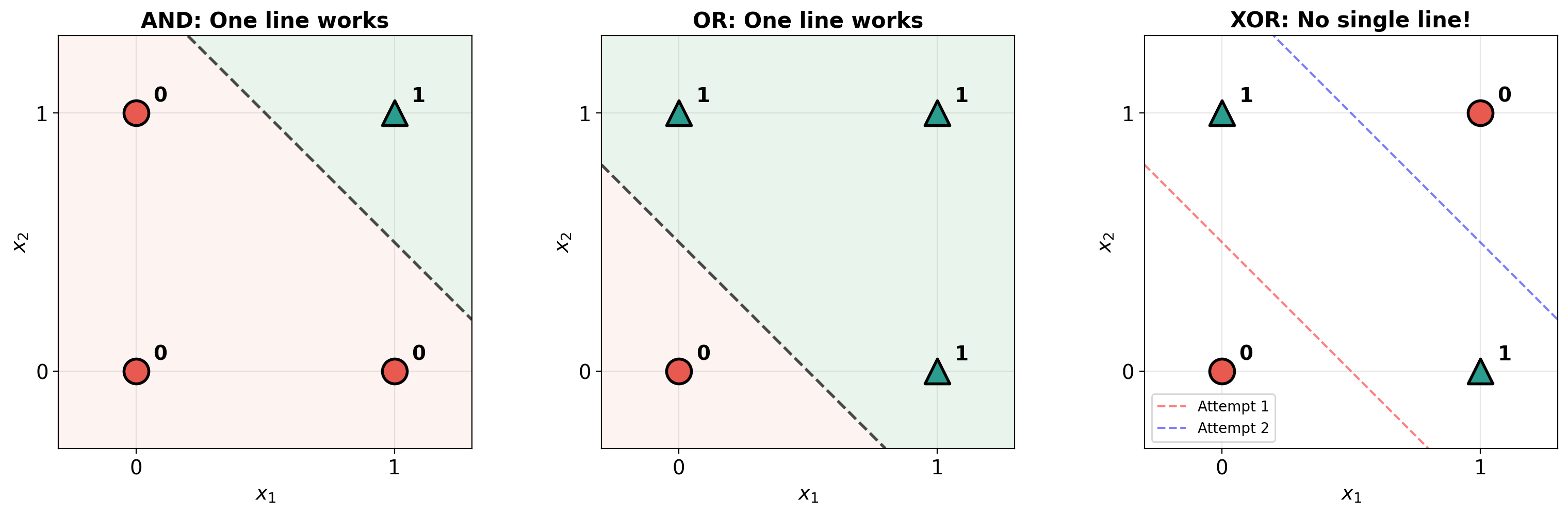

Visualizing Decision Boundaries

Exercise: Try NAND Yourself!

Can you find ?

Hint 1: NAND = NOT(AND). What if you just flip the sign?

Hint 2: Try

Or: Compose AND → NOT (two neurons in sequence!)

Now Try: XOR Gate

Output is 1 if inputs are DIFFERENT.

Can we find , , such that works?

Try it! ... You'll find it's impossible.

Why XOR is Impossible for One Neuron

Look at the decision boundary diagram we saw earlier:

• AND: One line above both — easy!
• OR: One line below both — easy!
• XOR: The 1s are on opposite corners

No matter how you draw one straight line, you can't separate the 1s from the 0s!

XOR is NOT linearly separable.

This was a huge deal in the 1960s!

The Minsky & Papert Crisis (1969)

Marvin Minsky and Seymour Papert published "Perceptrons" — proving that a single-layer perceptron cannot learn XOR.

The reaction: "Neural networks are useless!"

The consequence: Funding dried up → First AI Winter (1970s-80s)

But they were wrong about one thing:
They proved single-layer perceptrons are limited.
They did NOT prove multi-layer networks are limited!

The fix was already known: just add more layers.

Two Ways to Fix the XOR Problem

Approach 1: Hand-Craft a New Feature

Add feature (the interaction term):

Now a single neuron with works!

But this is hand-crafting features again! We want the network to learn them.

Two Ways to Fix the XOR Problem

Approach 2: Add More Neurons (the neural network way!)

What if we use TWO layers of neurons?

Input        Hidden Layer      Output
 x1 ────┐
        ├──→ [h1] ───┐
 x2 ────┤             ├──→ [output] ──→ ŷ
        └──→ [h2] ───┘

• Hidden neuron h1 draws one line (acts like OR)
• Hidden neuron h2 draws another line (acts like AND)
• Output neuron combines them: OR but NOT AND = XOR!

Two lines can separate XOR!

The Key Idea: Transform the Space

The hidden layer doesn't classify — it TRANSFORMS the data!

In the original space: XOR is not linearly separable.
In the hidden layer's space: it becomes separable!

Analogy: You can't cut a crumpled piece of paper with one straight cut. But if you unfold the paper first, you can!

The hidden layer unfolds the data.

The MLP: Input → Hidden → Output

A Multi-Layer Perceptron has:

Each neuron in a layer connects to ALL neurons in the next layer.

Also called "fully connected" or "dense" network.

Why "Hidden"?

Input layer: We see the data going in.
Output layer: We see the predictions coming out.
Hidden layer: We DON'T tell it what to compute — it figures that out on its own!

Layer 1 learns:  "Is there a curve in the top half?"
Layer 2 learns:  "Is there a loop at the bottom?"
Layer 3 learns:  "Does this look like a 2?"

The network discovers its own features!

This is the paradigm change — no hand-crafting needed.

But Wait — Why Do We Need Non-Linearity?

Critical question: What happens if we stack linear neurons?

Layer 1:
Layer 2:

Substitute:

Still just a linear function! 100 linear layers = 1 linear layer.

Without non-linearity, depth is useless! We MUST add activation functions between layers.

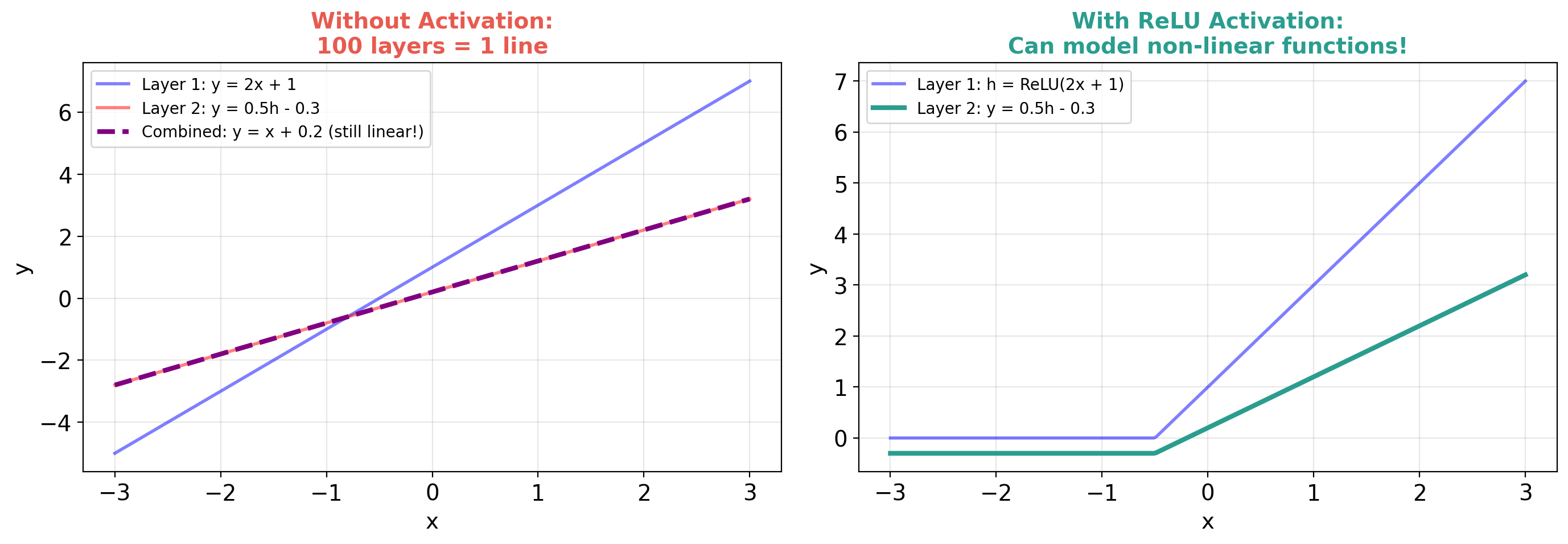

With vs Without Activation: Visual Proof

Activation Functions: Adding the "Bends"

Think of it like paper folding:

• Linear = "I can only cut paper in a straight line"
• Non-linear = "I can fold and THEN cut" → complex shapes!

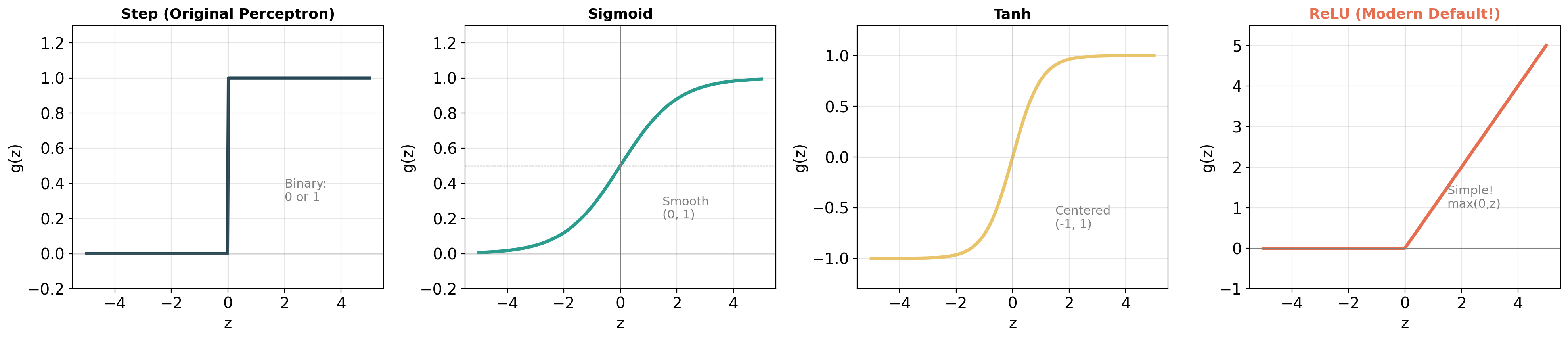

Activation Functions: Visual Comparison

ReLU: The Modern Default

def relu(z):
    return max(0, z)

Why ReLU won:

• Dead simple: just max(0, z)
• Fast to compute
• Gradient is either 0 or 1 (no vanishing gradient problem)
• Works amazingly well in practice

XOR Solved: Step Activations by Hand

Hidden layer: reuse our AND and OR perceptrons!

• OR gate
• AND gate

Output layer: OR but NOT AND = XOR!

We'll also solve this with PyTorch in the notebook — and let PyTorch LEARN the weights!

What Just Happened?

The hidden layer TRANSFORMED the data!

In the hidden layer's space:

• Class 0: (0,0) and (1,1)
• Class 1: (1,0) and (1,0) — they collapsed to the same point!

Now a single line CAN separate them!

Key insight: Hidden layers transform data into a space where it becomes linearly separable!

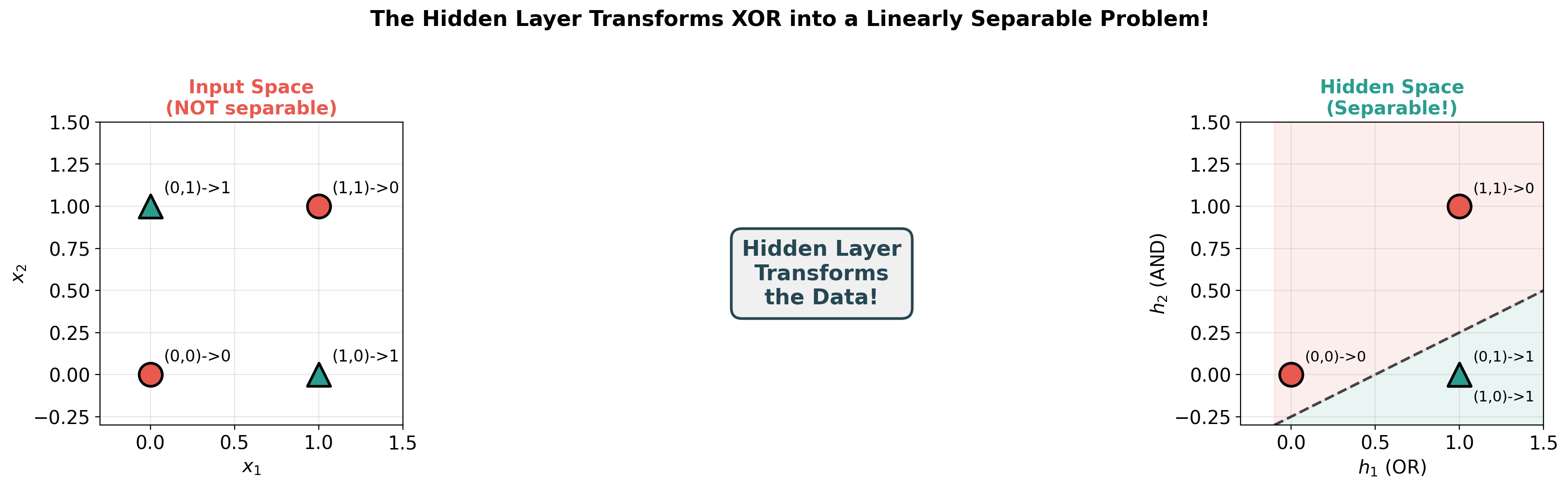

Visualizing the Transformation

The Big Picture

Raw Data  →  [Hidden Layer 1]  →  [Hidden Layer 2]  →  ...  →  [Output]
             Transform data       Transform again              Classify
             (simple features)    (complex features)           (final decision)

Deeper = more complex transformations = more powerful

Forward Pass: The Big Idea

Data flows left → right through the network:

Input  →  [Multiply + Add]  →  [Activation]  →  [Multiply + Add]  →  [Activation]  →  Output
          (weights, bias)       (ReLU)           (weights, bias)       (sigmoid)

That's it! Each layer does two things:

1. Linear: weighted sum ()
2. Non-linear: activation ()

Worked Example: A Tiny Network

Network: 2 inputs → 2 hidden (ReLU) → 1 output (sigmoid)

All weights and biases:

Output neuron: weights , bias

Input:

Follow along on paper or in the notebook!

Worked Example: Step by Step

Step 1: Hidden layer — weighted sums

Step 2: ReLU activation

Worked Example: Output

Step 3: Output neuron — weighted sum

Step 4: Sigmoid activation

Prediction: 59% probability of class 1.

That's the entire forward pass! Just multiply, add, activate, repeat.

How Many Parameters Does This Have?

For MNIST (784 → 128 → 10): 101,770 parameters!

The network needs to learn all of these from data.

Multi-Class: From 2 Classes to 10

For MNIST (10 digits), we need 10 outputs:

Softmax converts raw scores to probabilities:

Example: Raw scores

All probabilities sum to 1! Predicted class = argmax = class 0.

Softmax: Visual

Softmax: A Worked Example

MNIST digit classifier outputs raw scores for each digit:

Prediction: It's a 2 with 74% confidence!

Key: Softmax amplifies the largest score and suppresses the rest.

Summary of Part 1

What you've learned:

1. Paradigm change: Hand-crafted features → learned features
2. A neuron = weighted sum + activation (you already knew this from logistic regression!)
3. Single neurons can compute AND, OR, NOT — but NOT XOR
4. Adding hidden layers = transforming data into separable space
5. Activation functions (especially ReLU) add the non-linearity we need
6. Forward propagation = matrix multiply → activation → repeat
7. Softmax for multi-class classification

What's Missing?

We built the architecture. We can compute the forward pass.

But all the weights were GIVEN to us!

# We just made these up!
W1 = np.array([[0.2, 0.4], [-0.5, 0.1], [0.3, -0.2]])

The critical question:

How do we FIND good weights from data?

Answer: Training! (Next lecture)

The network starts with random weights → makes terrible predictions → gradually improves.

Recap: Where We Are

Part 1 gave us:

• A neuron = weighted sum + activation
• Hidden layers transform data into separable spaces
• Forward pass: input → multiply → activate → repeat → prediction

The problem:

• All weights were given (hand-picked by us)
• With random weights, predictions are garbage

Today's question: How do we find good weights from data?

Random Weights → Random Predictions

import numpy as np

# Random weights!
W1 = np.random.randn(128, 784) * 0.01
b1 = np.zeros(128)
W2 = np.random.randn(10, 128) * 0.01
b2 = np.zeros(10)

# Show a "7" to the network
prediction = forward(image_of_7, W1, b1, W2, b2)
# → [0.10, 0.10, 0.10, 0.10, 0.10, 0.10, 0.10, 0.10, 0.10, 0.10]
# "I have no idea — every digit is equally likely"

We need the network to output [0, 0, 0, 0, 0, 0, 0, 1, 0, 0] for a "7".

How far off are we? → That's what the loss function measures.

Loss Functions: Measuring "How Wrong"

You already know these from Lecture 3!

For regression (predicting a number):

For classification (predicting a class):

Cross-entropy punishes confident wrong predictions HARD:

The Goal: Minimize the Loss

Training = finding weights that minimize the loss

where = all weights and biases in the network.

For our MNIST network: 101,770 parameters to optimize!

How? The same tool you learned in Lecture 3: gradient descent.

But how do we compute for 100K parameters?

The Gradient Question

We need to know: For each weight, how much does the loss change if I change this weight a tiny bit?

Naive approach: Change each weight by , re-run forward pass, measure loss change.

For 100K parameters → 100K forward passes. Way too slow!

Backpropagation: Compute ALL gradients in ONE backward pass.

The Computational Graph

Every forward pass is a chain of operations:

x → [multiply by W1] → z1 → [ReLU] → h → [multiply by W2] → z2 → [sigmoid] → ŷ → [loss] → L

The chain rule lets us work backward:

Each factor is simple! We just multiply them together going backward.

Backprop Intuition: The Blame Game

Think of it like tracing responsibility in a company:

CEO made a bad decision (high loss)
  ↓ Who contributed?
VP of Sales contributed 60%, VP of Engineering 40%
  ↓ Within Engineering?
Backend team 70%, Frontend team 30%
  ↓ Within Backend?
Alice's code contributed 50%, Bob's 50%

Backprop = assigning blame to each weight for the final error.

• Weights that contributed MORE to the error get LARGER gradients
• Weights that contributed LESS get smaller gradients
• Update magnitude is proportional to blame!

Backprop: You Don't Need to Do It by Hand!

The beautiful thing about modern deep learning:

# PyTorch computes ALL gradients automatically!

# Forward pass
predictions = model(images)
loss = criterion(predictions, labels)

# Backward pass — ONE line!
loss.backward()  # Computes gradients for ALL parameters

# That's it. PyTorch traced the computation graph
# and applied the chain rule automatically.

This is called "automatic differentiation" (autograd).

PyTorch builds the computational graph during the forward pass, then walks backward through it.

PyTorch Autograd: A Simple Demo

import torch

# Create a tensor that tracks gradients
x = torch.tensor([2.0], requires_grad=True)

# Forward: compute y = x² + 3x
y = x**2 + 3*x  # y = 4 + 6 = 10

# Backward: compute dy/dx
y.backward()

print(x.grad)  # tensor([7.])
# Because dy/dx = 2x + 3 = 2(2) + 3 = 7 ✓

PyTorch figured out the derivative automatically!

Now imagine this for a network with millions of operations — same idea, just bigger graph.

The Training Loop: 4 Steps, Repeat

┌─────────────────────────────────────────┐
│ for each batch of training data:        │
│                                         │
│ 1. FORWARD:   predictions = model(inputs)│
│ 2. LOSS:      loss = how_wrong(pred, true)│
│ 3. BACKWARD:  loss.backward()  (gradients)│
│ 4. UPDATE:    weights -= lr * gradients  │
│                                         │
│ Repeat until loss is small enough       │
└─────────────────────────────────────────┘

That's it. This is how EVERY neural network trains. From a 2-neuron XOR network to GPT-4.

The Training Loop in PyTorch

import torch
import torch.nn as nn

# 1. Define the network
model = nn.Sequential(
    nn.Linear(784, 128),   # Input → Hidden
    nn.ReLU(),             # Activation
    nn.Linear(128, 10)     # Hidden → Output (10 digits)
)

# 2. Define loss and optimizer
criterion = nn.CrossEntropyLoss()
optimizer = torch.optim.SGD(model.parameters(), lr=0.01)

# 3. Train!
for epoch in range(10):
    for images, labels in train_loader:

Understanding Each Line

Why zero_grad() ? PyTorch accumulates gradients. Without clearing, old gradients add up with new ones — usually not what we want.

Learning Rate: How Big a Step?

The learning rate controls how much we adjust weights:

Analogy: Walking down a mountain in fog.

• Too small steps → you'll get there... eventually
• Right steps → efficient descent
• Too large steps → you overshoot and end up higher!

Mini-Batch: Not Too Much, Not Too Little

How many examples per weight update?

Why mini-batch wins:

1. GPUs process 32 examples almost as fast as 1
2. Averaging over 32 reduces noise
3. Some noise is actually helpful — escapes bad local minima

Common batch sizes: 32, 64, 128, 256

Epochs, Batches, Iterations

Typical training: 10–100 epochs

Epoch 1:   Loss = 2.30   Accuracy = 10%   (random guessing!)
Epoch 5:   Loss = 0.50   Accuracy = 85%   (learning!)
Epoch 20:  Loss = 0.08   Accuracy = 97%   (pretty good!)
Epoch 50:  Loss = 0.01   Accuracy = 99%   (excellent!)

Watching Training Progress

Good signs:

Training loss ↓  AND  Validation loss ↓  → Learning well!

Bad sign — Overfitting:

Training loss ↓  BUT  Validation loss ↑  → Memorizing, not learning!

When val loss starts going up → stop training! (Early stopping)

Hidden Layers Learn a Hierarchy of Features

For image recognition:

Each layer builds on the previous one:

• Edges → combine into corners → combine into parts → combine into objects

The network discovers this hierarchy automatically from data!

The Universal Approximation Theorem

A neural network with ONE hidden layer (with enough neurons) can approximate ANY continuous function.

This is incredible! But there's a catch:

In practice: We use deeper networks (more layers, fewer neurons per layer) rather than one giant layer.

Deep networks learn hierarchical features — much more efficient!

Width vs Depth

Why deep beats wide:

• Layer 1: detects edges (reusable!)
• Layer 2: combines edges into corners (builds on layer 1!)
• Layer 3: combines corners into shapes
• ...

Each layer reuses what the previous layer learned. That's efficient!

A wide network has to learn everything from scratch in one shot.
