Previously on CS 203...

Current state:

• 5,000 labeled movies → Model accuracy: 82%
• Netflix wants 90%+ accuracy
• Labeling budget exhausted!

Can we improve without more labeling?

The Problem & Solution

Key Rule: Only use transforms that preserve the label!

What is Data Augmentation?

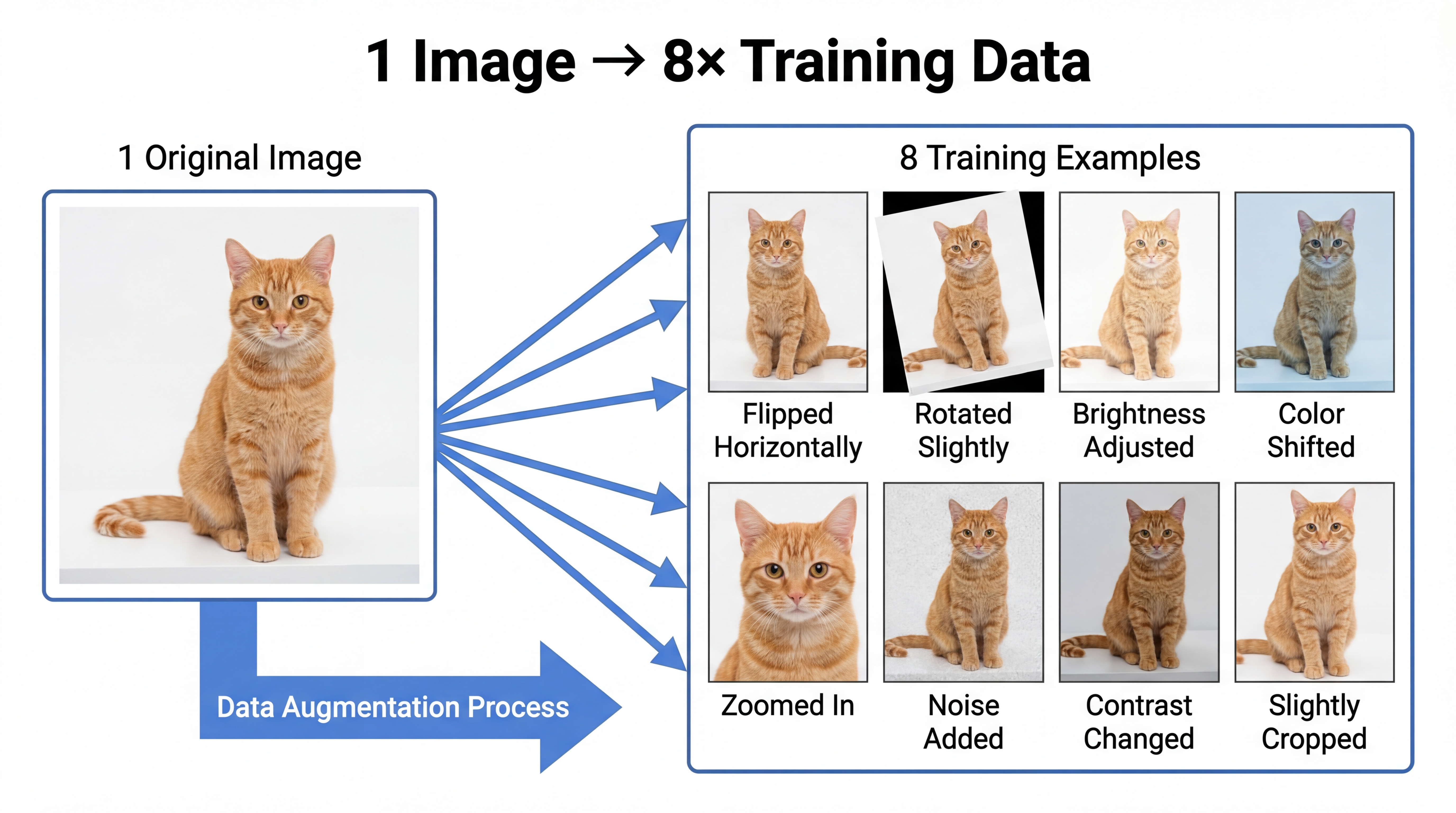

1 image → 8 training examples (all still clearly a cat!)

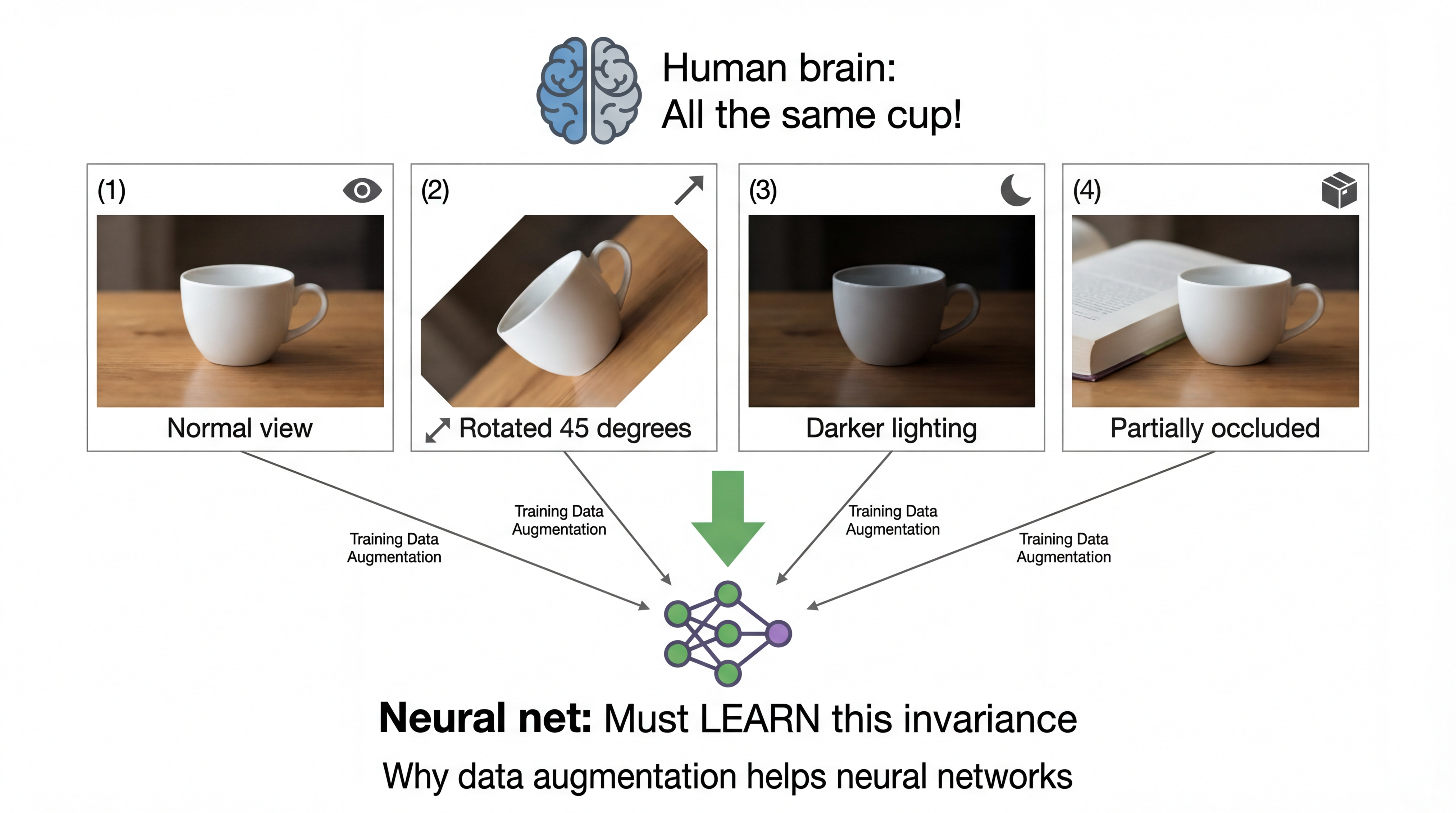

The Invariance Problem

Human vision is naturally invariant to rotation, lighting, position.
Neural networks must learn this invariance from data → augmentation helps!

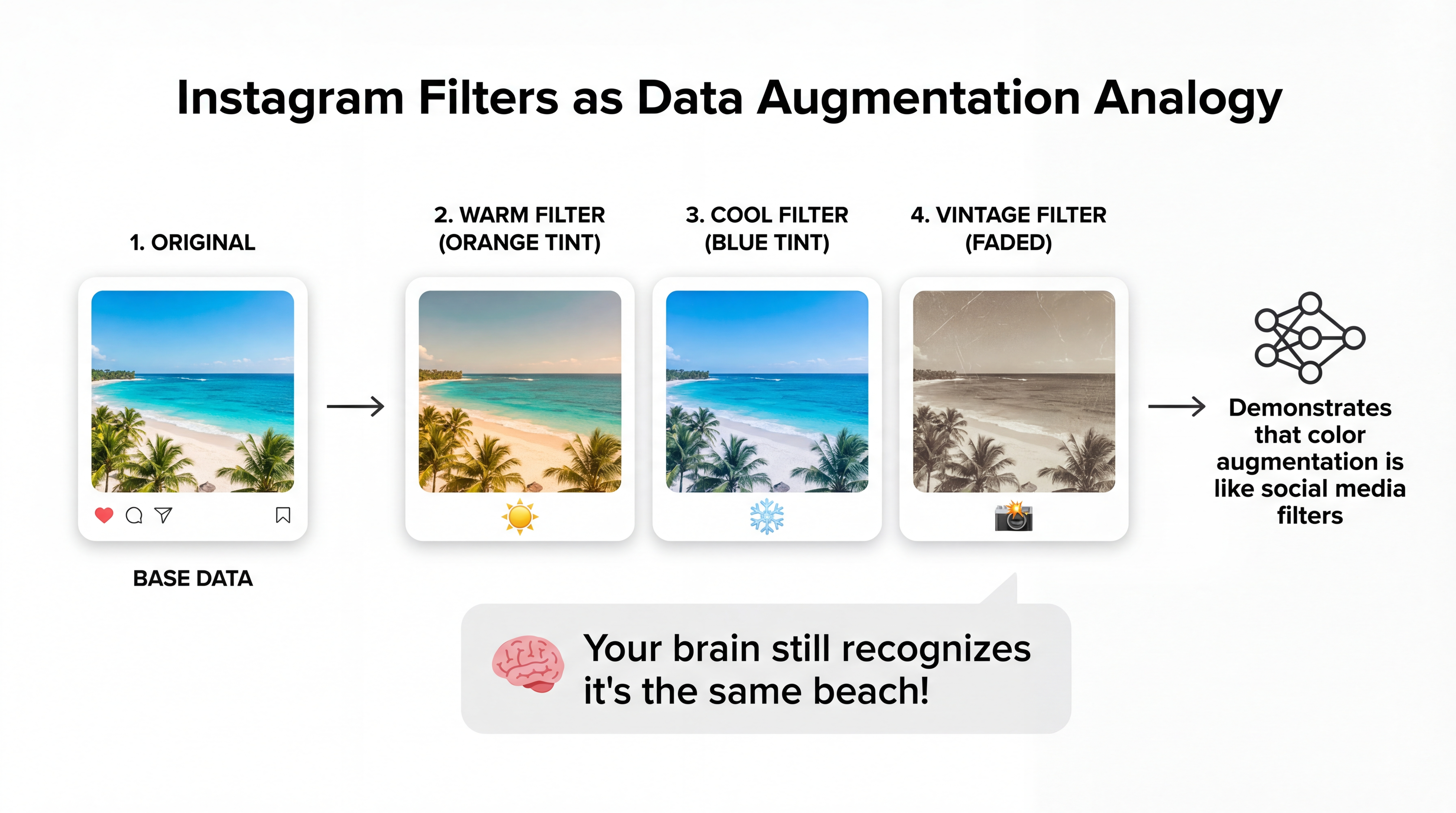

You Already Use Augmentation Daily!

Instagram filters = color augmentation. Your brain still recognizes the scene!

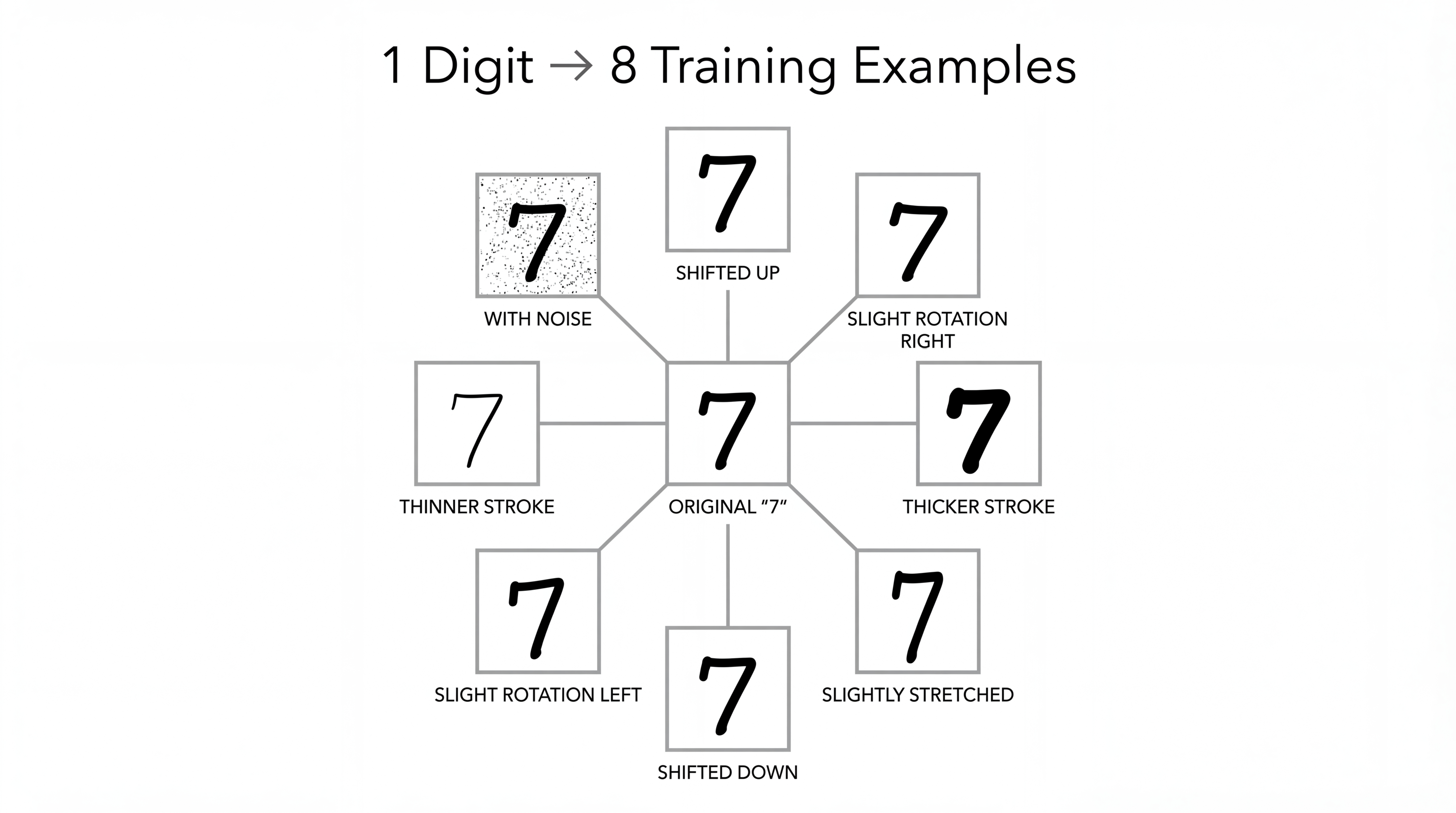

MNIST: 1 Digit → 10 Training Examples

Each transform simulates real-world variation (tilted writing, different pens, lighting, etc.)

Published Results: Augmentation Works!

CIFAR-10 Test Error Rates (lower is better):

ImageNet Top-1 Error: AutoAugment achieves 16.5% (vs ~23% baseline)

Source: Shorten & Khoshgoftaar, "A Survey on Image Data Augmentation" (2019)

Why Augmentation Reduces Overfitting

Without augmentation: Complex boundary fits training data tightly (memorization)
With augmentation: Smooth boundary generalizes better

Image Augmentation: The Big Picture

Geometric Transforms

Rotation, flip, translation, scaling, cropping - all preserve the label!

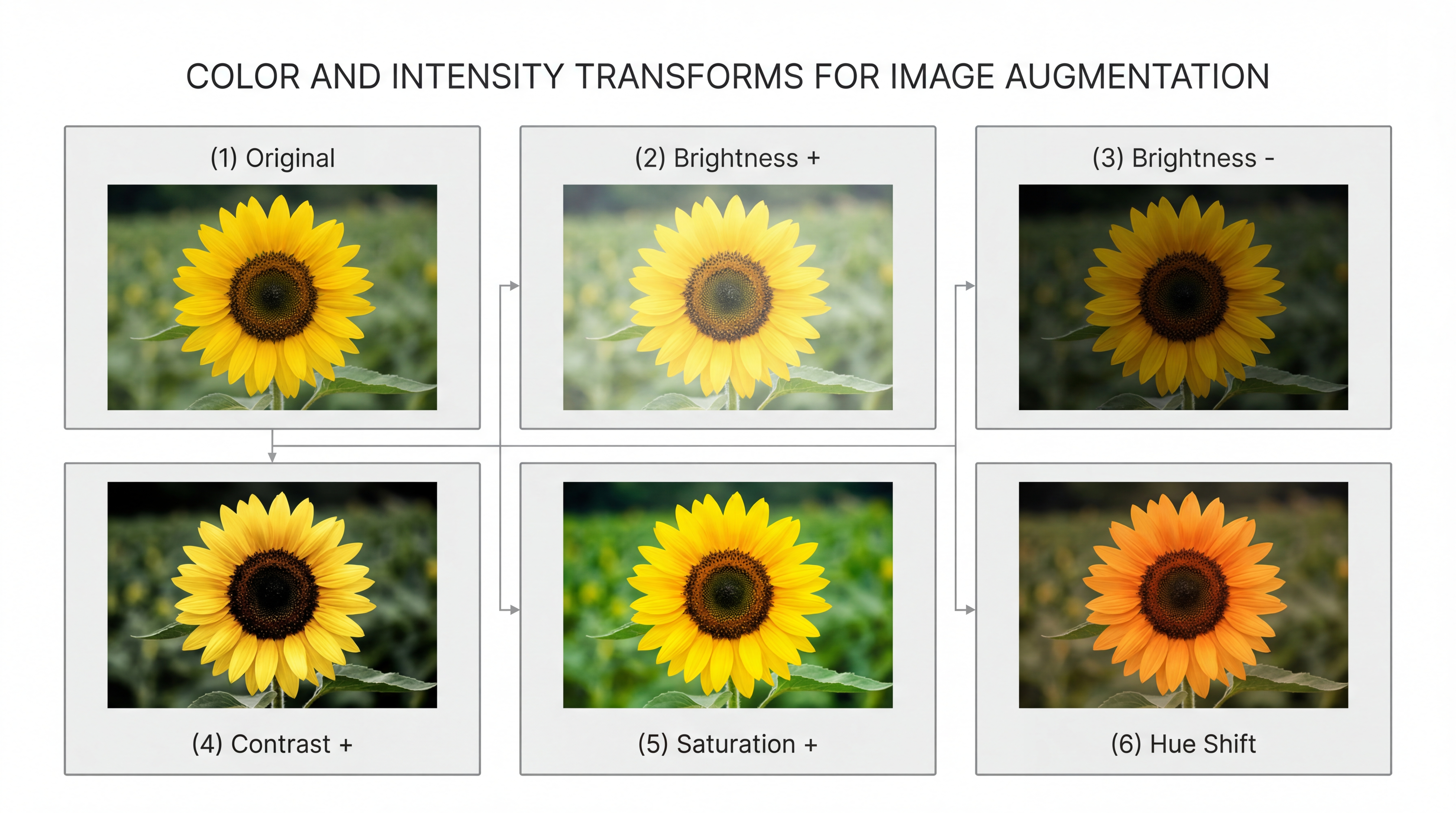

Color/Intensity Transforms

Brightness, contrast, inversion - simulates different lighting conditions

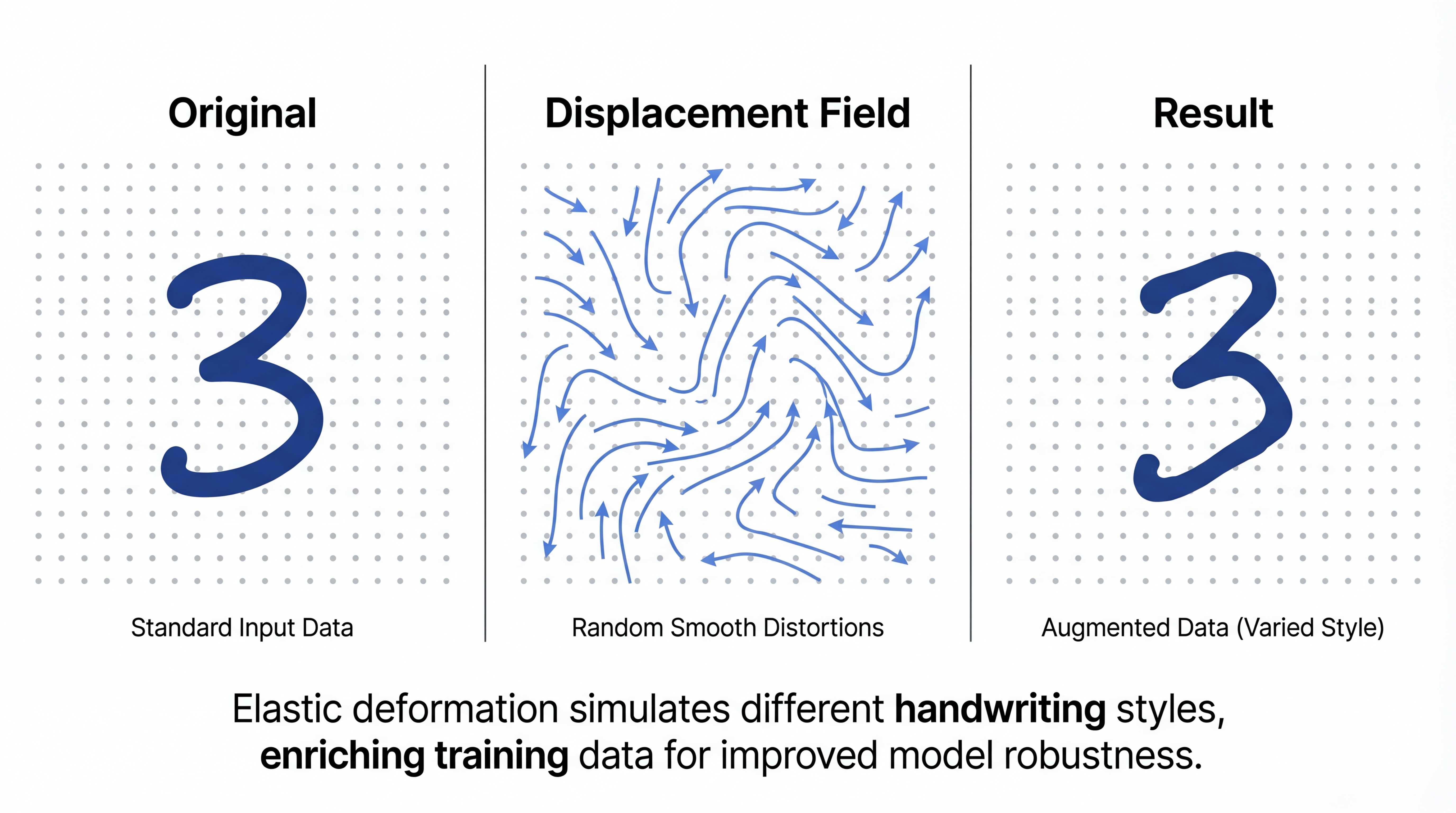

Elastic Deformation

How it works: Apply smooth random displacement to a grid overlay. From Simard et al. (2003).

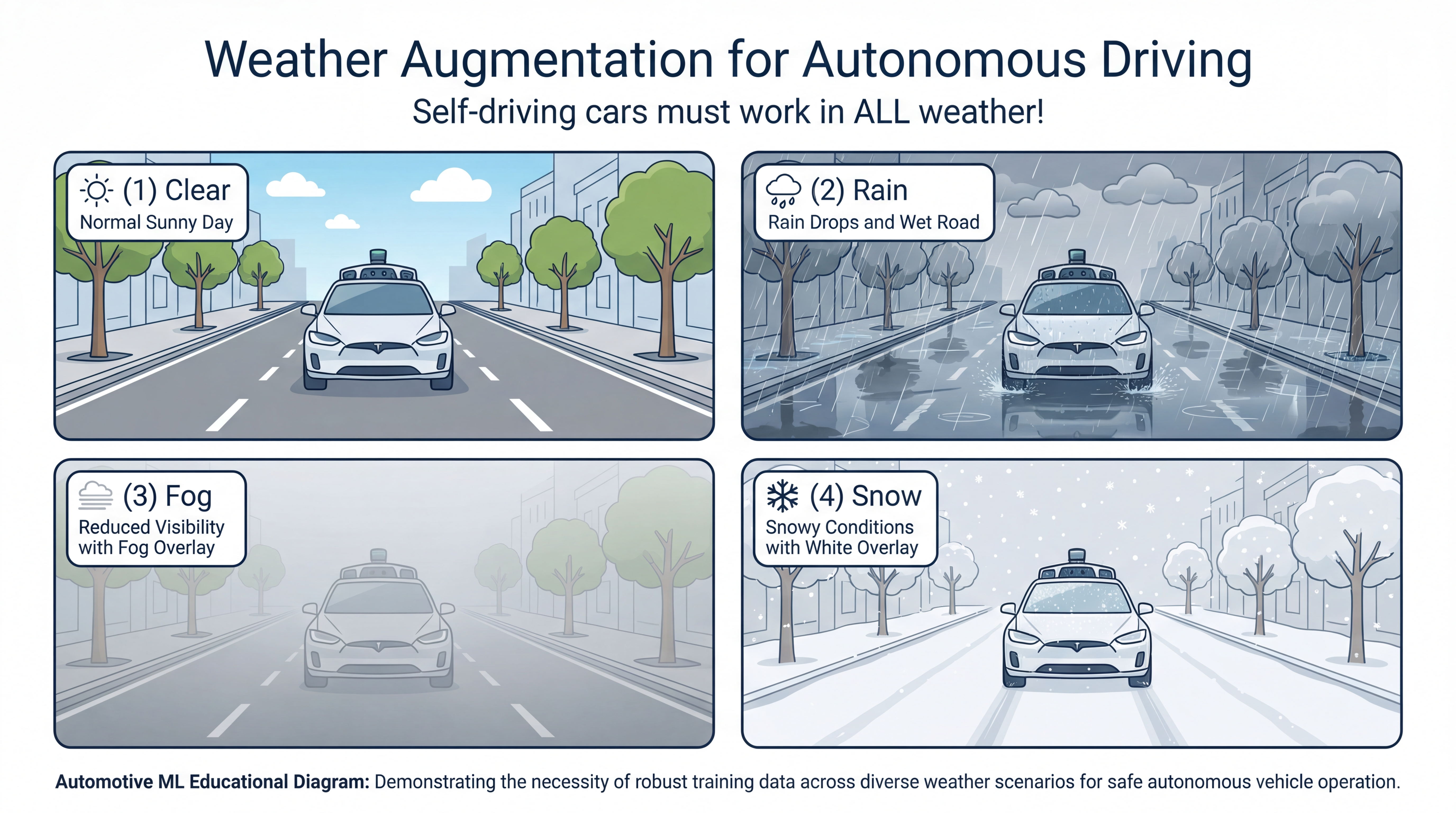

Weather Augmentation

Critical for autonomous vehicles - must work in all weather!

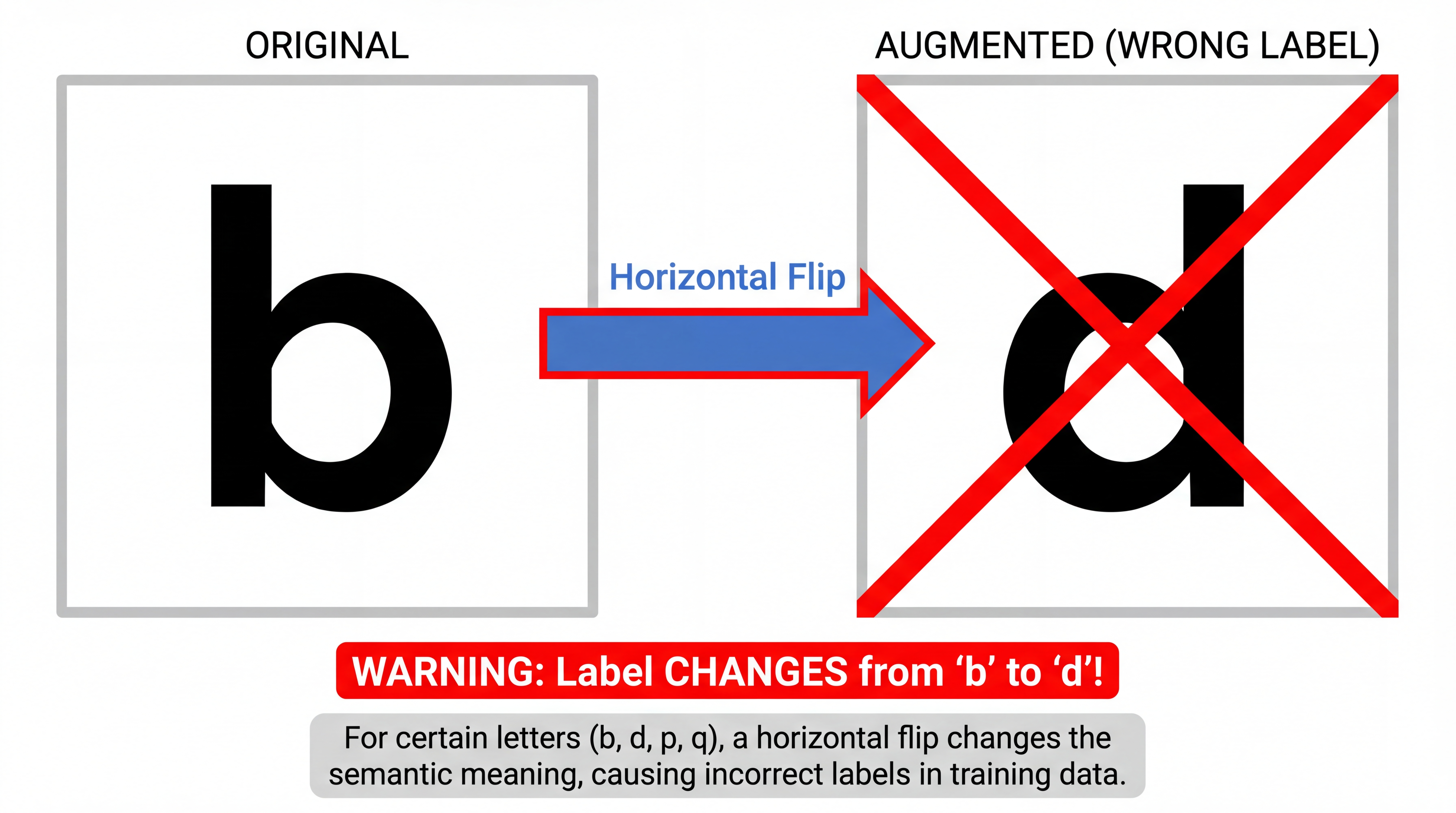

The "b vs d" Problem

Critical Rule: Only augment if the transformation preserves the label!

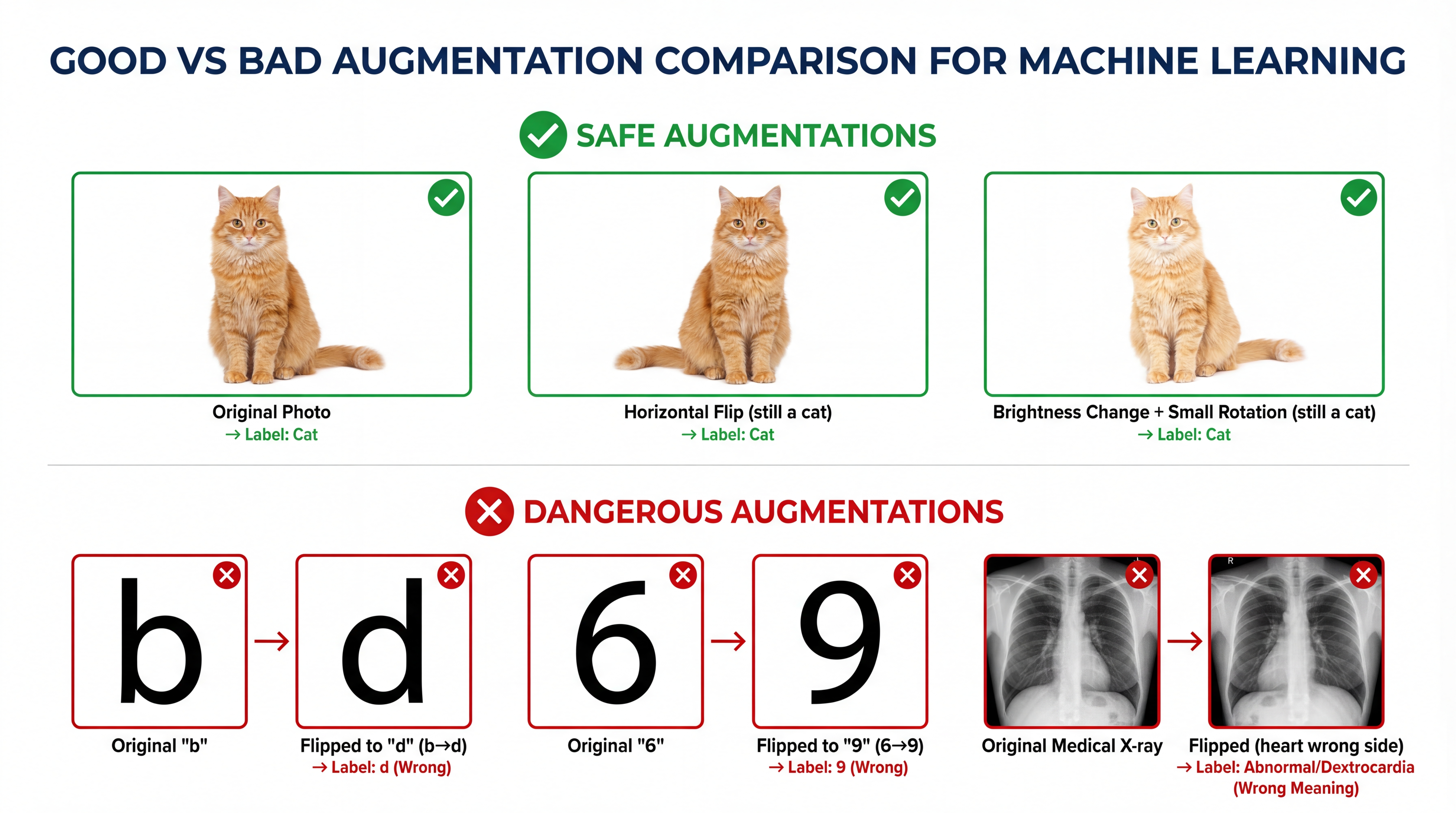

Good vs Bad Augmentation

Always ask: Does this transformation change what the image represents?

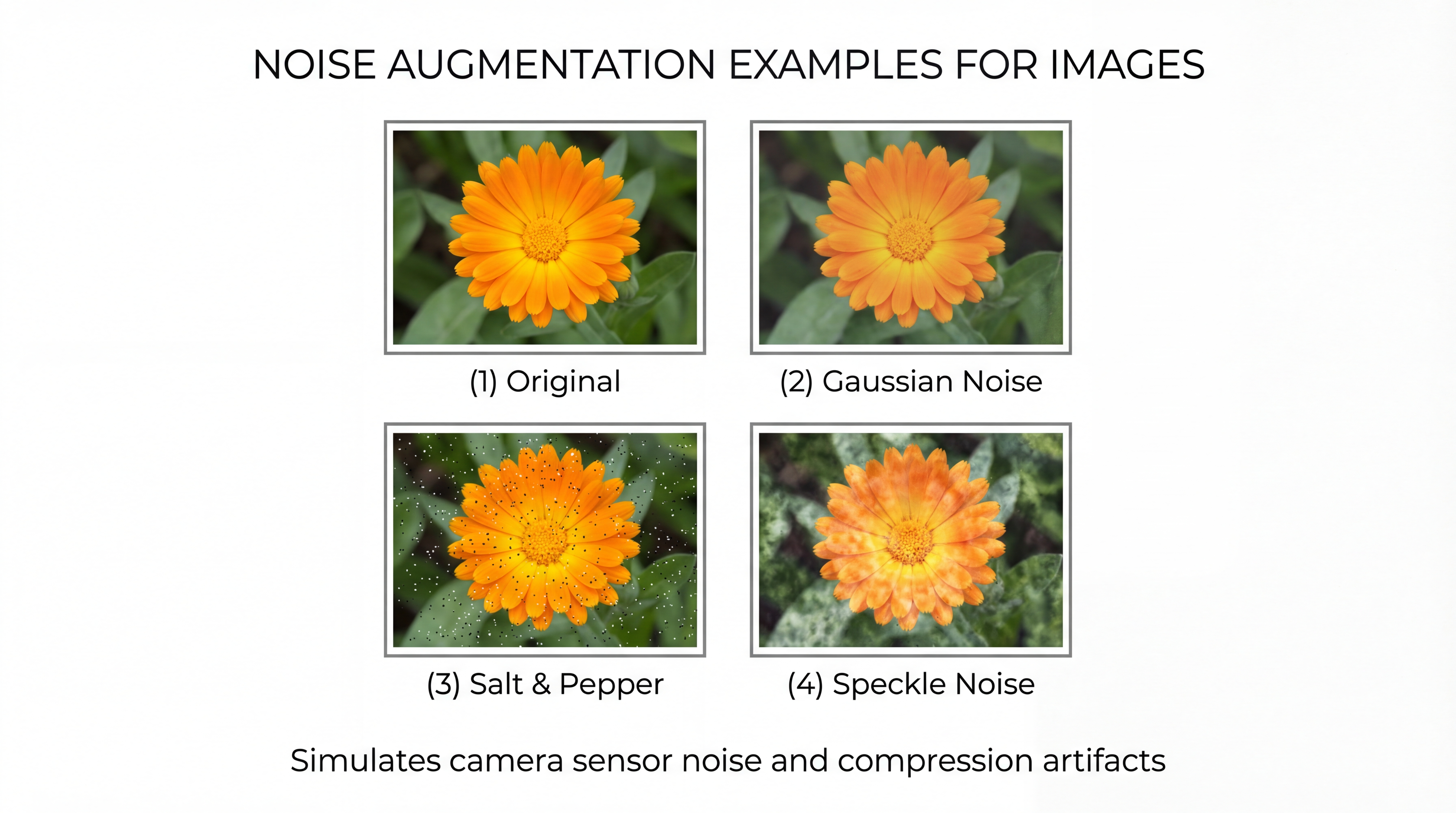

Noise Augmentation

Trains model to be robust to sensor noise and image compression

Blur Augmentation

Light blur is OK, heavy blur loses information!

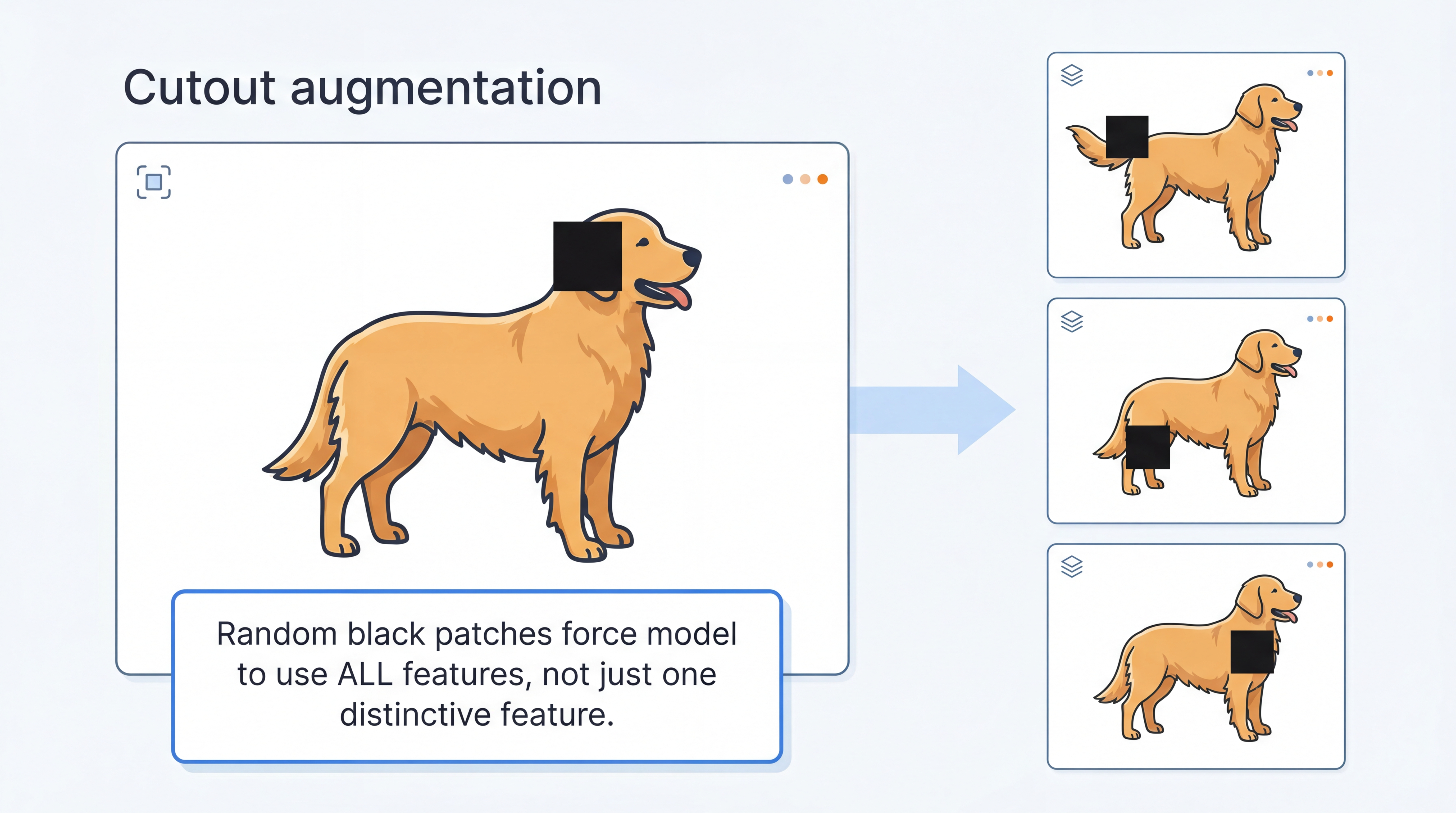

Advanced: Cutout

Idea: Randomly mask patches → forces model to use ALL features, not just one

Advanced: Mixup

Idea: Blend two images AND their labels → smoother decision boundaries

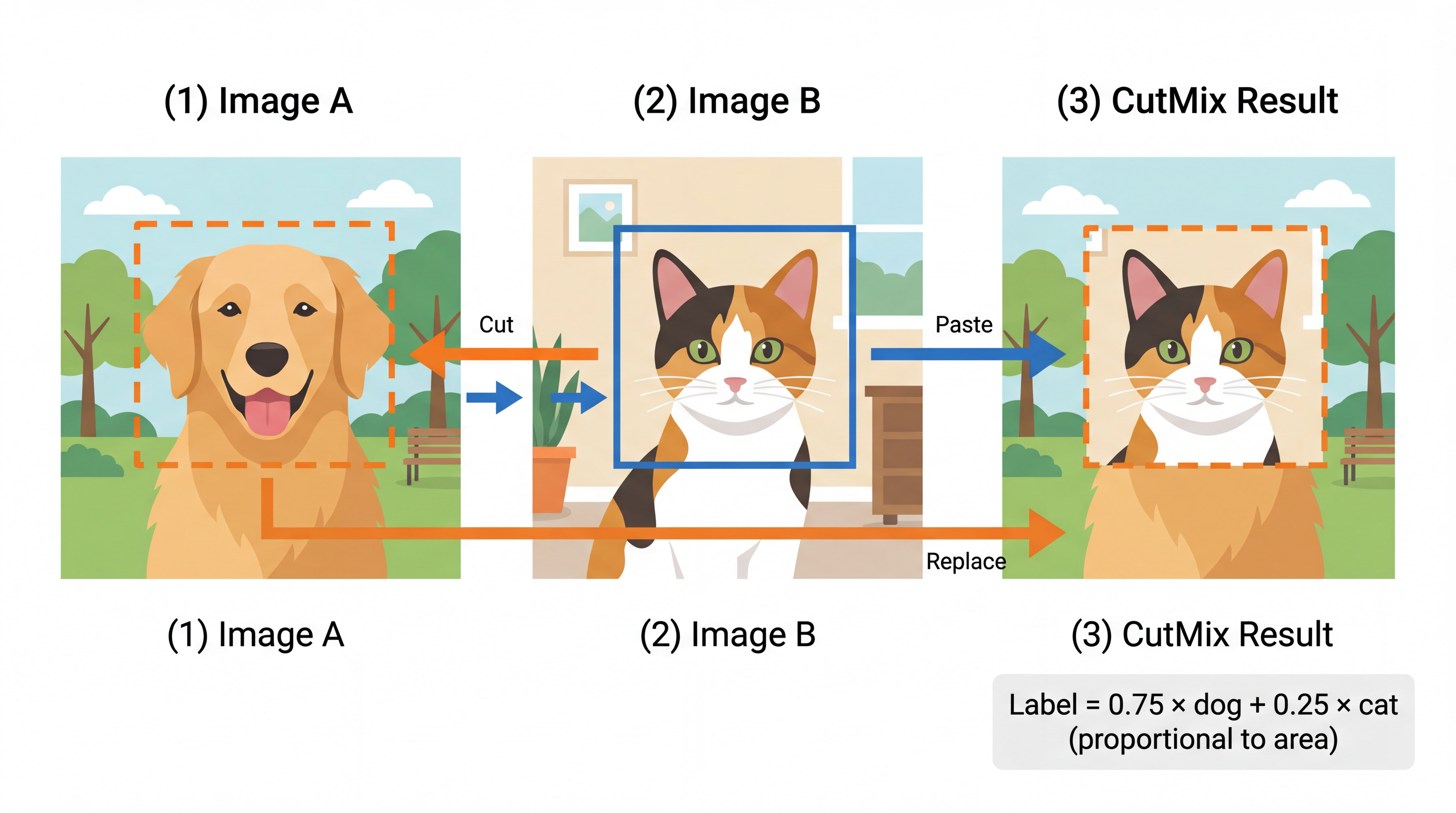

Advanced: CutMix

Idea: Cut & paste regions + mix labels proportionally to area

Mixup vs CutMix

# Mixup
mixed_image = lambda_ * image_A + (1 - lambda_) * image_B
mixed_label = lambda_ * label_A + (1 - lambda_) * label_B

# CutMix
mixed_image = paste_region(image_A, image_B, bbox)
mixed_label = area_ratio * label_A + (1 - area_ratio) * label_B

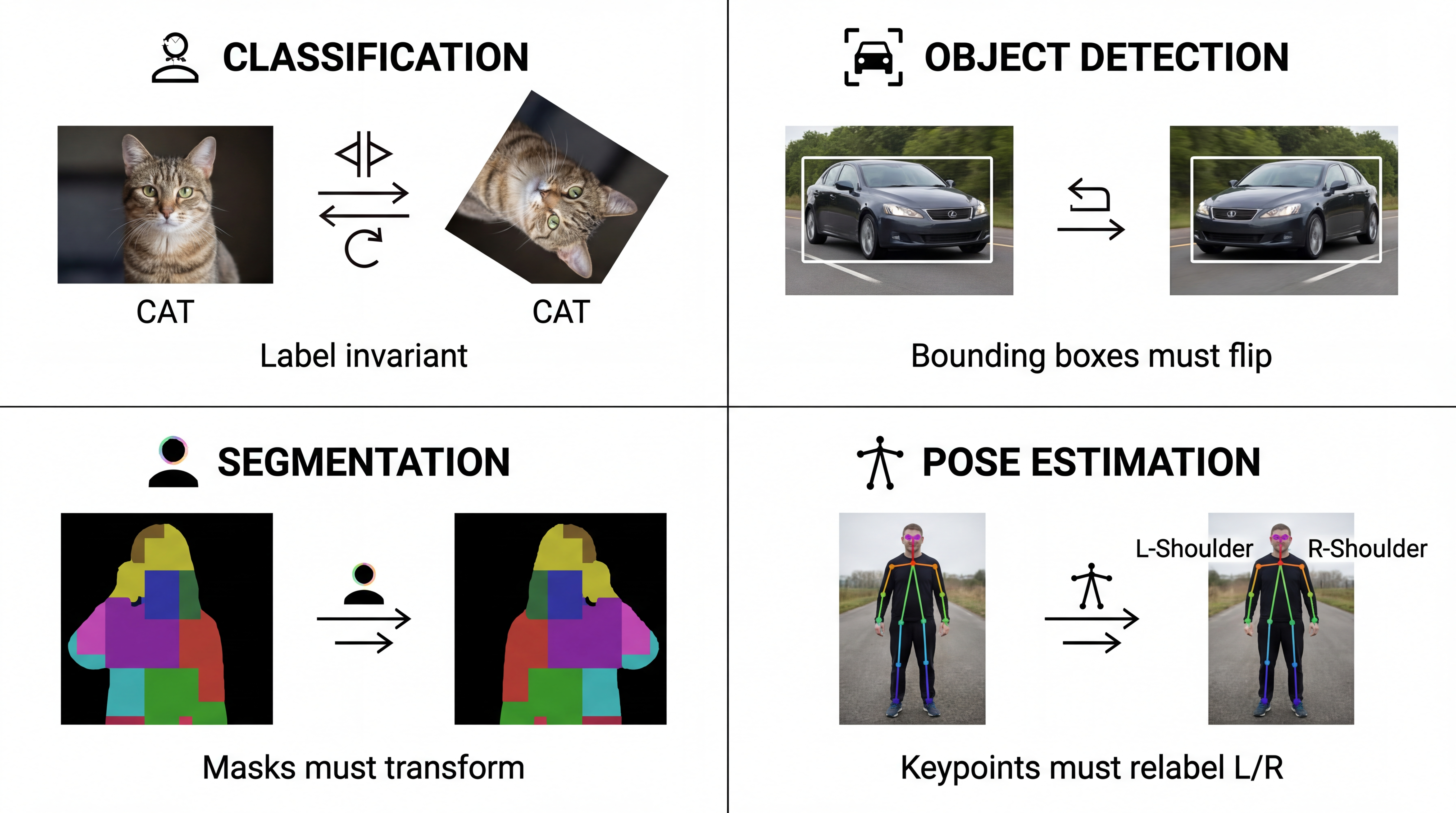

Augmentation by Task: Overview

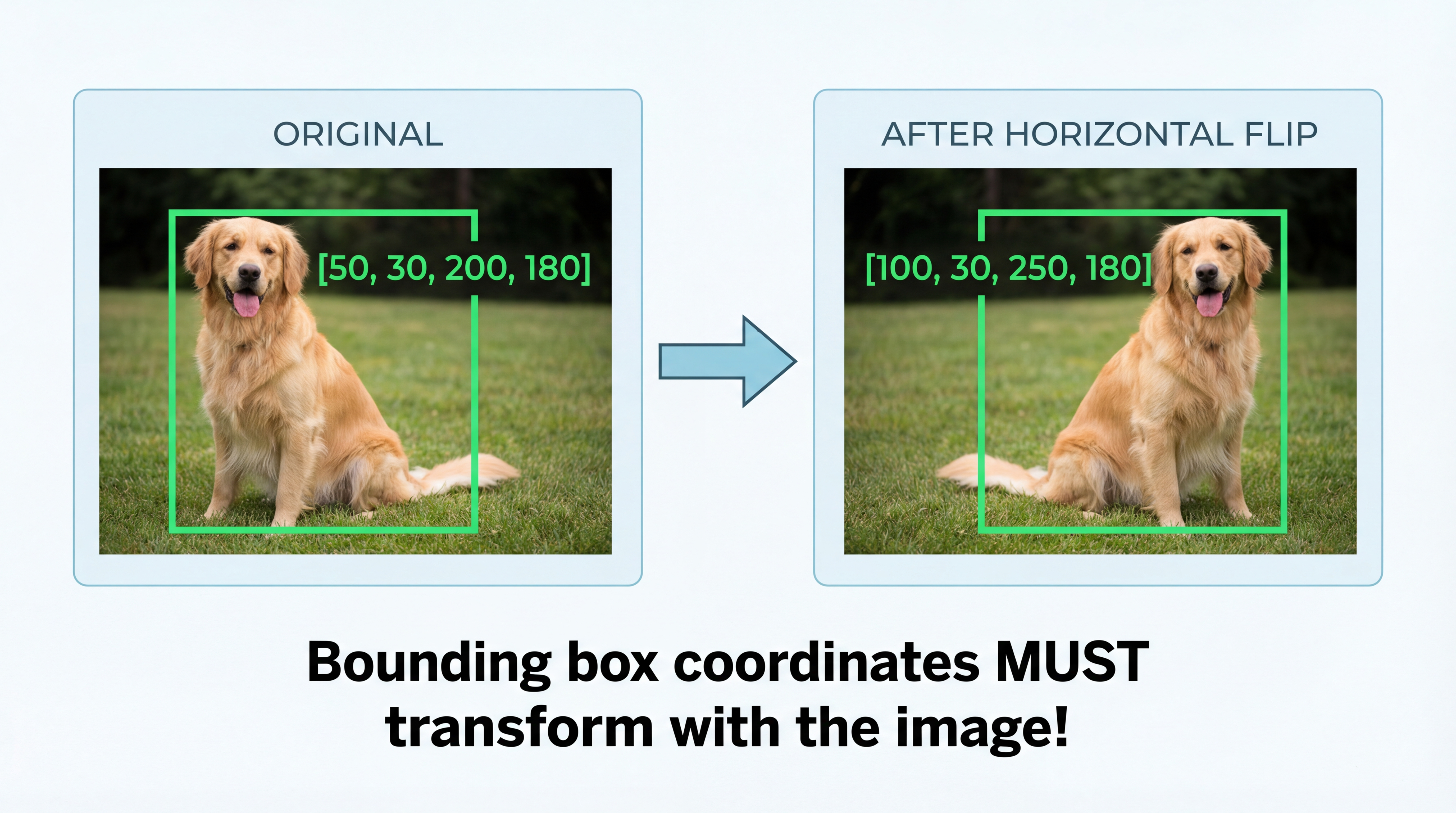

Object Detection: Transform BBoxes Too!

Critical: Bounding box coordinates must transform with the image!

Object Detection: Albumentations Code

import albumentations as A

transform = A.Compose([
    A.HorizontalFlip(p=0.5),
    A.Rotate(limit=15, p=0.5),
    A.RandomBrightnessContrast(p=0.3),
], bbox_params=A.BboxParams(
    format='pascal_voc',  # [x_min, y_min, x_max, y_max]
    label_fields=['class_labels']
))

# Apply - boxes transform automatically!
augmented = transform(
    image=image,
    bboxes=[[30, 40, 170, 160]],
    class_labels=['cat']
)

Albumentations handles bbox transformation automatically!

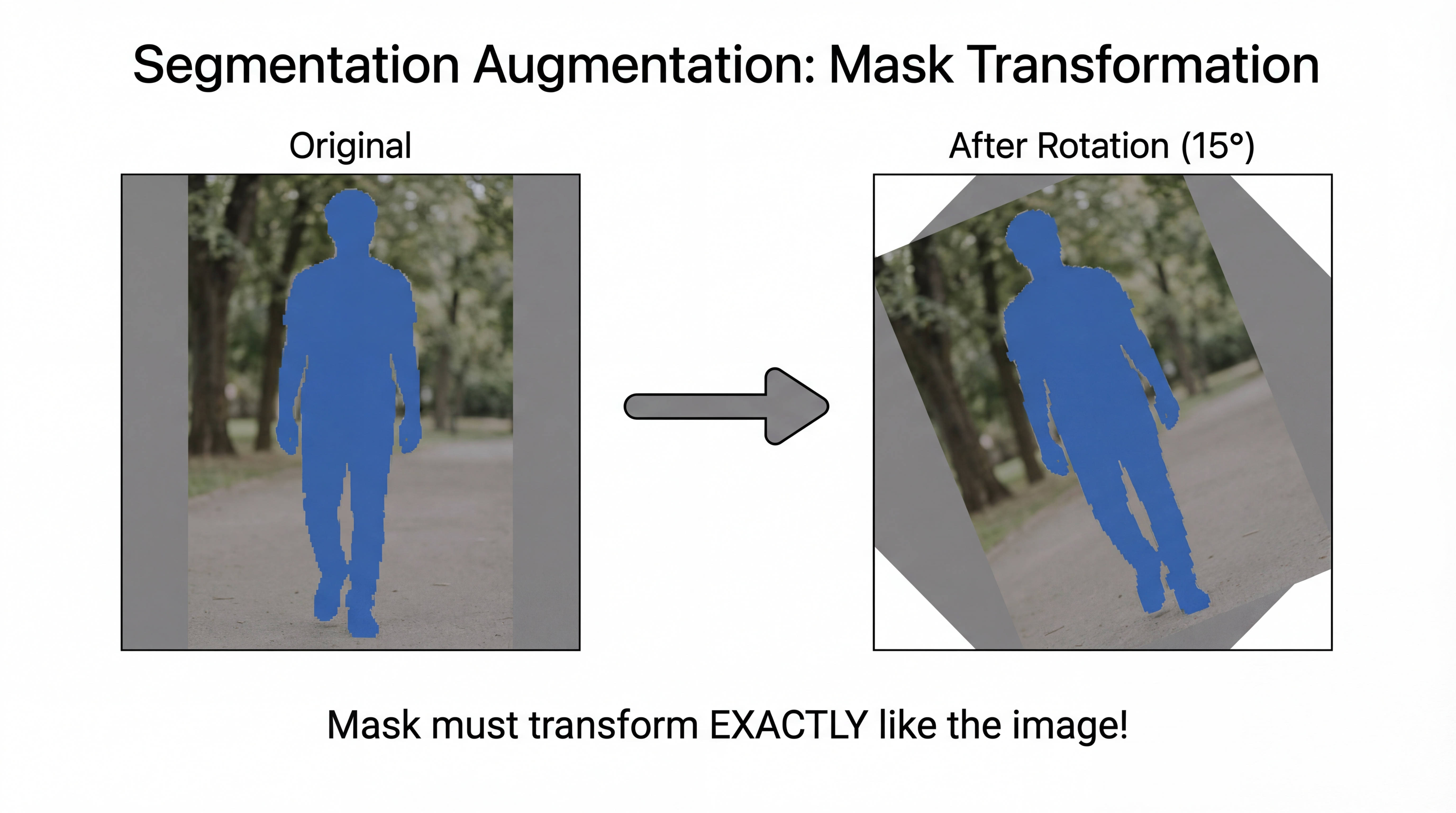

Segmentation: Transform Masks Too!

Rule: Apply EXACT same transform to image AND mask!

Segmentation: Albumentations Code

import albumentations as A

transform = A.Compose([
    A.HorizontalFlip(p=0.5),
    A.Rotate(limit=30, p=0.5),
    A.RandomCrop(height=256, width=256, p=1.0),
])

# Apply - mask transforms with image!
augmented = transform(image=image, mask=segmentation_mask)

aug_image = augmented['image']
aug_mask = augmented['mask']  # Same transform applied!

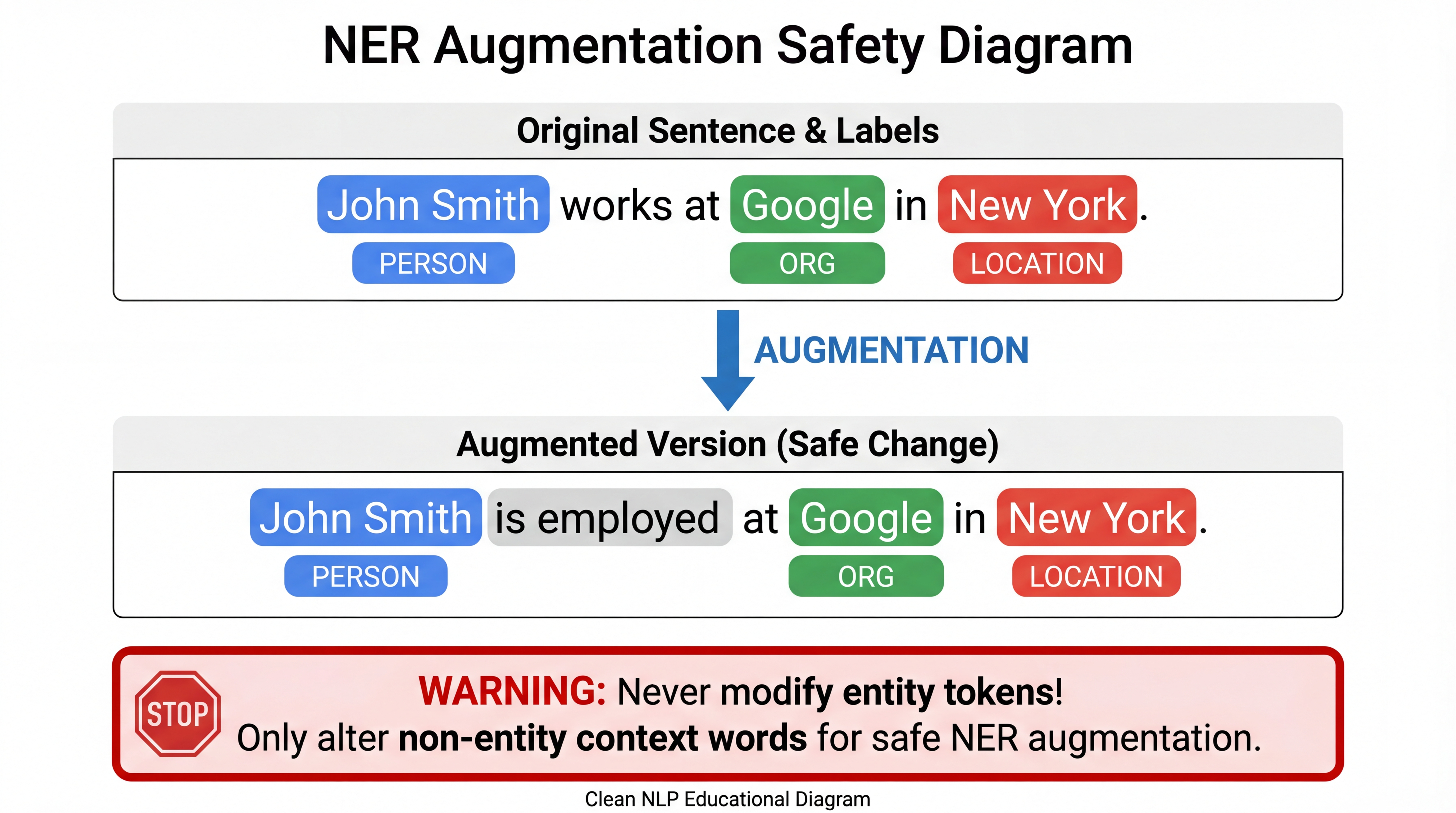

NER: Protect Entity Tokens!

Never replace or modify named entity tokens!

NER Augmentation: Code Example

import nlpaug.augmenter.word as naw

# Create augmenter that respects protected tokens
aug = naw.SynonymAug(
    aug_src='wordnet',
    stopwords=['John', 'Smith', 'Google', 'New', 'York']  # Protect entities!
)

text = "John Smith works at Google in New York."
augmented = aug.augment(text)
# "John Smith is employed at Google in New York."  ← Entities preserved!

Better approach: Use span-aware augmentation libraries like nlpaug with entity protection.

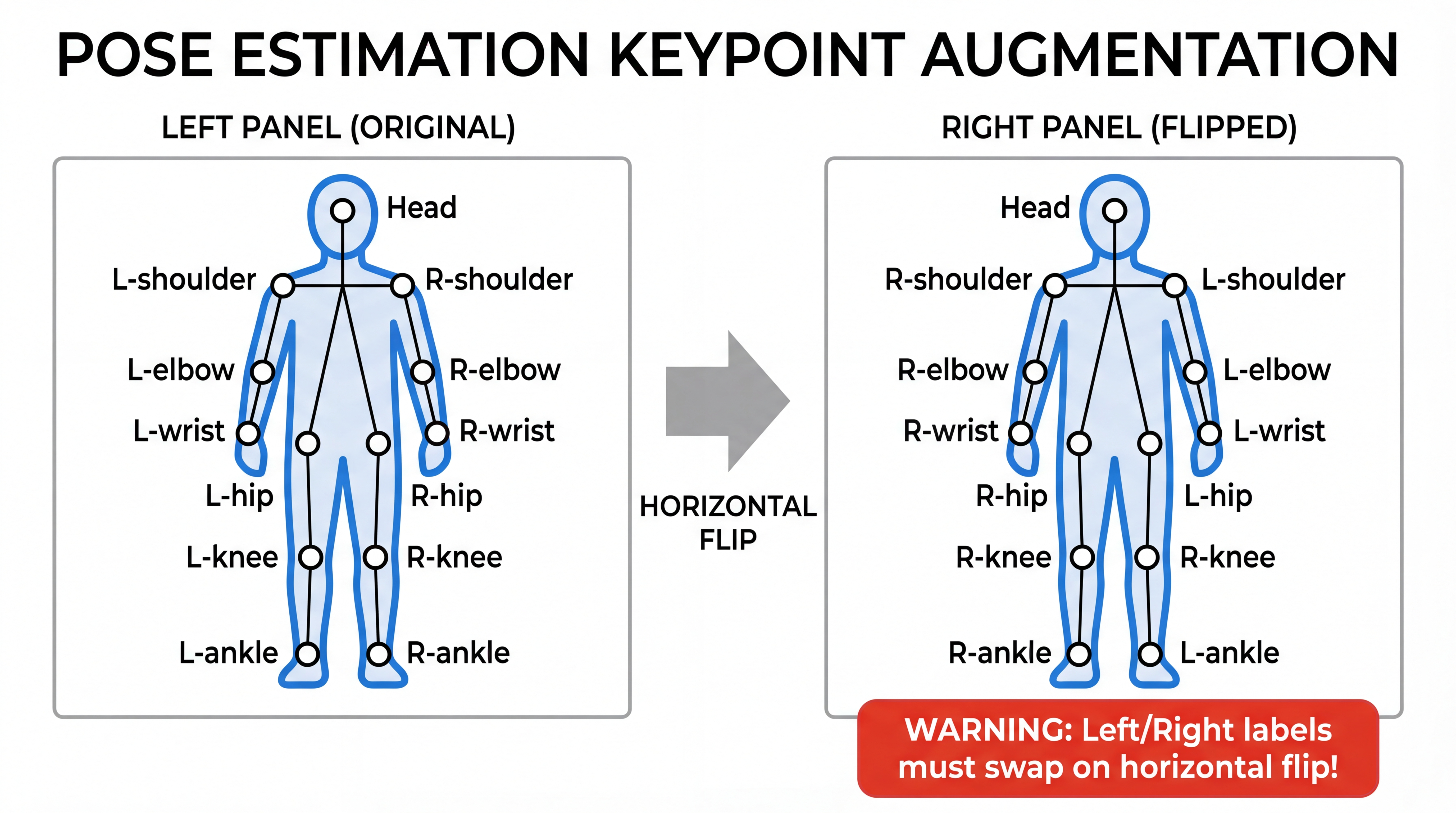

Pose Estimation: Transform Keypoints

Left/right keypoints must swap labels on horizontal flip!

Pose Estimation: Albumentations Code

transform = A.Compose([
    A.HorizontalFlip(p=0.5),
], keypoint_params=A.KeypointParams(
    format='xy',
    label_fields=['keypoint_labels'],
    remove_invisible=False
))

Albumentations handles keypoint transformation, but you must relabel left/right!

OCR/Document: Be Conservative!

# OCR-safe augmentation
transform = A.Compose([
    A.Perspective(scale=(0.02, 0.05), p=0.3),  # Very mild
    A.RandomBrightnessContrast(brightness_limit=0.1, p=0.3),
    A.GaussNoise(var_limit=(5, 15), p=0.2),  # Light noise
])

Albumentations: The Go-To Library

import albumentations as A

transform = A.Compose([
    A.HorizontalFlip(p=0.5),
    A.Rotate(limit=15, p=0.5),
    A.RandomBrightnessContrast(p=0.3),
    A.GaussNoise(p=0.2),
])

# Apply to image
augmented = transform(image=image)['image']

Why Albumentations?

• Fast (NumPy/OpenCV optimized)
• Handles bounding boxes and masks
• 60+ transformations built-in

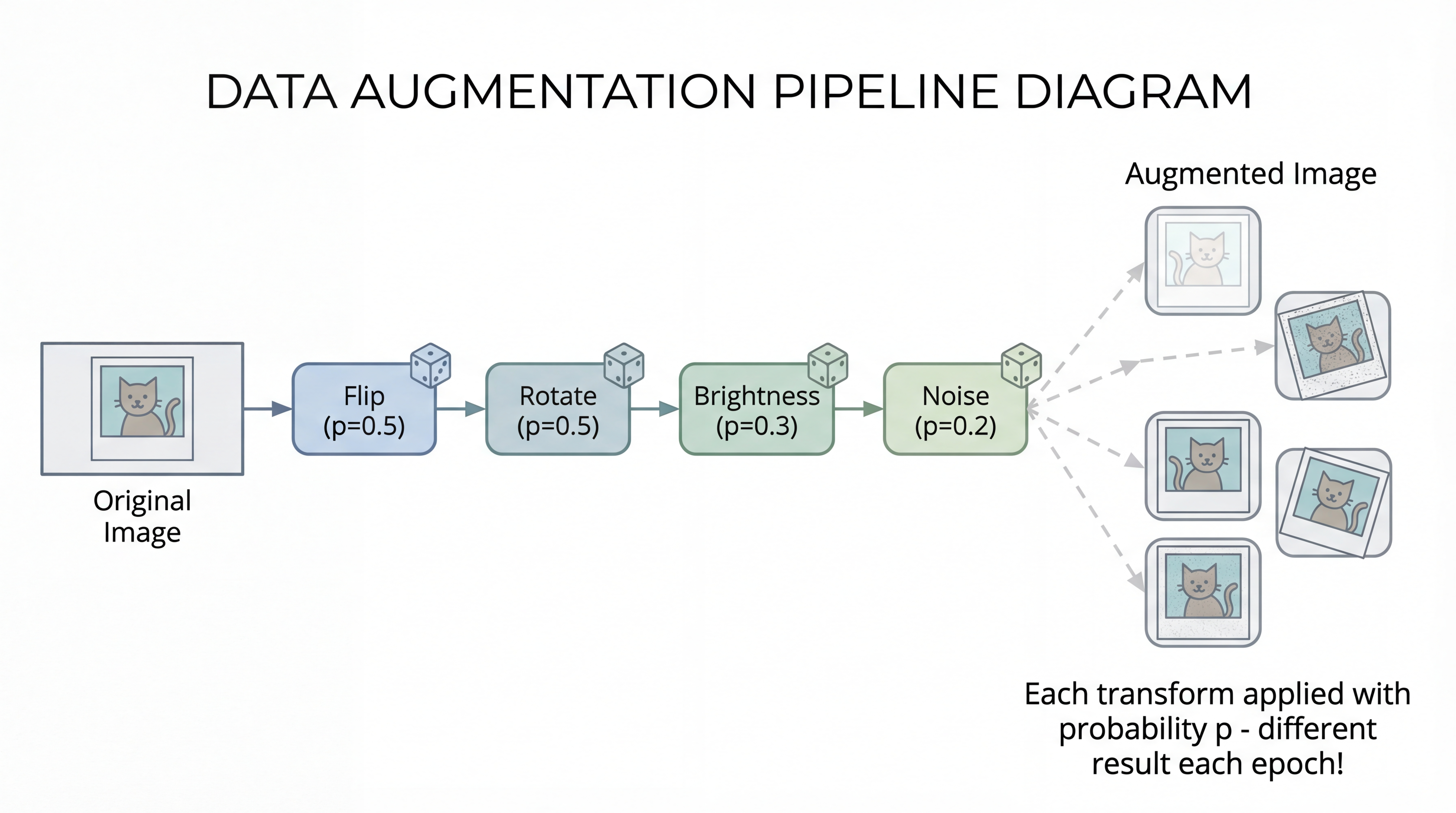

The Augmentation Pipeline

Each transform is applied with probability p - stochastic augmentation!

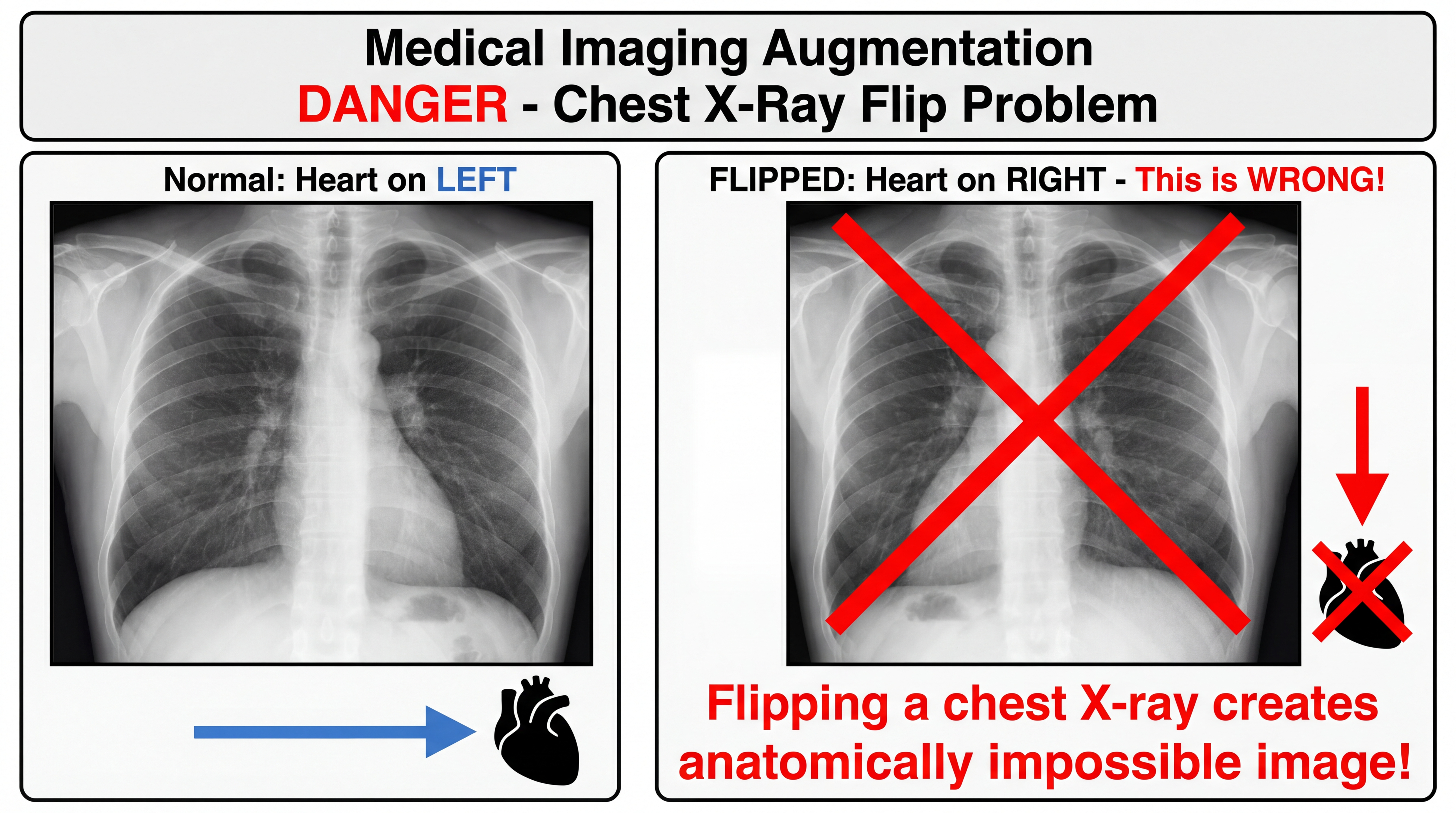

Medical Imaging: Be VERY Careful!

Flipping a chest X-ray puts the heart on the wrong side!

Domain-Specific Rules

Exercise 1: Good or Bad?

For a dog/cat classifier, which augmentations are safe?

Think before looking at the answer on the next slide!

Exercise 1: Answers

Text vs Image: Different Challenges

Text augmentation must preserve MEANING, not just words!

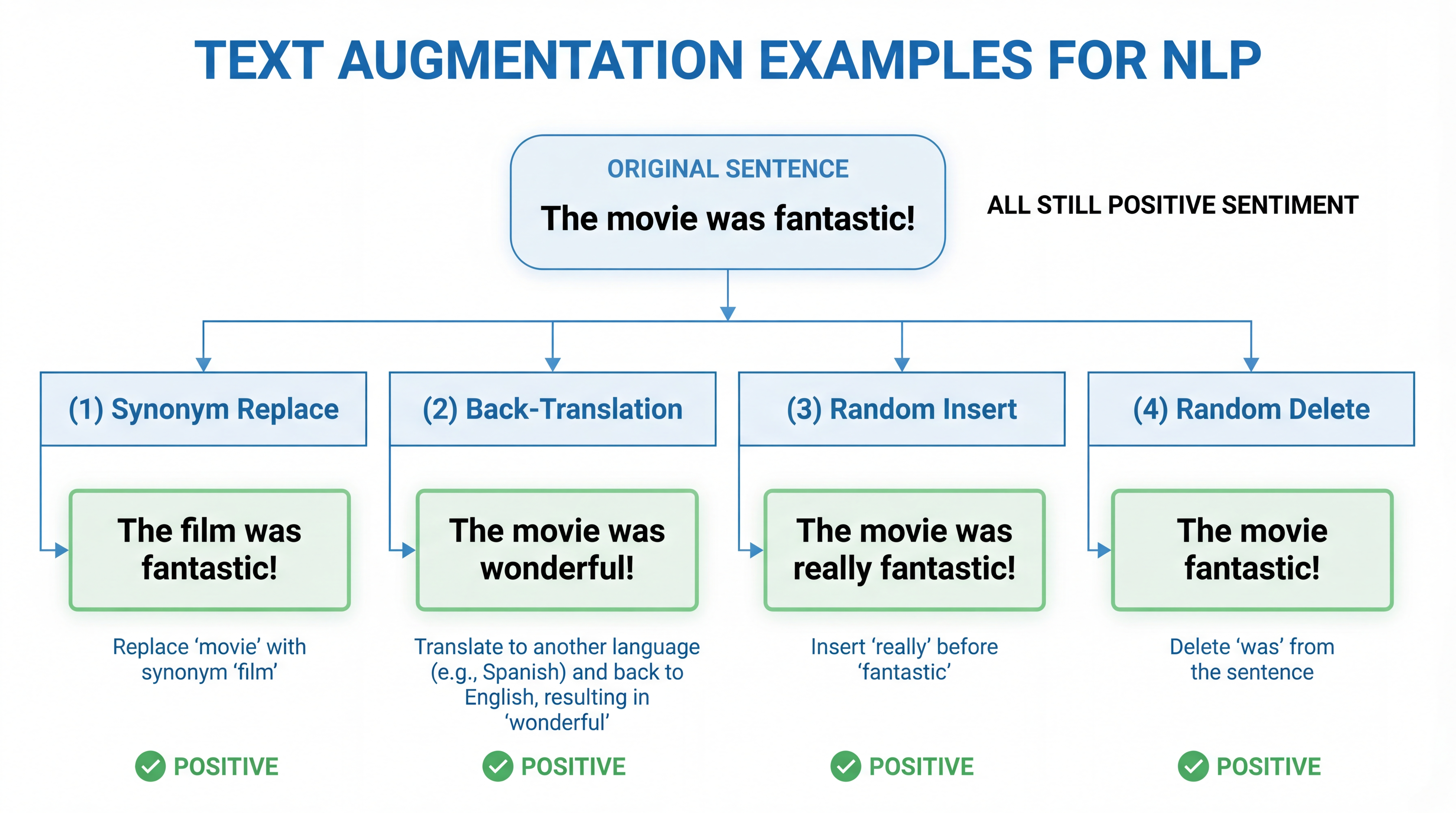

Text Augmentation Examples

Easy Data Augmentation (EDA)

4 simple operations:

import nlpaug.augmenter.word as naw

aug = naw.SynonymAug(aug_src='wordnet')
text = "The movie was fantastic"
augmented = aug.augment(text)  # "The film was fantastic"

Back-Translation

Idea: Translate to another language and back

English:  "I love machine learning"
    ↓
German:   "Ich liebe maschinelles Lernen"
    ↓
English:  "I love automated learning"  ← Natural variation!

Why it works: Translation models rephrase naturally

from transformers import pipeline

en_de = pipeline("translation", model="Helsinki-NLP/opus-mt-en-de")
de_en = pipeline("translation", model="Helsinki-NLP/opus-mt-de-en")

german = en_de("I love this movie")[0]['translation_text']
back = de_en(german)[0]['translation_text']

LLM Paraphrasing

Use GPT/Claude to generate high-quality paraphrases:

prompt = """Generate 3 paraphrases. Keep the same meaning and sentiment.

Text: "The model achieved 95% accuracy on the test set."
"""

# Response:
# 1. "The model reached 95% accuracy during testing."
# 2. "On the test data, the model scored 95% accuracy."
# 3. "Testing showed the model was 95% accurate."

Text Augmentation Pitfalls

Always validate augmented text preserves the label!

Exercise 2: Sentiment Preservation

Original: "This restaurant has amazing food!" (POSITIVE)

Which augmentations preserve the positive sentiment?

Exercise 2: Answers

Lesson: Synonym replacement needs sentiment checking!

Audio Augmentation Overview

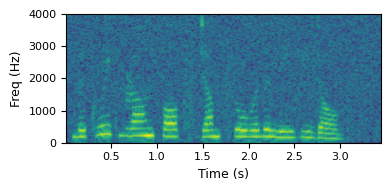

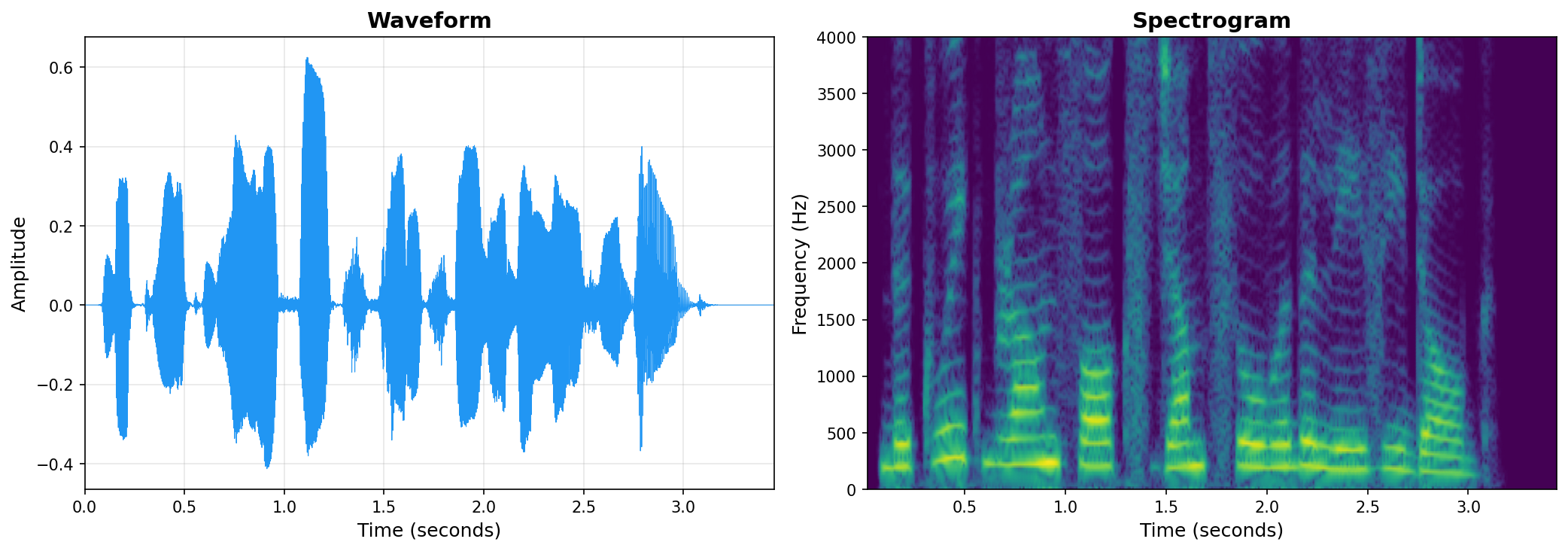

Audio Representations: Waveform vs Spectrogram

"The quick brown fox jumps over the lazy dog"

Left: Waveform (amplitude vs time) | Right: Spectrogram (frequency vs time, brightness = loudness)

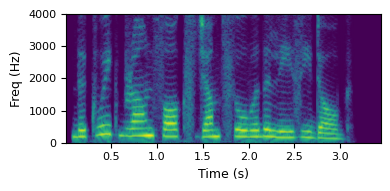

Listen & See: Audio Augmentation

Original	Pitch UP	Pitch DOWN

Time Stretch	+ Noise	+ Reverb

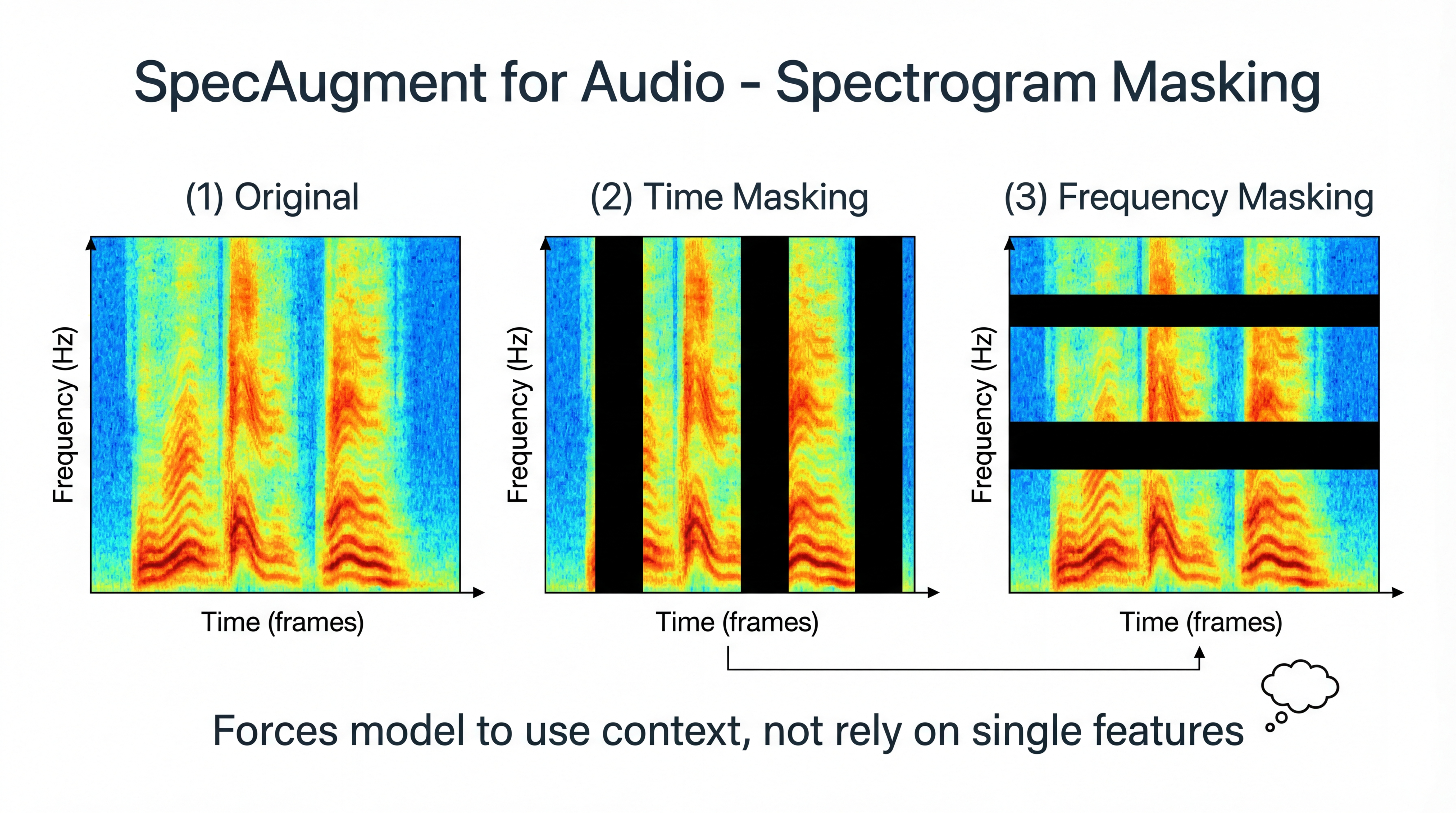

What is SpecAugment?

SpecAugment masks parts of the spectrogram during training:

Used by Google's speech recognition and Wav2Vec - simple but very effective!

Why SpecAugment Works

Time masking: Forces model to use context

• Can't rely on a single word to classify

Frequency masking: Forces robustness

• Can't rely on specific frequency bands

from torchaudio.transforms import FrequencyMasking, TimeMasking

freq_mask = FrequencyMasking(freq_mask_param=30)
time_mask = TimeMasking(time_mask_param=100)

augmented_spec = time_mask(freq_mask(spectrogram))

Audio Augmentation with audiomentations

from audiomentations import Compose, AddGaussianNoise, TimeStretch, PitchShift
import librosa

augment = Compose([
    AddGaussianNoise(min_amplitude=0.001, max_amplitude=0.015, p=0.5),
    TimeStretch(min_rate=0.8, max_rate=1.25, p=0.5),
    PitchShift(min_semitones=-4, max_semitones=4, p=0.5),
])

audio, sr = librosa.load('speech.wav', sr=16000)
augmented = augment(samples=audio, sample_rate=sr)

Audio Augmentation Safety Rules

Always consider what defines your label!

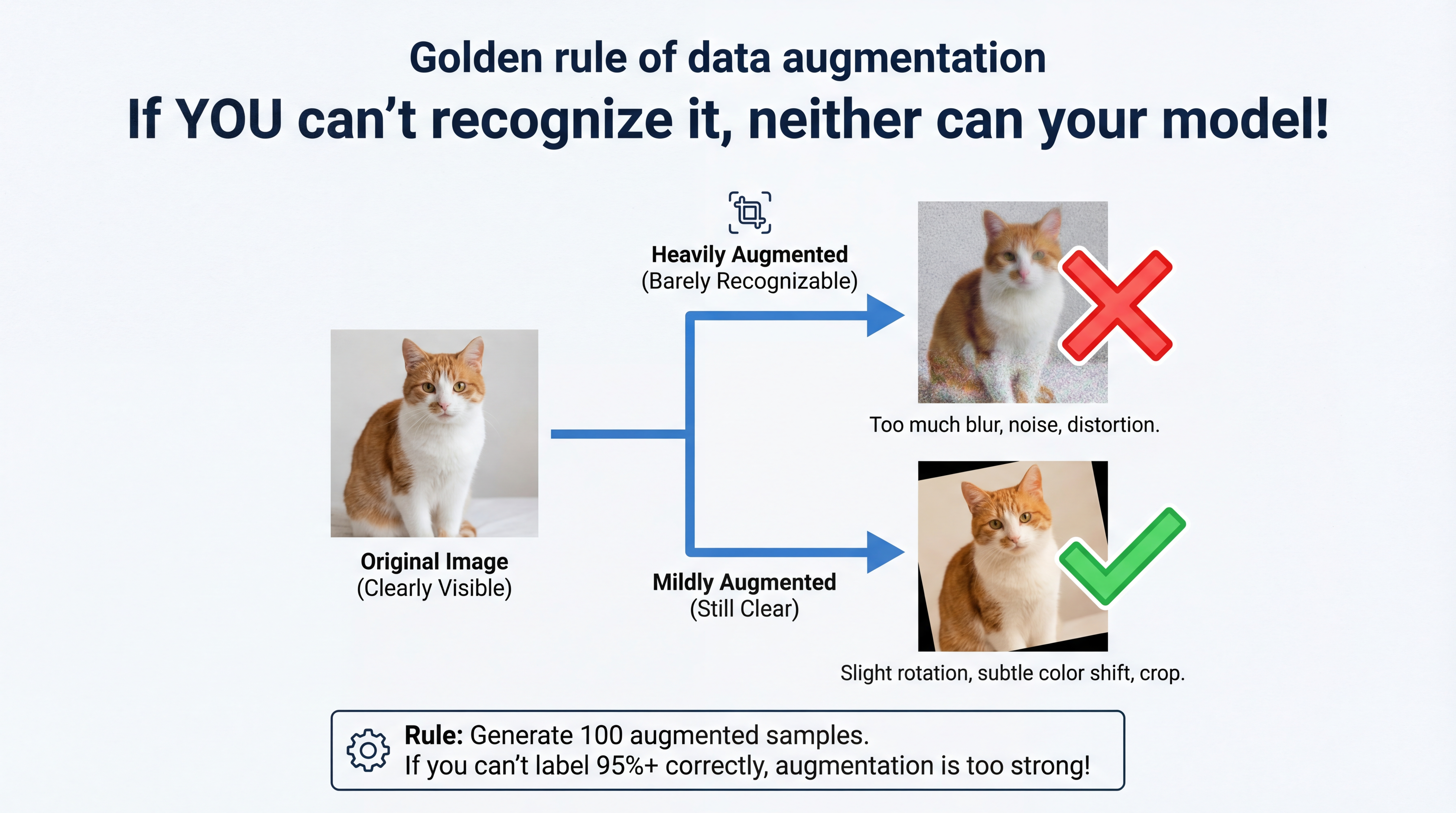

The Golden Rule

Test your pipeline: Generate 100 samples, label them yourself. If accuracy < 95%, too strong!

Start Simple, Measure Impact

# Step 1: Baseline (no augmentation)
baseline_acc = train_and_evaluate(augment=None)  # e.g., 75%

# Step 2: Add ONE augmentation
transform = A.HorizontalFlip(p=0.5)
acc_v1 = train_and_evaluate(augment=transform)  # e.g., 78%

# Step 3: Gradually add more
transform = A.Compose([
    A.HorizontalFlip(p=0.5),
    A.Rotate(limit=15, p=0.5),
])
acc_v2 = train_and_evaluate(augment=transform)  # e.g., 81%

Add one at a time. Measure. Keep what helps.

Hyperparameters to Tune

# Start mild
A.Rotate(limit=10, p=0.3)

# If underfitting, increase
A.Rotate(limit=30, p=0.5)

# If validation drops, decrease
A.Rotate(limit=15, p=0.3)

RandAugment: Automatic Selection

Idea: Randomly pick N augmentations with magnitude M

from torchvision.transforms import RandAugment

transform = RandAugment(num_ops=2, magnitude=9)

Simple, effective, widely used!

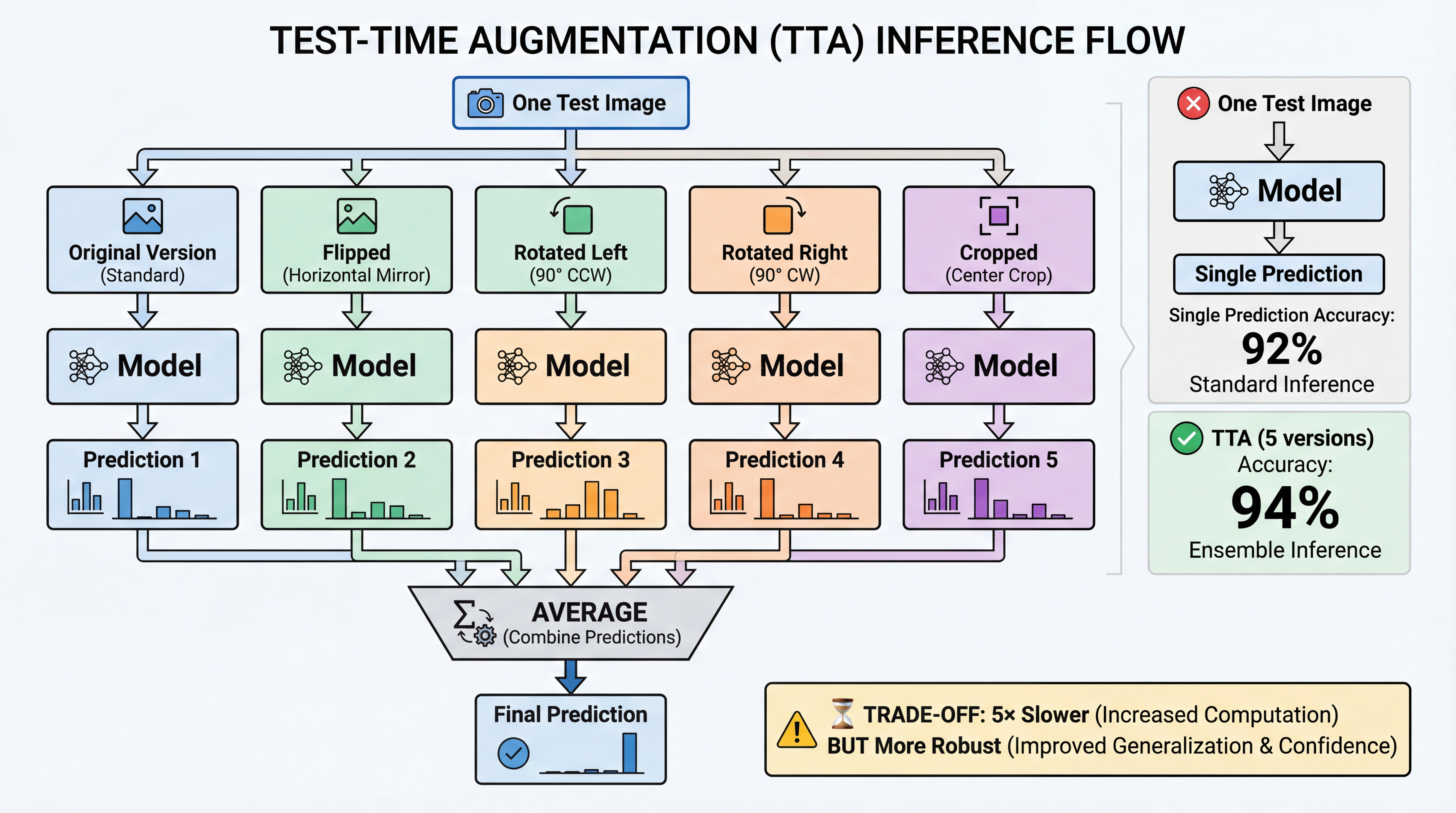

Test-Time Augmentation (TTA)

Benefit: +1-2% accuracy | Cost: N× slower inference

TTA: Code Example

def tta_predict(model, image, n_augments=5):
    predictions = [model(image)]  # Original

    for _ in range(n_augments - 1):
        aug_image = augment(image)
        predictions.append(model(aug_image))

    return np.mean(predictions, axis=0)

Average predictions from multiple augmented versions for more robust results.

Don't Augment Validation During Training!

# WRONG - Don't randomly augment validation data
val_transform = A.Compose([
    A.HorizontalFlip(p=0.5),  # Don't do this!
])

# CORRECT - Clean validation data
val_transform = A.Compose([])  # No random augmentation!

Why? Validation must measure performance on the REAL data distribution.

Note: TTA is different - it's a deliberate inference technique where you average predictions from multiple augmented views of the SAME image.

When to Use Each Augmentation

More data = less augmentation needed

Libraries by Modality

Demo Notebooks

All in lecture-demos/week05/. MLX version runs 5-10× faster on Apple Silicon!

Interactive Demo

cd lecture-demos/week05
pip install gradio scipy pillow scikit-image scikit-learn
python augmentation_demo_app.py
# Opens at http://localhost:7860

Features:

• Sample images pre-loaded (cat, MNIST digit, shapes)
• Interactive sliders for all augmentation types
• Batch mode: generate 9 random augmentations
• Dangerous transforms demo (flip digit 6 → 9)

Quick Start: Image Classification

import albumentations as A
from albumentations.pytorch import ToTensorV2

train_transform = A.Compose([
    A.HorizontalFlip(p=0.5),
    A.Rotate(limit=15, p=0.5),
    A.RandomBrightnessContrast(p=0.3),
    A.Normalize(mean=[0.485, 0.456, 0.406],
                std=[0.229, 0.224, 0.225]),
    ToTensorV2(),
])

val_transform = A.Compose([
    A.Normalize(mean=[0.485, 0.456, 0.406],
                std=[0.229, 0.224, 0.225]),
    ToTensorV2(),
])

Quick Start: Text & Audio

Text (nlpaug):

import nlpaug.augmenter.word as naw
aug = naw.SynonymAug(aug_src='wordnet')
augmented = aug.augment("This movie was fantastic")

Audio (audiomentations):

from audiomentations import Compose, AddGaussianNoise, TimeStretch
augment = Compose([AddGaussianNoise(p=0.5), TimeStretch(p=0.5)])
augmented = augment(samples=audio, sample_rate=16000)

Resources

Papers:

• AutoAugment (2019) - Learning augmentation policies
• RandAugment (2020) - Simple random augmentation
• SpecAugment (2019) - Audio augmentation
• Mixup (2018) - Blending images and labels
• CutMix (2019) - Cut and paste augmentation

Libraries:

• albumentations.ai
• github.com/makcedward/nlpaug
• github.com/iver56/audiomentations

Final Exercise: Design Your Pipeline

Task: Design an augmentation pipeline for classifying food images (pizza, burger, sushi, etc.)

Consider:

1. Which geometric transforms are safe?
2. Which color transforms make sense?
3. What about Mixup/CutMix?
4. Any transforms to avoid?

Discuss with your neighbor!

Key Takeaways

1. Augmentation = free training data

   • Same data, different views → better generalization

2. Preserve the label

   • Flip a cat? Still a cat. Flip a "6"? Now it's a "9"!

3. Domain-specific choices matter

   • Images: geometric + color
   • Text: synonyms, paraphrasing
   • Audio: time stretch, pitch shift, SpecAugment

4. Start simple, measure impact

   • Baseline → add one → measure → iterate

5. Never augment validation/test data
