Profiling, Quantization & Model Optimization

Week 11: CS 203 - Software Tools and Techniques for AI

Prof. Nipun Batra
IIT Gandhinagar

Where We Are in the Course

Week 7-8:   Build and tune the model     → Is it good?
Week 9:     Reproducibility               → Can someone re-run it?
Week 10:    Data drift                    → Is it STILL good?
Week 11:    Profiling & Quantization      → Is it FAST and SMALL?  ← today
Week 12:    APIs & Deployment             → Can the world use it?

So far, we have made models that work. Today we ask:

Can the model also run fast enough and fit on the device we want to use?

A Story to Start With

You build a spam classifier in CS 203. It works. You wrap it in a FastAPI app, put it in Docker, push it to a tiny cloud server.

Three things go wrong:

Problem What you see
Slow API Each request takes 2.5 seconds
Big file The model file is 50 MB, too big for the mobile app
Out of memory The Raspberry Pi crashes when loading the model

Two questions:

  1. Why is it slow?profile the code
  2. Can it be smaller?quantize the model

By the End of This Lecture

You should be able to explain:

  1. How a computer stores numbers, in plain words
  2. What profiling means and why "I think it's slow" is not enough
  3. The most common speedup for web apps (load once, not per request)
  4. What quantization is and why it almost always helps

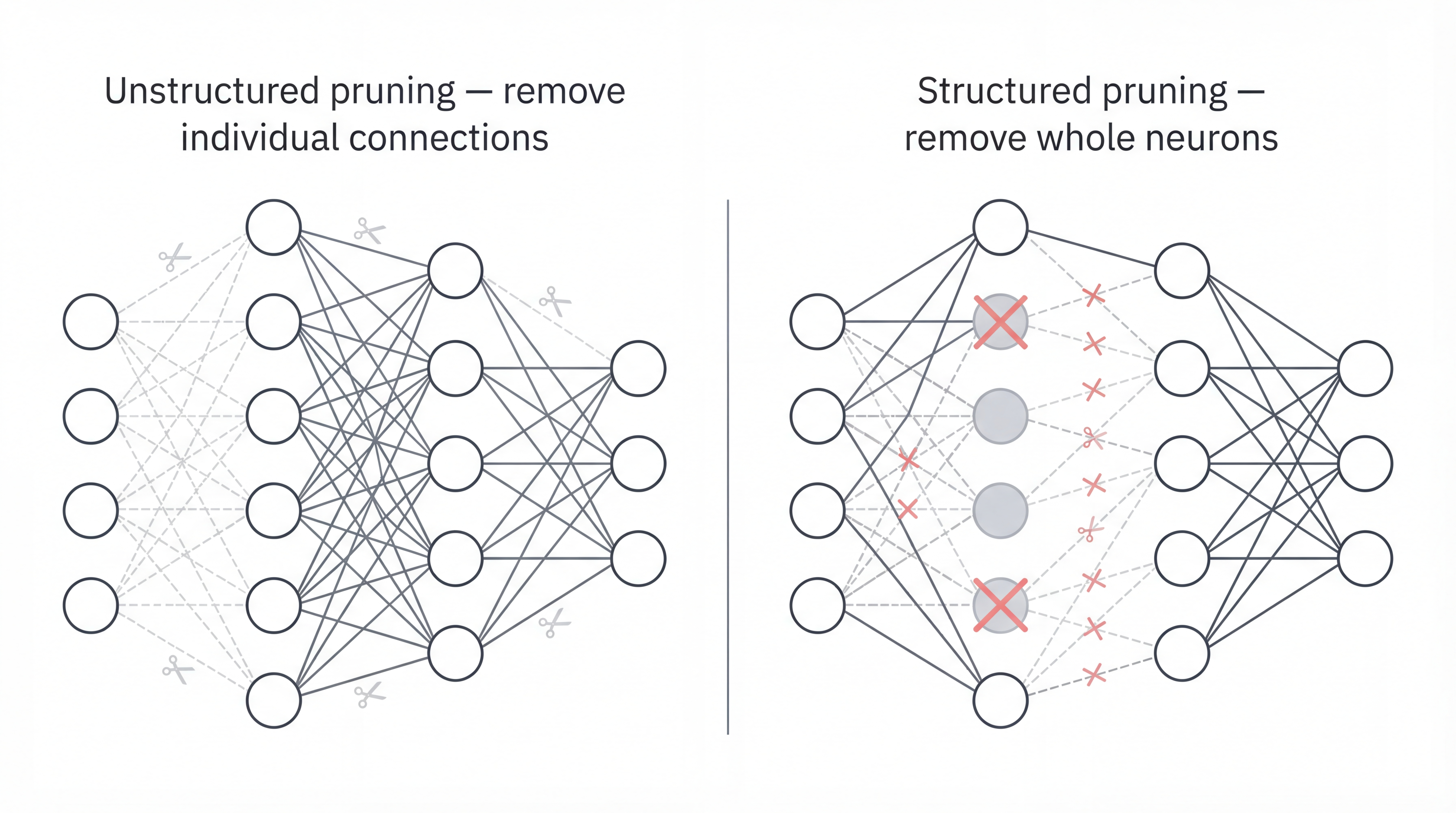

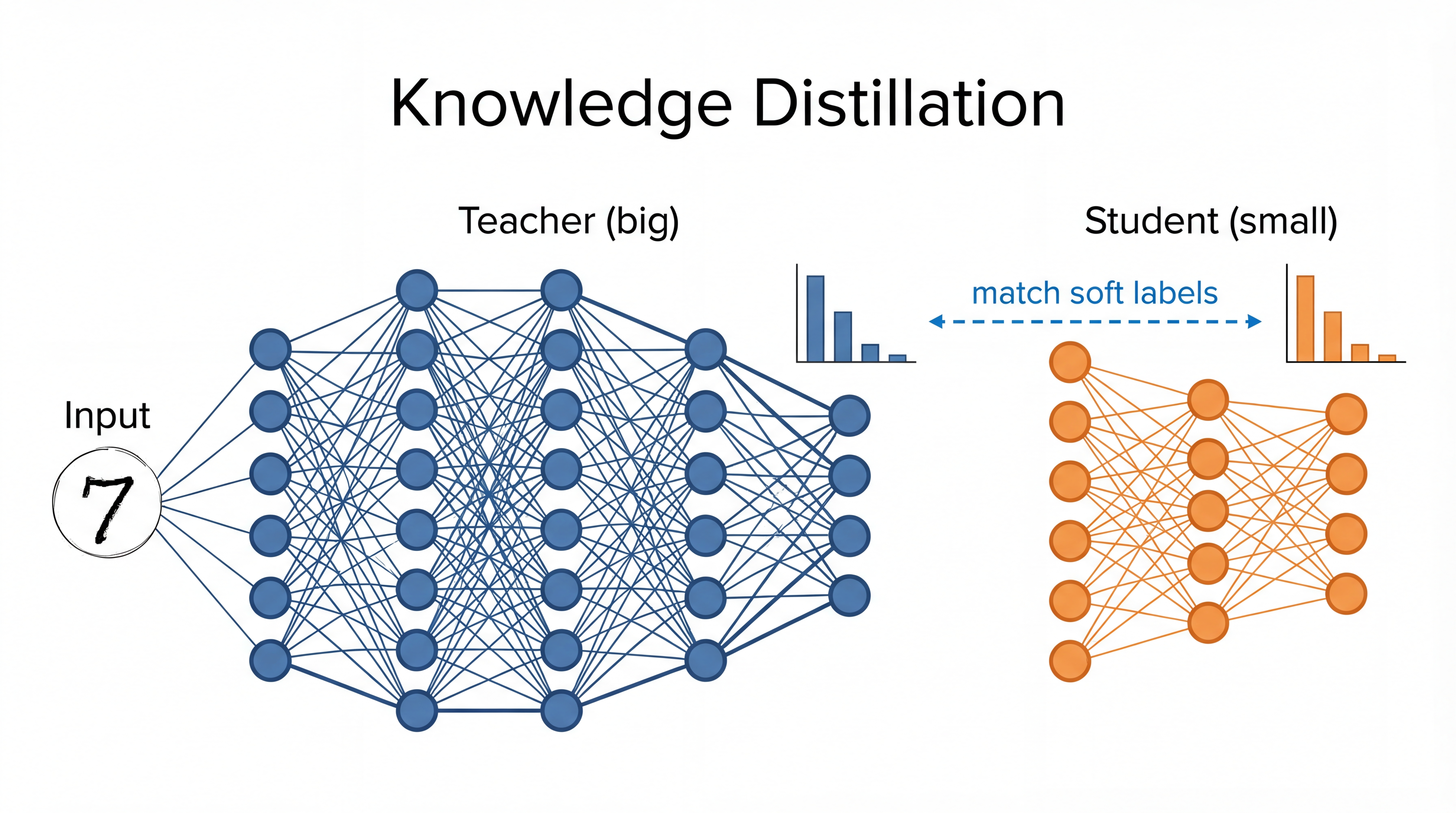

  5. The big idea behind pruning and distillation
  6. Why ONNX exists, in one sentence

You should not need to memorize bit layouts, IEEE formulas, or hardware names.

Today's Plan

Part Topic Run alongside
1 How computers store numbers 01-floating-point-basics
2 Models, parameters and memory 02-parameter-count-and-memory
3 Profiling — find the bottleneck 03-profiling-basics

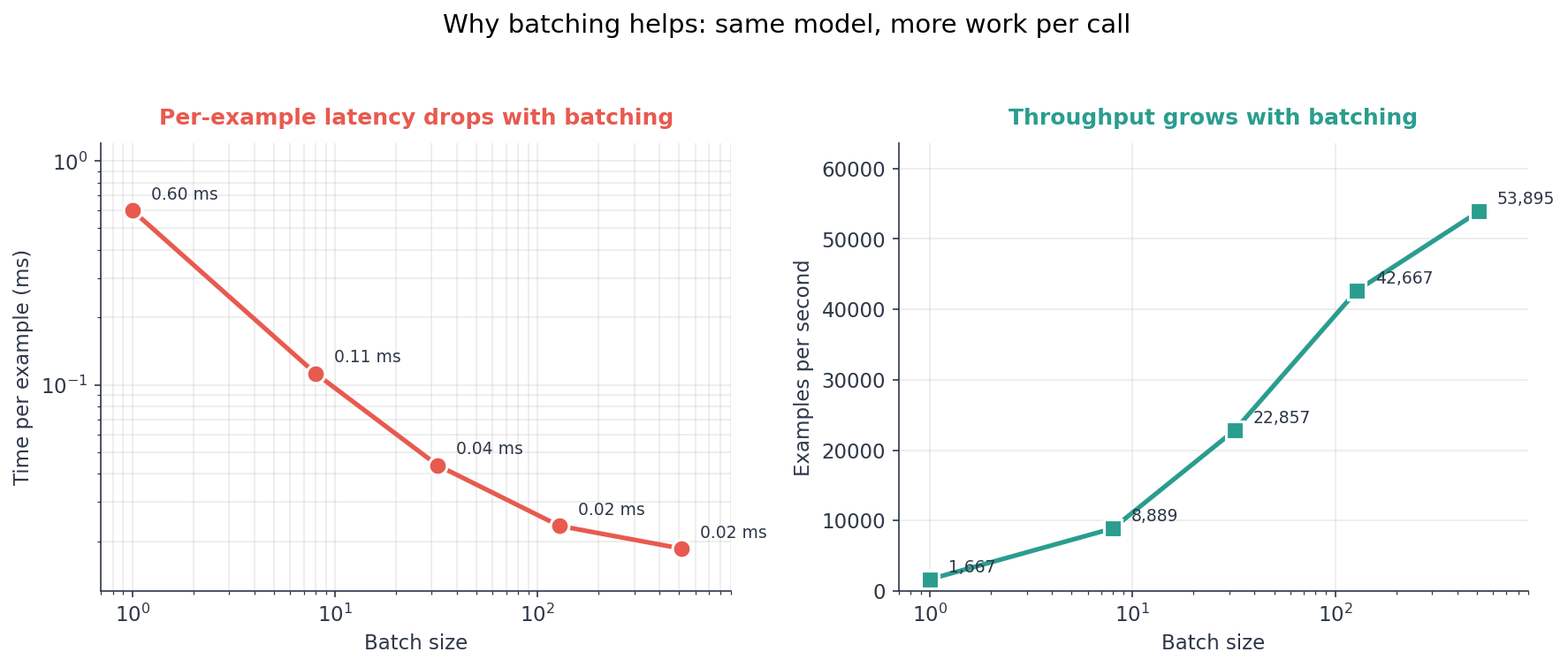

4 Batching — work smarter, not harder 04-batching-benchmark
5 Quantization in PyTorch and ONNX 05-pytorch-dynamic-quantization, 06-onnx-export-and-quantization
6 Two more ideas: pruning and distillation 07-pruning-basics, 08-distillation-basics

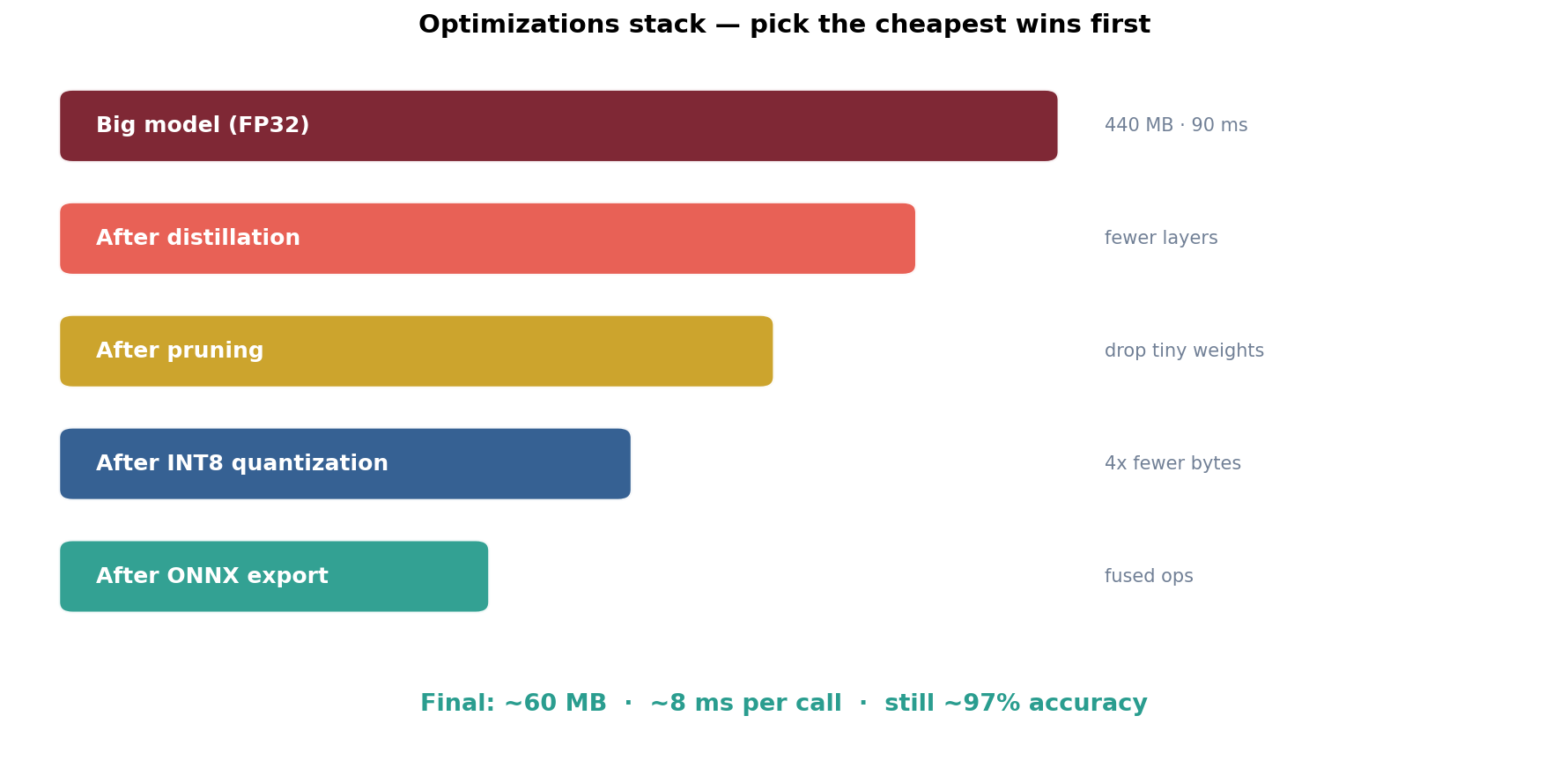

7 Putting it all together (table built from 05–08)

About half of today is hands-on. When a slide says ▶ Run now, open the

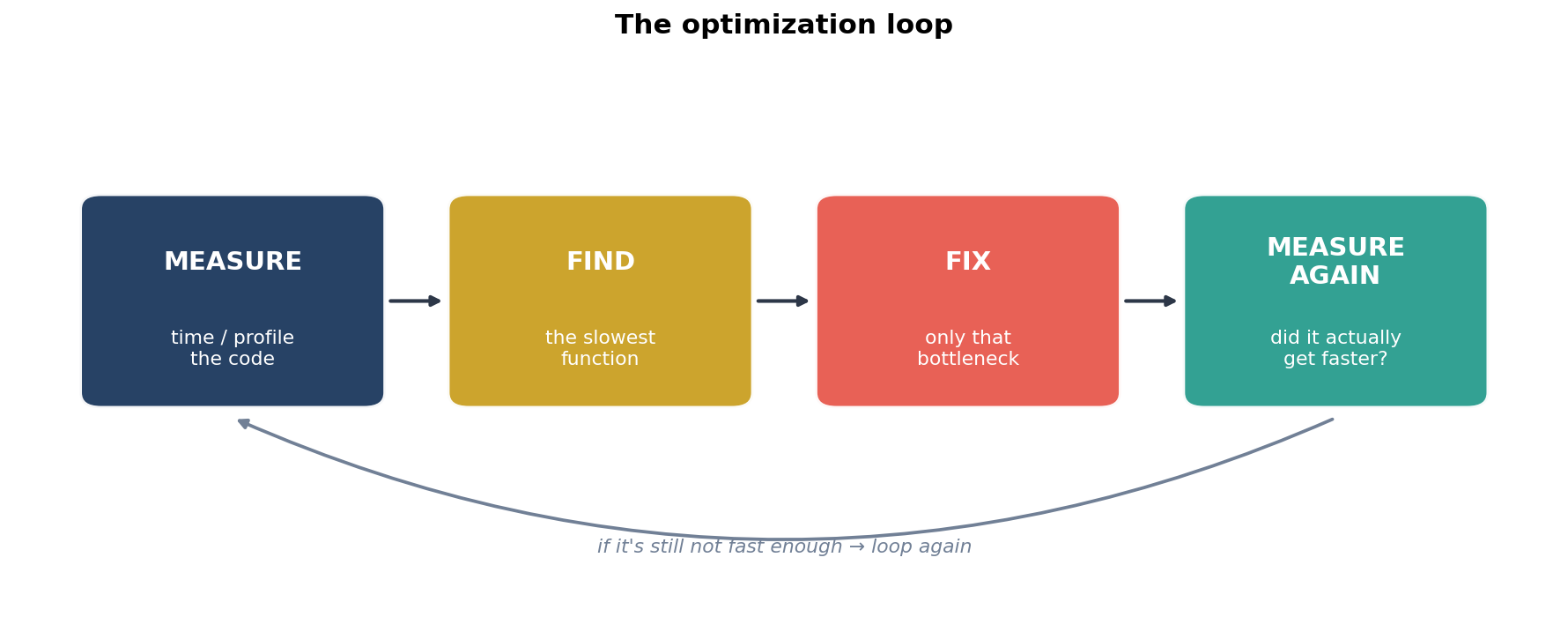

linked Colab and run it before we move on. Rule of thumb: profile first,
optimize what matters, measure again.

Companion Notebooks — Colab Links

All eight notebooks live in lecture-demos/week11/colab-notebooks/ and run on free Colab CPU.

# Notebook Open
01 Floating-point basics Colab
02 Parameter count and memory Colab
03 Profiling basics Colab
04 Batching benchmark Colab
05 PyTorch dynamic quantization Colab
06 ONNX export and quantization Colab
07 Pruning basics (unstructured + structured) Colab
08 Distillation basics Colab

Part 1: How Computers Store Numbers

Before we shrink numbers, let's understand what they are.

Bits and Bytes — The Basics

A bit is one switch: either 0 or 1.

A byte is 8 bits, so 8 switches in a row.

With 8 switches, you can write down 2⁸ = 256 different values.

print(2**8)    # 256
print(2**16)   # 65,536
print(2**32)   # 4,294,967,296   (about 4 billion)

More bits = more possible values = more precision. It also costs more memory.

Integers Are Easy

The number 42 in binary is just place values: which "powers of 2" do you add up?

42 = 32 + 8 + 2 = 2⁵ + 2³ + 2¹

Binary:  0 0 1 0 1 0 1 0
        128 64 32 16 8 4 2 1

Algorithm — divide by 2 repeatedly, write the remainders bottom-up:

42 ÷ 2 = 21  remainder 0   ← lowest bit
21 ÷ 2 = 10  remainder 1
10 ÷ 2 =  5  remainder 0
 5 ÷ 2 =  2  remainder 1
 2 ÷ 2 =  1  remainder 0
 1 ÷ 2 =  0  remainder 1   ← highest bit

Read the remainders bottom→top:  101010   ✓

One byte stores 0255. Four bytes store 0 to ~4 billion. But what about 3.14159?

Floating Point — Scientific Notation for Computers

You already know scientific notation:

Number Scientific notation
3.14159 3.14159 × 10⁰
0.00042 4.2 × 10⁻⁴
98,700,000 9.87 × 10⁷

A floating-point number stores three pieces:

  • Sign — is it positive or negative?
  • Exponent — how big or how small?
  • Mantissa — the significant digits

That's it. You do not need to memorize the IEEE formula.

FP32: The Three Boxes

A 32-bit float is just three fields packed next to each other:

[ sign : 1 bit ] [ exponent : 8 bits ] [ mantissa : 23 bits ]
Field Asks the question Bits
Sign positive or negative? 1
Exponent how big or how small? 8
Mantissa what are the significant digits? 23

To see how it works, we'll encode the number 6.5 across the next three slides.

Encoding 6.5 — Steps 1 & 2

Step 1 — the sign bit. 6.5 is positive, so:

sign = 0

Step 2 — write 6.5 in binary. Whole part and fractional part separately:

Whole part:  6  = 4 + 2          → 110
Fractional:  0.5 = 1/2           → .1

So:    6.5 (decimal) = 110.1 (binary)

That .1 after the point means one half, exactly like .5 in decimal means five tenths.

Encoding 6.5 — Step 3 (normalize)

Step 3 — slide the binary point so there is exactly one non-zero digit
before the point
. This is the same trick as scientific notation in base 10
(6300 = 6.3 × 10³), but in base 2.

   110.1            ← what we had
→   11.01 × 2¹      ← slide point left 1 place
→    1.101 × 2²     ← slide point left 1 more place

Now the point is right after the leading 1. We shifted 2 places, so the
exponent is 2. That gives us two pieces to store:

mantissa = 1.101    ← the significant digits (always of the form "1.something")
exponent = 2        ← how many places we shifted

Step 4a — A curious pattern

Look at what happens when we normalize different numbers the way we did 6.5
(slide the binary point so exactly one non-zero digit sits before it):

 6.5  →  1.101   × 2²          the leading digit is 1
 0.75 →  1.100   × 2⁻¹         the leading digit is 1
42.0  →  1.01010 × 2⁵          the leading digit is 1
 3.25 →  1.101   × 2¹          the leading digit is 1

Every single normalized number starts with a 1.

Why? Because in binary there are only two possible digits, 0 and 1. If the
digit before the point were 0, the number wouldn't be normalized — you would
have shifted the point one more place to the left.

Analogy in base 10: "scientific notation" always looks like 3.14 × 10⁵,
never 0.314 × 10⁶ or 31.4 × 10⁴. Base 2 is even stricter: the only
legal leading digit is 1.

Step 4b — So we don't bother storing it

The leading 1 carries zero information — it is always 1, every time,
for every non-zero number.

Spending one of our 23 precious bits on it would be wasteful.

So FP32 uses a trick called the implicit leading one:

  • Don't store the leading 1.
  • Assume it silently when reading the weight back

Bonus: we get 24 effective bits of mantissa from only 23 stored bits.

Step 4c — Applying it to 6.5

normalized mantissa:             1.101

drop the "1." (it's implicit)  →  101

pad with zeros on the right    →  10100000000000000000000   (23 bits)

When the CPU reads this back:

  1. it sees the 23 stored bits 10100000000000000000000
  2. it prepends the implicit 1.1.101 (binary)
  3. that equals 1 + 0.5 + 0.125 = 1.625 in decimal.

The 1 was never gone — just not stored.

Edge Case — Zero

Every non-zero number fits the 1.xxx × 2ⁿ pattern. But zero does not:

0.0 = 1.? × 2^?       ← no values of ? can make this work

FP32 handles this with a special rule: if all 8 exponent bits are 0,
the number is interpreted as zero (regardless of the mantissa).

That's the one place the "implicit leading one" trick is turned off.
You don't need to remember the detail — just know that zero is a special case.

Step 5 — The Exponent Problem

The exponent can be:

  • positive — for large numbers (42 = 1.01010 × 2⁵)
  • negative — for small numbers (0.25 = 1.0 × 2⁻²)

Eight bits can hold values 0..255. How do we squeeze a negative number in there?

Step 5 — The Biased Exponent Trick

Always add 127 before storing, subtract 127 when reading.

This is called a biased exponent (bias = 127).

Real exponent Stored as (add 127) Binary
−126 1 00000001 (smallest)
0 127 01111111
2 (ours) 129 10000001
127 254 11111110 (largest)

For 6.5 the real exponent is 2, so we store 2 + 127 = 129 = 10000001.

Putting All 32 Bits Together

 sign       exponent                 mantissa
  0        10000001       10100000000000000000000
  ↑          ↑                   ↑
 pos.    129 = 127+2       "101" with implicit 1.

Three fields, three decisions we made:

  • sign = 0 (positive)
  • exponent = 129 → real exponent is 129 − 127 = 2
  • mantissa = 101 → real mantissa is 1.101 (binary)

Decoding It Back to 6.5

Let's run the encoding in reverse to check our work:

1.  sign bit:   0                →   positive
2.  exponent:   10000001 = 129    →   real exponent 129 − 127 = 2
3.  mantissa:   101  (+ implicit 1.)
                →  1.101 (binary)
                =  1 + 0.5 + 0.125
                =  1.625  (decimal)

4.  Final value  =  + 1.625 × 2²
                 =  1.625 × 4
                 =  6.5  ✓

That's how every float in Python and every weight in a neural network is stored.

FP32 vs FP16 vs INT8

Same number, three different "boxes" to put it in:

FP32  [S][ 8-bit exponent ][      23-bit mantissa      ]   32 bits = 4 bytes
FP16  [S][5-bit exp][   10-bit mantissa   ]                16 bits = 2 bytes
INT8  [S][   7 bits   ]                                     8 bits = 1 byte
Format Bytes Roughly how many distinct values Typical use
FP32 4 ~4 billion Training (needs precision for tiny gradients)
FP16 2 ~65 thousand Mixed-precision training, GPU inference
INT8 1 256 (−128 … 127) Inference on CPU, mobile, edge

Fewer bits → smaller box → fewer distinct values you can represent. That's the only tradeoff.

▶ Run now — Notebook 01: Floating-point basics
Open in Colab
See why 0.1 + 0.2 is not exactly 0.3, look at the actual bit patterns, and try
rounding a weight from FP32 down to "fake INT8".

How Much Precision Do We Actually Need?

Two very different jobs:

Job Analogy Needed precision
Training Measuring a microchip Nanometers (FP32)
Inference Measuring a room for furniture Centimeters is fine

The key insight: using a trained model doesn't need the same precision that
training it did. Training accumulates tiny gradient updates (often 1e-7),
which would be wiped out by rounding. Inference just multiplies and adds — small
rounding errors barely move the final answer.

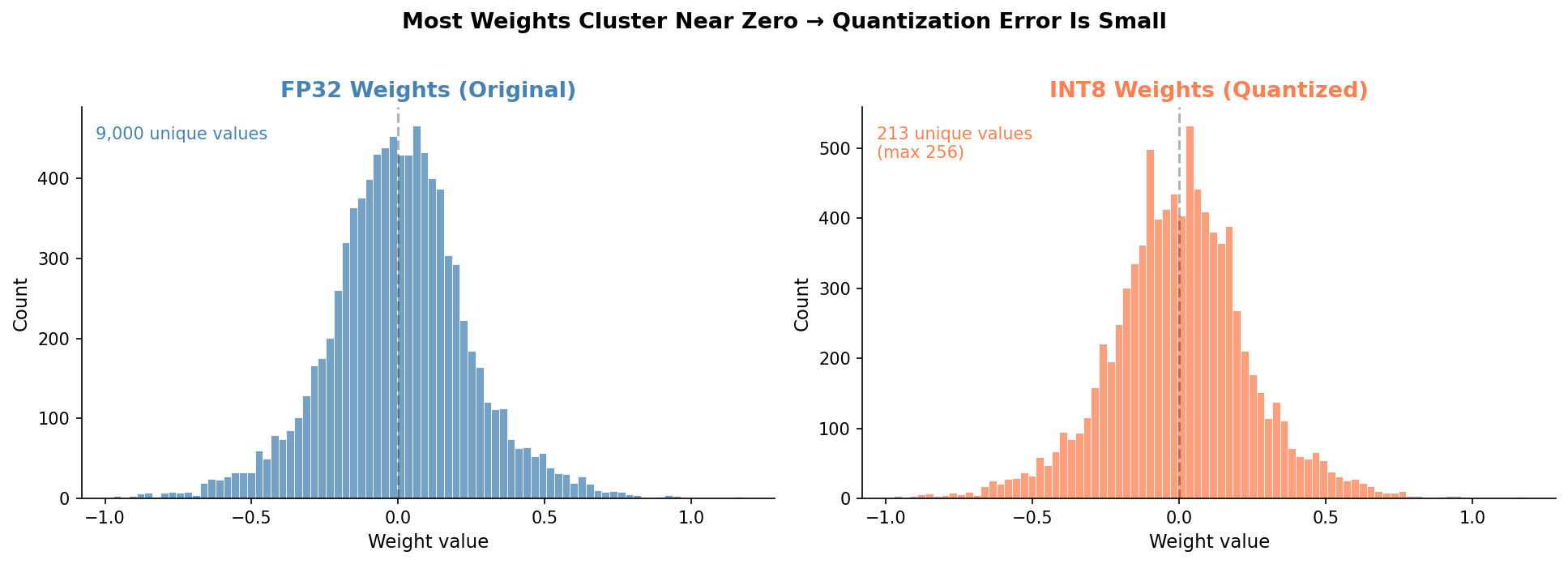

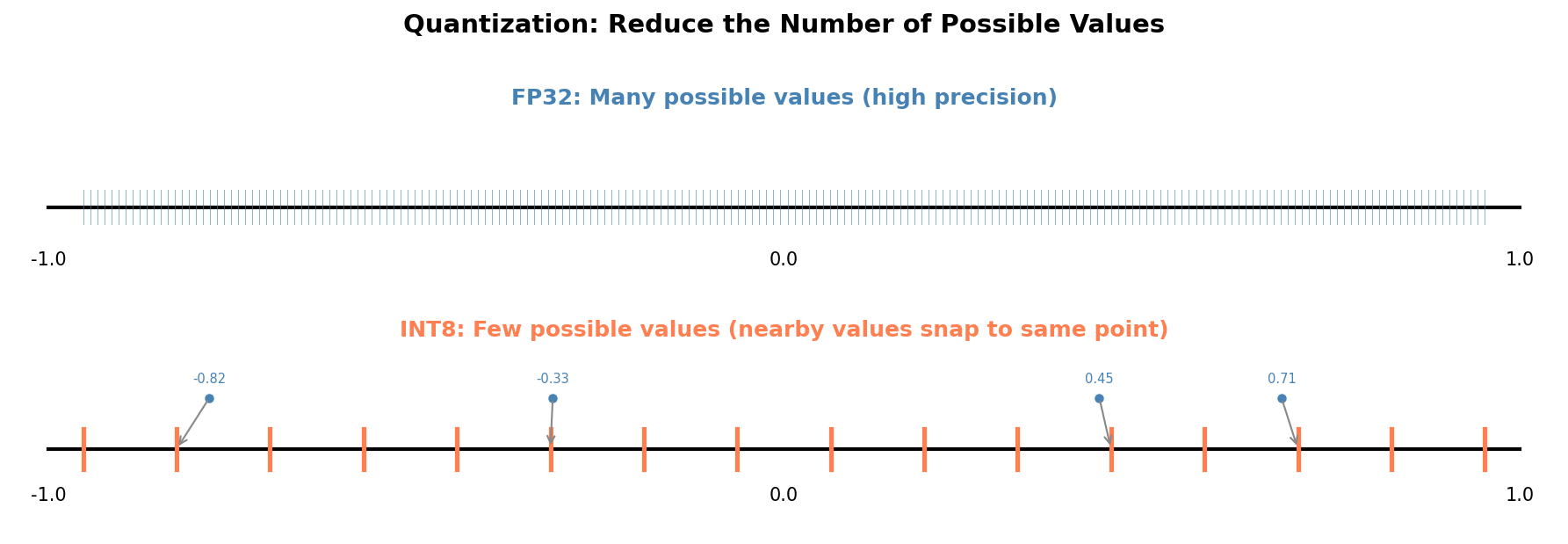

We'll see in Part 5 how INT8 actually represents weights (it doesn't store
0.24 — it stores integers like 30 plus a shared scale factor).

Part 2: Models, Parameters, and Memory

A Model Is Just a Big Bag of Numbers

A trained model is a list of weights. Each weight is one decimal number.

import torch.nn as nn

model = nn.Sequential(
    nn.Linear(64, 128),     # 64 * 128 + 128 = 8,320 weights
    nn.ReLU(),
    nn.Linear(128, 10),     # 128 * 10 + 10 = 1,290 weights
)
# Total: 9,610 parameters

Model size in memory ≈ number of parameters × bytes per parameter.

Format Bytes per number
FP32 4
FP16 2
INT8 1

▶ Run now — Notebook 02: Parameter count and memory
Open in Colab
Count the parameters of an MLP and convert that count into KB / MB at FP32, FP16, and INT8.

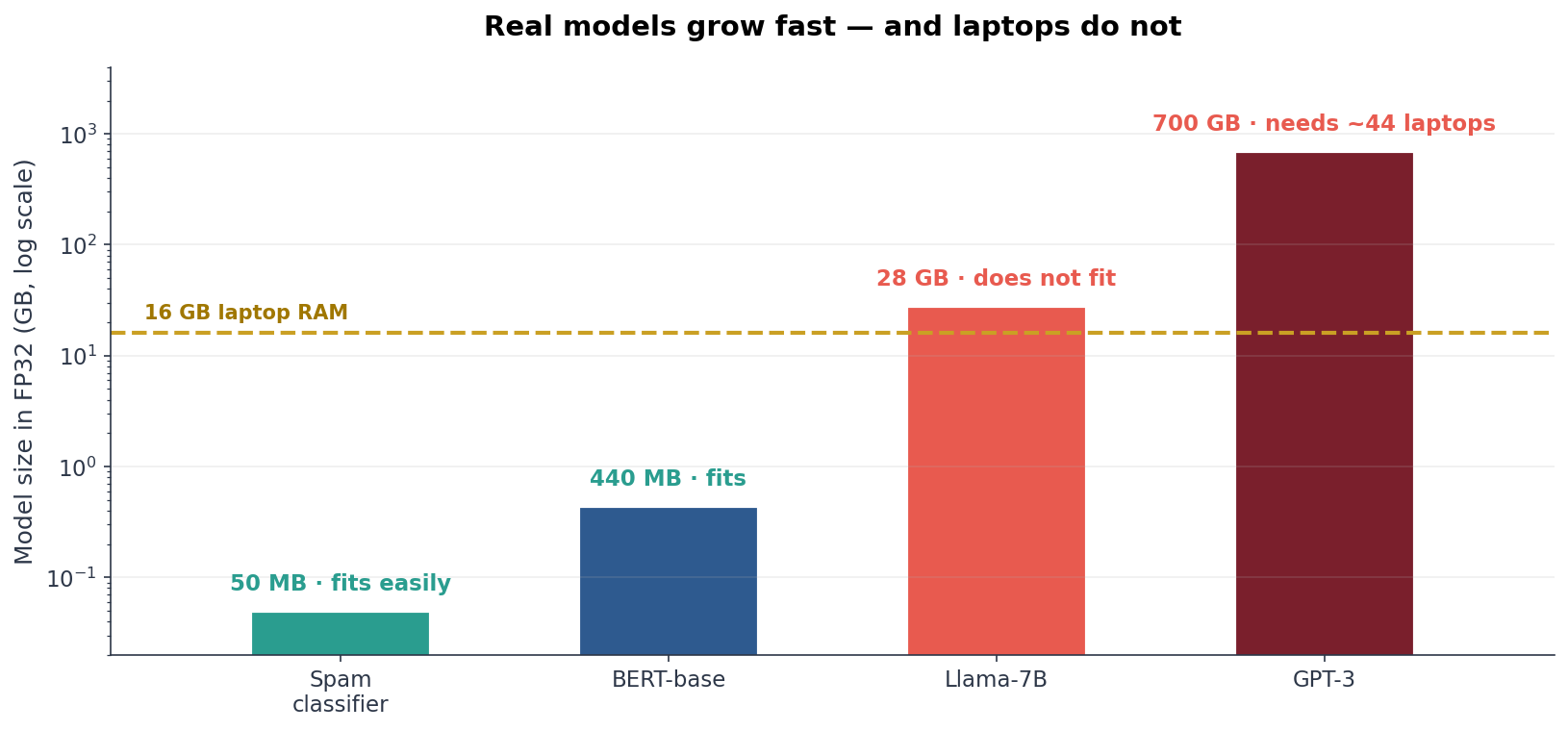

Real Models Get Big Fast

LLaMA-7B has 7 billion weights. At 4 bytes each (FP32) that's 28 GB — more RAM
than most laptops. Storing the same weights as INT8 (1 byte each) drops it to
~7 GB, which fits in a MacBook.

Part 3: Profiling — The Doctor's Checkup

Don't guess where the time goes. Measure.

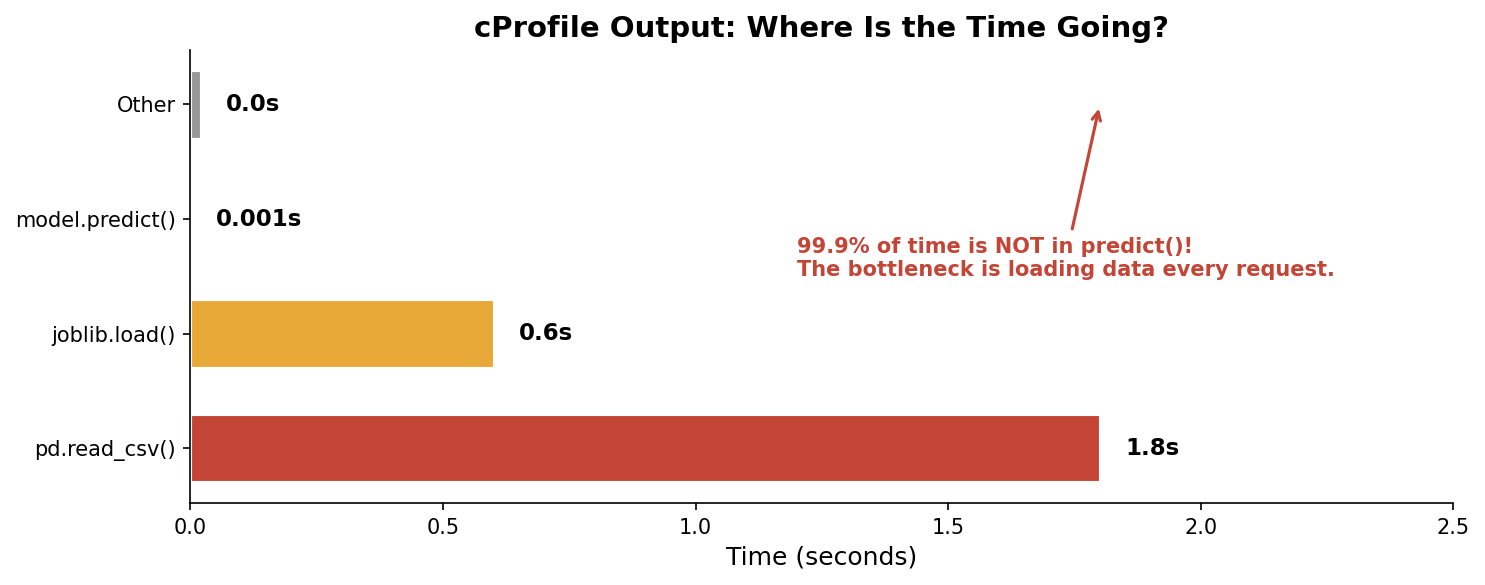

"My Code Is Slow" Is Not Useful

That's like saying "I spent too much money." You need the itemized receipt:

"80% of the time was in one function."

A profiler gives you that receipt.

"Premature optimization is the root of all evil." — Donald Knuth

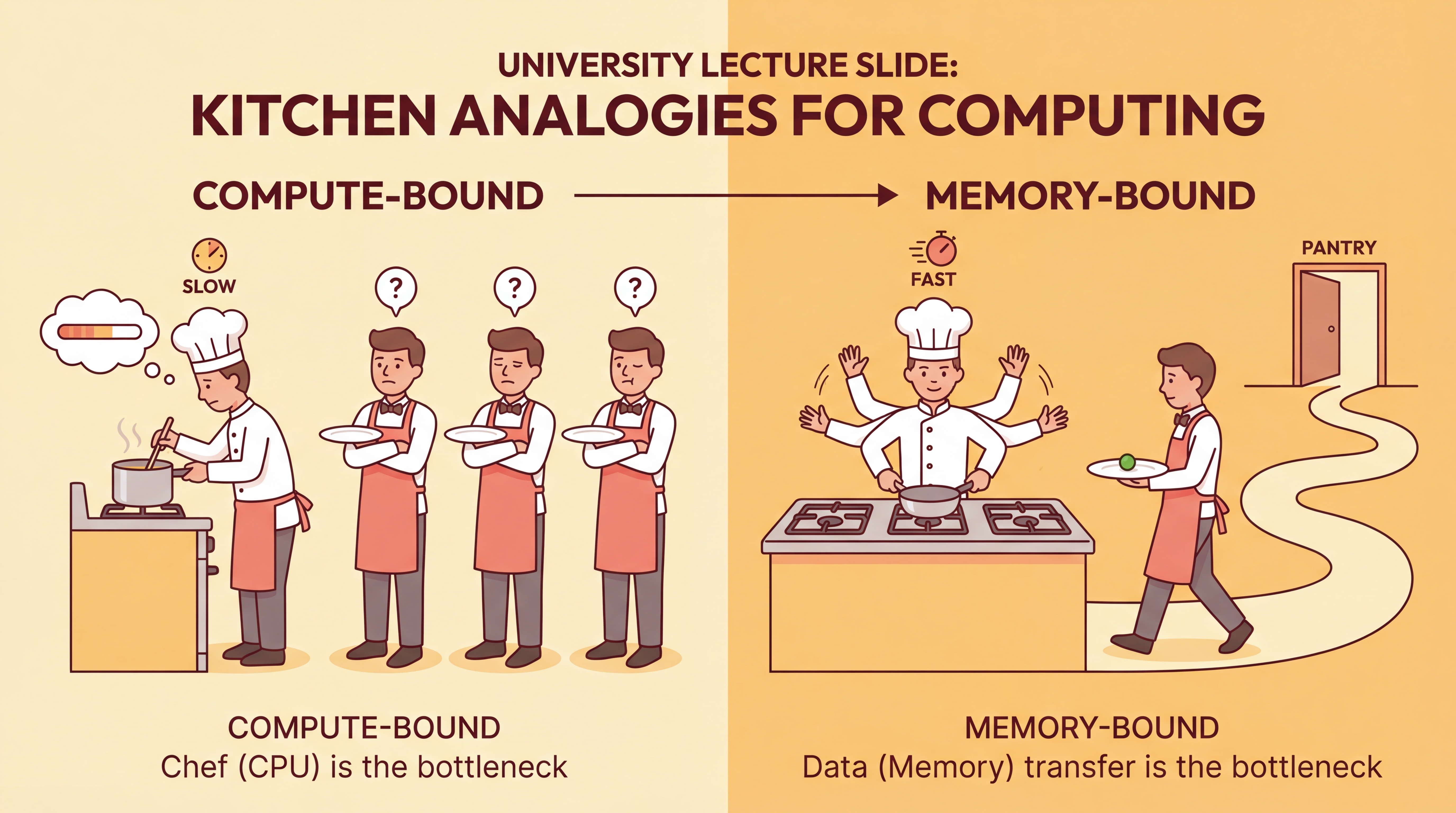

Compute-Bound vs Memory-Bound

Think of a restaurant kitchen:

Two Kinds of Slowness

Compute-bound Memory-bound
Picture Chef is slow at cooking Waiter can't bring ingredients fast enough
Bottleneck Not enough math power Not enough data movement
When Big batches, big matmuls Loading weights, small batches
Fix Fewer ops, faster hardware Smaller model, better caching

Most LLM inference is memory-bound — the chip waits for weights more than it does math.
That's why making the model smaller (quantization!) directly makes it faster.

Four Profiling Tools, From Simple to Detailed

Tool What it tells you Analogy
time.time() Total runtime "The meal took 90 minutes"
%%timeit Average over many runs "85 ± 5 minutes per meal"
cProfile Time per function "60 min on the main course"
line_profiler Time per line "45 min just chopping onions"

For first use: focus on timeit and cProfile. The other two are good to know exist.

Level 1: The Stopwatch

import time

start = time.time()
model.predict(X_test)
print(f"Took {time.time() - start:.3f} s")

One run is noisy. Average many runs:

import timeit

t = timeit.timeit(lambda: model.predict(X_test), number=100)
print(f"Average: {t / 100 * 1000:.1f} ms per call")

In Jupyter, just write:

%%timeit
model.predict(X_test)

▶ Open Notebook 03 now — Profiling basics (we'll use it for the next 3 slides)
Open in Colab — start with the timeit cell.

Level 2: cProfile — Which Function Is Slow?

import cProfile

def slow_endpoint(text):
    import pandas as pd
    data = pd.read_csv("training_data.csv")   # 50 MB file!
    model = joblib.load("model.pkl")          # reload every time!
    return model.predict([text])

cProfile.run('slow_endpoint("hello")')

predict() is not the slow part — loading is.

The Fix: Load Once (250x Speedup!)

# BAD — loads on every request (~2.4 s)
@app.post("/predict")
def predict(msg):
    data = pd.read_csv("data.csv")       # 1.8s every time!
    model = joblib.load("model.pkl")     # 0.6s every time!
    return model.predict([msg.text])     # 0.001s

# GOOD — load once at startup (~0.001 s)
data = pd.read_csv("data.csv")           # runs once
model = joblib.load("model.pkl")         # runs once

@app.post("/predict")
def predict(msg):
    return model.predict([msg.text])     # only this runs per request

Two lines moved → ~250x faster. The single biggest speedup for web apps.

▶ In Notebook 03, run the "slow endpoint" cell, then the "fast endpoint" cell,
and compare the two timings yourself.
Open in Colab

Bonus: Memory Profiling

Sometimes the bottleneck isn't time, it's memory.

pip install memory_profiler
python -m memory_profiler script.py
@profile
def load_data():
    df = pd.read_csv("big_data.csv")     # +500 MB
    X = df.values                         # +500 MB (a copy!)
    X_scaled = scaler.transform(X)        # +500 MB (another copy!)
    return X_scaled

A 500 MB file ends up using 1.5 GB of RAM. Every operation can secretly copy.

Quick fix: smaller dtypes → pd.read_csv("data.csv", dtype="float32").

Profiling Cheat Sheet

1. "Is my code slow?"
   → time.time() or %%timeit

2. "Which function is slow?"
   → cProfile.run('my_function()')

3. "Which line in that function is slow?"
   → @profile + kernprof -l -v script.py

4. "Is it using too much memory?"
   → @profile + python -m memory_profiler script.py

Profilers slow your code down — they're an X-ray.
Turn them on, diagnose, then turn them off.

Part 4: Batching — Work Smarter, Not Harder

Why Batching Helps

Every model call pays a fixed setup cost — Python overhead, moving data to
the GPU, launching the compute kernel. That cost is paid per call, not per example.

Dishwasher analogy: running the dishwasher with 1 plate uses the same water,
soap, and 90-minute cycle as running it with 30 plates. The smart move is to
fill it up first.

Two ways to handle 1000 inputs through your model:

Strategy # of calls Setup cost paid
One example at a time 1000 1000 × setup
One batch of 1000 1 1 × setup

Same model, same answers — the second one is much faster.

Batching in Practice

Bigger batch → less time per example, until memory runs out.

▶ Notebook 04 — measure latency vs throughput for batch sizes 1 → 512.
Open in Colab

Part 5: Quantization — The Diet

The single highest-ROI optimization you can do.

Start with the Grocery Store

Imagine adding three items in your head:

₹4.99281 + ₹3.00192 + ₹7.49837 = ₹15.49310    (precise — slow, painful)

You'd never do that. You'd round first:

₹5      + ₹3      + ₹7       = ₹15            (rounded — fast, "good enough")

That's the whole idea of quantization: fewer distinct values per number,
almost the same answer.
You trade a tiny bit of precision for a lot of speed
and a lot less storage.

What Is Quantization, Concretely?

In a model, every weight is currently a 32-bit float. Quantization stores each
weight as a small integer instead
— but to know what that integer "means" we
also keep one shared scale factor.

FP32 weight  →   integer (1 byte)   ×   scale
   0.79              127             ×   0.00622
  -0.42             -68              ×   0.00622
   0.12              19              ×   0.00622

So a list of weights becomes:

  • a tiny array of int8 values (the "snap-to-grid" positions), and
  • one float32 scale factor for the whole layer

Storage drops from 4 bytes/weight → 1 byte/weight (≈4× smaller).

The Code Behind Quantization

import numpy as np

w = np.array([-0.81, -0.42, -0.05, 0.12, 0.47, 0.79], dtype=np.float32)

# 1. Pick a scale so the biggest |weight| maps to 127 (the INT8 max)
scale = np.max(np.abs(w)) / 127        # 0.81 / 127 ≈ 0.00638

# 2. Divide by scale and round → small integers
q = np.round(w / scale).astype(np.int8)
print(q)            # [-127, -66, -8, 19, 74, 124]   ← stored on disk

# 3. To USE the weights, multiply back by the scale ("dequantize")
w_back = q.astype(np.float32) * scale
print(w_back)       # [-0.810, -0.421, -0.051, 0.121, 0.472, 0.791]

Why convert back to float? The CPU/GPU still does matrix multiplies in
float arithmetic (or in special INT8 kernels that internally rescale). The
storage is INT8; the compute still produces a float-like answer.

Quantization on a Number Line

Many nearby FP32 values snap to the same INT8 level. You lose the fine
detail between snap points, but the overall shape of the weight distribution
is preserved.

▶ Try it now — Notebook 01 (the "fake INT8" cell at the bottom)
Open in Colab
Take a real weight array, quantize it with the 3-step recipe above, and plot
the original vs the snapped values on the same axis.

Why Does It Work? Look at the Weights

Most weights cluster near zero. The rounding error in that crowded region is tiny — the model barely notices.

Empirically: INT8 quantization usually loses less than 1% accuracy.

Quantization in PyTorch — One Line

import torch
import torch.nn as nn

model = MyModel()
model.eval()

# One line. That's it.
quantized_model = torch.quantization.quantize_dynamic(
    model,
    {nn.Linear},        # which layers to quantize
    dtype=torch.qint8,  # target precision
)

prediction = quantized_model(input_data)   # use it like before

Expected: 2–4× smaller on disk, usually < 1% accuracy drop, latency
depends on the model and hardware (read the next slide before you run it).

What Gets Quantized?

quantize_dynamic only touches specific layer types — by default
nn.Linear and nn.LSTM. Everything else (ReLU, dropout, batch norm, …) is
left alone.

For each of those layers, two things happen:

  1. Weights are converted to INT8 once, at the moment you call
    quantize_dynamic, and kept that way forever.
  2. Activations (the inputs flowing through the layer at runtime) stay
    in FP32 — they are only briefly quantized inside each forward pass.
┌────────────────────────────────────────────────┐
│  Linear layer                                  │
│                                                │
│   FP32 input  →  [quantize on the fly]  →  ... │
│                                                │
│   INT8 weights (stored once)                   │
└────────────────────────────────────────────────┘

What Does "Dynamic" Mean?

Dynamic = the activation scale is recomputed on every forward pass.

Inside each nn.Linear call, PyTorch does this sequence:

1. look at this batch of activations, find max(|x|)
2. pick scale = max(|x|) / 127
3. quantize activations:  x_int8 = round(x / scale)
4. matmul in INT8:         y_int32 = W_int8 @ x_int8
5. dequantize:             y = y_int32 × (W_scale × x_scale)

Steps 1–3 and 5 are overhead paid on every call. On a big matmul that
overhead is negligible; on a tiny matmul it can dominate.

When Does INT8 Actually Speed Things Up?

Model size What you'll likely see
Tiny MLP (KB-sized, like Notebook 05) INT8 slower, accuracy basically equal
Medium model (a few MB) INT8 same speed or a bit faster
Large model (big transformer, LLM) INT8 much faster and much smaller

Two takeaways (the only two you need to remember):

  • The size win is always there — weights literally use 1 byte instead of 4.
  • The speed win only shows up once the matmul is big enough that the
    per-call scaling overhead disappears in the noise.

Reading Your Notebook 05 Numbers

Here's what students typically get on a Colab CPU:

   model    accuracy    size_kb    latency_ms
0   fp32    0.955       70.0       0.45
1   int8    0.958       22.0       2.14

"INT8 is more accurate?!" — random noise. The FP32 → INT8 rounding shifted
one or two test predictions, and on a 360-sample test set that's ±0.3%. Run
the cell again with a different seed and the order will flip. The honest read
is: same accuracy.

"INT8 is slower?!" — yes, on this size of model. The matmul is on a
(64 × 128) weight matrix; the per-call overhead of "look at the activations,
pick a scale, quantize" costs more than the matmul saves. The speed win arrives
once the matrices are 1000× bigger, which is exactly the regime real LLMs live in.

▶ Run now — Notebook 05 to see this on your machine.
Open in Colab

Three Flavours of Quantization

Type Effort Quality When to use
Dynamic 1 line of code Good Start here (easiest)
Static ~15 lines + calibration data Better When dynamic isn't enough
Quantization-Aware Training Retrain the model Best Production, max quality

For this course: use dynamic quantization and stop there. The other two are good to know exist.

Why Do We Need ONNX?

You trained your model in PyTorch on a Linux server. Now you want to ship it.
The problem is everyone wants something different:

Where it runs What they need
iPhone app Swift / Core ML — no Python interpreter on the phone
Android app Java / Kotlin — no PyTorch wheel for ARM Android
Browser demo JavaScript / WebAssembly
Embedded device C++, no GB-sized PyTorch install
Another team's Java backend They refuse to add a Python dependency

You don't want to retrain or rewrite the model 5 times.

ONNX (Open Neural Network Exchange) solves this. You convert your trained
model into a single .onnx file — a standard format that describes the
computation graph. Then any of those targets can load that file with their own
small "ONNX Runtime" library, without ever installing PyTorch.

Same idea as PDF for documents: write it once in Word/Docs/Pages, export
to PDF, and every device can read it without your editor installed.

ONNX in Code

# Export (3 lines)  — one-time, on your training machine
import torch
dummy_input = torch.randn(1, 3, 32, 32)
torch.onnx.export(model, dummy_input, "model.onnx")

# Run anywhere (3 lines) — no PyTorch needed at runtime
import onnxruntime as ort
session = ort.InferenceSession("model.onnx")
result = session.run(None, {"image": input_array})

Bonus: ONNX Runtime auto-fuses operations, picks the best CPU/GPU kernels, and
exposes the same quantize_dynamic we saw in Part 5 — so the same .onnx
file can be shrunk to INT8 without retouching the training code.

Quantizing an sklearn Model via ONNX

from skl2onnx import convert_sklearn
from skl2onnx.common.data_types import FloatTensorType
from onnxruntime.quantization import quantize_dynamic, QuantType

# Step 1: convert sklearn → ONNX
initial_type = [("input", FloatTensorType([None, n_features]))]
onnx_model = convert_sklearn(clf, initial_types=initial_type)
with open("model_fp32.onnx", "wb") as f:
    f.write(onnx_model.SerializeToString())

# Step 2: quantize
quantize_dynamic("model_fp32.onnx", "model_int8.onnx",
                 weight_type=QuantType.QUInt8)
FP32:  3.82 MB   →   INT8: 0.98 MB    (~4x smaller, <0.5% accuracy drop)

▶ Run now — Notebook 06: ONNX export and quantization
Open in Colab
Train an MLP, export to ONNX, quantize the ONNX file, and run inference without PyTorch installed.

The LLaMA Story

In 2023, Meta released LLaMA-7B — powerful but 28 GB in FP32.
Then llama.cpp (Georgi Gerganov) released a 4-bit quantized version:

Before (FP32) After (INT4)
Size 28 GB 3.5 GB
Hardware High-end GPU MacBook Air
Cost Cloud GPU rental Free, your laptop
Privacy Data sent to cloud Stays on device

Quantization democratized running large models. Today every open LLM ships in quantized formats like GGUF, GPTQ, AWQ.

GGUF, GPTQ, AWQ — The Names You'll See

All three are ways of shipping INT4 / INT8 LLMs. They differ in whether
they are a file format or an algorithm for picking the scales.

Name Is it a … Main idea (one line)
GGUF file format Packs INT4/INT8 weights + scales + metadata into one portable file
GPTQ algorithm Layer-by-layer: solve for INT4 values that minimize error on a small calibration set
AWQ algorithm Activation-aware: protect the few weight channels that matter most

Common thread: all three let a 7B–70B LLM fit on a laptop or a single consumer
GPU with < 1% quality drop vs the FP16 original.

How to Recognize Them in the Wild

You don't need to implement any of these. You just need to recognize the
suffix
on a Hugging Face model name and know "it's already quantized, ready to run":

Name you'll see on Hugging Face What it means
llama-3-8b.Q4_K_M.gguf GGUF file, 4-bit, for llama.cpp / Ollama / LM Studio
Llama-3-8B-Instruct-GPTQ GPTQ-quantized, load via transformers + auto-gptq
Mistral-7B-Instruct-v0.2-AWQ AWQ-quantized, served with vLLM / TGI

Rule of thumb for this course:
recognize the suffix, pick the right runtime (llama.cpp for GGUF, vLLM for AWQ),
and trust that someone else did the quantization work correctly.

Part 6: Two More Ideas

Quantization is the main course. Pruning and distillation are good to recognize.

Pruning — Two Flavours

A trained network has many weights near zero. Remove the unimportant ones and
it keeps working — but which things do you remove?

Unstructured vs Structured Pruning

Unstructured pruning Structured pruning
What's removed Individual weights (edges) Whole neurons / channels / heads (nodes)
Result on disk Dense matrix with lots of zeros A genuinely smaller matrix
Accuracy impact Tiny (~0% at 40–60% sparsity) Larger — you're deleting more at once
Speedup on normal CPU/GPU? Not by default — you still multiply by zero Yes — the matrix is literally smaller
Speedup with special kernels? Yes (sparse BLAS, 2:4 sparsity on NVIDIA) Always

Rule of thumb: unstructured pruning gives the best accuracy-vs-sparsity
tradeoff; structured pruning gives the best real-world speedup without exotic hardware.

Pruning — How (PyTorch in 4 Lines)

import torch.nn.utils.prune as prune

# (a) Unstructured — zero out the 40% smallest weights globally
prune.global_unstructured(
    [(model.fc1, "weight"), (model.fc2, "weight")],
    pruning_method=prune.L1Unstructured,
    amount=0.4,
)

# (b) Structured — drop entire output channels (rows) of a layer
prune.ln_structured(model.fc1, name="weight", amount=0.3, n=2, dim=0)
  • amount=0.4 = remove 40%.
  • L1Unstructured picks weights with the smallest absolute value.
  • ln_structured(dim=0) removes whole rows (= output neurons) of fc1.

▶ Run now — Notebook 07: Pruning basics
Open in Colab
Try both flavours side-by-side: unstructured at 40/60/80% and structured at
30%, and compare sparsity vs accuracy.

Distillation — Teacher Trains Student

A big teacher and a small student see the same input. The student is
trained to match the teacher's output probabilities, not just the label:

teacher says:   7 → 87% · a bit like 1 (9%) · a bit like 9 (3%)
student tries:  match that whole distribution

Those soft labels carry much more information per example than a hard "7" label.

Distillation — Matching at Other Levels

Soft labels are the default distillation signal, but they're not the only one:

Level What the student matches
Outputs (soft labels) Teacher's output probabilities
Hidden features Teacher's intermediate activations
Attention maps Where a transformer teacher "looks"

Most research papers combine two or three of these. The extra signals help
the student learn the teacher's internal reasoning, not just its final answers.

We'll only use outputs (soft labels) in Notebook 08 — the simplest case.

The Mismatched-Size Catch

Matching outputs is easy: teacher and student both end in "probabilities over
10 classes", so their output vectors are the same shape.

But hidden layers don't match — the student is deliberately smaller:

teacher:  Linear(64 → 1024)  →  hidden tensor of shape (batch, 1024)
student:  Linear(64 →  256)  →  hidden tensor of shape (batch,  256)

You can't subtract a (batch, 1024) tensor from a (batch, 256) tensor.
So how do you "match hidden features"?

The Fix: a Throwaway Projection

Add a tiny extra layer on top of the student's hidden output only during training:

student_hidden (256)  →  W_proj (256 → 1024)  →  compare with teacher (1024)
                             ↑
                   trained together with the student
  • At training time, W_proj lets the distillation loss compare the
    student's hidden state to the teacher's — the shapes now line up.
  • At inference time, you throw W_proj away. The student you ship is
    still the small 256-wide network with no extras.

▶ Run now — Notebook 08: Distillation basics
Open in Colab
Train a teacher, then two students (hard-label vs soft-label distilled) and
compare accuracies on a small training subset.

These Ideas Stack

Start with the cheapest win first (quantization), and only add more if you must.

Part 7: Putting It All Together

The Accuracy vs Size Tradeoff

Pick the point that meets your requirements. There is no single "best".

Compare Everything in One Place

A small results table is the most useful artifact in this whole lecture.
The numbers below are representative, not measured — they show the
shape of the tradeoff you should expect, not a recipe to reproduce exactly:

Variant Size Latency Accuracy
baseline FP32 ~600 KB ~5 ms ~0.97
dynamic INT8 ~200 KB (↓3×) ~3–5 ms (hardware-dependent) ~0.96
ONNX FP32 ~550 KB ~3 ms ~0.97
ONNX INT8 ~180 KB (↓3×) ~2–3 ms ~0.96
pruned (40%, unstructured) ~600 KB (dense zeros) ~5 ms ~0.96
distilled student ~90 KB (↓7×) ~2 ms ~0.95

What to read from this table (more important than the digits):

  • Quantization is the biggest "free" win — ~3–4× smaller, ~0% accuracy cost.
  • Unstructured pruning shrinks only compressed size; runtime stays the same.
  • Distillation gives the best latency but costs real accuracy and extra training.

Build this table for your own model by copying the size_kb / accuracy /
latency_ms values you measured in Notebooks 05, 06, 07, and 08.

Deployment Targets Have Budgets

Target Size budget Speed budget Typical tools
Cloud API Large Throughput first Specialized servers
Mobile app Small Low latency Mobile runtimes
IoT / edge Very small CPU only ONNX, llama.cpp
Web browser Tiny JS / WebGPU Browser runtimes
LLM on laptop Fits in RAM Usable speed llama.cpp, Ollama

Training happens once. Inference happens millions of times.
Every ms saved and every MB trimmed gets multiplied by every user, every request, every day.

Real Examples on Your Phone

App feature Model Size Runs
Keyboard prediction Tiny LSTM < 5 MB On device
Face unlock MobileFaceNet < 5 MB On device
"Hey Siri" / "OK Google" Wake-word net < 1 MB On device
Offline Google Translate Quantized transformer ~50 MB On device
Camera HDR / night mode Tiny CNN < 2 MB On device

None of these send your data anywhere. Small enough = works offline, no latency, private.

A Few Tools Worth Recognizing

Tool Plain-English purpose
vLLM Serve many LLM users efficiently in the cloud
SGLang Fast structured / repeated prompting
llama.cpp Run quantized models locally on CPUs / laptops
Ollama Friendly wrapper over llama.cpp for desktop use
Unsloth Fine-tune large models with less GPU memory

For this course these are recognition-level — you should know they exist, not implement them.

The Practical Workflow

1. PROFILE first
   → time.time(), %%timeit, cProfile
   → find the actual bottleneck (it's never where you think)

2. Fix the obvious things
   → load model and data ONCE, not per request
   → batch your inputs

3. Quantize
   → torch.quantization.quantize_dynamic(...)
   → or export to ONNX and quantize there

4. MEASURE everything
   → before/after: size, latency, accuracy
   → stop when you hit your target

FAQ

Q: If INT8 is 4x smaller and just as accurate, why isn't everything quantized?
→ Training needs FP32 because gradients can be tiny. Quantization is done after training and still needs to be tested for your task.

Q: I quantized my model but it got slower. Why?
→ Some CPUs don't have native INT8 instructions. They convert INT8 → FP32 → compute → INT8 on every operation. Smaller on disk, slower to run. Check your hardware.

Q: Why ONNX instead of just .pkl files?
→ Pickle is Python-only. ONNX runs on iPhone, Android, browser, any language. It's the PDF of ML.

Summary

Key Takeaways

  1. Numbers in computers — FP32 is precise (4 bytes), INT8 is good enough for inference (1 byte).

  2. Profile first. Don't guess where the time goes — measure it.

  3. Load once, not per request. The single biggest speedup for web apps.

  4. Batch your work. Same model, more examples per call.

  5. Quantization = highest ROI. One line of code, 2–4x smaller, ~0% accuracy loss.

  6. ONNX = the PDF of ML. Train in Python, run anywhere.

  7. Pruning and distillation exist as extra tools — quantization comes first.

  8. Stop when you hit your target. "Good enough" beats "perfect" in production.

Tools Cheat Sheet

Task Tool Example
Measure runtime timeit timeit.timeit(lambda: f(x), number=100)
Find slow function cProfile cProfile.run('my_fn()')
Quantize PyTorch torch quantize_dynamic(model, {nn.Linear}, torch.qint8)
Export / deploy ONNX torch.onnx.export(...)
Run locally (LLM) llama.cpp, Ollama quantized models on CPUs
Serve many users vLLM, SGLang production LLM serving

What to Try in the Notebooks

# Notebook Key result
01 Floating point basics Why 0.1 + 0.2 ≠ 0.3
02 Parameters and memory Connect parameter counts to MB
03 Profiling basics Find the real bottleneck
04 Batching benchmark See latency drop with batch size
05 PyTorch dynamic quantization Smaller model in 1 line
06 ONNX export and quantization Run a model outside Python
07 Pruning basics Unstructured vs structured, and the accuracy cliff
08 Distillation basics Small student matches big teacher

Questions?

Profile first. Measure twice. Quantize.
