The Performance Problem

Training is expensive:

• GPT-3 cost ~$4.6M to train
• LLaMA-65B: ~$2-3M in compute
• Even small models can burn through credits

Inference at scale is costly:

• ChatGPT serves millions of requests/day
• 100ms latency improvement = $1M+ savings/year

Developer time is expensive:

• Slow iteration cycles reduce productivity
• 10 min/epoch → 100 epochs = 16+ hours waiting

Goal: Make code faster and more efficient without sacrificing accuracy.

The Optimization Mindset

Donald Knuth's wisdom:

"Premature optimization is the root of all evil. Yet we should not pass up our opportunities in that critical 3%."

The correct process:

1. Make it work (correctness first)
2. Make it right (clean code, tests)
3. Profile to find bottlenecks (measure, don't guess!)
4. Make it fast (optimize the 3% that matters)

Common mistake: Optimizing code that runs once during initialization while ignoring the training loop that runs millions of times.

The Doctor's Approach

Programmer: "My code is slow!"
Bad: "Let me rewrite in C++" (guessing)
Good: "Let me profile first" (measuring)
      → Finds: data loading is 70% of time
      → Fix: Add num_workers=4
      → Result: 2x faster, zero code changes!

The bottleneck is almost never where you expect it to be.

Performance Metrics Overview

Training metrics:

• Throughput: Samples/second, batches/second
• Epoch time: Total time to process entire dataset
• GPU utilization: % of time GPU is actively computing
• Memory usage: Peak memory allocated

Inference metrics:

• Latency: Time per prediction (p50, p95, p99)
• Throughput: Predictions/second
• First token latency: Time to first output (for GenAI)

Cost metrics:

• FLOPs: Floating point operations (theoretical)
• Energy: kWh consumed
• Carbon footprint: CO2 emissions

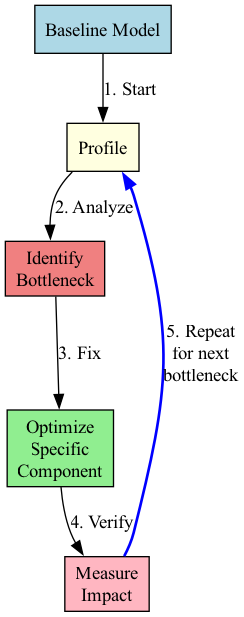

The Optimization Loop

Key principle: Always measure before and after optimizations!

Types of Bottlenecks

CPU-bound:

• Data loading and preprocessing
• Tokenization, data augmentation
• Host-to-device memory transfer

GPU compute-bound:

• Too many parameters
• Inefficient operations (small kernels, poor fusion)
• Suboptimal algorithms (e.g., naive attention)

GPU memory-bound:

• Out of memory (OOM) errors
• Batch size limited by VRAM
• Memory bandwidth saturation

I/O-bound:

• Reading data from disk
• Checkpointing large models
• Distributed training communication

Profiling Tool Hierarchy

Level 1: Quick checks (seconds)

• nvidia-smi: GPU utilization snapshot
• time command: Total execution time
• Manual timers: time.time(), time.perf_counter()

Level 2: Python profiling (minutes)

• cProfile: Function-level CPU profiling
• line_profiler: Line-by-line profiling
• memory_profiler: Memory usage per line

Level 3: Deep profiling (hours)

• PyTorch Profiler: Op-level GPU/CPU profiling
• Nsight Systems: System-wide CUDA profiling
• TensorBoard: Visual timeline analysis

Level 4: Expert tools (days)

• Nsight Compute: Kernel-level optimization
• Intel VTune: CPU microarchitecture analysis

Quick Check: nvidia-smi

Basic monitoring:

nvidia-smi

Watch mode (update every 1 second):

nvidia-smi -l 1

Key metrics:

• GPU-Util: % of time GPU was busy (aim for >85%)
• Memory-Usage: Current / Total VRAM
• Power: Current draw vs TDP
• Temperature: Thermal throttling at ~85°C

Red flags:

• GPU-Util < 50%: Likely CPU bottleneck
• Memory near max: Risk of OOM
• Multiple processes: Resource contention

Python Profiling: cProfile

Built-in function-level profiler:

import cProfile
import pstats

# Profile a function
profiler = cProfile.Profile()
profiler.enable()

train_model()  # Your code here

profiler.disable()
stats = pstats.Stats(profiler)
stats.sort_stats('cumulative')
stats.print_stats(20)  # Top 20 functions

Output columns:

• ncalls: Number of calls
• tottime: Total time in function (excluding sub-calls)
• cumtime: Cumulative time (including sub-calls)
• percall: Time per call

cProfile Example Output

   ncalls  tottime  percall  cumtime  percall filename:lineno(function)
        1    0.002    0.002   45.231   45.231 train.py:23(train_epoch)
     1563   12.450    0.008   30.125    0.019 dataloader.py:45(__next__)
     1563    8.234    0.005   15.678    0.010 transforms.py:12(augment)
   156300    4.123    0.000    4.123    0.000 {method 'random' of '_random.Random'}
     1563    3.456    0.002   10.234    0.007 model.py:67(forward)

Analysis:

• Data loading (__next__) takes 30s out of 45s → CPU bottleneck!
• Random augmentation is expensive → consider caching or GPU augmentation
• Model forward pass is fast (10s) → GPU is underutilized

Line-Level Profiling: line_profiler

More granular than cProfile:

from line_profiler import LineProfiler

lp = LineProfiler()
lp.add_function(preprocess_data)
lp.add_function(model.forward)

lp.enable()
train_one_epoch()
lp.disable()
lp.print_stats()

Output:

Line #      Hits         Time  Per Hit   % Time  Line Contents
==============================================================
    15         1      12500.0  12500.0     45.2  img = cv2.imread(path)
    16         1       8500.0   8500.0     30.7  img = cv2.resize(img, (224, 224))
    17         1       6700.0   6700.0     24.1  img = normalize(img)

Insight: cv2.imread is the slowest → use faster libraries or cache.

Memory Profiling: memory_profiler

Track memory usage line by line:

from memory_profiler import profile

@profile
def train_step(batch):
    images, labels = batch  # Line 1
    images = images.cuda()  # Line 2
    outputs = model(images)  # Line 3
    loss = criterion(outputs, labels)  # Line 4
    loss.backward()  # Line 5
    optimizer.step()  # Line 6

Output:

Line #    Mem usage    Increment   Line Contents
================================================
     1     2145 MB       0 MB       images, labels = batch
     2     4290 MB    2145 MB       images = images.cuda()
     3     8580 MB    4290 MB       outputs = model(images)
     4     8585 MB       5 MB       loss = criterion(outputs, labels)
     5    12875 MB    4290 MB       loss.backward()
     6    12875 MB       0 MB       optimizer.step()

Insight: Gradients double memory (line 5) → use gradient checkpointing.

PyTorch Built-in Profiling

Torch profiler with CPU/GPU tracing:

from torch.profiler import profile, record_function, ProfilerActivity

with profile(
    activities=[ProfilerActivity.CPU, ProfilerActivity.CUDA],
    record_shapes=True,
    profile_memory=True,
    with_stack=True
) as prof:
    with record_function("train_epoch"):
        for i, batch in enumerate(dataloader):
            if i >= 10:  # Profile first 10 batches
                break

            with record_function("forward"):
                output = model(batch)

            with record_function("backward"):
                loss.backward()

            prof.step()  # Signal step boundary

PyTorch Profiler Output

Table view:

print(prof.key_averages().table(
    sort_by="cuda_time_total",
    row_limit=10
))

Output:

-------------------------------------------------------  ------------
Name                                     Self CPU time  Self CUDA time
-------------------------------------------------------  ------------
aten::conv2d                                    1.2ms       125.4ms
aten::batch_norm                                0.8ms        45.2ms
aten::linear                                    0.5ms        78.3ms
Memcpy HtoD (Host to Device)                   23.4ms         0.0ms
-------------------------------------------------------  ------------

Insights:

• Convolutions dominate GPU time (expected)
• HtoD memcpy is 23ms → data transfer bottleneck! Use pin_memory

TensorBoard Profiler Visualization

Export for TensorBoard:

with profile(
    activities=[ProfilerActivity.CPU, ProfilerActivity.CUDA],
    on_trace_ready=torch.profiler.tensorboard_trace_handler('./log/resnet18')
) as prof:
    train()
    prof.step()

View in TensorBoard:

tensorboard --logdir=./log

Visualizations:

• Timeline: See GPU kernels, data loading, CPU ops on timeline
• Operator view: Breakdown by operation type
• Kernel view: GPU kernel efficiency
• Trace view: Detailed event trace

Interpreting GPU Timeline

Ideal timeline:

GPU: ████████████████████████████████████████████  (100% busy)
CPU: ██  ██  ██  ██  ██  ██  ██  ██  ██  ██  ██  (loading data)

CPU bottleneck:

GPU: ██    ██    ██    ██    ██    ██    ██      (idle gaps)
CPU: ████████████████████████████████████████████  (100% busy)
     ▲     ▲     ▲
     Gaps while waiting for data!

Memory transfer bottleneck:

GPU: ██      ██      ██      ██      ██      ██
MEM: ░░██████░░██████░░██████░░██████░░██████░░  (memcpy)
     ▲ Large memory transfers stalling GPU

Data Loading Optimization

Problem: GPU idle while CPU loads data.

Solutions:

1. Multi-process data loading:

DataLoader(dataset,
    batch_size=32,
    num_workers=4,        # Spawn 4 worker processes
    pin_memory=True,      # Faster GPU transfer
    persistent_workers=True  # Reuse workers across epochs
)

2. Prefetching (automatic with num_workers > 0):

Worker 1: Load batch 1 → Load batch 3 → Load batch 5
Worker 2: Load batch 2 → Load batch 4 → Load batch 6
GPU:      Process batch 1 → Process batch 2 → Process batch 3

Data Loading Best Practices

Rule of thumb for num_workers:

• Start with num_workers = min(4, num_cpus)
• Profile and tune (diminishing returns after ~8)
• Too many workers → memory overhead

Optimization checklist:

DataLoader(
    dataset,
    batch_size=32,
    num_workers=4,              # Multi-process loading
    pin_memory=True,            # Faster H2D transfer (if using GPU)
    persistent_workers=True,    # Don't recreate workers each epoch
    prefetch_factor=2,          # Batches to prefetch per worker
    drop_last=True              # Avoid small last batch
)

Advanced: GPU preprocessing:

# Use NVIDIA DALI or Kornia for GPU-accelerated augmentation
import kornia.augmentation as K
augment = K.AugmentationSequential(
    K.RandomHorizontalFlip(p=0.5),
    K.RandomRotation(degrees=15),
).cuda()

Mixed Precision Training Theory

Float32 (FP32):

• 1 sign bit, 8 exponent bits, 23 fraction bits
• Range: ~10^-38 to 10^38
• Standard for training

Float16 (FP16):

• 1 sign bit, 5 exponent bits, 10 fraction bits
• Range: ~10^-8 to 65504
• 2x memory savings, 2-3x speedup on Tensor Cores

Problem with pure FP16:

• Small gradients underflow to zero
• Large activations overflow to infinity
• Training diverges or converges poorly

The Precision Goldilocks Zone

Automatic Mixed Precision (AMP)

Solution: Mixed precision training

Strategy:

1. Master weights in FP32 (stored in optimizer)
2. Forward pass in FP16 (faster)
3. Loss in FP32 (precision for small values)
4. Backward pass in FP16 (faster)
5. Gradient scaling to prevent underflow
6. Weight update in FP32 (master weights)

Gradient scaling:

• Multiply loss by scale factor (e.g., 1024) before backward
• Prevents small gradients from becoming zero in FP16
• Unscale gradients before optimizer step

AMP Implementation in PyTorch

from torch.cuda.amp import autocast, GradScaler

model = MyModel().cuda()
optimizer = torch.optim.Adam(model.parameters(), lr=1e-3)
scaler = GradScaler()  # Gradient scaler

for epoch in range(num_epochs):
    for batch in dataloader:
        images, labels = batch
        images, labels = images.cuda(), labels.cuda()

        optimizer.zero_grad()

        # Forward in FP16
        with autocast():
            outputs = model(images)
            loss = criterion(outputs, labels)

        # Backward with gradient scaling
        scaler.scale(loss).backward()
        scaler.step(optimizer)
        scaler.update()  # Adjust scale for next iteration

Expected speedup: 1.5-3x on V100/A100/H100 GPUs with Tensor Cores.

AMP Best Practices

When to use AMP:

• Training CNNs, Transformers on modern GPUs (V100+)
• Large batch sizes (better Tensor Core utilization)
• Models with lots of matrix multiplications

When NOT to use AMP:

• Small models on old GPUs (no Tensor Cores)
• Models with numerical instability
• When accuracy drops significantly (rare)

Debugging AMP issues:

# Gradients become NaN? Check gradient scaling
print(scaler.get_scale())  # Should be ~1024-65536

# Accuracy drop? Try:
scaler = GradScaler(init_scale=2.**16)  # Higher initial scale

Memory Optimization: Gradient Checkpointing

Problem: Storing all activations for backprop uses O(N) memory.

Example (4-layer network):

Forward:  Input → Act1 → Act2 → Act3 → Act4 → Loss
Backward: ∇Loss ← ∇Act4 ← ∇Act3 ← ∇Act2 ← ∇Act1
          ▲       ▲       ▲       ▲       ▲
          Need to store all activations!

Memory usage: Batch_size × Num_layers × Hidden_dim

Solution: Gradient Checkpointing (Recomputation)

• Store only subset of activations (checkpoints)
• Recompute others during backward pass
• Trade: 20-30% slower for 50%+ memory savings

Gradient Checkpointing in PyTorch

import torch.utils.checkpoint as checkpoint

class MyModel(nn.Module):
    def __init__(self):
        super().__init__()
        self.layer1 = nn.Linear(1024, 1024)
        self.layer2 = nn.Linear(1024, 1024)
        self.layer3 = nn.Linear(1024, 1024)

    def forward(self, x):
        # Checkpoint layer1 and layer2
        x = checkpoint.checkpoint(self._forward_layers, x)
        x = self.layer3(x)
        return x

    def _forward_layers(self, x):
        x = F.relu(self.layer1(x))
        x = F.relu(self.layer2(x))
        return x

Use case: Train larger models/batches that otherwise OOM.

Gradient Accumulation

Problem: Limited GPU memory → small batch size → poor convergence.

Solution: Accumulate gradients over multiple steps.

accumulation_steps = 4  # Effective batch size = 32 * 4 = 128

optimizer.zero_grad()
for i, batch in enumerate(dataloader):
    outputs = model(batch)
    loss = criterion(outputs, labels)

    # Normalize loss by accumulation steps
    loss = loss / accumulation_steps
    loss.backward()

    # Only step optimizer every N batches
    if (i + 1) % accumulation_steps == 0:
        optimizer.step()
        optimizer.zero_grad()

Effect: Simulates large batch training with limited memory.

Compute Optimization: torch.compile

PyTorch 2.0+ feature: JIT compilation for speedups.

import torch

model = MyModel()
model = torch.compile(model)  # Compile the model

# Training loop unchanged
for batch in dataloader:
    output = model(batch)  # First run: compile, subsequent: fast!

What it does:

• Graph capture: Traces model operations
• Operator fusion: Merges ops (e.g., Conv+BN+ReLU → 1 kernel)
• Memory optimization: Reuses buffers
• CUDA graph: Reduces kernel launch overhead

Expected speedup: 10-50% for free!

torch.compile Modes

# Default mode (balanced)
model = torch.compile(model)

# Maximum performance (slower compile time)
model = torch.compile(model, mode="max-autotune")

# Reduce memory usage
model = torch.compile(model, mode="reduce-overhead")

# Debug mode (disable optimizations)
model = torch.compile(model, mode="default", dynamic=True)

Caveats:

• First run is slow (compilation overhead)
• Not all operations supported (fallback to eager)
• Dynamic shapes can trigger recompilation

Operator Fusion Example

Without fusion (3 kernel launches):

x = conv(input)    # Kernel 1: Convolution
x = bn(x)          # Kernel 2: Batch norm
x = relu(x)        # Kernel 3: ReLU

With fusion (1 kernel launch):

x = conv_bn_relu(input)  # Single fused kernel

Benefits:

• Fewer kernel launches (less overhead)
• Reduced memory bandwidth (no intermediate writes)
• Better cache locality

torch.compile does this automatically!

Flash Attention

Problem: Standard attention has O(N²) memory complexity.

Standard attention:

# Materialize full N×N attention matrix
scores = Q @ K.T  # (N, N) matrix
attn = softmax(scores)  # (N, N) matrix
output = attn @ V  # (N, d)

Flash Attention (Dao et al., 2022):

• Tiled computation (never materialize full matrix)
• Fused kernel (attention + softmax in one pass)
• Result: 2-4x speedup, O(N) memory instead of O(N²)

Usage:

from torch.nn.functional import scaled_dot_product_attention

# PyTorch 2.0+ uses Flash Attention automatically!
output = scaled_dot_product_attention(Q, K, V)

System-Level Optimization

CPU affinity (bind processes to cores):

taskset -c 0-7 python train.py  # Use cores 0-7

NUMA awareness (multi-socket systems):

numactl --cpunodebind=0 --membind=0 python train.py

PCIe optimization (multi-GPU):

# Use GPUs on same PCIe switch
os.environ["CUDA_VISIBLE_DEVICES"] = "0,1"  # Same switch

# Avoid: GPUs across different switches (slower P2P)
# os.environ["CUDA_VISIBLE_DEVICES"] = "0,4"

Storage I/O:

• Use SSD over HDD for datasets
• Use RAM disk for small datasets (tmpfs)

Benchmarking Best Practices

1. Warmup runs (JIT compilation, cache warming):

for _ in range(10):
    model(dummy_input)  # Warmup

# Now measure
start = time.time()
for _ in range(100):
    model(input_data)
elapsed = time.time() - start

2. Multiple runs (reduce variance):

import numpy as np

times = []
for _ in range(100):
    start = time.perf_counter()
    model(input_data)
    times.append(time.perf_counter() - start)

print(f"Mean: {np.mean(times)*1000:.2f} ms")
print(f"Std: {np.std(times)*1000:.2f} ms")
print(f"P95: {np.percentile(times, 95)*1000:.2f} ms")

Benchmarking Checklist

Environment control:

• [ ] Disable CPU frequency scaling (performance mode)
• [ ] Close background applications
• [ ] Fix random seeds (torch.manual_seed(42))
• [ ] Use same device (GPU vs CPU)

Measurement:

• [ ] Warmup before timing (10+ iterations)
• [ ] Measure multiple runs (100+)
• [ ] Report mean, std, percentiles (p50, p95, p99)
• [ ] Synchronize CUDA ops (torch.cuda.synchronize())

Comparison:

• [ ] Same hardware, same PyTorch version
• [ ] Same batch size and precision
• [ ] Measure end-to-end (not just model forward)

Common Performance Anti-Patterns

1. Implicit CPU-GPU synchronization:

# BAD: Forces sync every iteration
for i, batch in enumerate(dataloader):
    loss = train_step(batch)
    print(f"Loss: {loss.item()}")  # .item() syncs!

# GOOD: Batch logging
losses = []
for i, batch in enumerate(dataloader):
    loss = train_step(batch)
    losses.append(loss.detach())  # No sync
if i % 100 == 0:
    print(f"Avg loss: {torch.stack(losses).mean()}")

2. Small batch sizes (underutilize GPU):

• Batch size 1-8: Poor GPU utilization
• Batch size 32-128: Better (saturate GPU)

Common Performance Anti-Patterns (2)

3. Unnecessary data transfers:

# BAD: Transfer to GPU every iteration
for batch in dataloader:
    batch = batch.cuda()  # Slow!

# GOOD: Use pin_memory + non_blocking
dataloader = DataLoader(..., pin_memory=True)
for batch in dataloader:
    batch = batch.cuda(non_blocking=True)  # Faster!

4. Inefficient tensor operations:

# BAD: Python loop
result = []
for i in range(len(tensor)):
    result.append(tensor[i] * 2)

# GOOD: Vectorized operation
result = tensor * 2  # Much faster!

Case Study: Training Speedup

Baseline ResNet-50 on ImageNet:

• Batch size: 32
• Time per epoch: 120 minutes
• GPU utilization: 45%

Optimization steps:

Final result: 2.8x speedup, 74% faster!

Case Study: Memory Optimization

Problem: Training LLaMA-7B on single A100 (40GB VRAM) OOMs.

Optimization steps:

Result: Fits on single GPU with effective batch size of 16!

Profiling Workflow Summary

Step 1: Establish baseline

• Measure throughput, latency, memory
• Profile with PyTorch Profiler
• Identify bottleneck category (CPU/GPU compute/GPU memory/I/O)

Step 2: Apply targeted optimization

• CPU bottleneck → num_workers, prefetching
• GPU compute → AMP, torch.compile, algorithmic improvements
• GPU memory → gradient checkpointing, smaller batch, model parallelism
• I/O → faster storage, caching, data format (HDF5, LMDB)

Step 3: Measure impact

• Re-run profiling
• Compare metrics
• Iterate if needed

Optimization Priority

Quick wins (do first):

1. Enable AMP (5 min, 1.5-2x speedup)
2. Tune num_workers (10 min, 1.2-1.5x speedup)
3. Use torch.compile (1 line, 1.1-1.5x speedup)
4. Enable pin_memory=True (1 parameter, 1.1x speedup)

Medium effort (if needed):
5. Gradient accumulation (if memory-limited)
6. Larger batch size (if hardware allows)
7. Gradient checkpointing (if OOM)

Advanced (for experts):
8. Custom CUDA kernels
9. Model architecture search
10. Distributed training (multi-GPU/multi-node)

Tools Ecosystem Summary

Profiling:

• nvidia-smi: GPU monitoring
• cProfile: Python function profiling
• line_profiler: Line-level profiling
• memory_profiler: Memory usage
• PyTorch Profiler: Deep PyTorch profiling
• TensorBoard: Visual profiling
• Nsight Systems/Compute: Expert CUDA profiling

Optimization:

• torch.cuda.amp: Mixed precision
• torch.compile: Graph optimization
• torch.utils.checkpoint: Gradient checkpointing
• torch.nn.utils.prune: Model pruning
• Flash Attention: Efficient attention

Lab Preview

Today's mission:

1. Part 1: Profile ResNet-18 training and identify bottlenecks
2. Part 2: Optimize data loading (num_workers, pin_memory)
3. Part 3: Apply mixed precision training (AMP)
4. Part 4: Use gradient checkpointing to fit larger batch
5. Part 5: Apply torch.compile and measure speedup
6. Part 6: Create comprehensive performance comparison

Deliverable: Optimization report showing 2-3x speedup!

Key Takeaways

1. Always profile before optimizing - measure, don't guess
2. Focus on the critical path - optimize what matters (training loop)
3. Quick wins first - AMP, num_workers, torch.compile are easy
4. Memory vs speed trade-offs - gradient checkpointing, accumulation
5. Benchmark properly - warmup, multiple runs, synchronization
6. Iterative process - profile → optimize → measure → repeat

Remember: A 2x speedup means 2x more experiments, faster iteration, and cheaper costs!

Interview Questions

Common interview questions on profiling and optimization:

1. "How would you speed up a slow training pipeline?"

   • Profile first (PyTorch Profiler, nvidia-smi)
   • Common fixes: increase num_workers, enable AMP, use torch.compile
   • Check GPU utilization - low % means CPU bottleneck
   • Increase batch size if memory allows

2. "What is mixed precision training and why use it?"

   • Use FP16 for forward/backward, FP32 for gradient updates
   • Benefits: 1.5-2x speedup, half memory usage
   • PyTorch: torch.cuda.amp.autocast() + GradScaler
   • Safe for most models; watch for loss scaling issues

Additional Resources

Documentation:

• PyTorch Profiler: https://pytorch.org/tutorials/recipes/recipes/profiler_recipe.html
• PyTorch Performance Tuning: https://pytorch.org/tutorials/recipes/recipes/tuning_guide.html
• torch.compile: https://pytorch.org/tutorials/intermediate/torch_compile_tutorial.html

Papers:

• Mixed Precision Training (Micikevicius et al., 2018)
• Flash Attention (Dao et al., 2022)
• Gradient Checkpointing (Chen et al., 2016)

Tools:

• TensorBoard: https://www.tensorflow.org/tensorboard
• Nsight Systems: https://developer.nvidia.com/nsight-systems
• py-spy: https://github.com/benfred/py-spy (sampling profiler)
