Same Model, Same GPU, Half the Latency: What TensorRT, ONNX Runtime, and FP16 Actually Buy You — and What They Cost

TL;DR. Same YOLO11 weights, same RTX A5000, six ways to run them. Scored on time, accuracy, and adoption cost against the original model.predict() on the .pt file: TensorRT FP16 is the clear winner — ~2× lower end-to-end latency (7.5 → 3.8 ms for yolo11s), 4–5× faster on the network itself (5.3 → 1.3 ms), 2.6× higher batched throughput (472 → 1241 img/s), zero accuracy loss, for a one-time ~90 s engine build that is locked to this GPU model and TensorRT version. Four honest surprises: PyTorch’s half=True does nothing at batch 1 (it pays only at batch ≥ 4); TensorRT INT8 is strictly dominated by FP16 on the n/s models (slower and −0.02 to −0.05 mAP); ONNX Runtime helps the nano but is slower than plain PyTorch on the medium; and a dynamic-batch engine costs 1.7× at batch 1 vs a static one. Once TensorRT shrinks inference to 1.3 ms, preprocessing + NMS are two-thirds of every frame — the next milliseconds live outside the network.

The question

You trained (or just downloaded) a YOLO model. You call model.predict() and it feels fast — a few milliseconds on a decent GPU. Most people stop there.

But the weights and the runtime that executes them are two different choices, and the second one is a knob that costs no retraining and no new data. The same yolo11s.pt can be executed by PyTorch eager mode, by ONNX Runtime, or compiled into a TensorRT engine at FP32, FP16, or INT8. Vendor benchmarks promise big multipliers at the fast end of that list. This post measures the whole menu, holding everything else fixed, and scores every strategy on three axes against the original:

1. Time — batch-1 latency and batched throughput.
2. Accuracy — does mAP survive the trip?
3. Adoption cost — what the strategy demands: code changes, new dependencies, build time, calibration data, and what you give up in portability.

The contenders

Strategy	What it is	Why it should be fast
PyTorch FP32	model.predict() on the .pt — the original	baseline: eager kernels, full precision
PyTorch FP16	same call, half=True	half precision on tensor cores; one flag
ONNX Runtime (CUDA)	graph exported to .onnx, run by ORT’s CUDA provider	graph-level fusion + optimized kernels
TensorRT FP32	ONNX further compiled into a GPU-specific .engine	kernel auto-tuning for this exact GPU
TensorRT FP16	same, half precision	fusion + tensor cores
TensorRT INT8	same, 8-bit, calibrated on sample images	8-bit tensor cores, least memory traffic

The mental model: PyTorch executes the network op by op, each op a separate pre-compiled CUDA kernel launch. ONNX Runtime first rewrites the graph (folds constants, fuses adjacent ops) and then executes it. TensorRT goes furthest: it compiles the graph offline for one specific GPU, trying multiple kernel implementations per layer and keeping the fastest, at a chosen precision. The further right you go, the more build-time work, the less portability — and, usually, the more speed.

The entire code delta between these strategies, thanks to ultralytics wrapping every backend behind one API:

from ultralytics import YOLO

model = YOLO("yolo11s.pt")                               # the original
model.predict(img, half=True)                            # strategy: FP16, one flag

model.export(format="onnx")                              # strategy: ONNX, one-time export
model.export(format="engine", half=True)                 # strategy: TensorRT FP16
model.export(format="engine", int8=True,
             data="coco128.yaml")                        # strategy: INT8 (needs calib images)

YOLO("yolo11s.engine").predict(img)                      # inference code: unchanged

The setup

• Hardware: one NVIDIA RTX A5000 (24 GB, Ampere) in our lab server; Xeon Gold 6326 (16C/32T) for the CPU section.
• Software: Python 3.11, torch 2.8.0+cu126, ultralytics 8.4.92, TensorRT 11.1 (cu12 build), onnxruntime-gpu 1.24.4, OpenVINO 2026.2. Driver CUDA 12.4.
• Models: YOLO11 n / s / m, COCO-pretrained, 640×640 throughout.
• Latency protocol: model.predict() on a pre-loaded image (ultralytics’ bus.jpg; disk I/O excluded), 30 warmup + 200 timed calls, batch = 1. I report medians, and use ultralytics’ own per-stage timers for the preprocess / inference / postprocess split.
• Throughput protocol: pure forward pass on a resident CUDA tensor with explicit torch.cuda.synchronize() — no image decode, no NMS — to isolate what the runtime actually accelerates.
• Accuracy protocol: mAP50-95 on COCO128 for every backend of every model.
• Fairness rule: every backend gets ultralytics’ defaults — no per-backend tuning for anyone. All detectors returned the same 5 detections on the test image, INT8 included.

Axis 1a: batch-1 latency

Median end-to-end predict() latency (preprocess + inference + postprocess), batch = 1, 640×640, 200 timed iterations on an RTX A5000. Bars are colored by runtime family (blue = PyTorch, green = ONNX Runtime, red = TensorRT; lighter = lower precision); annotations give the speedup over PyTorch FP32. TensorRT FP16 roughly halves latency for every model size. Note PyTorch FP16 ≈ FP32 (the flag does nothing here) and ONNX Runtime losing to PyTorch on yolo11m.

The same data for yolo11s, with the inference-only time that the runtimes actually compete on:

yolo11s, batch=1	end-to-end (ms)	vs original	inference only (ms)	vs original
PyTorch FP32 (original)	7.54	1.0×	5.27	1.0×
PyTorch FP16	7.84	0.96×	5.54	0.95×
ONNX Runtime	7.33	1.03×	4.78	1.10×
TensorRT FP32	4.87	1.55×	2.45	2.15×
TensorRT FP16	3.76	2.0×	1.30	4.1×
TensorRT INT8	4.18	1.8×	1.75	3.0×

Three findings that vendor decks won’t show you:

1. half=True is a placebo at batch 1. On all three models, PyTorch FP16 is marginally slower than FP32 (7.8 vs 7.5 ms on yolo11s). At batch 1 the GPU is nowhere near saturated — the time goes to kernel launches, not kernel math — so halving the math changes nothing, and the input/output casts add a little. Hold this thought until the batching section, where the same flag becomes a 1.6× win.
2. INT8 is slower than FP16 for yolo11n and yolo11s (3.82 vs 3.41, 4.18 vs 3.76 ms), and only reaches parity on yolo11m (4.73 vs 4.85 ms). TensorRT 11 quantizes via explicit quantize/dequantize nodes, and for small networks at 640 px their overhead eats the 8-bit savings on Ampere. “INT8 = fastest” is not a law; it’s a hypothesis to test on your model, your GPU.
3. ONNX Runtime’s value depends on model size: 1.6× on the nano, a wash on the small, 0.8× (slower than the original!) on the medium. Its CUDA kernels beat eager PyTorch on launch-bound tiny models but lose on compute-bound bigger ones.

And the headline I did not expect when I started: yolo11m on TensorRT FP16 (4.85 ms) is faster end-to-end than yolo11n on vanilla PyTorch (7.22 ms) — while scoring +0.12 mAP50-95. The runtime choice outweighs two model-size steps. If you picked the nano because the small felt too slow, you may have paid accuracy for speed that a one-line export would have bought for free.

Where the milliseconds actually go

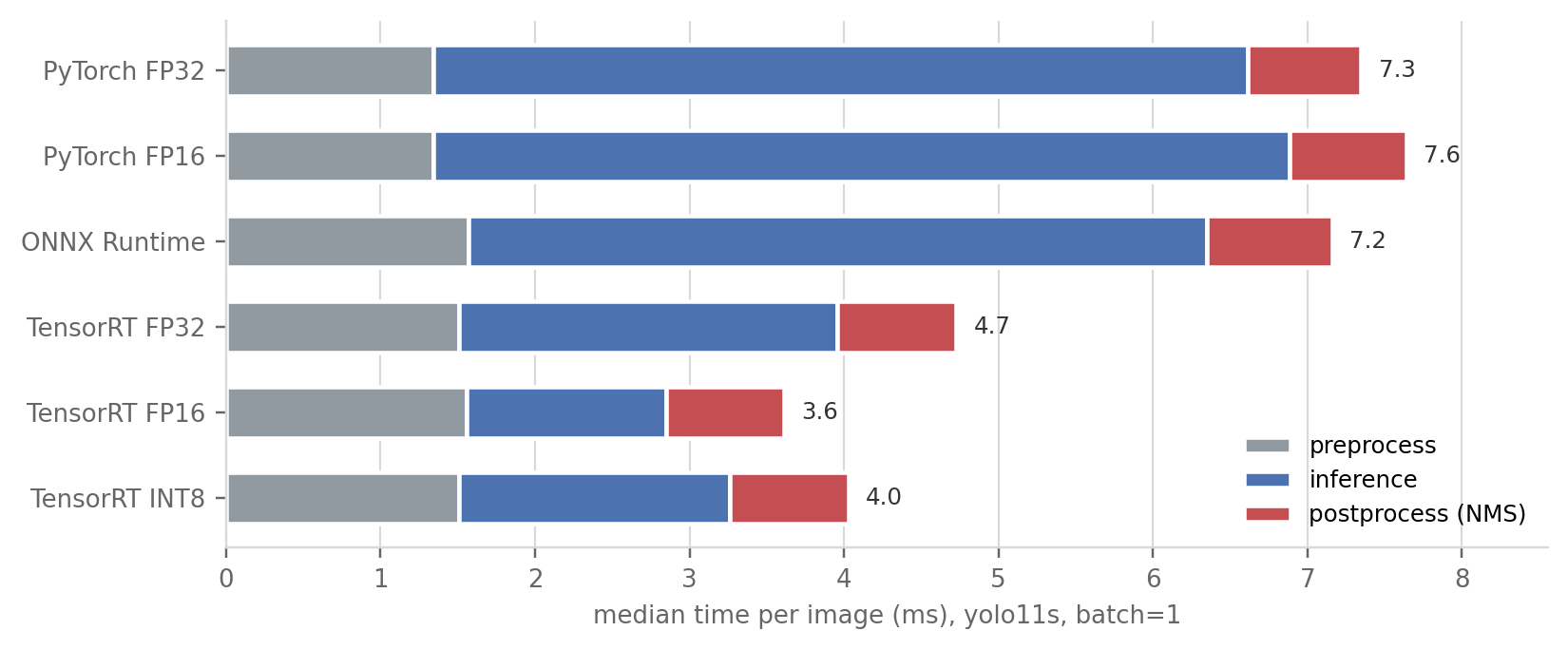

The same yolo11s batch-1 latency, split into ultralytics’ three stages. Inference (blue) is the only part the runtimes compete on: TensorRT FP16 cuts it from 5.3 ms to 1.3 ms. Preprocessing (gray, ~1.4 ms of resize/normalize/upload) and postprocess/NMS (red, ~0.8 ms) are untouched — so they grow from ~30% of the frame to about two-thirds.

This is Amdahl’s law with a bounding box. TensorRT FP16 makes the network 4.1× faster, but the predict() call only gets 2.0× faster, because ~2.2 ms of every frame is spent outside the network — resizing and normalizing the image, and running NMS on the raw predictions. Once inference costs 1.3 ms, the model is no longer the bottleneck; the pipeline is.

Two practical corollaries:

• Below ~4 ms of end-to-end budget, further model optimization (INT8, pruning, a smaller model) buys almost nothing. The next wins are pipeline wins: GPU-side preprocessing (e.g. DALI), batching the NMS, or exporting with NMS fused into the engine (nms=True).
• This is why “up to N× faster” claims and your stopwatch disagree: the N× is the blue segment, your stopwatch times the whole bar.

Axis 1b: throughput, and PyTorch FP16’s redemption

Batch-1 latency is the streaming-camera number. If you are chewing through a folder of images or a recorded video, what matters is images per second at the best batch size — so here is the pure GPU forward pass (no NMS, no preprocessing) for yolo11s, batch 1 → 32:

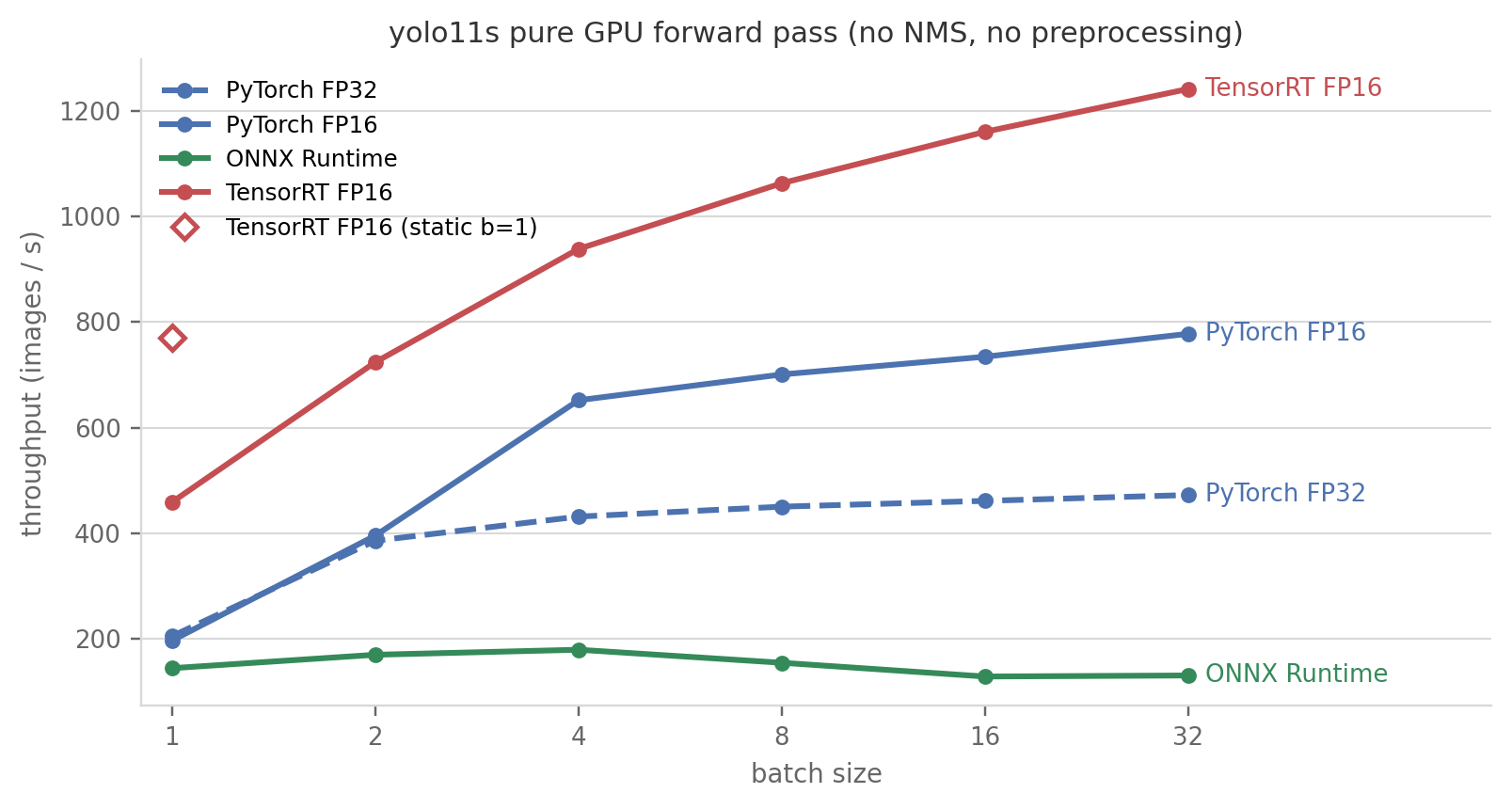

Pure forward-pass throughput vs batch size, yolo11s, RTX A5000. TensorRT FP16 (red) leads everywhere and peaks at 1241 img/s. PyTorch FP16 (solid blue) is indistinguishable from FP32 (dashed blue) until batch 4, then pulls away to a 1.65× win — precision pays only once there is enough parallel work. ONNX Runtime on a dynamic-shape graph (green) degrades with batch size. The open diamond: the same TensorRT FP16 model compiled as a static batch-1 engine is 1.7× faster at batch 1 than the dynamic-batch engine.

yolo11s, pure forward	batch 1	batch 32 (peak)
PyTorch FP32 (original)	205 img/s	472 img/s
PyTorch FP16	197 img/s	778 img/s
ONNX Runtime (dynamic)	145 img/s	131 img/s (peak 180 @ b4)
TensorRT FP16 (dynamic)	459 img/s	1241 img/s
TensorRT FP16 (static b=1)	771 img/s	—

• The half=True story completes: useless at batch 1, +65% at batch 32. FP16 needs saturation to matter. If you serve single frames, skip the flag; if you batch, take it — it’s still free.
• Shape flexibility has a price. The dynamic-batch TensorRT engine does 459 img/s at batch 1; a static batch-1 engine of the same model at the same precision does 771 img/s — 1.7×. TensorRT tunes kernels for the shapes you promise it; promise less, get more. If your batch size is fixed in production, build a static engine for exactly that shape.
• ONNX Runtime collapses on the dynamic graph — throughput falls as batch grows (180 → 131 img/s), 9.5× behind TensorRT at batch 32. With static shapes (the batch-1 latency test above) it behaves; dynamic shapes are its unhappy path, at least with default session options. A tuned ORT setup (IO binding, its own TensorRT execution provider) would close some of this gap — but “needs tuning” is itself an adoption cost, and everyone here got defaults.

Axis 2: does the fast path cost accuracy?

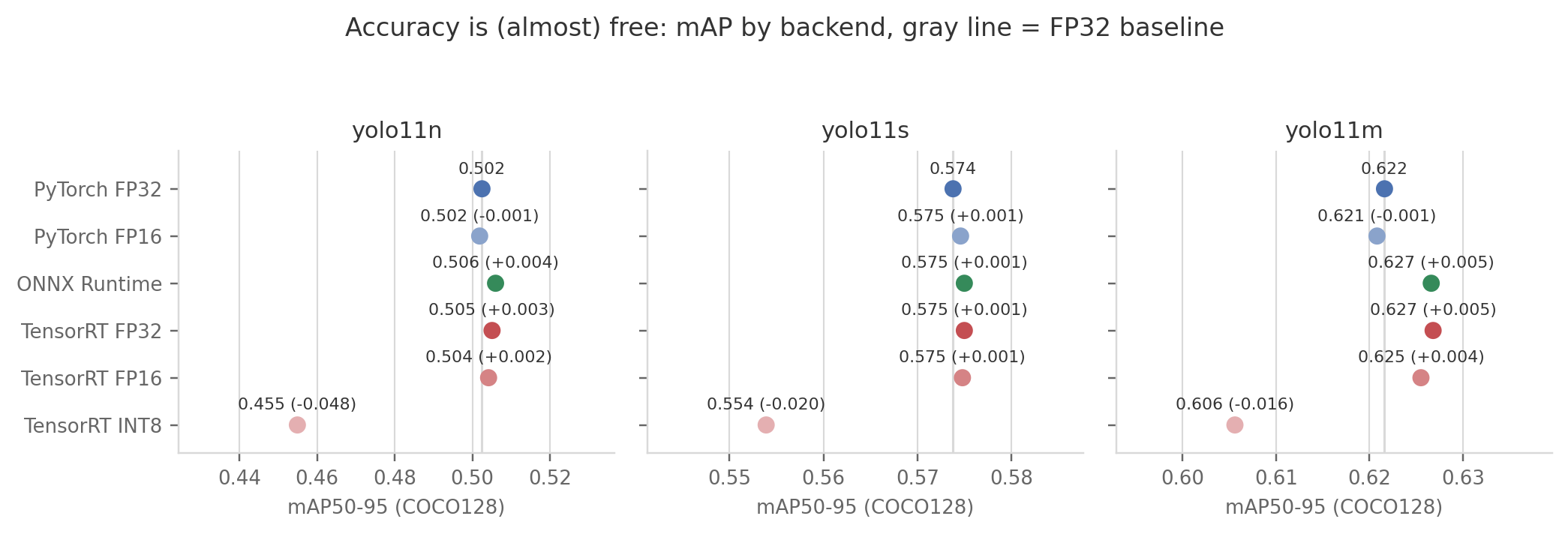

mAP50-95 on COCO128 per backend, per model. The gray vertical line is each model’s PyTorch FP32 baseline. Everything above INT8 sits within ±0.005 of the line — FP16 and the export round-trips are accuracy-free. TensorRT INT8 (lightest red) pays a real, model-size-dependent tax: −0.048 on the nano, −0.020 on the small, −0.016 on the medium.

(COCO128 is a 128-image slice of COCO train, so the absolute values are optimistic; what matters here is the relative drop across backends of identical weights — which is exactly what precision changes affect.)

• FP16 is free. Across all three models and both FP16 backends, mAP moves by at most ±0.005 — noise. Combined with the speed results: there is no accuracy reason to ever run TensorRT at FP32 for these models.
• INT8’s tax is real and biggest where you’d want it most. The nano loses 0.048 mAP50-95 (~10% relative). Small models have less redundancy to absorb quantization error. Put together with Axis 1 — INT8 was also slower than FP16 on n/s — and the verdict on this GPU is blunt: TensorRT INT8 is strictly dominated by TensorRT FP16 for yolo11n/s: slower AND less accurate. For yolo11m it buys 0.1 ms for 0.016 mAP — still a bad trade in most settings. (A larger, more careful calibration set than my 128 train images would likely shrink the mAP gap somewhat; it cannot fix “not faster.”)

Axis 3: what adopting each strategy actually takes

Speed and accuracy tell you what you get. Here is what each strategy demands — the axis that never makes it into benchmark charts. Build times and artifact sizes are measured (exports.json), for yolo11s:

Strategy	Code change	New dependencies	One-time build	Artifact	Runs on	Accuracy risk	Payoff (e2e / peak throughput)
PyTorch FP32 (original)	—	—	—	19 MB .pt	anywhere PyTorch runs	—	1.0× / 472 img/s
PyTorch FP16	half=True	none	none	same .pt	any modern NVIDIA GPU	none (±0.001)	1.0× / 778 img/s
ONNX Runtime	1-line export, once	onnx, onnxslim, onnxruntime-gpu	~1–2 s	38 MB .onnx	~any platform with an ORT build	none	1.0–1.6× / 180 img/s
TensorRT FP32	1-line export, once	tensorrt-cu12 (+nvidia-modelopt)	83 s	46 MB .engine	this GPU model + this TRT version only	none	1.5× / —
TensorRT FP16	1-line export, once	same	90 s (159 s dynamic)	22 MB .engine	same lock-in	none	2.0× / 1241 img/s
TensorRT INT8	export + calibration images	same	146 s	15 MB .engine	same lock-in	−0.02 to −0.05 mAP	1.8× (≤ FP16)
OpenVINO (CPU)	1-line export, once	openvino	4 s	11 MB dir	any x86 CPU	not re-measured here	3.0× vs PyTorch CPU

The non-obvious costs, in words:

• The .engine file is a compilation artifact, not a model. It is specific to the GPU architecture it was built on and the TensorRT major version that built it. New GPU model → rebuild. TensorRT upgrade → rebuild. Ship to a fleet of mixed GPUs → one build per GPU type. The ~90 s is per model × per precision × per shape profile × per GPU type. (My full 10-engine build for this post: ~21 GPU-minutes.)
• INT8 additionally demands data — representative calibration images. That’s a small pipeline to maintain, and a silent way to go stale as your deployment domain drifts.
• ONNX is the portability sweet spot: a 2-second export to an artifact that runs on NVIDIA, CPUs, mobile — but as Axis 1 showed, on this GPU its speed is only worth it for small models.

The install log they don’t show you (mid-2026 edition). Getting the fast lane running on a CUDA 12.4-driver machine took four non-obvious fixes, each failing late and cryptically:

1. pip install tensorrt now silently resolves to CUDA-13 wheels that an R550 driver cannot load — you want tensorrt-cu12.
2. TensorRT ≥ 11 removed implicit quantization, so ultralytics builds FP16/INT8 engines through nvidia-modelopt — which it auto-installs by shelling out to pip… which doesn’t exist in a uv venv by default.
3. modelopt requires torch ≥ 2.8 and will happily drag in a +cu130 torch your driver can’t use; pin torch==2.8.0 torchvision==0.23.0 from the cu126 index, last.
4. onnxruntime-gpu finds cuDNN via LD_LIBRARY_PATH; when it doesn’t, it silently falls back to CPU while still listing CUDA as available — verify with session.get_providers() after creating a real session, never with get_available_providers().

None of this is hard once you know it; all of it is part of the true cost of the fast lane. The working recipe is in setup_env.sh.

No GPU? The CPU story, briefly

Same protocol, yolo11n on the host Xeon (PyTorch capped at 8 threads by ultralytics’ default; ORT and OpenVINO manage their own pools):

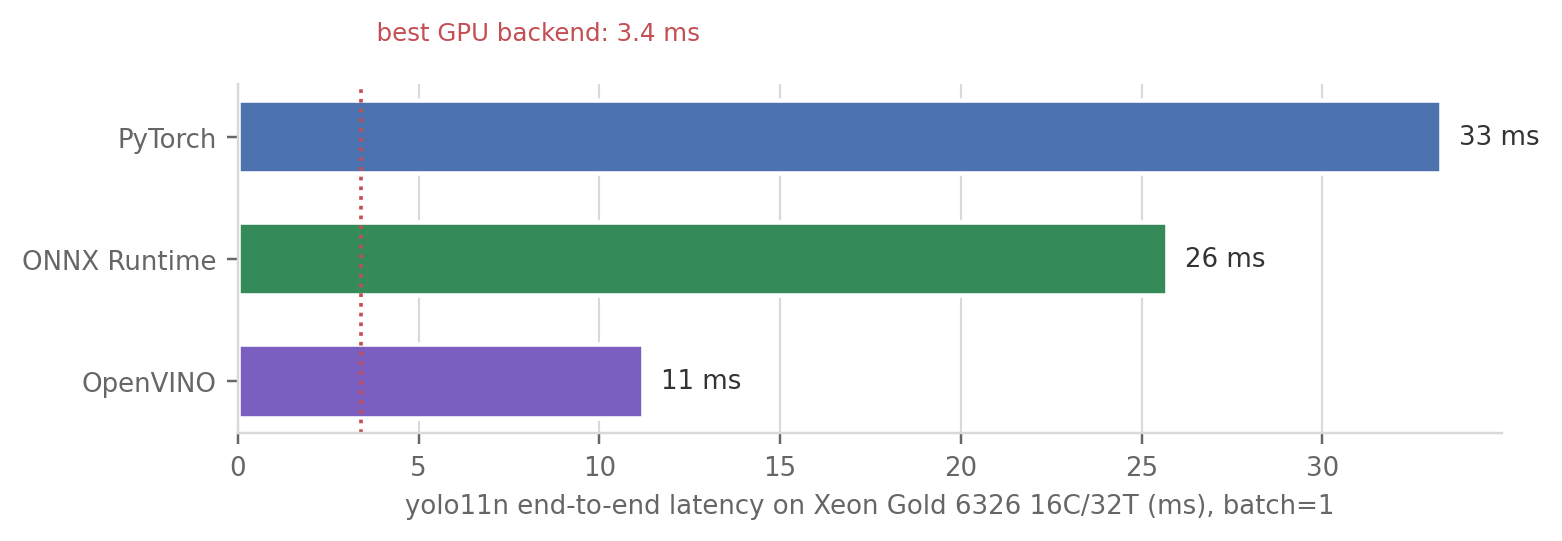

yolo11n end-to-end batch-1 latency on a Xeon Gold 6326. PyTorch 33 ms, ONNX Runtime 26 ms, OpenVINO 11 ms — the runtime lesson is the same as on GPU, but the multiplier is bigger. The dotted red line marks the best GPU backend (3.4 ms) for scale.

The ordering repeats, amplified: the vendor-optimized runtime (Intel’s OpenVINO, on an Intel CPU) is 3× faster than eager PyTorch — from a 4-second export. A 30 fps nano detector on a plain Xeon is entirely practical; and if your “GPU plan” was PyTorch eager on a nano, know that a well-run CPU gets within 1.6× of it.

What I’d actually do

Decision rules from these numbers:

• Streaming, single camera, NVIDIA GPU → TensorRT FP16, static engine at your exact shape. 2× end-to-end now, and your next win is pipeline work (fused NMS, GPU preprocessing), not more model compression.
• Offline / batched processing → TensorRT FP16 dynamic engine at batch ≥ 16 (2.6× throughput). Can’t take the TensorRT dependency? half=True + batching gets you 62% of its throughput for literally zero effort.
• Must run on heterogeneous / unknown hardware → ONNX. Portability is its product; treat any GPU speedup as a bonus, and benchmark per model size — it can be slower than PyTorch (yolo11m here).
• CPU-only → OpenVINO, no contest (3× over PyTorch).
• INT8 → only after FP16 is proven insufficient, only with a real calibration set, and only if measurement on your GPU + model shows it winning. Here it lost to FP16 on both axes for two of three models.
• Whatever you pick: re-run a val set through the exported artifact (one model.val() call) before shipping. Accuracy surviving the export is an empirical claim, not a guarantee.

Caveats

• One GPU, one architecture. A5000 = Ampere. On Ada/Hopper/Blackwell the FP8/INT8 tensor-core story is different and INT8 may well win where it lost here. The method transfers; the verdicts are per-GPU.
• One test image for latency. NMS time depends on how many boxes a scene produces; bus.jpg (5 detections) is easy. Crowded scenes shift the postprocess share up — strengthening, not weakening, the Amdahl point.
• COCO128 for accuracy is 128 training images: inflated absolute mAP, small sample. Fine for backend-relative deltas; do not quote the absolute values. A proper COCO val run (or your own val set) is the pre-ship check.
• predict() includes Python-loop overhead (~1–1.5 ms) that a C++ / Triton / DeepStream deployment wouldn’t pay. Pure-runtime gaps are bigger than the end-to-end ones — see the throughput section.
• Defaults for everyone. ORT without IO-binding/TRT-EP tuning, TensorRT with default workspace, OpenVINO in latency mode, torch CPU capped at ultralytics’ 8 threads. Tuning any backend moves its numbers; tuning is also adoption cost.
• INT8 calibration used 128 train images — the lazy path. More/better calibration data typically recovers some mAP; it does not change that INT8 was not faster than FP16 here.

Reproduce

Everything ran on one RTX A5000; total compute ≈ 45 GPU-minutes, half of it engine builds. Scripts in posts/yolo-speed/scripts/:

• setup_env.sh — the environment, including the four landmine fixes.
• export_all.py — every artifact (ONNX static/dynamic, TensorRT FP32/FP16/INT8 × n/s/m, OpenVINO), with build times → exports.json.
• bench_latency.py — batch-1 predict() latency with per-stage split.
• bench_batch.py — pure-forward throughput vs batch size, incl. the static-vs-dynamic engine comparison.
• bench_accuracy.py — mAP50-95 on COCO128 per backend.
• bench_cpu.py — the CPU shootout.
• visualize.py — all figures from the result JSONs (also in outputs/).

Links

• Ultralytics export docs · TensorRT integration guide (their T4 benchmarks make a nice cross-GPU comparison to these A5000 numbers)
• TensorRT · ONNX Runtime CUDA provider · OpenVINO
• nvidia-modelopt — the explicit-quantization toolchain TensorRT ≥ 11 exports go through
• Related posts: Detection Has No Memory (YOLO + ByteTrack) — what tracking adds on top of detection; this post is about making the detection itself cheap.
