Multi-Image Vision-Language Model: Compare, Reason, and Understand

Additional Memory Management Tips

When to clear memory: - After training/evaluation before starting a new notebook - When switching between large models - If you get CUDA out of memory errors

What gets cleared: - del model - Removes Python reference to model - gc.collect() - Frees Python objects from memory - torch.cuda.empty_cache() - Releases cached GPU memory back to system

Checking memory usage:

# See current GPU memory usage
!nvidia-smi

# Or in Python:
print(f"Allocated: {torch.cuda.memory_allocated() / 1024**3:.2f} GB")
print(f"Reserved: {torch.cuda.memory_reserved() / 1024**3:.2f} GB")
print(f"Max allocated: {torch.cuda.max_memory_allocated() / 1024**3:.2f} GB")

Note: After clearing memory, you’ll need to reload the models if you want to use them again.

# Method 1: Delete models and clear cache
# This releases GPU memory allocated to model weights and intermediate tensors

# Delete the model components
del vlm
del vision_encoder
del language_model
del projector

# Clear PyTorch's GPU cache
import gc
gc.collect()  # Run Python garbage collector first
torch.cuda.empty_cache()  # Then clear CUDA cache

print("GPU memory cleared!")
print(f"GPU memory allocated: {torch.cuda.memory_allocated() / 1024**3:.2f} GB")
print(f"GPU memory reserved: {torch.cuda.memory_reserved() / 1024**3:.2f} GB")

Introduction

In our VLM series, we’ve built models that handle: 1. Image captioning 2. Object detection 3. Visual question answering 4. Multi-task learning

But all of these handled only one image at a time. What if we want to: - Compare temporal images: “What changed between these two satellite images?” - Analyze sequences: “What happens across these time-series images?” - Multi-image reasoning: “Which image shows the forest fire?”

This is what temporal/multi-image VLMs do - inspired by models like TEOChat for earth observation, GPT-4V, and Gemini.

Multi-Image Architecture

Following TEOChat’s approach (Figure 2/3), we’ll use temporally-shared vision encoding with image identifiers:

[IMG1 tokens] <image_1> [IMG2 tokens] <image_2> [Text: "What changed?"]
       ↓                       ↓                            ↓
   Shared Vision          Shared Vision                Language
    Encoder                Encoder                      Model

Key Design Principles (from TEOChat): 1. Shared weights across time - Same vision encoder processes all images 2. Image identifiers - Special tokens to reference specific images 3. Temporal reasoning - Model learns to compare and reason across sequences

Examples

Task	Input	Output
Comparison	[IMG1] <image_1> [IMG2] <image_2>: What changed?	"The forest is now cleared"

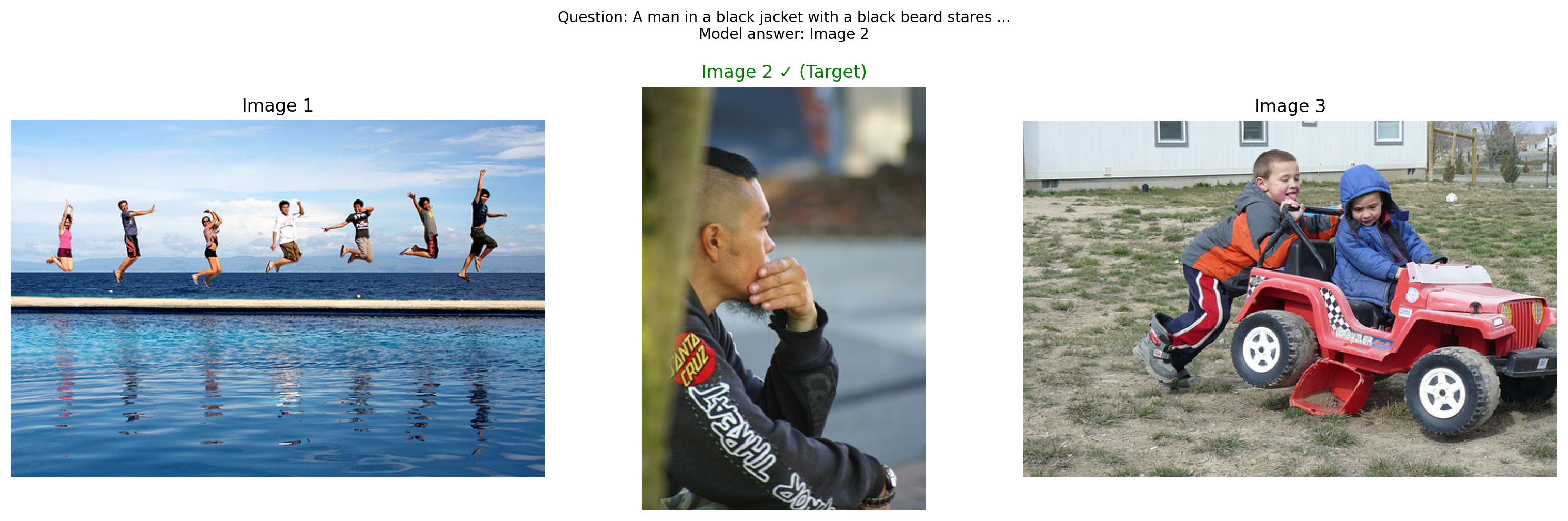

Selection	Which shows a cat? [IMG1] [IMG2] [IMG3]	"Image 2"
Temporal	What happens? [IMG1] [IMG2] [IMG3]	"Vegetation decreases over time"

Setup

!uv pip install -q transformers datasets torch torchvision pillow accelerate einops timm

import torch
import torch.nn as nn
import torch.nn.functional as F
from torch.utils.data import DataLoader, Dataset
from transformers import (
    AutoModelForCausalLM,
    AutoTokenizer,
    ViTModel,
    ViTImageProcessor,
)
from datasets import load_dataset
from PIL import Image
import numpy as np
import matplotlib.pyplot as plt
from tqdm.auto import tqdm
import random
import os
import warnings
warnings.filterwarnings('ignore')

%config InlineBackend.figure_format = 'retina'

device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
print(f"Using device: {device}")

/home/nipun.batra/.uv/nb-base/lib/python3.12/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm

Using device: cuda

Part 1: Multi-Image VLM Architecture

Key changes from single-image VLM: 1. Accept multiple images in forward pass 2. Interleave image tokens with text tokens 3. Image position markers (e.g., <image_1>, <image_2>)

# Same projector as before

class VisionProjector(nn.Module):
    """Projects vision features into the language model's embedding space."""

    def __init__(self, vision_dim: int, language_dim: int):
        super().__init__()
        self.projection = nn.Sequential(
            nn.Linear(vision_dim, language_dim),
            nn.GELU(),
            nn.LayerNorm(language_dim),
            nn.Linear(language_dim, language_dim),
        )

    def forward(self, vision_features: torch.Tensor) -> torch.Tensor:
        return self.projection(vision_features)

# Multi-Image VLM with interleaved encoding

class MultiImageVLM(nn.Module):
    """VLM that handles multiple images with interleaved image-text encoding."""

    # Special tokens for image positions
    IMAGE_TOKEN_TEMPLATE = "<image_{}>"

    def __init__(
        self,
        vision_encoder: ViTModel,
        language_model: AutoModelForCausalLM,
        projector: VisionProjector,
        tokenizer: AutoTokenizer,
    ):
        super().__init__()
        self.vision_encoder = vision_encoder
        self.language_model = language_model
        self.projector = projector
        self.tokenizer = tokenizer

        for param in self.vision_encoder.parameters():
            param.requires_grad = False

    def encode_image(self, pixel_values: torch.Tensor) -> torch.Tensor:
        """Encode a single image."""
        with torch.no_grad():
            vision_outputs = self.vision_encoder(pixel_values=pixel_values)
        image_features = vision_outputs.last_hidden_state
        projected = self.projector(image_features)
        return projected

    def encode_images(self, pixel_values_list: list) -> list:
        """Encode multiple images.

        Args:
            pixel_values_list: List of (batch, 3, 224, 224) tensors

        Returns:
            List of (batch, num_patches, hidden_dim) tensors
        """
        return [self.encode_image(pv) for pv in pixel_values_list]

    def forward(
        self,
        pixel_values_list: list,  # List of image tensors
        input_ids: torch.Tensor,
        attention_mask: torch.Tensor,
        image_positions: list = None,  # Where to insert each image in the sequence
        labels: torch.Tensor = None,
    ):
        """
        Forward pass with multiple images.

        Args:
            pixel_values_list: List of [batch, 3, 224, 224] tensors (one per image)
            input_ids: Text tokens [batch, seq_len]
            attention_mask: Attention mask [batch, seq_len]
            image_positions: List of positions where images should be inserted
                           If None, all images are prepended
            labels: Target labels [batch, seq_len]
        """
        batch_size = input_ids.shape[0]

        # Encode all images
        image_embeds_list = self.encode_images(pixel_values_list)

        # Get text embeddings
        text_embeds = self.language_model.get_input_embeddings()(input_ids)

        # Simple strategy: prepend all images before text
        # [IMG1 tokens] [IMG2 tokens] ... [text tokens]
        combined_embeds = torch.cat(image_embeds_list + [text_embeds], dim=1)

        # Create attention mask for images
        total_image_tokens = sum(img_emb.shape[1] for img_emb in image_embeds_list)
        image_attention = torch.ones(
            (batch_size, total_image_tokens),
            dtype=attention_mask.dtype,
            device=attention_mask.device
        )
        combined_attention = torch.cat([image_attention, attention_mask], dim=1)

        # Create labels
        if labels is not None:
            image_labels = torch.full(
                (batch_size, total_image_tokens),
                fill_value=-100,
                dtype=labels.dtype,
                device=labels.device
            )
            combined_labels = torch.cat([image_labels, labels], dim=1)
        else:
            combined_labels = None

        # Forward through language model
        outputs = self.language_model(
            inputs_embeds=combined_embeds,
            attention_mask=combined_attention,
            labels=combined_labels,
            return_dict=True,
        )

        return outputs

    @torch.no_grad()
    def generate(
        self,
        pixel_values_list: list,  # List of image tensors
        prompt: str,
        max_new_tokens: int = 50,
        temperature: float = 0.7,
        do_sample: bool = True,
    ) -> str:
        """Generate text given multiple images and a prompt."""
        self.eval()

        # Encode all images
        image_embeds_list = self.encode_images(pixel_values_list)

        # Concatenate all image embeddings
        all_image_embeds = torch.cat(image_embeds_list, dim=1)  # [1, total_patches, hidden]

        # Encode prompt
        prompt_ids = self.tokenizer.encode(prompt, return_tensors="pt").to(pixel_values_list[0].device)
        generated_ids = prompt_ids.clone()

        # Generate token by token
        for _ in range(max_new_tokens):
            current_embeds = self.language_model.get_input_embeddings()(generated_ids)
            full_embeds = torch.cat([all_image_embeds, current_embeds], dim=1)

            outputs = self.language_model(inputs_embeds=full_embeds)
            next_token_logits = outputs.logits[:, -1, :]

            if do_sample:
                probs = F.softmax(next_token_logits / temperature, dim=-1)
                next_token = torch.multinomial(probs, num_samples=1)
            else:
                next_token = next_token_logits.argmax(dim=-1, keepdim=True)

            generated_ids = torch.cat([generated_ids, next_token], dim=1)

            if next_token.item() == self.tokenizer.eos_token_id:
                break

        return self.tokenizer.decode(generated_ids[0], skip_special_tokens=True)

# Load base model
vision_model_name = "google/vit-base-patch16-224"
lm_model_name = "HuggingFaceTB/SmolLM-135M"
pretrained_dir = "mini-vlm-flickr8k"

# Load components
vision_encoder = ViTModel.from_pretrained(vision_model_name)
language_model = AutoModelForCausalLM.from_pretrained(lm_model_name)
tokenizer = AutoTokenizer.from_pretrained(lm_model_name)
image_processor = ViTImageProcessor.from_pretrained(vision_model_name)

if tokenizer.pad_token is None:
    tokenizer.pad_token = tokenizer.eos_token

# Create projector
vision_dim = vision_encoder.config.hidden_size
language_dim = language_model.config.hidden_size
projector = VisionProjector(vision_dim, language_dim)

# Load pretrained weights
if os.path.exists(f"{pretrained_dir}/mini_vlm_full.pt"):
    print(f"Loading pretrained model from {pretrained_dir}/")
    checkpoint = torch.load(f"{pretrained_dir}/mini_vlm_full.pt", map_location='cpu')
    projector.load_state_dict(checkpoint['projector_state_dict'])
    language_model.load_state_dict(checkpoint['language_model_state_dict'])
    print("Loaded pretrained weights!")
else:
    print("No pretrained weights found.")

# Create multi-image VLM
vlm = MultiImageVLM(vision_encoder, language_model, projector, tokenizer)
vlm = vlm.to(device)

print(f"\nMulti-Image VLM loaded on {device}")
print(f"Trainable parameters: {sum(p.numel() for p in vlm.parameters() if p.requires_grad):,}")

Some weights of ViTModel were not initialized from the model checkpoint at google/vit-base-patch16-224 and are newly initialized: ['pooler.dense.bias', 'pooler.dense.weight']
You should probably TRAIN this model on a down-stream task to be able to use it for predictions and inference.

Loading pretrained model from mini-vlm-flickr8k/
Loaded pretrained weights!

Multi-Image VLM loaded on cuda
Trainable parameters: 135,291,456

Part 2: Create Multi-Image Datasets

We’ll create synthetic multi-image tasks: 1. Image Comparison - “What’s different between image 1 and image 2?” 2. Image Selection - “Which image shows a dog?” 3. Sequential Understanding - “Describe what happens across these images.”

# Load Flickr8k for creating multi-image tasks
flickr_dataset = load_dataset("jxie/flickr8k", split="train").shuffle(seed=42)

print(f"Flickr8k dataset: {len(flickr_dataset)} samples")
print(f"We'll create multi-image tasks from this dataset")

Flickr8k dataset: 6000 samples
We'll create multi-image tasks from this dataset

# Image Comparison Dataset
# Task: Given two images, describe the second one relative to the first

class ImageComparisonDataset(Dataset):
    """Compare two images and describe differences."""

    COMPARISON_PROMPTS = [
        "Image 1: [IMG1] Image 2: [IMG2] What's in image 2?",
        "Compare these images: [IMG1] [IMG2]. Describe the second image.",
        "First image: [IMG1] Second image: [IMG2] Describe the second one.",
    ]

    def __init__(self, hf_dataset, image_processor, tokenizer, num_pairs=500, max_length=128):
        self.dataset = hf_dataset
        self.image_processor = image_processor
        self.tokenizer = tokenizer
        self.num_pairs = num_pairs
        self.max_length = max_length

        # Create random pairs
        self.pairs = []
        for i in range(num_pairs):
            idx1 = random.randint(0, len(hf_dataset) - 1)
            idx2 = random.randint(0, len(hf_dataset) - 1)
            while idx2 == idx1:
                idx2 = random.randint(0, len(hf_dataset) - 1)
            self.pairs.append((idx1, idx2))

    def __len__(self):
        return len(self.pairs)

    def __getitem__(self, idx):
        idx1, idx2 = self.pairs[idx]

        # Get images
        img1 = self.dataset[idx1]['image'].convert('RGB')
        img2 = self.dataset[idx2]['image'].convert('RGB')

        # Process images
        pv1 = self.image_processor(img1, return_tensors="pt").pixel_values.squeeze(0)
        pv2 = self.image_processor(img2, return_tensors="pt").pixel_values.squeeze(0)

        # Get caption for second image (what we want to generate)
        caption2 = self.dataset[idx2][f'caption_{random.randint(0, 4)}']

        # Create prompt
        prompt = random.choice(self.COMPARISON_PROMPTS)
        full_text = f"{prompt} {caption2}{self.tokenizer.eos_token}"

        # Tokenize
        encoding = self.tokenizer(
            full_text,
            max_length=self.max_length,
            padding='max_length',
            truncation=True,
            return_tensors='pt'
        )

        input_ids = encoding['input_ids'].squeeze(0)
        attention_mask = encoding['attention_mask'].squeeze(0)

        # Mask prompt
        prompt_tokens = self.tokenizer.encode(prompt, add_special_tokens=False)
        prompt_len = len(prompt_tokens)

        labels = input_ids.clone()
        labels[:prompt_len] = -100
        labels[attention_mask == 0] = -100

        return {
            'pixel_values_list': [pv1, pv2],  # List of 2 images
            'input_ids': input_ids,
            'attention_mask': attention_mask,
            'labels': labels,
        }

# Image Selection Dataset
# Task: Given N images, identify which one matches a description

class ImageSelectionDataset(Dataset):
    """Select which image matches a description."""

    def __init__(self, hf_dataset, image_processor, tokenizer, num_samples=500, num_images=3, max_length=128):
        self.dataset = hf_dataset
        self.image_processor = image_processor
        self.tokenizer = tokenizer
        self.num_samples = num_samples
        self.num_images = num_images
        self.max_length = max_length

        # Create random image sets
        self.image_sets = []
        for i in range(num_samples):
            indices = random.sample(range(len(hf_dataset)), num_images)
            target_idx = random.randint(0, num_images - 1)  # Which one to describe
            self.image_sets.append((indices, target_idx))

    def __len__(self):
        return len(self.image_sets)

    def __getitem__(self, idx):
        indices, target_idx = self.image_sets[idx]

        # Get images
        images = [self.dataset[i]['image'].convert('RGB') for i in indices]
        pixel_values_list = [
            self.image_processor(img, return_tensors="pt").pixel_values.squeeze(0)
            for img in images
        ]

        # Get description of target image
        target_caption = self.dataset[indices[target_idx]][f'caption_{random.randint(0, 4)}']

        # Create prompt: "Which image shows {description}? Image 1: [IMG1] Image 2: [IMG2] ..."
        # Answer: "Image {target_idx + 1}"
        prompt = f"Which image shows: {target_caption}?"
        answer = f"Image {target_idx + 1}"
        full_text = f"{prompt} {answer}{self.tokenizer.eos_token}"

        # Tokenize
        encoding = self.tokenizer(
            full_text,
            max_length=self.max_length,
            padding='max_length',
            truncation=True,
            return_tensors='pt'
        )

        input_ids = encoding['input_ids'].squeeze(0)
        attention_mask = encoding['attention_mask'].squeeze(0)

        # Mask prompt
        prompt_tokens = self.tokenizer.encode(prompt, add_special_tokens=False)
        prompt_len = len(prompt_tokens)

        labels = input_ids.clone()
        labels[:prompt_len] = -100
        labels[attention_mask == 0] = -100

        return {
            'pixel_values_list': pixel_values_list,  # List of N images
            'input_ids': input_ids,
            'attention_mask': attention_mask,
            'labels': labels,
        }

# Create datasets
comparison_dataset = ImageComparisonDataset(flickr_dataset, image_processor, tokenizer, num_pairs=800)
selection_dataset = ImageSelectionDataset(flickr_dataset, image_processor, tokenizer, num_samples=400, num_images=3)

print(f"Image comparison pairs: {len(comparison_dataset)}")
print(f"Image selection samples: {len(selection_dataset)}")
print(f"Total multi-image samples: {len(comparison_dataset) + len(selection_dataset)}")

Image comparison pairs: 800
Image selection samples: 400
Total multi-image samples: 1200

# Custom collate function to handle variable number of images

def multi_image_collate_fn(batch):
    """Collate function for multi-image batches.

    Handles variable number of images per sample.
    """
    # Find max number of images in this batch
    max_images = max(len(item['pixel_values_list']) for item in batch)

    # Pad samples with fewer images (use zeros)
    batch_pixel_values_list = [[] for _ in range(max_images)]

    for item in batch:
        num_images = len(item['pixel_values_list'])
        for i in range(max_images):
            if i < num_images:
                batch_pixel_values_list[i].append(item['pixel_values_list'][i])
            else:
                # Pad with zeros
                batch_pixel_values_list[i].append(torch.zeros_like(item['pixel_values_list'][0]))

    # Stack each image position
    batch_pixel_values_list = [torch.stack(imgs) for imgs in batch_pixel_values_list]

    # Stack other fields normally
    input_ids = torch.stack([item['input_ids'] for item in batch])
    attention_mask = torch.stack([item['attention_mask'] for item in batch])
    labels = torch.stack([item['labels'] for item in batch])

    return {
        'pixel_values_list': batch_pixel_values_list,
        'input_ids': input_ids,
        'attention_mask': attention_mask,
        'labels': labels,
    }

# Create dataloaders
from torch.utils.data import ConcatDataset

multi_image_dataset = ConcatDataset([comparison_dataset, selection_dataset])

train_loader = DataLoader(
    multi_image_dataset,
    batch_size=4,
    shuffle=True,
    collate_fn=multi_image_collate_fn,
    num_workers=0,
)

print(f"Total training samples: {len(multi_image_dataset)}")
print(f"Number of batches: {len(train_loader)}")

Total training samples: 1200
Number of batches: 300

# Test the dataloader
batch = next(iter(train_loader))
print(f"Batch pixel_values_list length: {len(batch['pixel_values_list'])}")
print(f"First image batch shape: {batch['pixel_values_list'][0].shape}")
print(f"Input IDs shape: {batch['input_ids'].shape}")

# Decode sample
print(f"\nSample text:")
print(tokenizer.decode(batch['input_ids'][0], skip_special_tokens=True)[:150])

Batch pixel_values_list length: 3
First image batch shape: torch.Size([4, 3, 224, 224])
Input IDs shape: torch.Size([4, 128])

Sample text:
First image: [IMG1] Second image: [IMG2] Describe the second one. Man paddling canoe on green water , with dog in boat .

Part 3: Multi-Image Training

def train_multi_image_vlm(model, train_loader, num_epochs=6, lr=1e-4):
    """Train the multi-image VLM."""

    trainable_params = [p for p in model.parameters() if p.requires_grad]
    optimizer = torch.optim.AdamW(trainable_params, lr=lr)

    model.train()
    model.vision_encoder.eval()

    losses = []

    for epoch in range(num_epochs):
        epoch_loss = 0
        progress_bar = tqdm(train_loader, desc=f"Epoch {epoch+1}/{num_epochs}")

        for batch in progress_bar:
            # Move to device
            pixel_values_list = [pv.to(device) for pv in batch['pixel_values_list']]
            input_ids = batch['input_ids'].to(device)
            attention_mask = batch['attention_mask'].to(device)
            labels = batch['labels'].to(device)

            outputs = model(
                pixel_values_list=pixel_values_list,
                input_ids=input_ids,
                attention_mask=attention_mask,
                labels=labels,
            )

            loss = outputs.loss

            optimizer.zero_grad()
            loss.backward()
            torch.nn.utils.clip_grad_norm_(trainable_params, max_norm=1.0)
            optimizer.step()

            epoch_loss += loss.item()
            progress_bar.set_postfix({'loss': f"{loss.item():.4f}"})

        avg_loss = epoch_loss / len(train_loader)
        losses.append(avg_loss)
        print(f"Epoch {epoch+1} - Average Loss: {avg_loss:.4f}")

    return losses

# Train the multi-image model
losses = train_multi_image_vlm(vlm, train_loader, num_epochs=6, lr=1e-4)

Epoch 1/6: 100%|██████████| 300/300 [04:05<00:00,  1.22it/s, loss=2.6830]

Epoch 1 - Average Loss: 2.1395

Epoch 2/6: 100%|██████████| 300/300 [03:50<00:00,  1.30it/s, loss=2.5269]

Epoch 2 - Average Loss: 1.8581

Epoch 3/6: 100%|██████████| 300/300 [03:53<00:00,  1.28it/s, loss=1.6834]

Epoch 3 - Average Loss: 1.7235

Epoch 4/6:   1%|▏         | 4/300 [00:03<04:35,  1.07it/s, loss=0.9858]

---------------------------------------------------------------------------
KeyboardInterrupt                         Traceback (most recent call last)
Cell In[13], line 2
      1 # Train the multi-image model
----> 2 losses = train_multi_image_vlm(vlm, train_loader, num_epochs=6, lr=1e-4)

Cell In[12], line 33, in train_multi_image_vlm(model, train_loader, num_epochs, lr)
     30 loss = outputs.loss
     32 optimizer.zero_grad()
---> 33 loss.backward()
     34 torch.nn.utils.clip_grad_norm_(trainable_params, max_norm=1.0)
     35 optimizer.step()

File ~/.uv/nb-base/lib/python3.12/site-packages/torch/_tensor.py:625, in Tensor.backward(self, gradient, retain_graph, create_graph, inputs)
    615 if has_torch_function_unary(self):
    616     return handle_torch_function(
    617         Tensor.backward,
    618         (self,),
   (...)    623         inputs=inputs,
    624     )
--> 625 torch.autograd.backward(
    626     self, gradient, retain_graph, create_graph, inputs=inputs
    627 )

File ~/.uv/nb-base/lib/python3.12/site-packages/torch/autograd/__init__.py:354, in backward(tensors, grad_tensors, retain_graph, create_graph, grad_variables, inputs)
    349     retain_graph = create_graph
    351 # The reason we repeat the same comment below is that
    352 # some Python versions print out the first line of a multi-line function
    353 # calls in the traceback and some print out the last line
--> 354 _engine_run_backward(
    355     tensors,
    356     grad_tensors_,
    357     retain_graph,
    358     create_graph,
    359     inputs_tuple,
    360     allow_unreachable=True,
    361     accumulate_grad=True,
    362 )

File ~/.uv/nb-base/lib/python3.12/site-packages/torch/autograd/graph.py:841, in _engine_run_backward(t_outputs, *args, **kwargs)
    839     unregister_hooks = _register_logging_hooks_on_whole_graph(t_outputs)
    840 try:
--> 841     return Variable._execution_engine.run_backward(  # Calls into the C++ engine to run the backward pass
    842         t_outputs, *args, **kwargs
    843     )  # Calls into the C++ engine to run the backward pass
    844 finally:
    845     if attach_logging_hooks:

KeyboardInterrupt:

# Plot training loss
plt.figure(figsize=(8, 4))
plt.plot(range(1, len(losses)+1), losses, marker='o', linewidth=2)
plt.xlabel('Epoch')
plt.ylabel('Loss')
plt.title('Multi-Image VLM Training Loss')
plt.grid(True, alpha=0.3)
plt.show()

Part 4: Test Multi-Image Capabilities

# Test 1: Image Comparison
print("=" * 70)
print("TEST 1: IMAGE COMPARISON")
print("=" * 70)

# Get two random images
idx1, idx2 = 2000, 2005  # Outside training range
img1 = flickr_dataset[idx1]['image']
img2 = flickr_dataset[idx2]['image']
caption2 = flickr_dataset[idx2]['caption_0']

# Process images
pv1 = image_processor(img1, return_tensors="pt").pixel_values.to(device)
pv2 = image_processor(img2, return_tensors="pt").pixel_values.to(device)

# Generate
prompt = "Image 1: [IMG1] Image 2: [IMG2] What's in image 2?"
response = vlm.generate([pv1, pv2], prompt, max_new_tokens=40, temperature=0.7)

# Extract answer
if "image 2?" in response:
    answer = response.split("image 2?")[-1].strip()
else:
    answer = response

print(f"\nPrompt: {prompt}")
print(f"Generated: {answer}")
print(f"GT Caption: {caption2}")

# Show images
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(12, 6))
ax1.imshow(img1)
ax1.set_title("Image 1", fontsize=12)
ax1.axis('off')
ax2.imshow(img2)
ax2.set_title(f"Image 2\nModel: {answer[:50]}...", fontsize=10)
ax2.axis('off')
plt.tight_layout()
plt.show()

======================================================================
TEST 1: IMAGE COMPARISON
======================================================================

Prompt: Image 1: [IMG1] Image 2: [IMG2] What's in image 2?
Generated: A person is with a dog in the mountains .
GT Caption: A backpacker is walking in front of a mountain with arms crossed .

# Test 2: Image Selection
print("\n" + "=" * 70)
print("TEST 2: IMAGE SELECTION")
print("=" * 70)

# Get 3 images
indices = [2010, 2015, 2020]
images = [flickr_dataset[i]['image'] for i in indices]
captions = [flickr_dataset[i]['caption_0'] for i in indices]

# Choose one to describe
target_idx = 1
target_caption = captions[target_idx]

# Process images
pixel_values_list = [
    image_processor(img, return_tensors="pt").pixel_values.to(device)
    for img in images
]

# Generate
prompt = f"Which image shows: {target_caption}?"
response = vlm.generate(pixel_values_list, prompt, max_new_tokens=10, do_sample=False)

if "shows:" in response:
    answer = response.split("shows:")[-1].split("?")[-1].strip()
else:
    answer = response

print(f"\nPrompt: {prompt}")
print(f"Generated: {answer}")
print(f"Correct answer: Image {target_idx + 1}")

# Show images
fig, axes = plt.subplots(1, 3, figsize=(15, 5))
for i, (img, ax) in enumerate(zip(images, axes)):
    ax.imshow(img)
    title = f"Image {i + 1}"
    if i == target_idx:
        title += " ✓ (Target)"
    ax.set_title(title, fontsize=12, color='green' if i == target_idx else 'black')
    ax.axis('off')
plt.suptitle(f"Question: {target_caption[:50]}...\nModel answer: {answer}", fontsize=10)
plt.tight_layout()
plt.show()

======================================================================
TEST 2: IMAGE SELECTION
======================================================================

Prompt: Which image shows: A man in a black jacket with a black beard stares pensively .?
Generated: Image 2
Correct answer: Image 2

Part 5: Save Multi-Image Model

# Save the model
save_dir = "mini-vlm-multiimage"
os.makedirs(save_dir, exist_ok=True)

torch.save({
    'projector_state_dict': vlm.projector.state_dict(),
    'language_model_state_dict': vlm.language_model.state_dict(),
    'config': {
        'vision_model_name': vision_model_name,
        'lm_model_name': lm_model_name,
        'vision_dim': vision_dim,
        'language_dim': language_dim,
    },
}, f"{save_dir}/mini_vlm_multiimage.pt")

tokenizer.save_pretrained(f"{save_dir}/tokenizer")
image_processor.save_pretrained(f"{save_dir}/image_processor")

print(f"Multi-image model saved to {save_dir}/")
print(f"Contents: {os.listdir(save_dir)}")

Multi-image model saved to mini-vlm-multiimage/
Contents: ['tokenizer', 'mini_vlm_multiimage.pt', 'image_processor']

Summary

We successfully built a temporal/multi-image VLM inspired by TEOChat for earth observation:

What We Built

1. Multi-Image Architecture - handles variable number of images
2. Temporally-Shared Encoding - same vision encoder processes all images (following TEOChat)
3. Two Multi-Image Tasks:
   • Image comparison (2 images)
   • Image selection (3 images)

Key Insights from TEOChat

• Shared weights across time - More efficient than separate encoders
• Simple concatenation works - Prepend all images before text as baseline
• Temporal reasoning emerges - Model learns to compare images implicitly
• Synthetic data - Created multi-image tasks from single-image dataset

Architecture Evolution

Single Image: [IMG tokens] [text tokens]
                     ↓
Multi-Image (Ours):  [IMG1 tokens] [IMG2 tokens] [IMG3 tokens] [text tokens]
                     ↓              ↓              ↓
Multi-Image (TEOChat): [IMG1 tokens] <image_1> [IMG2 tokens] <image_2> [text]

Comparison to TEOChat

Feature	TEOChat	Our Model
Temporally-shared encoder	✓	✓
Multi-image	✓	✓
Image identifiers	✓ (<image_1>)	✗ (future work)
Interleaved tokens	✓	Partial
Scale	LLaMA 2 (7B)	SmolLM (135M)
Domain	Earth observation	General images

Limitations

• No image identifiers - Can’t reference specific images by position
• Simple concatenation - Not truly interleaved (images before text)
• Small model - Limited reasoning ability
• Synthetic tasks - Not real temporal or earth observation data

Next Steps (Towards TEOChat-style Architecture)

1. Add image tokens - Implement <image_1>, <image_2> identifiers
2. True interleaving - Insert images at arbitrary positions in text
3. Temporal datasets - Use real change detection or time-series data
4. Video understanding - Treat video frames as temporal sequences
5. Cross-image attention - Let model attend between images explicitly

References

• TEOChat: A Large Vision-Language Assistant for Temporal Earth Observation Data - Figure 2/3 shows temporally-shared encoder architecture
• Building a Minimal VLM from Scratch
• Multi-Task VLM
• Flamingo: Visual Language Models for Few-Shot Learning
• NLVR2: Natural Language for Visual Reasoning
• Spot-the-Diff: Image Difference Captioning

GPU Memory Management

After running this notebook, you may want to free GPU memory before starting another notebook or task.
