Grounded Visual Reasoning on a Mac: a Corridor and a Drone Pan

This is a follow-on to the methodology post on grounded reasoning. The story there: a plain VLM will count, compare, and localise confidently, often wrongly. The fix is to let a segmentation model (here, Falcon Perception) turn pixels into geometry and let the VLM reason over the numbers.

mlx-vlm PR #926 packages exactly that into a six-file drop-in folder, with Gemma 4 as the orchestrator. Inspired by that PR, this post runs two examples end-to-end on an M2 Max:

A still image — a corridor with doors and windows. Plain VLM says 3 vs 3. Grounded agent says 3 vs 4.
A video — a drone pan over a Mexico City highway. Falcon Perception counts cars per frame; a simple centroid tracker follows identities; the whole thing runs locally in ~90 seconds.

Example 1 — Corridor, still image

A photo. Distinct doors down the left wall, window openings down the right. The correct answer is asymmetric, but the visual balance is symmetric, which is exactly the kind of prompt a VLM gets wrong.

Code

from PIL import Image
from IPython.display import display
img = Image.open('mlx_vlm_pr926/outputs/input.jpg')
display(img)

Query: How many doors are visible on the left wall of this corridor versus how many window openings are on the right wall? Give exact counts.

Setup

Code

# One-time install
# !uv pip install -U mlx-vlm

# Drop in the PR's self-contained folder
# !git clone --depth=1 https://github.com/Blaizzy/mlx-vlm.git
# !cp -r mlx-vlm/agents/grounded_reasoning ./mlx_vlm_pr926

Code

import sys; sys.path.insert(0, 'mlx_vlm_pr926')
from mlx_vlm import load
from agent import LocalVLMClient, run_agent, run_baseline

# Perception backbone (~2 GB). Reused across every call below.
fp_model, fp_processor = load('tiiuae/Falcon-Perception')

# Orchestrator VLM — PR recommends gemma-4-26b-a4b-it-4bit.
# I used the dense 31B 4-bit already in my HF cache.
vlm = LocalVLMClient('mlx-community/gemma-4-31b-it-4bit', max_tokens=2048)

Loading orchestrator VLM: mlx-community/gemma-4-31b-it-4bit ...

Baseline — plain VLM

Code

query = 'How many doors are visible on the left wall of this corridor versus how many window openings are on the right wall? Give exact counts.'
print(run_baseline(img, query, vlm))

There are 3 doors visible on the left wall and 3 window openings on the right wall.

3 vs 3. Confident. Symmetric. Also wrong — the right wall has four window openings. Crucially, no evidence surface: no mask IDs, no geometry, nothing to open if you doubt the claim.

Grounded agent — same query

Code

result = run_agent(img, query, fp_model, fp_processor, vlm, verbose=True)
print(result.answer)

────────────────────────────────────────────────────────────
  Grounded Reasoning Agent
  Query: 'How many doors are visible on the left wall of this corridor versus how many window openings are on the right wall? Give exact counts.'
────────────────────────────────────────────────────────────

[Step 1]  [think] Plan: ground "door" left, "window opening" right, compare counts.
          [tool]  ground_expression("door", slot="doors") → 3 masks

[Step 2]  [think] Doors grounded. Now the windows.
          [tool]  ground_expression("window opening", slot="windows") → 4 masks

[Step 3]  [think] slot 'doors': {1,2,3}. slot 'windows': {4,5,6,7}.
          [tool]  answer(supporting_mask_ids=[1..7])

────────────────────────────────────────────────────────────
  Answer: There are 3 doors visible on the left wall and 4 window openings on the right wall of the corridor.
  FP calls: 2   VLM calls: 3
────────────────────────────────────────────────────────────
There are 3 doors visible on the left wall and 4 window openings on the right wall of the corridor.

The agent finished in 3 VLM calls and 2 Falcon Perception calls — wall clock 152 s on an M2 Max.

The two Set-of-Marks images below are what the VLM actually saw between tool calls. The final image is what you would hand back to a user as the receipt.

Code

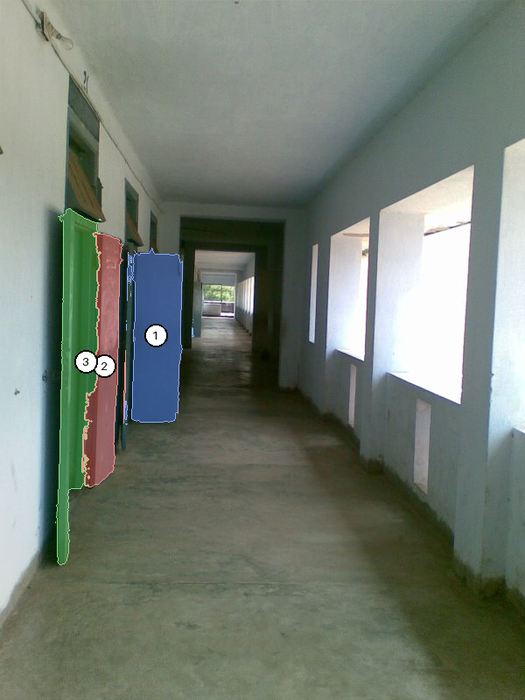

result.trace[0].som_image    # step 1 — 3 doors

Code

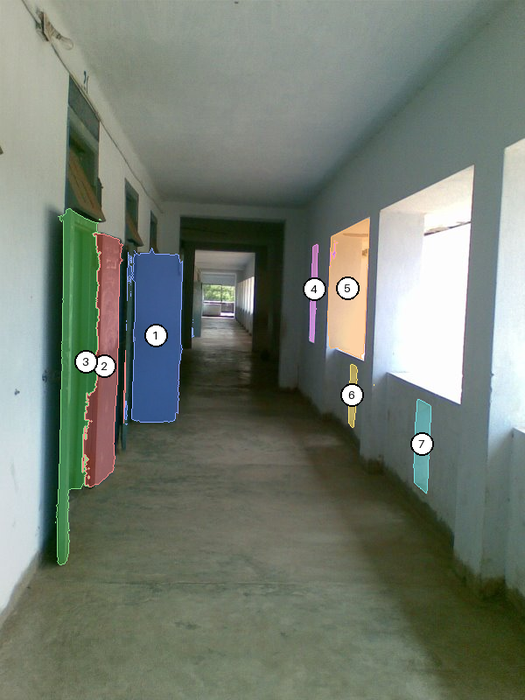

result.trace[1].som_image    # step 2 — doors + 4 windows

Code

result.final_image

Example 2 — drone video over a highway

The PR’s demo notebook stops at single images. But the same plumbing — run_ground_expression per frame, centroid metadata, Set-of-Marks overlays — generalises directly to video. No agent loop required for this one: we loop in Python, call Falcon per frame, and track identities with a tiny centroid matcher.

The clip is a 44-second aerial drone pan over a highway overpass in Mexico City (Mixkit, free license). Six evenly-spaced frames.

Code

# Extract 6 frames from the clip with ffmpeg
import subprocess, os
os.makedirs('mlx_vlm_pr926/video/frames', exist_ok=True)
for i in range(6):
    t = round(i * 44.0 / 5 * 0.6 + 3, 1)   # spread across first ~30 s
    subprocess.run([
        'ffmpeg', '-y', '-ss', str(t),
        '-i', 'mlx_vlm_pr926/video/traffic.mp4',
        '-vframes', '1', '-vf', 'scale=960:-1',
        f'mlx_vlm_pr926/video/frames/frame_{i:02d}.jpg',
        '-loglevel', 'error',
    ])

Image.open('mlx_vlm_pr926/video/frames/frame_00.jpg')

Per-frame grounding

Call Falcon Perception on each frame with the expression "car". Falcon returns masks + centroid + area for every match; we filter anything smaller than 0.015% of the frame (aerial cars are tiny, but sub-that-threshold blobs are overwhelmingly noise).

Code

from pathlib import Path
from fp_tools import run_ground_expression
from viz import render_som

AREA_MIN = 0.00015    # 0.015% of frame — trims tiny false positives
frame_files = sorted(Path('mlx_vlm_pr926/video/frames').glob('frame_*.jpg'))
per_frame = []

for i, fp_path in enumerate(frame_files):
    frame = Image.open(fp_path).convert('RGB')
    masks = run_ground_expression(fp_model, fp_processor, frame,
                                  'car', max_new_tokens=512)
    # Filter tiny detections, renumber 1..N so labels stay readable
    filt = {k: v for k, v in masks.items() if v['area_fraction'] >= AREA_MIN}
    filt = {i+1: v for i, (_, v) in enumerate(filt.items())}
    for nid, m in filt.items(): m['id'] = nid

    render_som(frame, filt).save(f'mlx_vlm_pr926/video/overlays/overlay_{i:02d}.jpg')
    per_frame.append({'frame': i, 'n_raw': len(masks),
                      'n_filtered': len(filt), 'masks': filt})
    print(f'  frame {i}: raw={len(masks)}  filtered={len(filt)}')

[load] Falcon Perception ...
  frame 0: raw=98  filtered=62
  frame 1: raw=92  filtered=49
  frame 2: raw=169  filtered=4
  frame 3: raw=33  filtered=10
  frame 4: raw=44  filtered=14
  frame 5: raw=26  filtered=0

Simple centroid tracker

Between consecutive frames, match each detection to the closest one in the previous frame within a radius of 0.18 (normalised coordinates). Carry the track ID. Unmatched detections start new IDs. This is the rock-bottom tracker — no Kalman, no re-identification — but it is enough to demonstrate that the PR’s per-frame output is the right shape for a tracking pipeline.

Code

def centroid_track(per_frame, max_dist=0.18):
    next_id = 1
    for f_idx, f in enumerate(per_frame):
        f['tracks'] = {}
        if f_idx == 0:
            for m in f['masks'].values():
                f['tracks'][m['id']] = next_id; next_id += 1
        else:
            prev = per_frame[f_idx - 1]
            used = set()
            for m in f['masks'].values():
                cx, cy = m['centroid_norm']['x'], m['centroid_norm']['y']
                best, bd = None, max_dist
                for pm in prev['masks'].values():
                    if pm['id'] in used: continue
                    p = pm['centroid_norm']
                    d = ((p['x']-cx)**2 + (p['y']-cy)**2) ** 0.5
                    if d < bd: bd, best = d, pm
                if best is not None:
                    used.add(best['id'])
                    f['tracks'][m['id']] = prev['tracks'][best['id']]
                else:
                    f['tracks'][m['id']] = next_id; next_id += 1
    return next_id - 1

total = centroid_track(per_frame)
print(f'unique tracks across {len(per_frame)} frames: {total}')

unique tracks across 6 frames: 96

What the counts look like

Code

# Plot raw vs filtered counts over time (code elided in the post)
from IPython.display import Image as NBImage
NBImage('mlx_vlm_pr926/video/count_series.png')

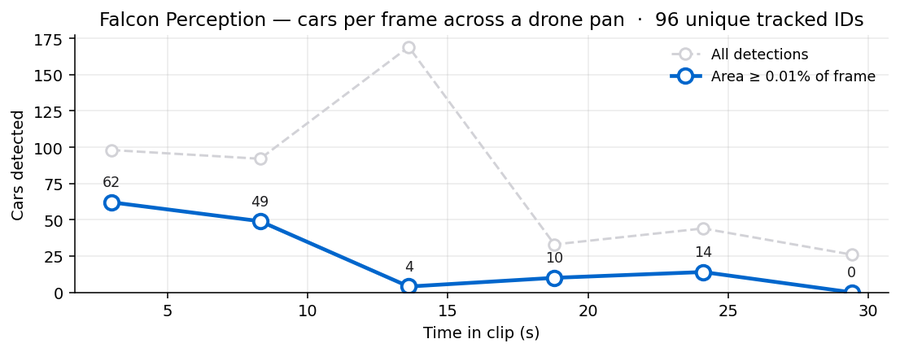

Two things to read off the chart:

The raw count spikes at frame 2 (169). That is Falcon firing on small texture blobs when the drone is high and the scene is mostly rooftops. The area filter (blue line) strips those out.
The filtered count drops to zero at frame 5. The drone has panned past the highway — the frame is now buildings and sky. Zero cars is the correct answer, not a bug.

Six frames, overlaid

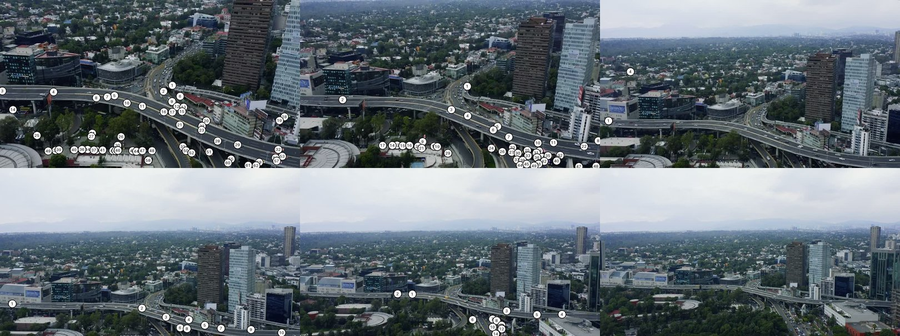

Each detection is a coloured mask with a numbered white pill at the centroid. Stitched 3×2 here to show the drone’s trajectory across the highway.

Code

NBImage('mlx_vlm_pr926/video/grid.jpg')

First frame, zoomed in

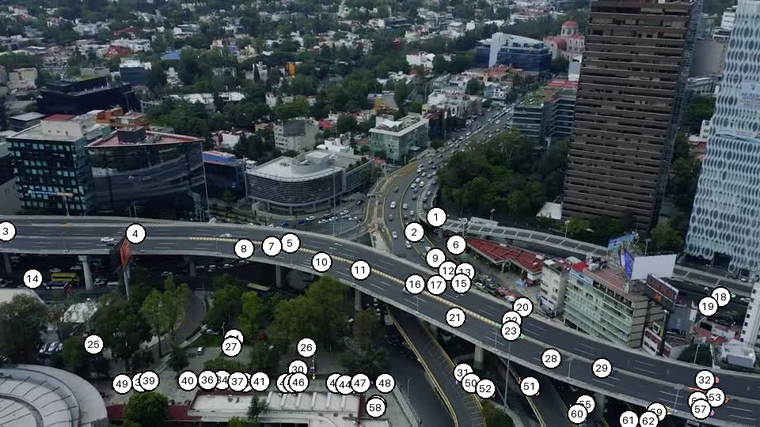

62 cars numbered 1–62. Notice that labels follow the highway curves and the parking strips below — Falcon is doing honest per-object segmentation, not painting a heatmap.

Code

Image.open('mlx_vlm_pr926/video/overlays/overlay_00.jpg')

Burn the overlays back into a video

Same idea, denser frame sampling — 24 frames at ~1.2 fps from the first 21 seconds of the clip — and this time the overlay colour is keyed to the track ID, not the per-frame mask number. So if the tracker successfully re-identifies a car across frames, its colour stays the same. If it fails, each frame’s car gets a fresh ID and a fresh colour.

Code

import subprocess
from pathlib import Path
from fp_tools import run_ground_expression

FRAMES = Path('mlx_vlm_pr926/video/track_frames'); FRAMES.mkdir(exist_ok=True)
for i in range(24):
    t = round(i * 0.85 + 1.0, 2)
    subprocess.run(['ffmpeg', '-y', '-ss', str(t),
        '-i', 'mlx_vlm_pr926/video/traffic.mp4',
        '-vframes', '1', '-vf', 'scale=720:-1',
        f'{FRAMES}/f_{i:03d}.jpg', '-loglevel', 'error'])

# Detect, track, render coloured-by-id overlays, encode to mp4
# (full helper in the post's source — see build_tracked_video.py)
...

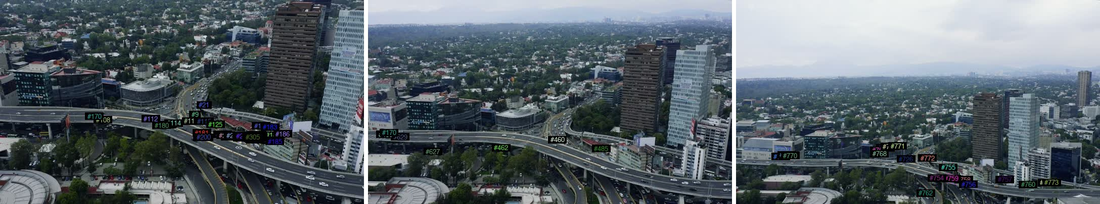

Three frames sampled across the clip — same #173-style track ID format, but observe how rarely a number persists from one panel to the next. The drone is panning fast enough that almost every car earns a new ID.

Code

from IPython.display import Image as NBImage
NBImage('mlx_vlm_pr926/video/track_strip.jpg')

And the stitched MP4 — 24 frames at 5 fps so it plays back in about 5 seconds.

Code

from IPython.display import HTML
HTML('''<video controls loop muted playsinline width="720" src="mlx_vlm_pr926/video/tracked.mp4"></video>''')

24 frames → 773 unique track IDs. That ratio (≈32 IDs per frame, with a fresh ID for almost every car) is the rock-bottom tracker giving up on identity. Two reasons:

The drone pans far enough between sampled frames that a stationary car has moved more than the matching radius (0.10 normalised units) in pixel space.
Cars do enter and leave the frame, so genuinely new IDs are correct sometimes.

A real tracker would need: tighter frame sampling (5–10 fps instead of 1.2 fps), a Kalman filter conditioned on the drone’s pan vector, and an appearance-based re-id step. The point of this version is that the per-frame detection primitive Falcon Perception gives you is the right input to all of those — the rest is conventional tracking-by-detection plumbing.

What this demo does not do

I am deliberately using the rock-bottom tracker to highlight where the boundary is:

Camera motion is not modelled. The drone is yawing; centroids drift even for stationary cars.
No re-identification. If a car passes under the flyover and reappears, it gets a new ID.
No appearance matching. Two red sedans at similar positions are interchangeable to the tracker.

Falcon Perception gives you the detection primitive — a per-frame list of segmented instances with geometry. A real tracker wraps that with Kalman prediction + Hungarian assignment + a small re-id model. The point of this example is that the PR’s plumbing is already correctly shaped for that next layer.

What lands in the PR

Six new files, self-contained under agents/grounded_reasoning/:

File	Purpose
`agent.py`	Agent loop, `LocalVLMClient`, `run_agent`, `run_baseline`
`fp_tools.py`	Falcon Perception wrapper (used directly in Example 2)
`mask_ops.py`	Deterministic spatial ops (`rank_by_x`, `closest_pair`, …)
`viz.py`	Set-of-Marks rendering + final overlay
`demo.ipynb`	Five still-image examples
`README.md`	Usage + sizing

Hardware sizing

Model	RAM	Fits on
`tiiuae/Falcon-Perception`	~2 GB	Always — perception backbone
`mlx-community/gemma-4-26b-a4b-it-4bit`	~14 GB	M3 Pro / Max (recommended)
`google/gemma-4-e4b-it`	~16 GB	M3 Pro / Max
`google/gemma-4-e2b-it`	~5 GB	M3 base (8 GB)

I ran the dense 31B 4-bit on an M2 Max (64 GB). End-to-end: ~150 s for the corridor agent, ~55 s for six frames of Falcon-only detection.
