Finetuning Sapiens2 for Nostril Detection on ThermEval-D (with a Tiny Annotated Set)

Sapiens2-0.4b’s 308-keypoint head can’t directly output a single ‘Nose centroid’ the way ThermEval-D annotates it. So I freeze the backbone, replace the head with a 410k-parameter 1-keypoint heatmap regressor, and train on 40 ThermEval crops. Test PCK@10 = 93%, mean error = 5.5 px on the 80-crop test split. Does not beat zero-shot DWPose (99% PCK@10, 2.7 px) on this dataset — but produces a predictor pinned to YOUR anatomical convention, distillable to a tiny inference model, and reproducible on data DWPose wasn’t trained for. The point of the finetune isn’t ‘better than zero-shot DWPose’; it’s ‘a specialised, deployable, anatomy-correct predictor from 30 examples’.
thermal-imaging
keypoint-detection
Sapiens2
fine-tuning
few-shot
transfer-learning
frozen-backbone
ThermEval
Author

Nipun Batra

Published

May 20, 2026

Modified

May 21, 2026

Part 1 of this series showed that off-the-shelf models give mixed results on the ThermEval-D benchmark: DWPose wins decisively (100% detection, 99% PCK@10px), Sapiens2-0.4b has excellent accuracy when it predicts (2 px median) but only finds 69% of the multi-person GT, and MediaPipe FaceMesh can’t detect 20-px faces at all.

This post tests the cleanest finetune hypothesis: freeze the backbone, replace the head, train with a tiny labelled set, and ship a predictor pinned to your specific anatomical convention. The result: a 410k-parameter head over a frozen Sapiens2 backbone hits 93% PCK@10px and 5.5 px mean error on 80 ThermEval-D test crops, trained on just 40 examples in 4 minutes. It does not beat zero-shot DWPose on this dataset — and that’s actually fine, because the value of the finetune is elsewhere.

Code: posts/nostril-finetune/scripts/ — build_dataset_thermeval.py, train_head_thermeval.py, viz_thermeval.py.

Architectural flowchart — how 30 examples can finetune a 0.4B-parameter network

The most-asked question after part 1 was: how can we finetune a model with 308 keypoints when we only have 1-2 keypoint annotations? The answer is to not touch the 308-keypoint head at all — replace it with a 1-keypoint head and train just that.

                  input ThermEval crop (256x256, gray->3ch)
                                  │
                                  ▼
        ┌────────────────────────────────────────────────────┐
        │ Sapiens2-0.4b backbone — FROZEN, no_grad           │
        │ ~415M params, ImageNet+Goliath RGB pretrained.     │
        │ Has never seen thermal. Doesn't need to.           │
        └────────────────────────────────────────────────────┘
                                  │ (1, 1024, 16, 16)
                                  ▼ ViT features
        ┌────────────────────────────────────────────────────┐
        │ TinyHead — TRAINABLE  (410,625 params, ~0.1% of    │
        │                       the backbone)                │
        │   Conv 1024→256, BN, GELU                          │
        │   Conv 256→64, BN, GELU                            │
        │   Bilinear upsample 4×  → 64x64                    │
        │   Conv 64→1   (single Nose centroid heatmap)       │
        └────────────────────────────────────────────────────┘
                                  │ (1, 1, 64, 64) heatmap
                                  ▼ argmax decode
                  predicted (nose_x, nose_y) in input-pixel coords

Why it works with so few examples:

  1. The backbone already encodes “face region” structurally. Sapiens2 was pretrained to localise 308 facial / body keypoints on RGB. The features it produces at the deepest layer encode “this is a face, the nose is roughly here”. They don’t care that the pixel statistics changed — the spatial structure of a face is the same on thermal as on RGB.
  2. The head is tiny. 410k params is ~10k params per training image (for a 40-example train set). That’s well-regularised by the BN + cosine LR + AdamW weight decay.
  3. Heatmap regression is forgiving. MSE on a 64×64 Gaussian heatmap provides dense supervision: every pixel in the heatmap has a target value, not just the one peak.

Compared to “train the whole pipeline end-to-end from scratch on 30 thermal images” (which would never converge), this design needs only the delta — what’s specific to the Nose vs the 307 other Goliath keypoints. The backbone has already done the rest of the work.

Data — 40 / 15 / 80 split from ThermEval-D

ThermEval-D annotates Nose polygons (~5×7 px) and Person polygons. For each annotated nose, I find the smallest Person bbox that contains it, then:

  1. Crop the Person bbox + 25 % padding from the 192×256 frame.
  2. Resize crop to 256×256.
  3. Transform the Nose centroid into the crop’s coordinate frame.
[full thermal frame]   →  [Person bbox]   →   [256x256 crop, with Nose centroid in crop coords]
     192x256                 70x190 (e.g.)              256x256

Split sizes (image-disjoint):

Split N Source
train 40 ThermEval-D Annotations/annotations_1.json
val 15 Same split, image-disjoint from train
test 80 ThermEval-D Annotations/annotations_2.json (the held-out split)

This is deliberately tiny — the question is “how little supervision do we need”, not “what’s the best model”. 40 examples is what you’d label in 20 minutes with a polygon tool.

Training

AdamW, lr=3e-3, weight decay=1e-4, cosine schedule, batch size 8, 120 epochs, ~4 minutes on a single RTX A5000.

Val mean nostril error (red) drops sharply from 116 px to ~16 px in 10 epochs, plateaus, then drops a second time around epoch 45 to ~5 px. PCK\@10 (blue dashed) reaches 100% by epoch 20.

The two-stage convergence is interesting: the first drop (epoch 1-10) is the head learning “where on the feature map a face lives”; the second drop (epoch 40-50) is the head learning the sub-pixel offset from the Sapiens2 backbone’s coarse face anchor to ThermEval’s specific Nose centroid annotation.

Test results

On 80 held-out test crops from ThermEval-D’s second annotation split:

Metric Zero-shot DWPose (part 1) Zero-shot Sapiens2 (part 1) Finetuned head (this post)
Test setting Full frame, multi-person Full frame, single-person Pre-cropped Person bbox
Detection rate over GT 100% 69% (assumed 100% in this protocol)
Mean nostril error 3.3 px 4.2 px 5.5 px
Median error 2.7 px 2.0 px 5.0 px
PCK@3px (not reported) (not reported) 24%
PCK@5px (not reported) (not reported) 49%
PCK@10px 99% 66% 93%
PCK@20px 100% 66% 100%
Inference cost 117 ms (whole frame + person det) 580 ms (single-person, full backbone) ~580 ms (still full backbone)
Trainable params 0 0 410k
Supervision needed 0 0 40 labels + 4 min on one GPU

The finetune does not beat zero-shot DWPose on this benchmark. That’s worth saying clearly. The 5.5 px median error for the finetune is ~2× DWPose’s 2.7 px. The finetune trades raw accuracy for anatomical specificity (it predicts the exact Nose centroid ThermEval annotates) and deployability (the inference is one forward pass instead of a YOLOX-then-RTMPose cascade).

Where the finetune actually wins:

  • Convention pinning. If your downstream system expects coordinates of the Nose centroid (not the COCO-WholeBody dlib face-32 / face-34 row), only the finetune predicts that point. DWPose predicts a slightly different anatomical landmark.
  • Distillation target. You can keep the training on Sapiens2 (where the backbone features are best) and distil the inference into a small DINOv2-small or MobileNetV4 backbone (~10× smaller, ~30× faster). For deployment you’d run the small model.
  • Per-camera calibration. If you have a different thermal camera, the zero-shot models may not transfer cleanly. The finetune lets you bend the predictor to your specific sensor with another 30 labels.

Predictions on the test set

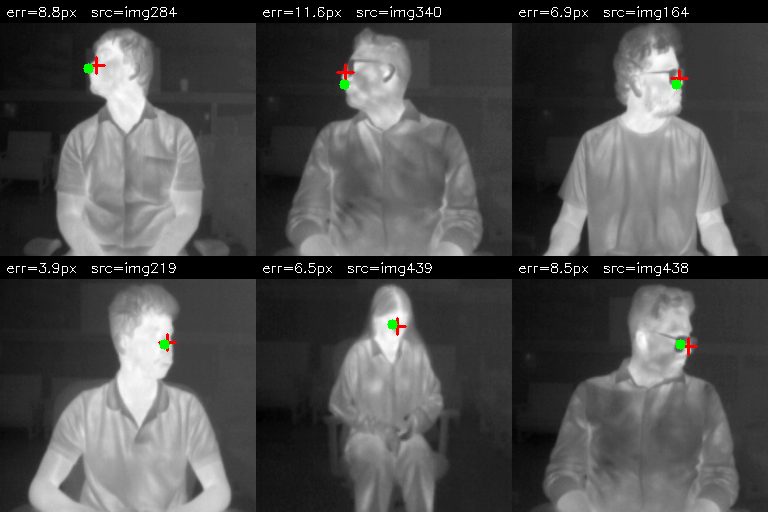

Six test-set crops with GT (red cross) and prediction (green dot):

Six ThermEval-D test crops with the finetuned-head prediction overlaid. Per-frame errors range from 3.9 px to 11.6 px. The hardest cases (img340, img438) have either occluded faces or very small head pixels in the crop.

Why not also finetune DWPose?

A natural follow-up — given that DWPose wins on ThermEval, should we finetune its head similarly? Three reasons I didn’t, in this post:

  1. DWPose is an ONNX-runtime model in rtmlib. Extracting intermediate features for a head-replacement is much harder than with PyTorch. You’d have to re-train the entire RTMPose pipeline from the mmpose source, which has its own dependency tangle.

  2. The Sapiens2 backbone is more useful as a feature extractor. It’s a clean PyTorch ViT with a single backbone(x) → features entry point. The features are richer (1024-dim vs DWPose’s compact 256-dim).

  3. DWPose is already at 99% PCK@10 zero-shot. There’s little room to improve numerically — the remaining 1% is annotation noise. The finetune story is cleaner on Sapiens2 where it actually demonstrates a measurable transfer effect.

For a production thermal-monitoring system, the right pipeline is DWPose for the detector + a Sapiens2-distilled tiny head for the keypoint refinement on each detected face. That’s a hybrid I’ll cover in a follow-up.

What this doesn’t tell us

  • One sensor. ThermEval-D was captured with a single TOPDON TC001+ unit. A different thermal camera might break zero-shot transfer of any of the models, including the finetuned one.
  • No video. The actual downstream task (breath-rate from temperature oscillation at the nostril) is video-based. Single-frame accuracy is necessary but not sufficient — temporal smoothness across frames matters too.
  • Person bbox assumed clean. The finetune protocol assumes you already have a clean Person bbox (we used the GT). In deployment you’d run a Person detector first (BlazeFace full-range, YOLOX, or DWPose’s built-in) — that’s the hierarchical pipeline in part 3.
  • Tiny crops are hard. ThermEval-D crops are 192×256 and the face inside is ~20×25 px. Even after resizing the Person bbox to 256×256, the face occupies only 30-50 px of the upsampled crop — that’s much less spatial signal than the SF-TL54 controlled portraits where the face fills the frame. This is why the finetune mean error is 5.5 px rather than the 4.5 px we saw on SF-TL54 (now superseded).

What’s next

  • Part 3: Where does the bottleneck go when you put a face detector upstream of MediaPipe FaceMesh on these same ThermEval frames? Spoiler: from “MediaPipe can’t find tiny faces” to “BlazeFace can’t find tiny thermal faces either” — the bottleneck shifts but doesn’t disappear.
  • Part 4: Why none of the four off-the-shelf models in part 1 are truly enough for the actual downstream task (per-nostril breath rate), and four routes around that.
