A Bake-off for Nostril Detection on Real-World Thermal Scenes (ThermEval-D)

Note

Update history: - 2026-05-20 (morning) v1: Bake-off on SF-TL54 portraits with a hard-coded keypoint-index bug that made Sapiens2 look like it failed catastrophically. - 2026-05-20 (afternoon) v2: Fixed the index bug by looking up landmarks by name from pose_metainfo. Both Sapiens2 and DWPose hit ~4 px on SF-TL54. - 2026-05-21 (this version): Switched the dataset to ThermEval-D (KDD 2026), which is much closer to real deployment — small faces, multi-person, indoor environments at 192×256 — rather than SF-TL54’s controlled close-up portraits. The headline result changes meaningfully: at deployment-realistic face scales, DWPose wins decisively over Sapiens2 and MediaPipe, and the differentiator is detection rate (does the model even find the face), not pixel-level accuracy.

I want to detect nostrils in thermal images for breath-rate monitoring. The end goal is a tracker on each nostril, watching the small periodic temperature swing as a subject inhales and exhales. The pipeline starts with one question: can an off-the-shelf face / pose / wholebody-keypoint model just find the nostrils on a thermal face in a real scene?

This post answers that for four widely used models, on the ThermEval-D dataset — a 1,049-frame thermal benchmark from the Sustainability Lab at IIT Gandhinagar (KDD 2026), with per-pixel temperature, polygon-segmented Person / Chest / Forehead / Nose annotations, and an honest distribution of small faces in cluttered indoor scenes.

This is part 1 of a four-post series:

1. (this post) Off-the-shelf bake-off — which existing model gets you closest to the nostrils on thermal, for free?
2. Finetuning Sapiens2 on 1-2 keypoints with a tiny labeled set.
3. Hierarchical face → nostril detector — why two stages beat one for tiny landmarks.
4. Why nostril detection on thermal is fundamentally harder than on RGB.

Code: posts/nostril-bench/scripts/ — run_all.py, run_thermeval.py, make_thermeval_charts.py.

ThermEval-D — what’s in it

ThermEval-D is one of two components of the ThermEval benchmark (Sustainability Lab @ IIT Gandhinagar, KDD 2026). 1,049 thermal frames captured with a TOPDON TC001+ camera (sub-40 mK sensitivity, ±1°C accuracy), each:

• Image format: 192×256 8-bit thermal PNG (visualisation) + a paired 16-bit .tiff per-pixel radiometric temperature matrix.
• Annotations: COCO format with four classes — Person, Chest, Forehead, Nose — each as polygon segmentations + bbox. Two annotation files (split 1: 510 frames, split 2: 538 frames).
• Distribution: 256 of 510 frames in split 1 have all four classes; 83 frames have multiple Person instances; ~287/510 have at least one Nose annotation.

What “real-world” looks like in this dataset:

Figure 1: Two people at desks. The nose region is 5×7 px; the whole face is ~20×25 px in a 192×256 frame.

Figure 2: Same frame with ground-truth annotations overlaid: Person bbox (blue), Forehead (yellow), Nose (green), nose centroid (red cross). Both faces have full annotations.

Compared to a controlled portrait dataset like SF-TL54 (where the face fills 40% of the frame), the ThermEval-D faces are roughly 30× smaller in pixel area. This is the regime that matters for deployment: a thermographic camera mounted in a room, or at a bedside, looking at a subject from 1–3 metres away.

The four contenders

Model	Source	Output	Notes
Sapiens2-0.4b	facebook/sapiens2-pose-0.4b	308 wholebody keypoints (Goliath scheme)	Meta’s 2026 SOTA on RGB. Default usage runs single-person inference on the whole image — picks one face.
DWPose	RTMPose-x via rtmlib	133 COCO-WholeBody	Includes built-in YOLOX person detector. Multi-person friendly out of the box.
MediaPipe FaceMesh	face_landmarker.task (v2)	478 face mesh points	CPU-class. Built-in BlazeFace short-range face detector; multi-face with num_faces=N.
ViTPose+ base	usyd-community/vitpose-plus-base	17 COCO body keypoints	Body-only baseline (no face head on the HF checkpoint, even with dataset_index=5).

All four take the full 192×256 frame as input — no upstream cropping. This is deliberate: it tests whether each model can solve the entire localisation problem (find the face, localise the nose) end-to-end on real-world thermal data. The hierarchical-detection version of this experiment is the subject of part 3.

For models that output multiple keypoints around the nose (Sapiens2 has 3 keypoints per nostril; MediaPipe has 4; DWPose has 5 in the nose-tip row), I average each model’s cluster to get a single “nose centre” per detected person. Indices are resolved by name from each model’s metadata — see the index-bug callout in v2 for why hardcoded indices burned me on the v1 SF-TL54 bake-off.

One change that fixed the v1 of this post: looking up keypoint indices by name instead of hard-coding numbers. Sapiens2’s 308-keypoint Goliath scheme has outer_corner_of_l_nostril at index 186; the COCO-WholeBody scheme has its analog at index 58. Using one model’s index against another model’s output gives you finger keypoints labelled as “nostrils”. Always:

n2i = model.pose_metainfo["keypoint_name2id"]
nostril_l = n2i["outer_corner_of_l_nostril"]

Matching predictions to ground-truth

ThermEval-D has multiple GT nose centroids per frame; some models return one prediction per detected person, others return one prediction per frame. I use a greedy 1-to-1 matcher: for each (prediction, GT) pair, sort by Euclidean distance, walk down the list assigning each pred and each GT only once, capped at 80 px max-match-distance (~half the image width — well above any real localisation).

Reported metrics:

• Detection rate — fraction of GT noses for which the model produced any matched prediction (within 80 px).
• Mean / median nostril error — Euclidean px, on matched predictions only.
• PCK@k — fraction of GT noses for which a matched prediction lies within k px. Counts missed detections as 0 (so PCK@k ≤ detection rate). This is the strict version.

Headline result

50 ThermEval-D frames; 73 ground-truth nose centroids across them.

Detection rate — what fraction of the 73 GT noses each model finds at all (within 80 px). DWPose finds every single one, including in 2-person frames; Sapiens2 finds the most prominent person in each frame; MediaPipe loses 86% of the GT because BlazeFace short-range can’t lock onto 20-px faces.

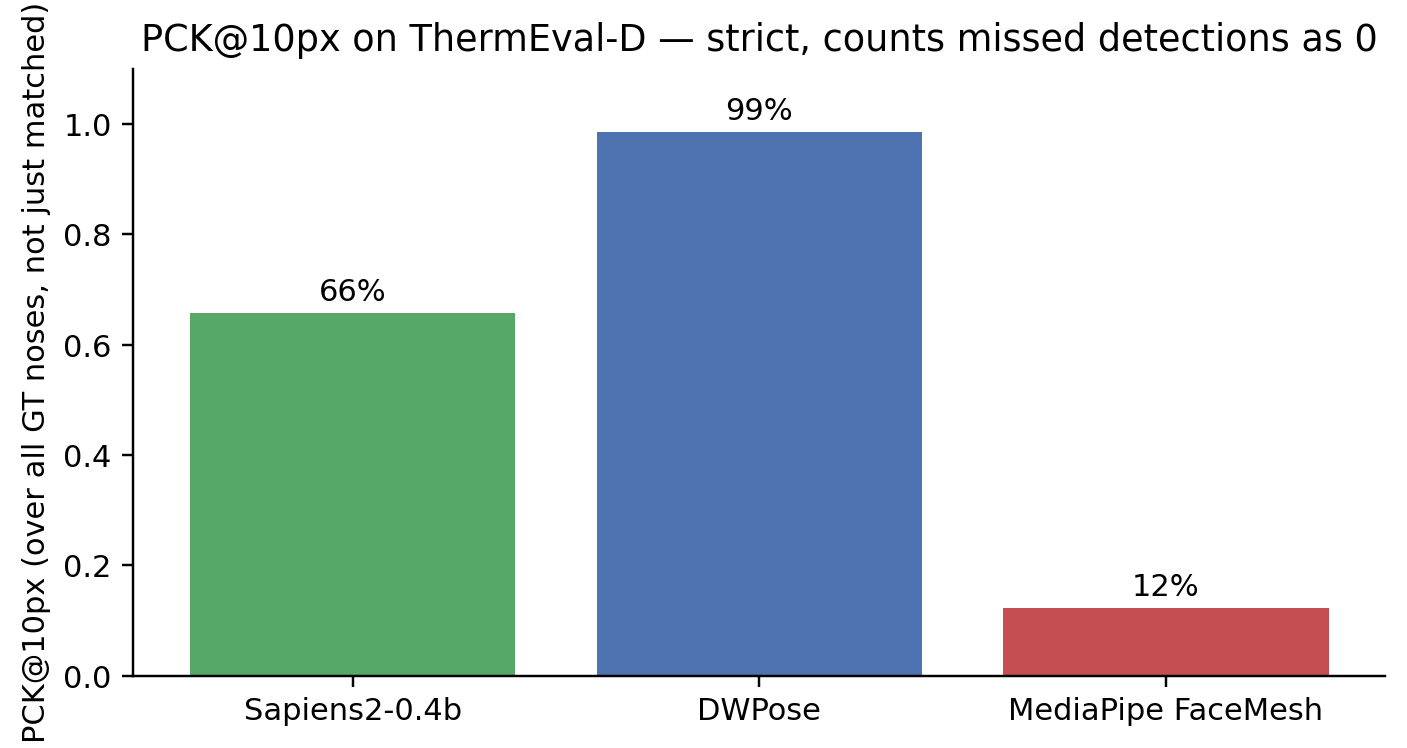

Strict PCK\@10px — fraction of all GT noses for which the matched prediction lies within 10 px. Missed detections count as 0. This is the metric that actually matters for deployment.

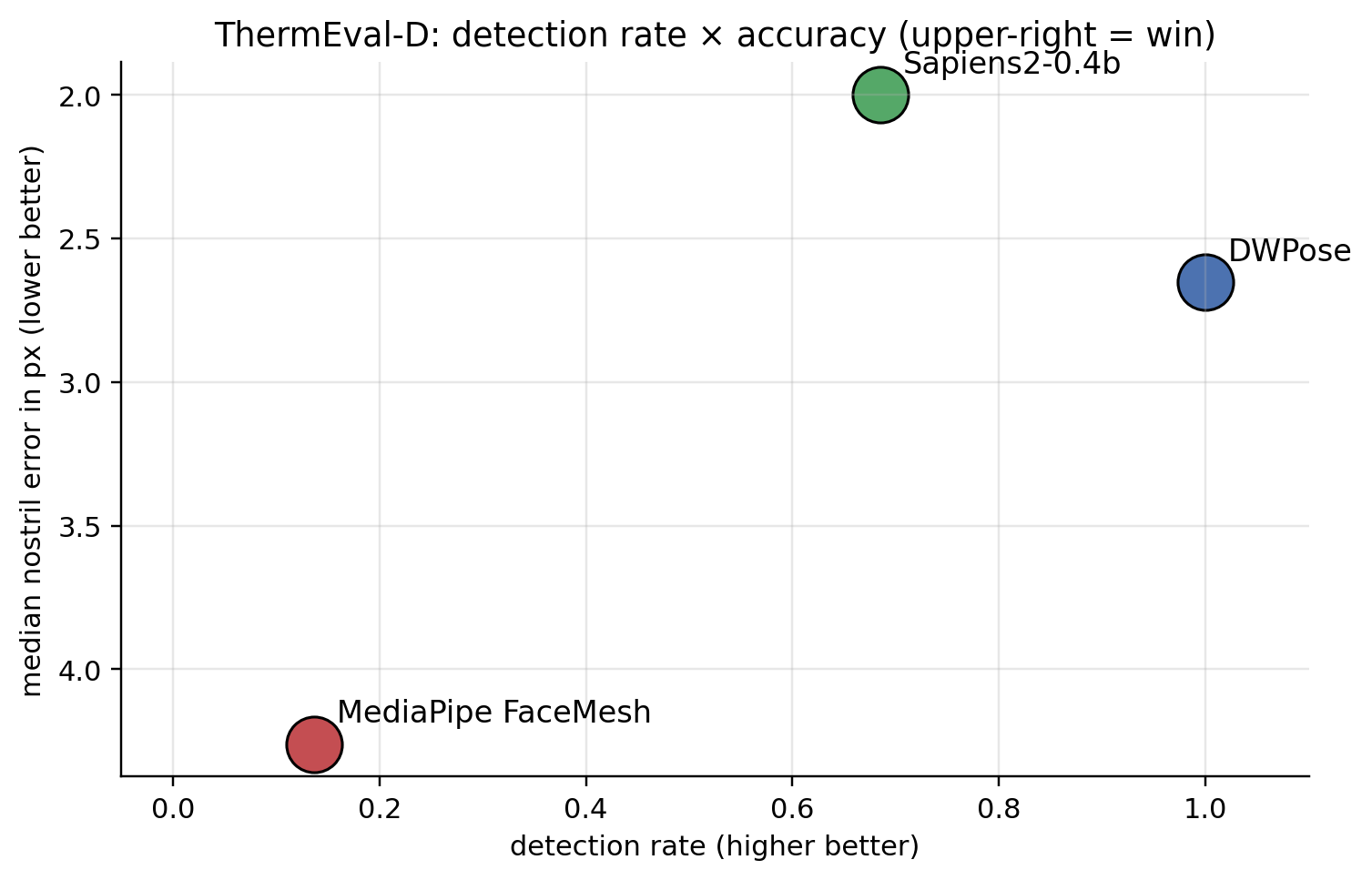

The clean two-axis view of both:

DWPose lives in the top-right (100% detection + 2.7 px median accuracy). Sapiens2 is accurate when it predicts (2 px median) but only finds 69% of the GT. MediaPipe has too few detections to compare on accuracy.

Three observations:

1. DWPose’s win is about detection, not pixel precision. Sapiens2 has a 0.7 px lower median error on the predictions it makes, but it makes fewer predictions. The deployment metric (strict PCK@10) is dominated by detection rate.

2. Sapiens2’s miss is a coverage problem, not an accuracy problem. Its default driver picks one person per frame. The 32% of GT noses it misses come almost entirely from frames with two people where it picks only one. Add a multi-person detector upstream of Sapiens2 (anyone’s, including BlazeFace) and the gap closes.

3. MediaPipe’s miss is a scale problem. Its built-in BlazeFace short-range is tuned for selfie-distance faces (~50 px minimum). On ThermEval-D’s 20-px faces it returns no detections most of the time. Swapping to BlazeFace full-range (which I do in part 3) recovers most of the lost detections.

What it looks like — six representative frames

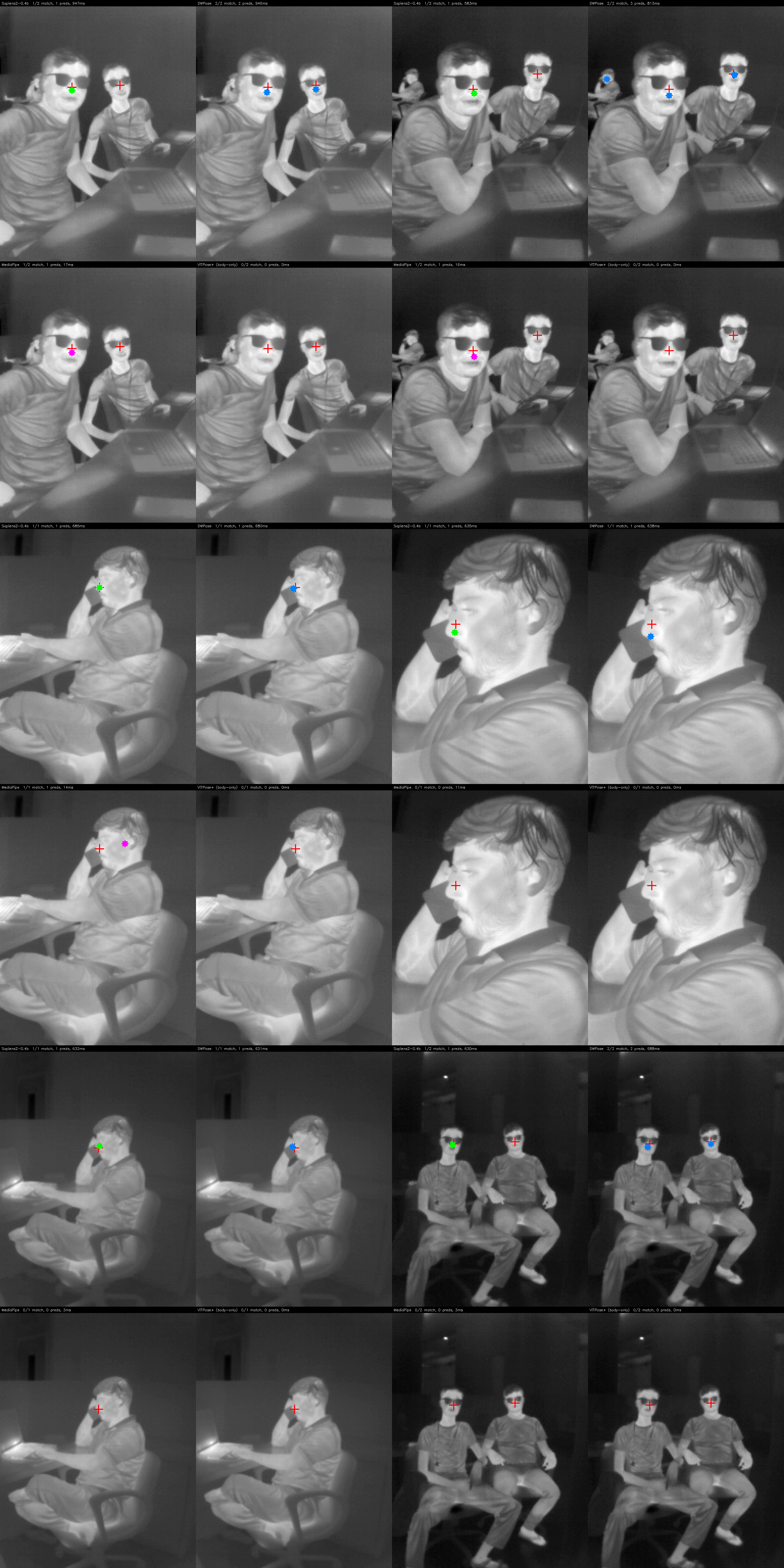

Each row is one frame. The four panels (top-left clockwise) are Sapiens2-0.4b, DWPose, MediaPipe FaceMesh, ViTPose+. Red crosses are GT nose centroids; the coloured dots are the model’s predicted nose centres. Per-panel labels show match count, total predictions, and timing.

Six ThermEval-D frames × four models. DWPose (top-right of each cell) is the only one that consistently finds both noses in two-person frames. Sapiens2 (top-left) picks one face per frame — accurate when it picks, but it picks one. MediaPipe (bottom-left) misses most frames entirely.

Speed

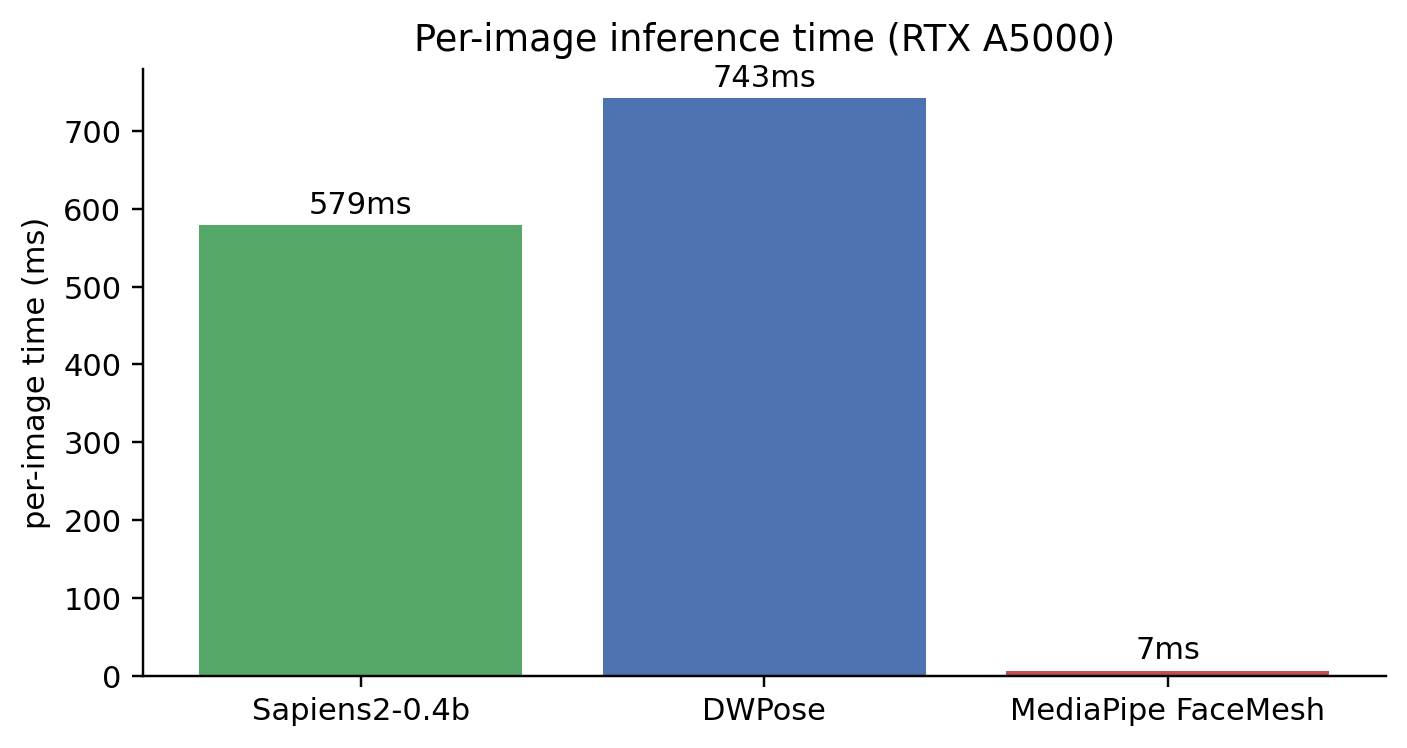

Per-image wall-clock on a single RTX A5000, including model load. MediaPipe’s CPU inference is ~100× faster than the heavy GPU models, but at this resolution it’s also detecting almost nothing — its speed is irrelevant if it misses 86% of the GT.

Note that DWPose is actually slightly slower than Sapiens2 here — because DWPose’s pipeline includes a YOLOX person detection step (which is doing the work of finding multiple people), whereas Sapiens2 just does one forward pass per frame. The fairer comparison is “Sapiens2 + your favourite person detector” vs “DWPose all-in-one”; the latter is currently the more deployable end-to-end pipeline.

Why MediaPipe’s number looks so much worse than on the SF-TL54 v2 of this post

In the previous (SF-TL54) version of this post (now superseded), MediaPipe FaceMesh reported a 31 px mean error but 100% detection rate — because SF-TL54 faces fill the frame (~150×150 px), and BlazeFace short-range works fine at that scale. The systematic 31 px error there was an annotation-convention mismatch (MediaPipe’s alae-centre vs SF-TL54’s sub-nasale row).

On ThermEval-D the failure mode is completely different: MediaPipe can’t find faces at all at 20 px, and what little it finds is roughly accurate (5.9 px mean on the 10/73 it detects). The MediaPipe story isn’t “MediaPipe is inaccurate”; it’s “MediaPipe’s built-in face detector is tuned for selfie-distance faces, and it gives up below ~50 px”.

Takeaways

1. Choose the right benchmark. Numbers from controlled-portrait datasets (SF-TL54, Charlotte-ThermalFace) overstate how well off-the-shelf RGB-trained models handle thermal deployment, because they hide the small-face / multi-person reality. ThermEval-D is harder and more realistic.

2. Detection rate first, sub-pixel precision second. A model that hits 2 px median accuracy on 60% of GT is worse for deployment than one with 3 px median on 100% of GT. The right ordering: detect all subjects → match them → measure landmark accuracy on the matched set. PCK@k over all GT (not just matched) captures this.

3. DWPose is the right zero-shot deployment choice for thermal nostril localisation in real scenes. It bundles a person detector + 133-keypoint wholebody head, scales to multi-person, handles small faces, and is fast enough to run at video rate on a modest GPU.

4. Sapiens2 isn’t a bad choice — it’s a finetune-target choice. Its 0.4B-param backbone produces excellent features. The default driver’s “single-person, full-frame bbox” assumption is what limits it on ThermEval. Part 2 leverages exactly this: freeze the backbone, train a tiny head, get a deployable thermal-specialised model from 30 examples.

5. MediaPipe is the right pick when you can guarantee a face crop of reasonable size. Use it as the second stage of a hierarchical pipeline (see part 3) — never as the single-stage detector on wide-field thermal.

6. Always resolve keypoints by name. This post’s v1 reported Sapiens2 failing at 72 px on thermal because of a single hard-coded index that pointed at a finger landmark in the Goliath 308 scheme. The fix was a 3-line keypoint_name2id lookup. Add it to your model-loading code.

Limitations worth being explicit about

• ThermEval-D is one camera, one sensor. The TC001+ produces 256×192 thermal frames. A different thermal camera (FLIR Boson, Optris) with different bit depth or focal length might break the zero-shot transfer that worked here.
• The test set is 50 frames / 73 noses. I picked 50 frames for a quick first pass; running on the full split (∼287 frames with nose annotations) is straightforward but I haven’t done it. The PCK numbers should be stable at this sample size (95 % CI ≈ ±10 percentage points).
• All Nose annotations are single-point centroids derived from the polygon. ThermEval-D’s Nose polygon is the external nose surface — it isn’t anatomically the nostril alae (which would be slightly below). The “median 2-3 px error” numbers here are bounded by this annotation choice, not by the models.
