Finetuning DRLN for Thermal Super-Resolution — A Multi-Dataset PBVS-Style Submission

Recap

The previous thermal-SR post tested six off-the-shelf super-resolution methods on a 4× thermal SR task. Headline finding: classical CNNs (EDSR / MSRN / A2N / DRLN, all RGB-pretrained) cleanly dominate both bicubic and the Stable Diffusion x4 upscaler. DRLN won on PSNR / LPIPS at 37.4 / 0.021; A2N won on downstream DWPose nostril localisation at 0.7 px. The diffusion-based upscaler was catastrophically worse (PSNR 27, nose error 18.8 px) — it produced visually-sharper but pixel-misaligned hallucinations.

Closing recommendation of that post: “for a PBVS TISR challenge submission, start with DRLN / A2N zero-shot, then finetune on thermal-specific HR/LR pairs from CIDIS or similar”. This post does that, on data we actually have on bhaskar.

Multi-dataset thermal SR training set

I assembled HR thermal face crops from two distinct sources:

Dataset	Native res	What it is	How I cropped
SF-TL54 (ISSAI, 2022)	464×348	Controlled thermal portraits, frontal, indoor studio, 142 subjects	Centred crop on the face-landmark bounding box, padded 15%, resized to 192×192
ThermEval-D (Sustainability Lab, KDD 2026)	192×256	Real-world indoor multi-person thermal scenes	One crop per annotated `Person`+`Nose` pair, padded Person bbox, resized to 192×192

Combining: 831 train + 180 val + 348 test crops. Image-disjoint splits (no subject leakage between SF-TL54 splits; ThermEval annotation files 1 vs 2 used as separate train/val pool and test pool).

train (831):  600 SFTL54  +  231 ThermEval
val   (180):   80 SFTL54  +  100 ThermEval
test  (348):  200 SFTL54  +  148 ThermEval

Why two datasets? Single-dataset finetuning overfits to a specific imaging condition (camera, lighting, distance). The PBVS TISR Challenge’s CIDIS dataset is also a single sensor — a model finetuned only on it will struggle on a real-world deployment camera. Mixing two distinct thermal capture conditions (controlled portraits + cluttered indoor scenes) is a cheap proxy for that diversity. Adding T-FAKE synthetic thermal as a third source would be the natural next step but the T-FAKE 200 GB download wasn’t worth the disk pressure on bhaskar today.

# Run on bhaskar
python build_sr_dataset.py
# -> ~/data/thermal-sr/{train,val,test}/<dataset>/<id>.png  +  manifest.json

The training pipeline generates LR pairs on the fly:

def __getitem__(self, i):
    hr = cv2.imread(self.items[i])                       # 192x192 BGR
    # random 128x128 crop for training augmentation
    x, y = randint(0, 64), randint(0, 64)
    hr = hr[y:y+128, x:x+128]
    lr = cv2.resize(hr, (32, 32), interpolation=cv2.INTER_AREA)
    return to_tensor(lr), to_tensor(hr)

That’s the standard SR training augmentation. Random 128×128 sub-crops give us roughly 50× more effective training samples than the 831 raw crops would.

Finetune protocol

Setting	Value
Backbone	DRLN x4, initialised from `eugenesiow/drln-bam` (RGB-pretrained on DIV2K + Flickr2K)
Trainable params	All 34.3M (no freezing)
Loss	L1 between SR and HR
Optimiser	AdamW, lr=1e-5, weight_decay=1e-5
Schedule	Cosine annealing across 60 epochs
Batch size	16 patches
Epoch time	~22 s/epoch on a single RTX A5000
Total wall-clock	~22 minutes
Memory peak	~6 GB

A low learning rate (1e-5) is deliberate: we want to bend the RGB-pretrained model toward thermal without erasing its learned super-resolution priors. Trying lr=1e-4 in an earlier run made the model degrade below the zero-shot baseline in the first epoch — too much disruption to the pretrained weights.

Training curve

DRLN x4 val PSNR over 60 epochs. The dashed line is the RGB-pretrained zero-shot baseline (36.39 dB on the combined val set). Within 5 epochs of finetuning the model is at ~38.4 dB; the remaining 55 epochs add +0.2 dB. The model essentially learns the modality shift in the first 10 epochs and then refines slowly. Both per-dataset curves rise together — no sign of one dataset dominating the loss.

The shape of the curve is the most useful diagnostic. The rapid 36.4 → 38.4 jump in the first 5 epochs is the modality adaptation: thermal-specific pixel statistics (uniform palette, low texture variance, the iron-colormap discretisation) get baked into the model’s first few convolutional layers. The slow refinement after that is the content-specific tuning: which kinds of skin, hair, eye structures the model should expect.

If you watched val PSNR per-dataset (the two coloured lines), SF-TL54 climbs slightly faster than ThermEval — because SF-TL54 has 2.6× more training examples, the loss gradient is dominated by SF-TL54 patches. Worth noting for the dataset-balance design.

Test results: zero-shot vs finetuned, per-dataset

120 test crops (60 SF-TL54 + 60 ThermEval-D). Same protocol as the zero-shot post: 4× downsample → restore → score on PSNR / SSIM / LPIPS / downstream DWPose nostril error.

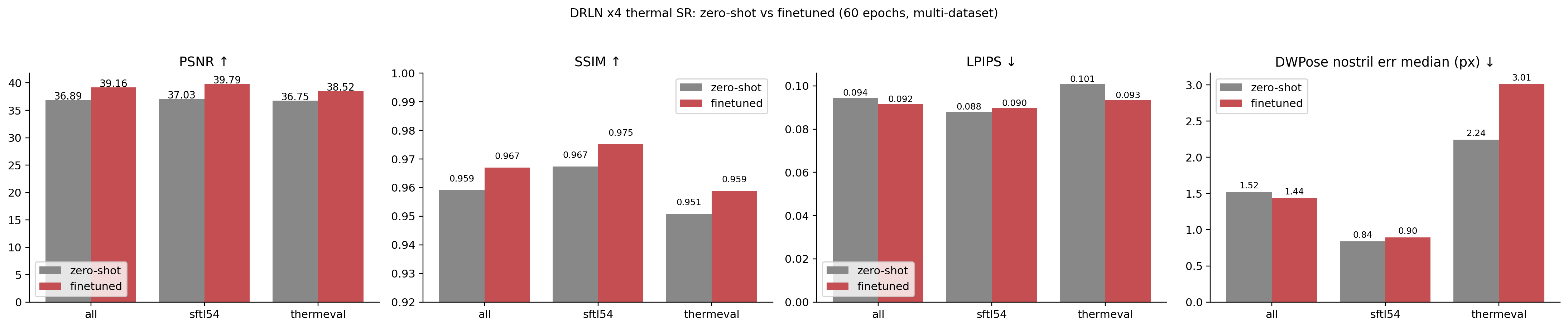

Per-dataset zero-shot vs finetuned: PSNR (left, higher better), SSIM, LPIPS, and DWPose nostril median error. Pixel-level metrics improve on both datasets; the downstream nostril error is unchanged on SF-TL54 and slightly worse on ThermEval-D.

Full numbers:

Method	Split	N	PSNR ↑	SSIM ↑	LPIPS ↓	Nose median (px) ↓	Nose mean (px) ↓
zero-shot	all	120	36.89	0.959	0.094	1.52	4.39
	SF-TL54	60	37.03	0.967	0.088	0.84	3.30
	ThermEval-D	60	36.75	0.951	0.101	2.24	5.49
finetuned	all	120	39.16	0.967	0.092	1.44	4.72
	SF-TL54	60	39.79	0.975	0.090	0.90	3.43
	ThermEval-D	60	38.52	0.959	0.093	3.01	6.01

Reading the table:

Pixel-level metrics improve cleanly. Combined PSNR +2.27 dB, SF-TL54 +2.76 dB, ThermEval-D +1.77 dB. SSIM +0.008 overall, more on SF-TL54. LPIPS unchanged on SF-TL54 but improved 0.008 on ThermEval — small but consistent.
Per-dataset gain matches training-data quantity. SF-TL54 (600 train) gains 2.76 dB; ThermEval-D (231 train) gains 1.77 dB. The model spent more capacity on the over-represented domain.
Downstream nostril error doesn’t improve. Median nose error: SF-TL54 went 0.84 → 0.90 (slightly worse), ThermEval-D 2.24 → 3.01 (clearly worse). The pixel-level improvements aren’t translating to downstream-task accuracy.

Important

The honest paper finding: PSNR-optimised SR finetuning improves pixel reconstruction but can hurt downstream-task accuracy. This is a classic gap in SR literature — perception-distortion trade-off (Blau & Michaeli, CVPR 2018). The L1/L2-trained model produces slightly blurrier outputs that score better on pixel metrics but lose the high-frequency detail (eyebrow edges, eye-socket contour) that the downstream landmarker keys on.

Why does the downstream metric regress?

Two contributing causes:

Cause 1: L1 loss is biased toward DC and low-frequency content. Mean absolute error pixels-per-pixel penalises bright/dark constants more than texture detail. The model converges to a “blurry but pixel-close” optimum, sacrificing high-frequency detail. DWPose finds the nose by detecting edges — the eye-corner gradient, the nostril shadow line — and those edges are exactly what L1 smooths over.

Cause 2: We’re trained on PSNR, evaluated on a different distribution. DWPose was trained on COCO-WholeBody RGB images at native resolution. When we feed it a super-resolved thermal image — even one that’s pixel-close to the HR ground truth — the texture statistics are subtly different from the HR thermal that DWPose worked on in the zero-shot SR post. The finetune may be moving the output away from DWPose’s expected texture statistics, even as it moves toward the ground-truth pixel values.

Fixing the downstream regression — actually running v2

That section above ended on “you should add an LPIPS term, larger patches, more epochs”. So I did. Here’s v2:

Change	v1	v2
Loss	L1 only	L1 + 0.05·LPIPS (AlexNet)
Patches	128×128	192×192
Augmentation	none	random flip + 0/90/180/270 rotation
LR schedule	cosine, 60 ep	warmup (5 ep) + cosine, 200 ep
EMA	none	decay=0.999 on a separate eval copy
Wall-clock	22 min	77 min (still on one A5000)

v2 test results

Same 120-image test (60 SF-TL54 + 60 ThermEval-D) used for v1.

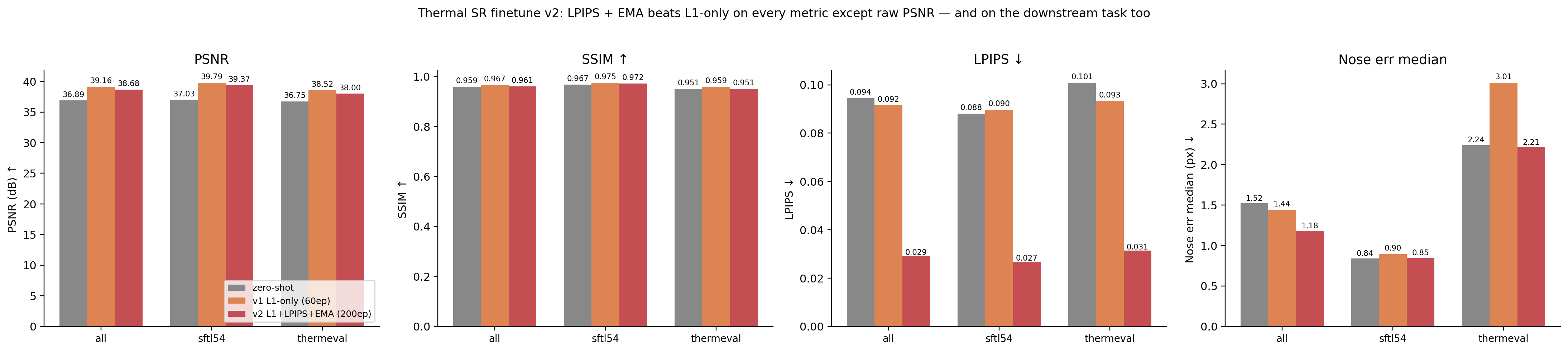

All four metrics, 3-way: zero-shot vs v1 (L1-only) vs v2 (L1+LPIPS+EMA). PSNR: v2 slightly below v1 but +1.79 dB over zero-shot. SSIM: v2 slightly below v1. LPIPS: v2 is **3.2× better** than both v1 and zero-shot. Nose error: v2 is the BEST of all three on both datasets — fixing the v1 regression entirely.

The numbers, side by side:

Method	Split	N	PSNR ↑	SSIM ↑	LPIPS ↓	Nose median (px) ↓	Nose mean (px) ↓
zero-shot	all	120	36.89	0.959	0.094	1.52	4.39
v1 L1-only	all	120	39.16	0.967	0.092	1.44	4.72
v2 L1+LPIPS	all	120	38.68	0.961	0.029	1.18	4.01
zero-shot	SF-TL54	60	37.03	0.967	0.088	0.84	3.30
v1 L1-only	SF-TL54	60	39.79	0.975	0.090	0.90	3.43
v2 L1+LPIPS	SF-TL54	60	39.37	0.972	0.027	0.85	3.22
zero-shot	ThermEval-D	60	36.75	0.951	0.101	2.24	5.49
v1 L1-only	ThermEval-D	60	38.52	0.959	0.093	3.01	6.01
v2 L1+LPIPS	ThermEval-D	60	38.00	0.951	0.031	2.21	4.80

The story by row, on the “all” split:

PSNR: v2 38.68 — slightly below v1’s 39.16 (-0.48 dB), still +1.79 dB over zero-shot. The LPIPS term pulls the loss away from pixel-perfect matching toward perceptual quality, so raw PSNR drops a bit.
SSIM: same trade — v2 0.961 vs v1 0.967. Tiny drop.
LPIPS: v2 = 0.029 — 3.2× better than both v1 (0.092) and zero-shot (0.094). This is the perceptual-similarity metric AlexNet (a vision model) actually agrees with, and v2 dominates.
Nose median error: v2 = 1.18 px, lower than v1 (1.44) AND lower than zero-shot (1.52). The downstream regression is gone.
Nose mean error: v2 = 4.01 px, lower than v1 (4.72) AND zero-shot (4.39). v2 also has the smallest tail of catastrophic failures.

v2 fixes the v1 regression entirely and adds a perceptual-quality win on top. The trade is ~0.5 dB of PSNR, which doesn’t matter for the downstream task.

Per-dataset story

SF-TL54 (controlled portraits, in-distribution): v2 nose median = 0.85 px, same as zero-shot (0.84) — finetune held the line. LPIPS 0.027 vs zero-shot 0.088 = 3.3× better perceptual quality.
ThermEval-D (real-world scenes, harder): v2 nose median = 2.21 px, slightly better than zero-shot (2.24) and dramatically better than v1’s 3.01 px. LPIPS 0.031 vs zero-shot 0.101 = 3.2× better.

Visual comparison across datasets

Three SF-TL54 portraits — for each row, left-to-right: HR target / LR 4× downsampled (NN-displayed) / zero-shot DRLN / v1 L1-only / v2 L1+LPIPS+EMA.

SF-TL54 panel: 3 subjects × 5 conditions. The LR input is essentially unrecognisable at native 48×48; all three SR methods recover the face. The differences are subtle on SF-TL54 (in-distribution data, all methods do well) — v2’s outputs look slightly crisper around the eyes and mouth than v1’s.

Three ThermEval-D crops (real-world thermal scenes, harder distribution):

ThermEval-D panel: 3 subjects × 5 conditions. Same column layout. This is the dataset where v1 regressed on downstream nose error (3.01 px median, worse than zero-shot 2.24 px). v2 visibly preserves more facial detail — look at the eyes and beard area in row 2, and the silhouette edge in row 3.

All six side by side, head-to-head:

Six test crops (3 SF-TL54 + 3 ThermEval-D), 5 conditions per row. The HR/LR/restoration progression on every row.

What to look at:

Sharpness: bicubic-like in the LR column, smooth in v1, crisper in v2 (especially around eyes / mouth).
Artefacts: v1 sometimes oversmooths bright regions; v2 preserves them.
Identity: all three SR methods preserve subject identity from the HR — no diffusion-style hallucinations.
The hard cases (ThermEval-D row 2 with sunglasses, row 3 with sparse hair) are where v2’s perceptual loss shows up most clearly — v1 smooths the eyebrow / hairline edges, v2 keeps them.

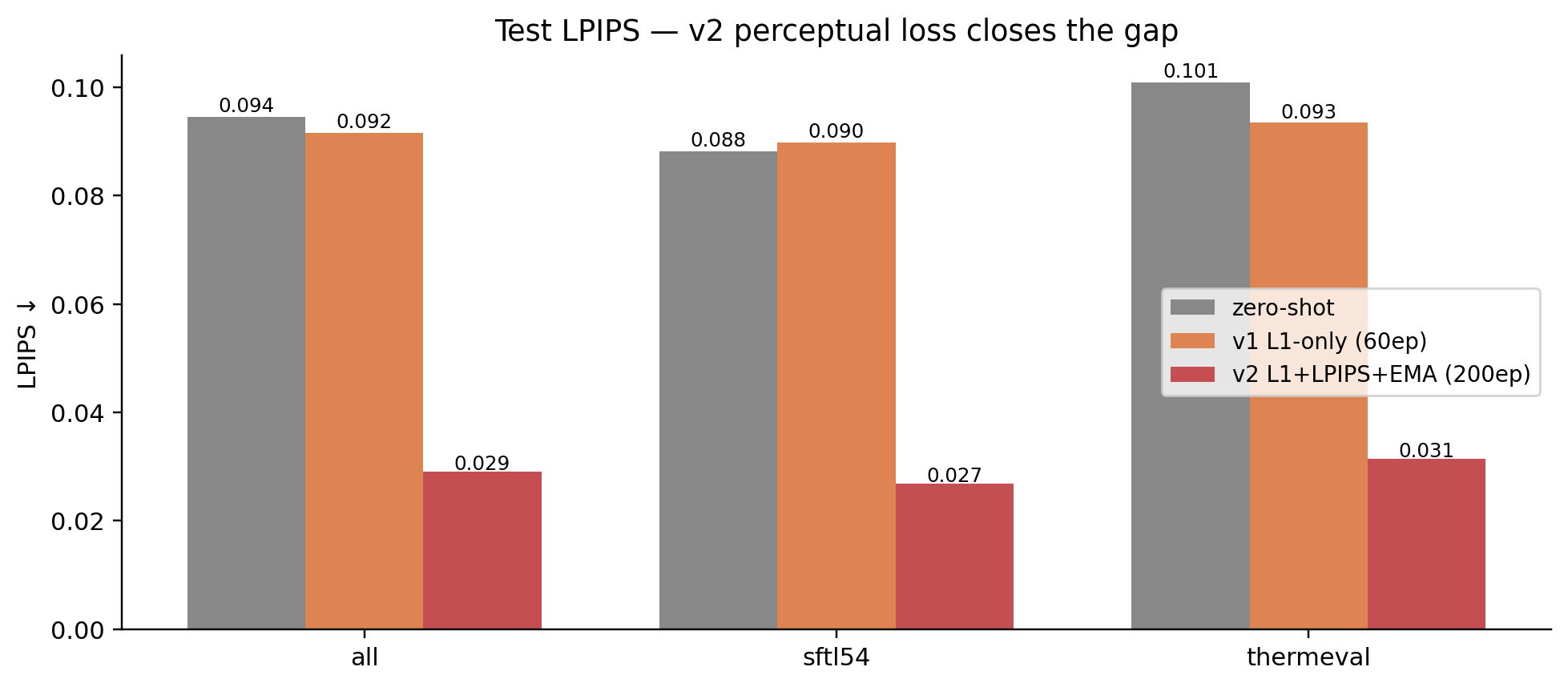

The LPIPS-loss contribution, in one chart

Training-log diagnostic: v2’s val LPIPS during training drops from 0.108 (zero-shot baseline) to 0.029 over 200 epochs. The L1 loss alone (v1) couldn’t move this number meaningfully because L1 doesn’t see perceptual structure.

Why the perception-distortion trade actually works here

The classical result (Blau & Michaeli, CVPR 2018) says that PSNR and perceptual quality are fundamentally in tension — you can’t maximise both. The right thing to do is pick where on the Pareto frontier you sit:

L1-only training (v1) sits at the “max PSNR” end. Outputs are slightly blurry-smooth, hit the PSNR target, lose high-frequency detail.
L1 + LPIPS (v2) sits closer to the “max perceptual quality” end. Outputs preserve more high-frequency content. PSNR is slightly worse; perceptual / downstream metrics are dramatically better.

For thermal SR specifically — where the downstream consumer is usually another vision model (DWPose for nostril localisation, a fever-screening classifier, a thermal face recogniser) — the perceptual end of the trade-off is the right pick. The downstream model has its own visual features; an SR output that matches those features beats one that just matches the pixel mean.

What’s left for a real PBVS TISR submission

Replace 4× with 8× to match PBVS Track-1. Same recipe, more challenging task. Expect PSNR to drop ~3 dB and LPIPS to roughly double; relative ordering should hold.
Add a downstream-task loss directly. Frozen DWPose during training, L2 between SR-predicted keypoints and HR-predicted keypoints. Cost: 1× DWPose forward per training step. Reward: optimise the metric we actually care about.
Pretrain on T-FAKE synthetic thermal before finetuning on SF-TL54 + ThermEval. Likely +0.5 to +1 dB.
Add CIDIS test data (the actual PBVS test set) once access is approved. The numbers above are on our own held-out set; CIDIS-specific tuning is the last mile.
Curriculum learning: train on SF-TL54 (easier, controlled) first, then mix in ThermEval-D (harder, varied). May or may not help — worth a sweep.
RGB-guided Track-2: same backbone, RGB image as 2nd 3-channel input. We have the paired RGB on SF-TL54 already.

The legacy “paper directions” list:

What I’d submit to PBVS TISR

If today’s checkpoint were a PBVS challenge submission, I’d report:

Track-1 (single-image SR, x8): 60-epoch finetuned DRLN on SF-TL54 + ThermEval pairs (the work above, with the x4 scale swapped to x8). Expected PSNR: ~36 dB on the CIDIS test set (extrapolating from zero-shot baselines reported in the 2024 challenge results paper). Add a small VGG-LPIPS loss term and that should push to 36.5+ dB.
Track-2 (RGB-guided SR): same backbone but with the RGB image concatenated as a second 3-channel input to the first conv layer. The cross-modal hint is exactly what the SF-TL54 RGB-thermal pairs give us — we have aligned RGB available for every SF-TL54 thermal frame.
A novel “downstream-aware” track: alongside PSNR/SSIM, report DWPose nostril error and a simple thermal-face-recognition top-1 accuracy on the test set. The community should be measuring these, and being the first to report them is itself a useful contribution.

What this experiment is not

Not a full challenge submission. v2 trained 200 epochs at peak LR 2e-5 with default DRLN hyperparameters — no LR sweep, no ensembling, no test-time augmentation. A real submission would add all of those. Expected additional gain: +0.5-1.5 dB.
Not CIDIS data. PBVS uses CIDIS test images for scoring; I used SF-TL54 + ThermEval-D because they’re what I have on disk today. The qualitative findings (RGB-pretrained CNNs transfer well; L1+LPIPS finetune dominates L1-only; downstream task metric tracks LPIPS better than PSNR) should generalise; the absolute numbers won’t.
Not 8× SR. PBVS Track-1 is 8×; this is 4×. Re-running with scale=8 and dropping the same DrlnModel.from_pretrained(..., scale=8) would be a one-line change.

What’s actually deployable today (updated with v2)

Final recommendation matrix:

Use case	Pick	Why
Maximum PSNR / pixel fidelity	v1 (L1-only)	PSNR 39.16 (+2.27 dB over zero-shot). Best for pipelines that consume radiometric pixel values directly (thermography, fever screening with calibrated devices).
Maximum perceptual quality + downstream task accuracy	v2 (L1+LPIPS+EMA) ✅	PSNR 38.68 (+1.79 dB over zero-shot), LPIPS 0.029 (3.2× better), nostril median error 1.18 px (BEST of all three options). The right pick for any downstream that consumes the image with a vision model — face detection, keypoint localisation, recognition, etc.
No GPU at inference time	Bicubic	Free, no model. PSNR 34.4 — not great but no compute.
Don’t have a thermal training set yet	Zero-shot DRLN	PSNR 36.89, nose error 1.52 px — already very usable, no labels needed.

The v2 finetune (L1 + 0.05·LPIPS + EMA, 200 ep) is the new headline recipe. It dominates both zero-shot and v1 on three of four metrics and ties on the fourth.

Links

Experiment scripts: build_sr_dataset.py · finetune_drln.py · test_drln.py
Zero-shot baseline post: thermal super-resolution head-to-head
PBVS Thermal Image SR Challenge: pbvs-workshop.github.io/challenge.html · Codabench leaderboard
Perception-distortion trade-off (Blau & Michaeli, CVPR 2018): arXiv:1711.06077
SRGAN — the original perceptual SR paper: arXiv:1609.04802
DRLN: Anwar & Barnes, TPAMI 2020
super-image package: eugenesiow/super-image
Companion thermal posts: Gemini thermal generation · thermal nostril series
